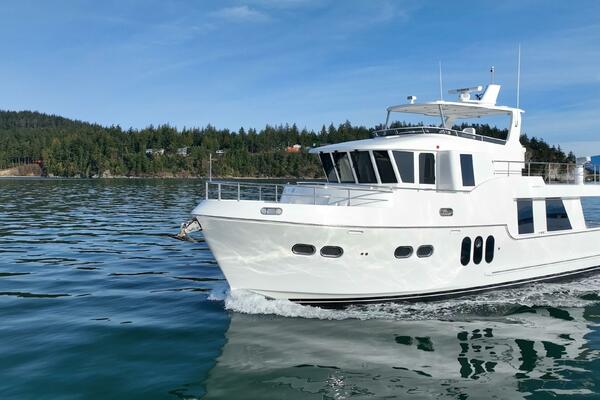

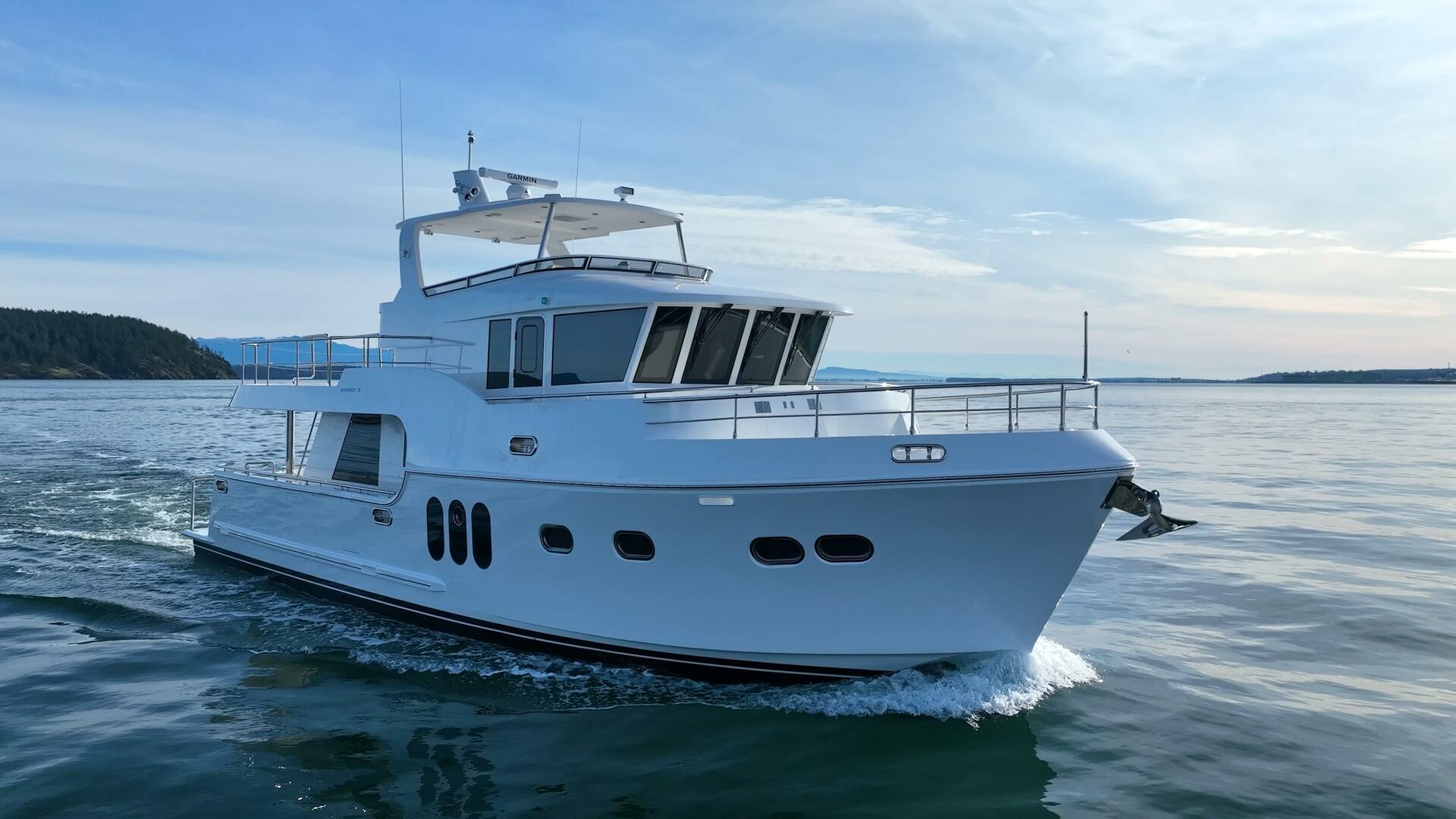

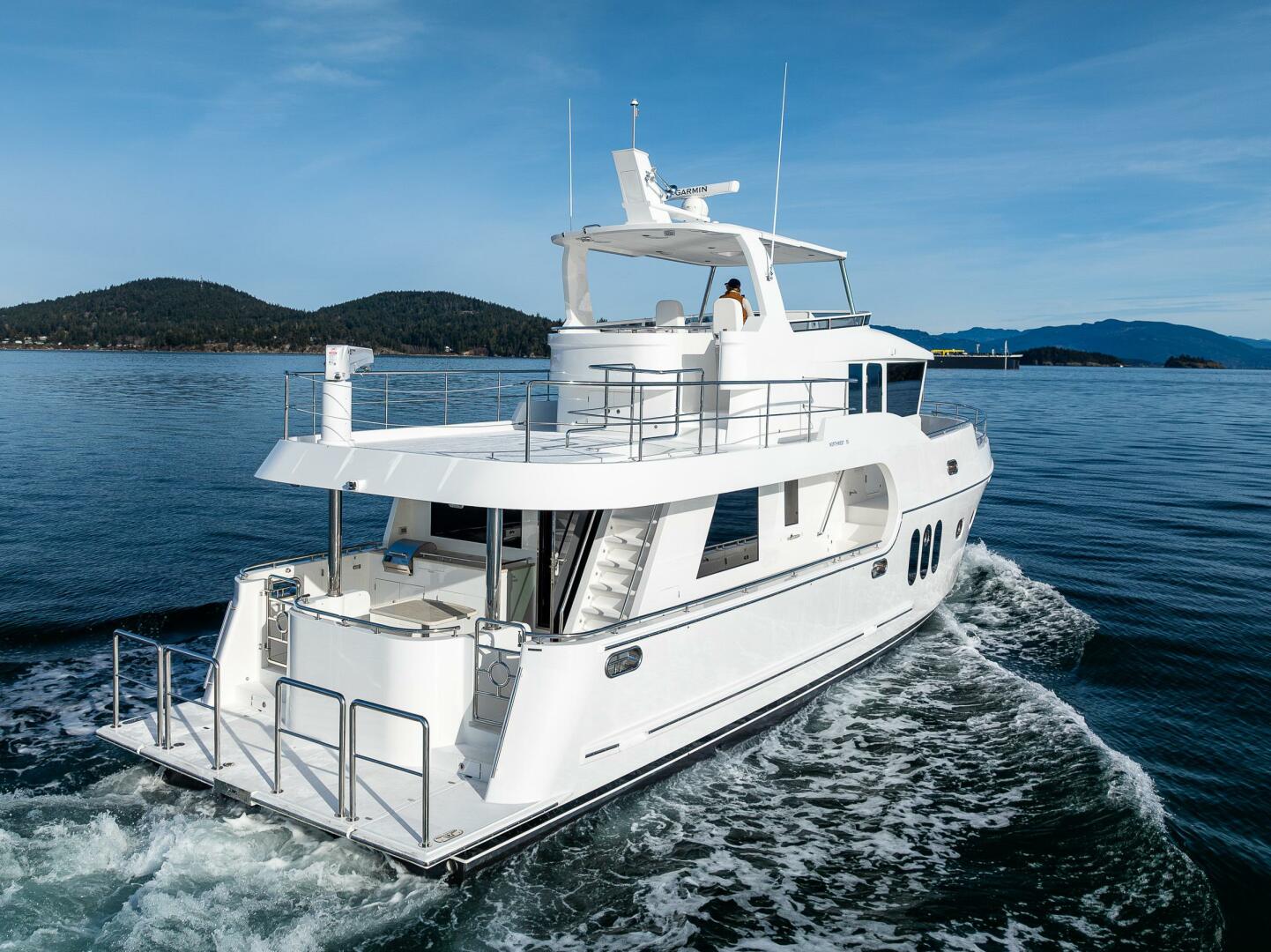

2025 Northwest 55' _{(16.76 m)} 55 #03

STANDARD EQUIPMENT LIST

HULL AND SUPERSTRUCTURE

• Hull and deck of vacuum bagged composite construction
• Hull color - Ferro gelcoat, white
• Superstructure - Ferro gelcoat, white
• Scuppers on aft, starboard side, foredeck to common drain lines
• Watertight bulkheads (3)
• Floors, decks and major bulkheads are composite construction and laminated to hull
• Hull reinforced for stabilizers
• Four (4) layers of vinyl ester resins used in construction to minimize chance of blisters
• Black anti-fouling paint
• Painted boot stripe
• Cap rails of composite material and finished in choice of colors
• Rub rails - integral to hull with solid stainless half round strakes (2)
• Overhead LED deck lighting (24vdc) on exterior walk and outside pilothouse
• Exterior doors - Diamond Sea Glaze (or equivalent), white with matching locks
• Equipment manuals include wiring and piping diagrams
• All opening portlights to be stainless with screens Manship or equivalent

Boat Deck, Flybridge, Portuguese Bridge, and Foredeck

• Portuguese bridge includes storage locker and 110VAC GFI outlet
• Flybridge area over pilothouse with steering and engine controls
• Deck rails of 1.5” stainless steel with 1” stanchions on boat deck and foredeck
• Deck rails of stainless steel with stanchions around Portuguese bridge
• Radar Arch - FRP with provisions for electronic antennas
• Steelhead Davit ES1100lb capacity
• Dual chrome trumpet air horn
• Aqua Signal series 45 International navigation lights
• Molded anchor shelf for stainless steel frame and bow roller
• Freshwater and seawater wash downs on foredeck
• Opening deck hatch over forward stateroom berth - Lewmar Ocean Series 60 or equivalent
• Maxwell RC2500 vertical windlass with up/down switch at bow and pilothouse
• Anchor - Rocna 88 lb.
• 400’ of 3/8” HT galvanized chain
• Molded seat in center of Portuguese bridge with cushion

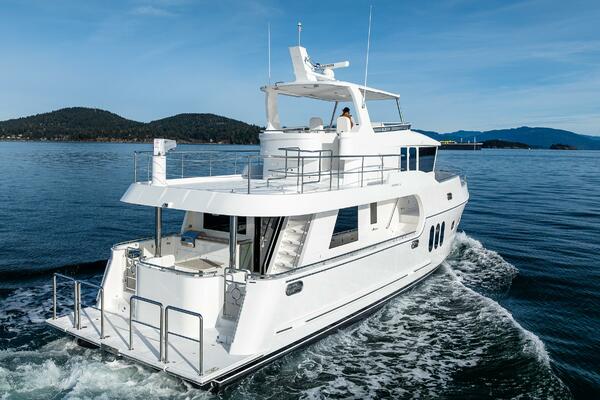

Aft Cockpit, Side Deck, and Swim Step

• Large hinged lazarette hatch with gas shock
• Transom and port side gates with hinge and latch assemblies
• Aft cockpit cabinet with solid surface counter top, stainless sink, extendable hot & cold sprayer,
• 110 volt GFI duplex outlet
• Sliding or swing style starboard side salon door of Diamond Seaglaze (or equivalent)
• Sliding or swing style aft salon door to cockpit of Diamond Seaglaze (or equivalent)
• Mooring cleats on port & starboard side of transom bustle
• Water fill
• 50 amp shore power receptacle in aft and fwd deck
• Glendinning cable master system - 1X

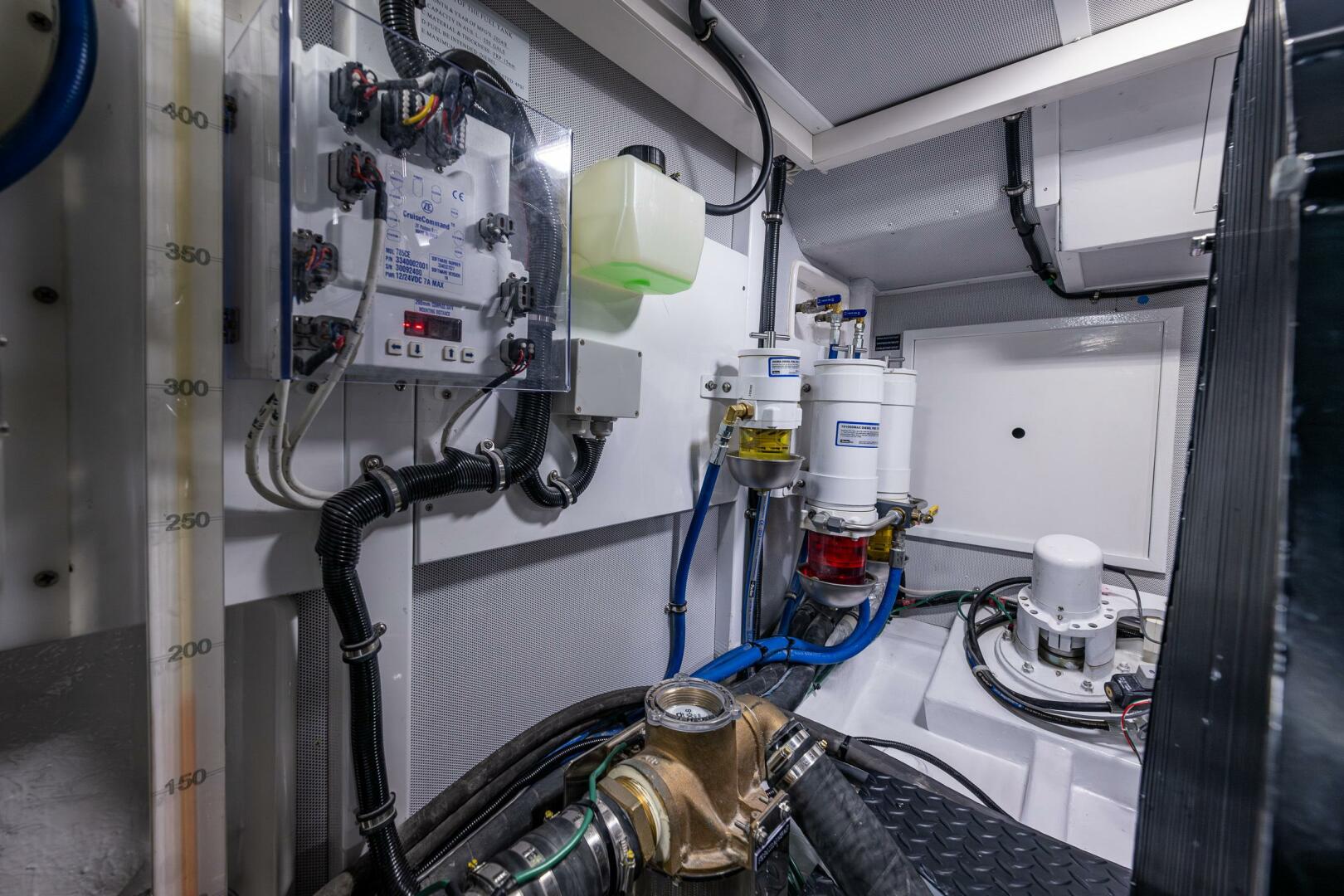

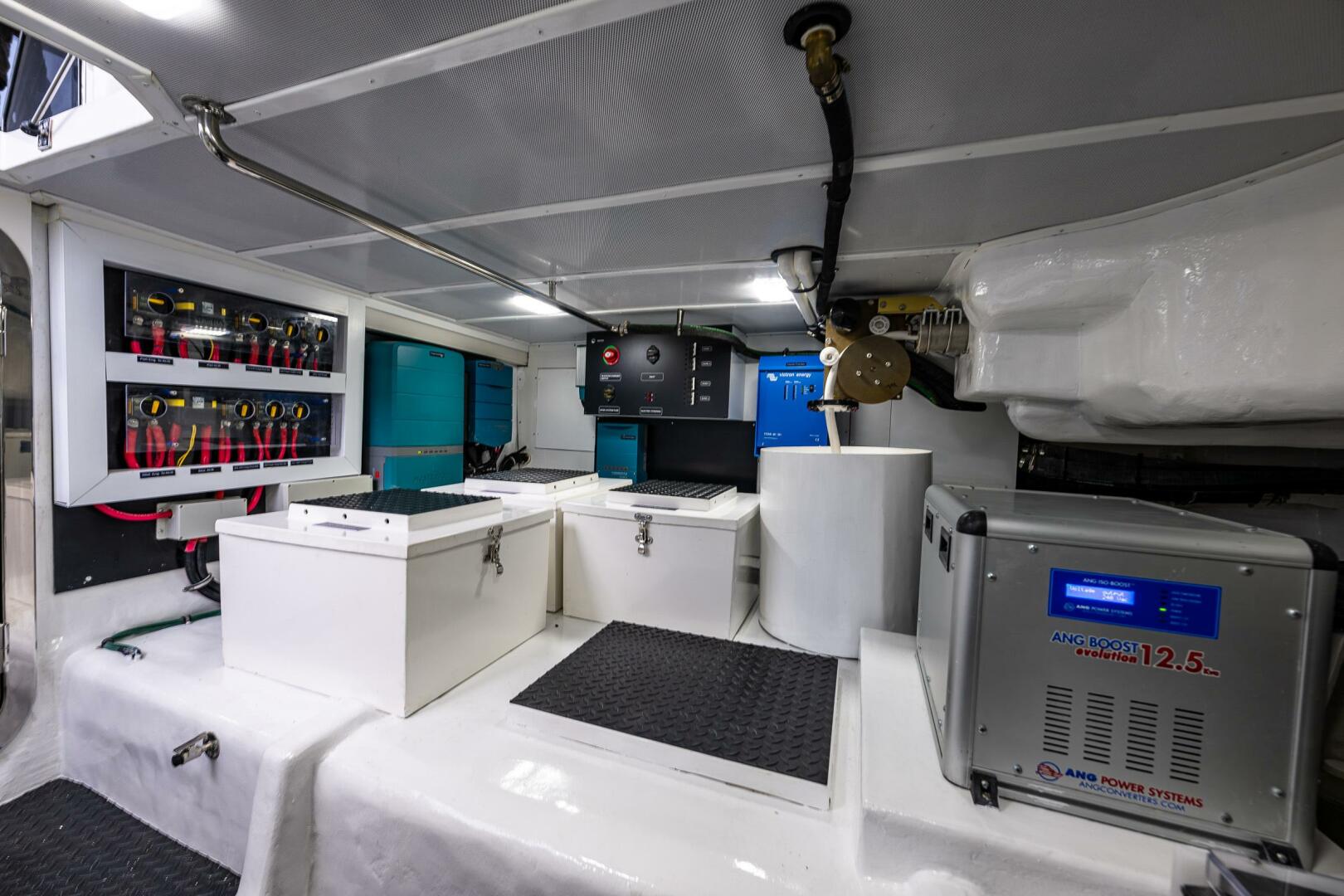

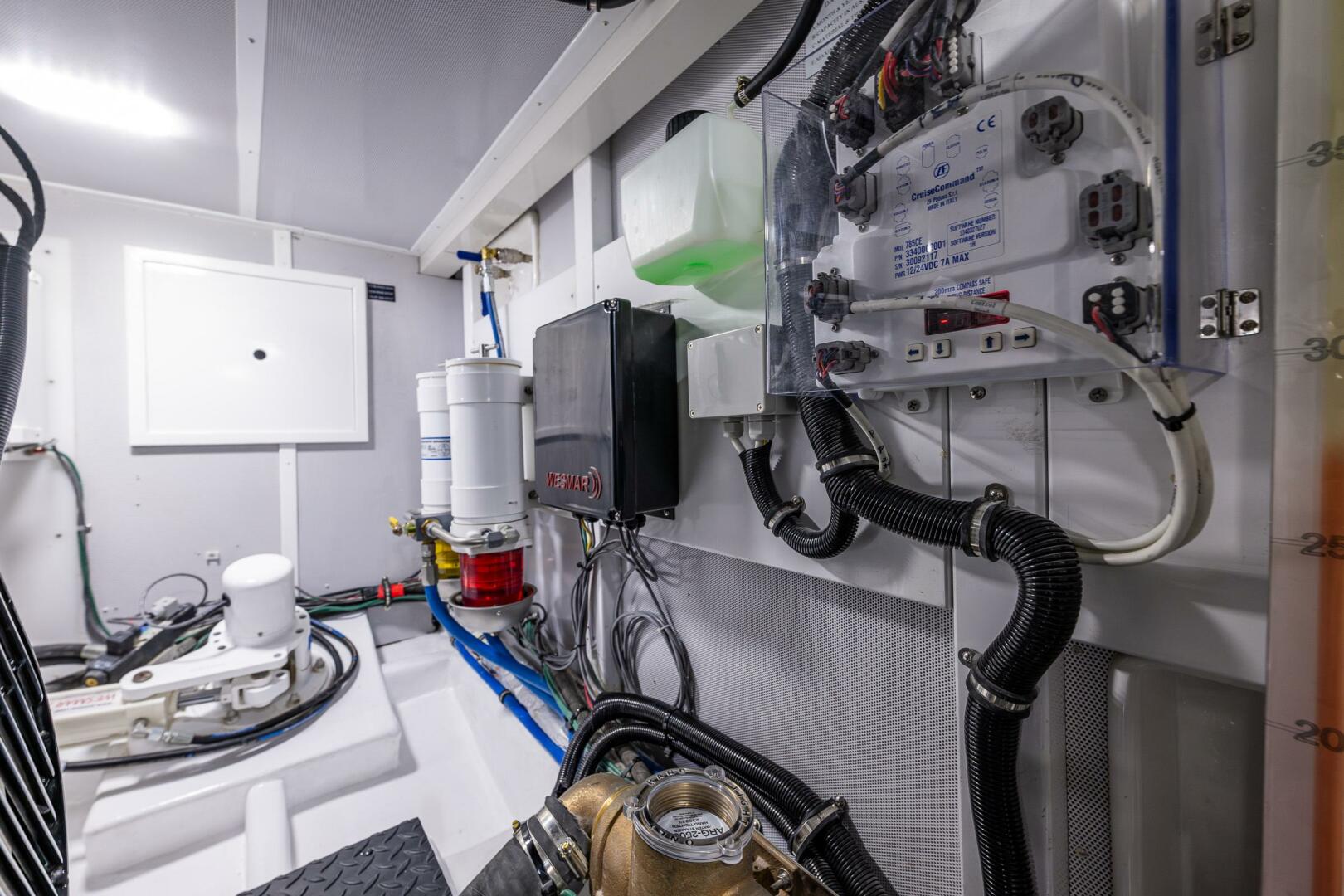

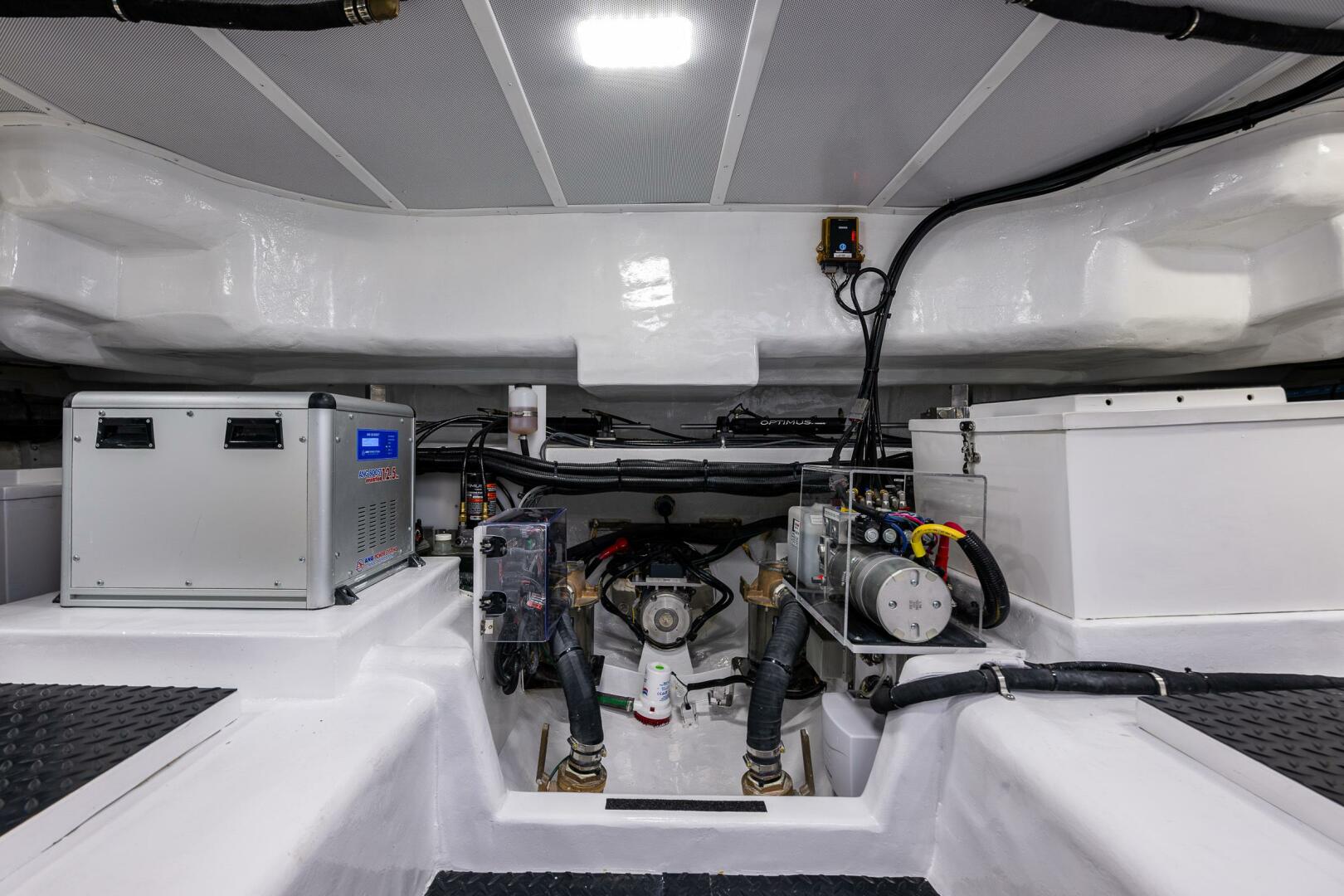

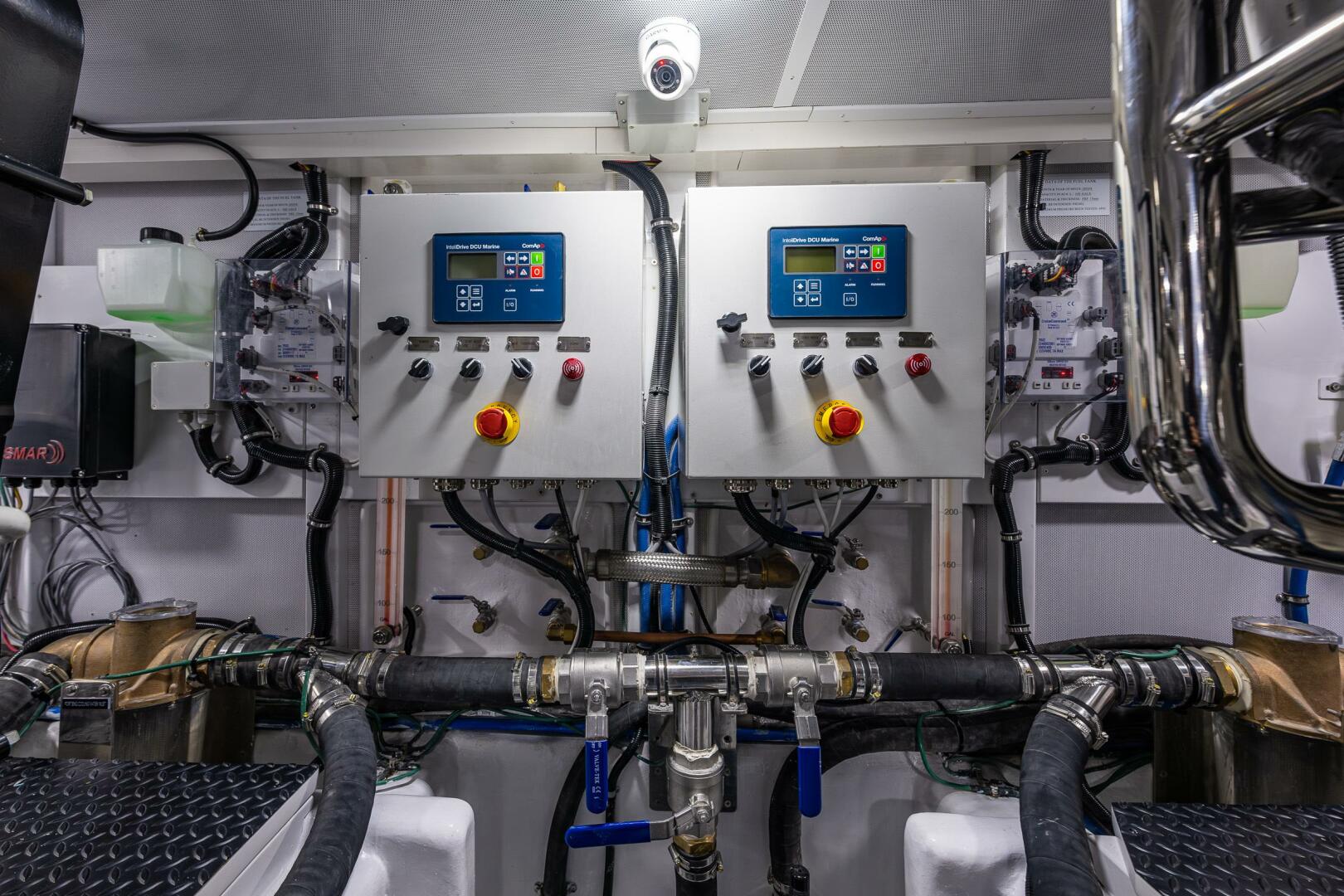

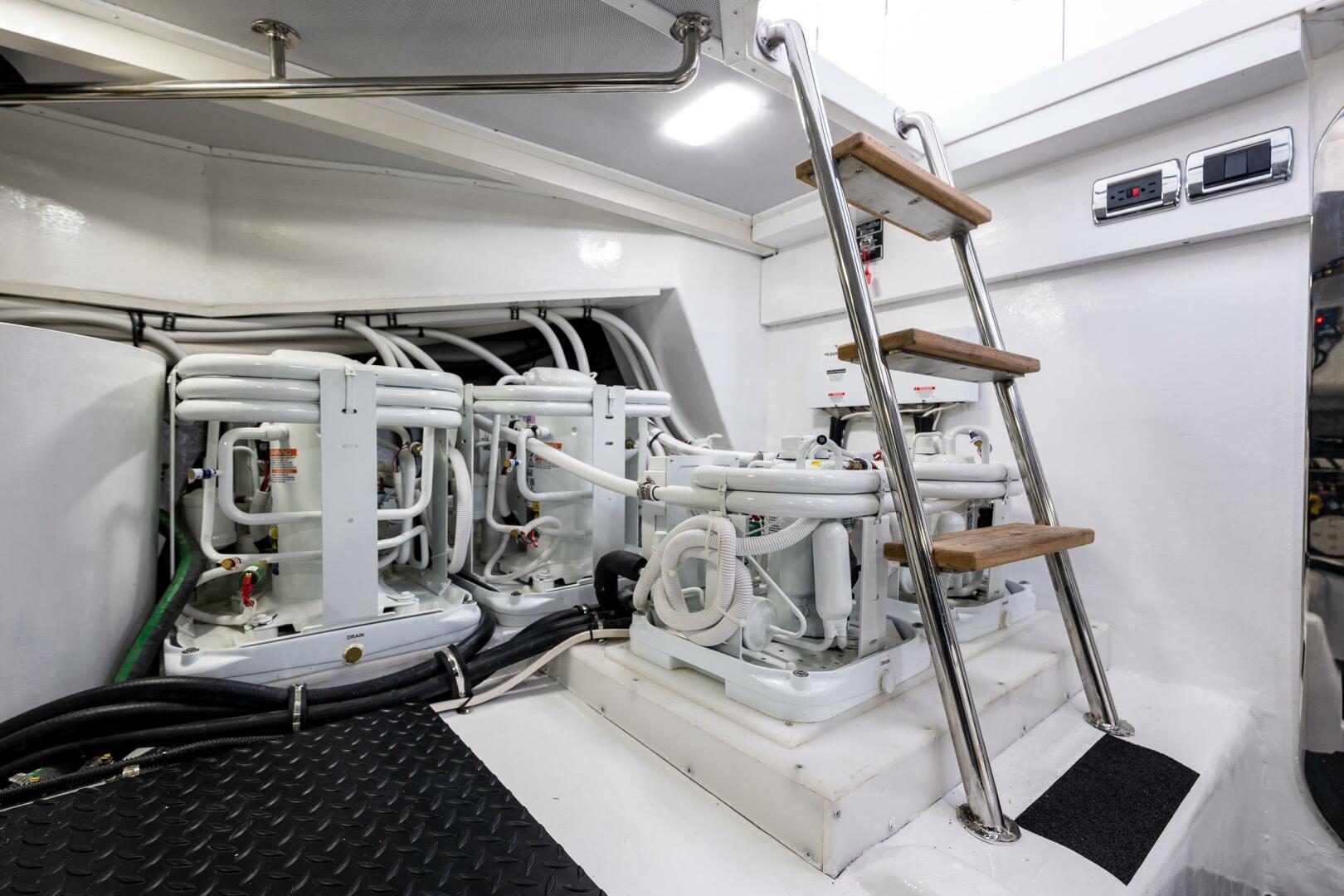

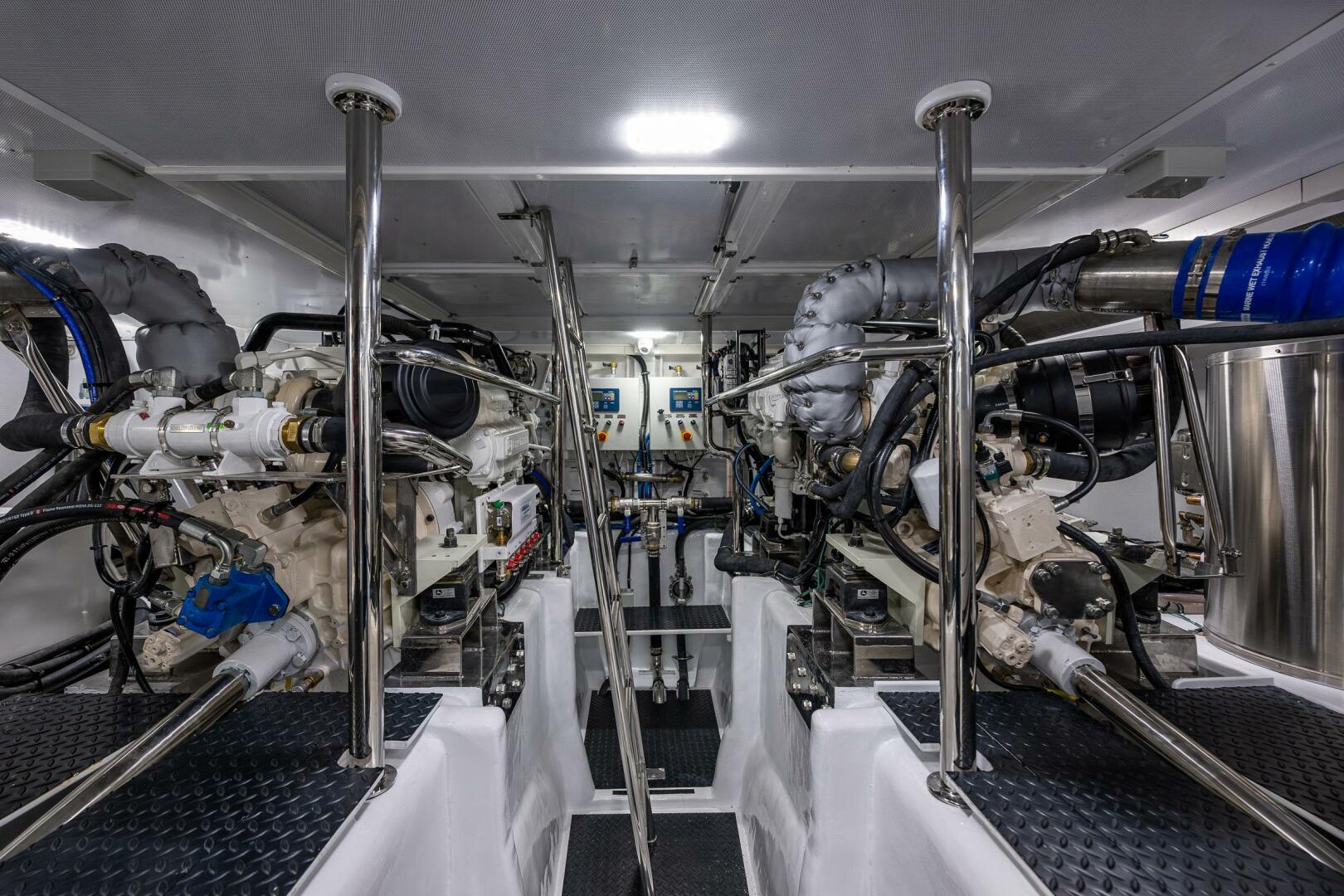

Engine Room and Lazarette

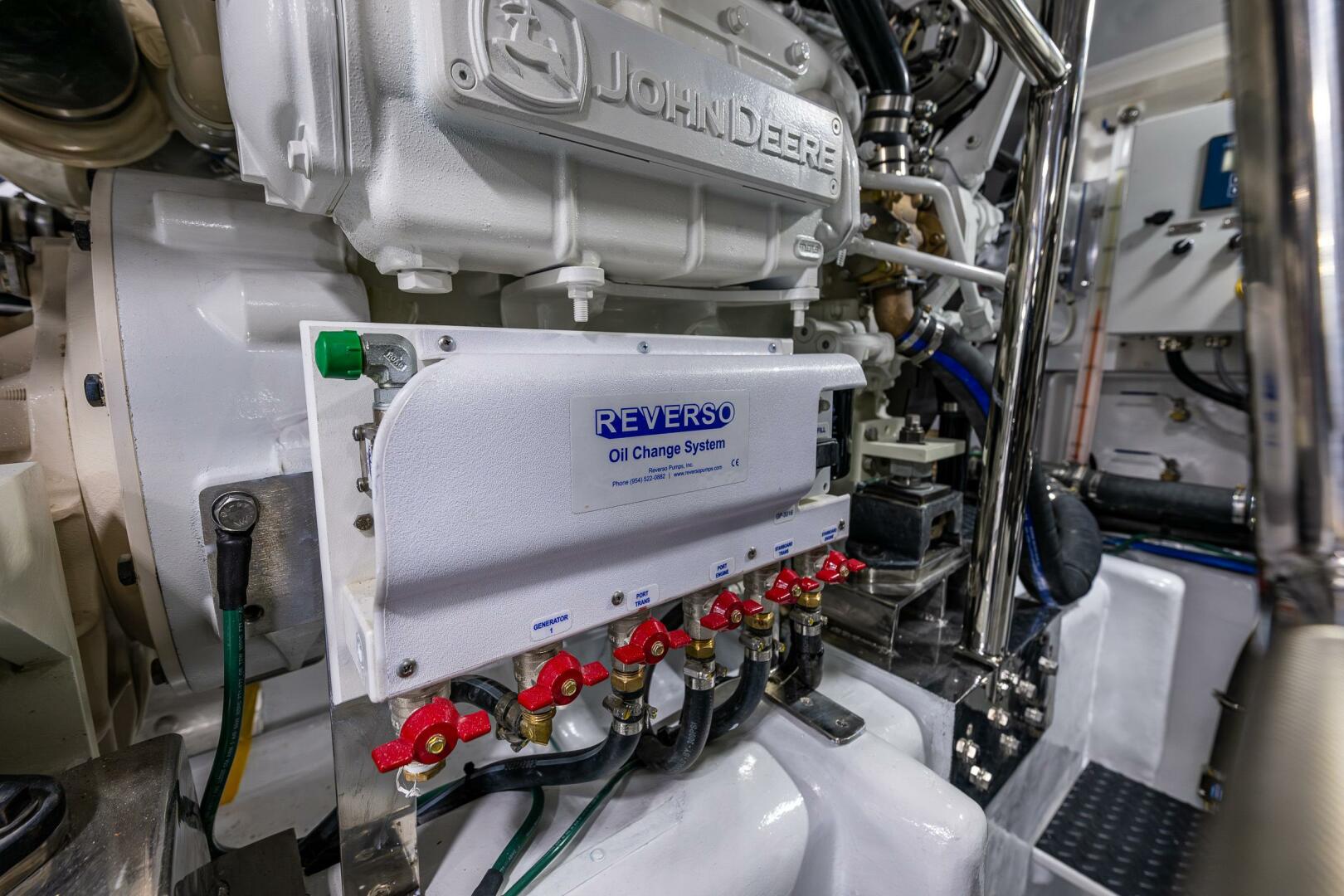

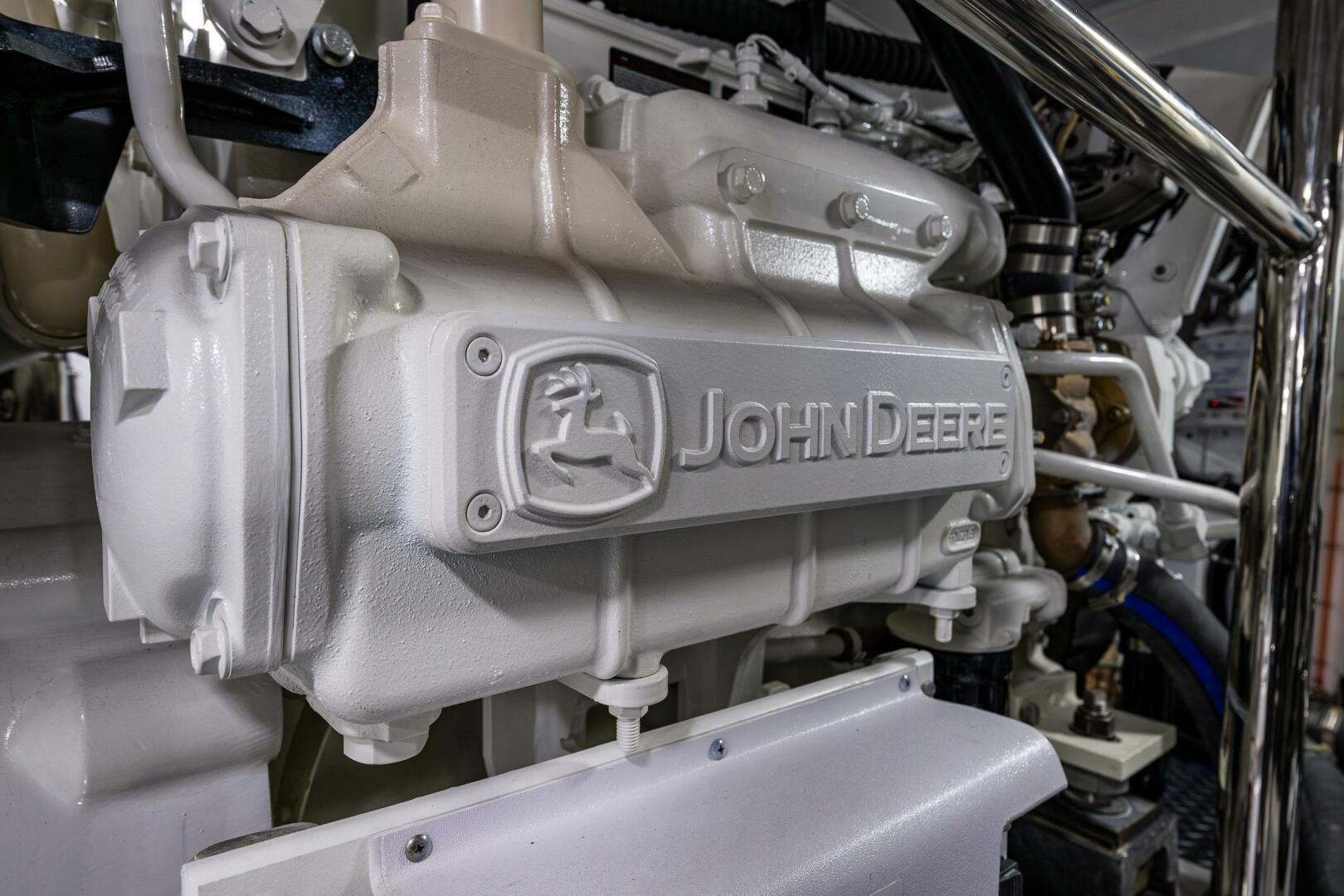

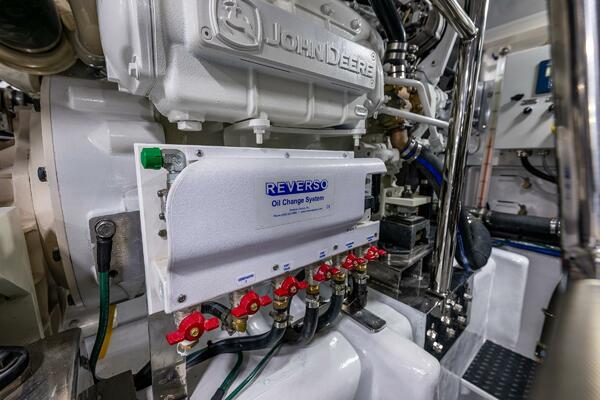

• (2) John Deere 6068 AFM75 (330hp ea) electronic engines with 24 V 140 amp alternator
• ZF 360 transmissions 2.5:1 ratio

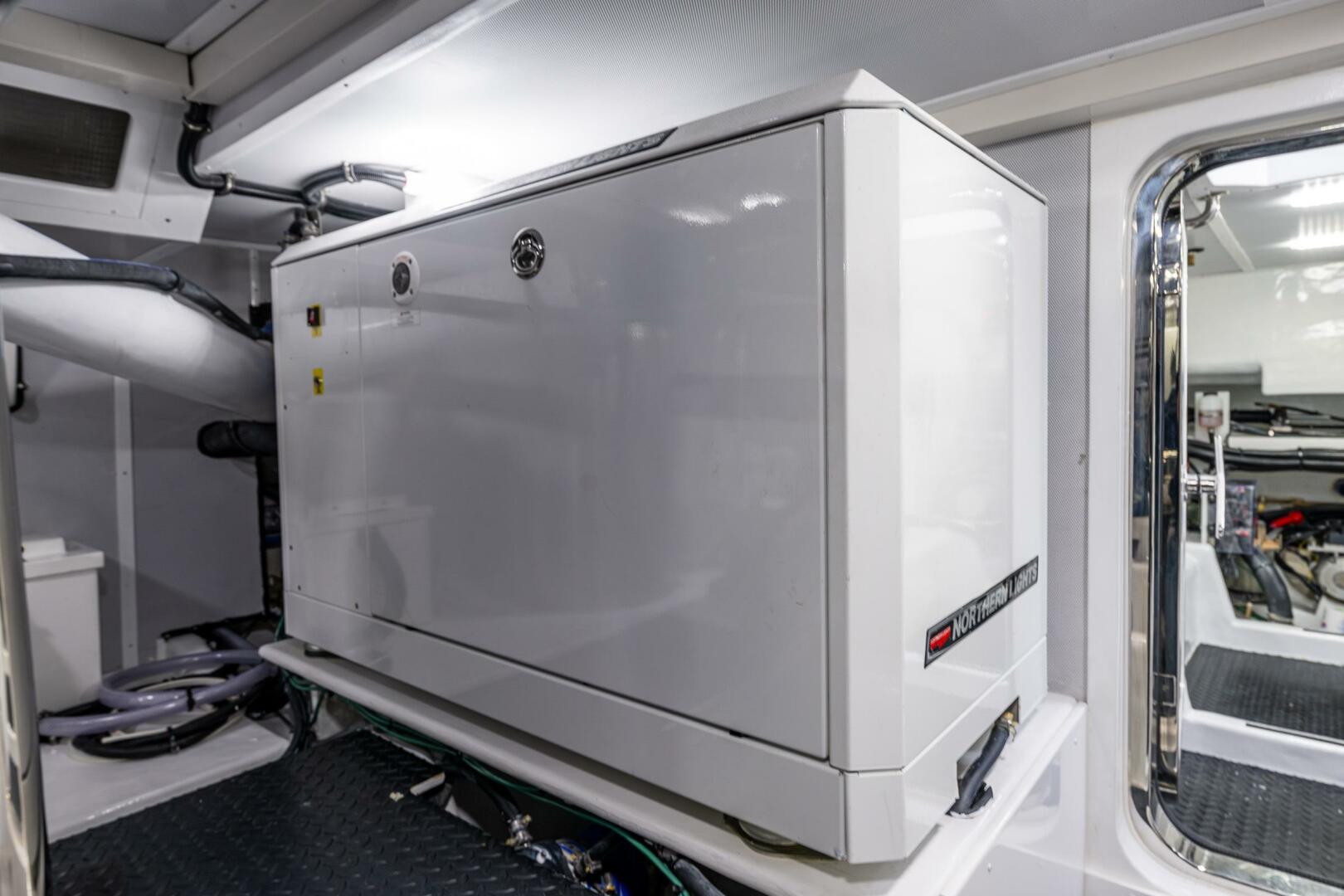

• Northern Lights M844DW3G 16 kw/240/120V/60Hz generator with sound shield
• Victron MultiPlus 24/4000VA 120v output inverter chargers
• (8) AGM 8D batteries @ 255Ah ea for house batteries
• (4) AGM Group 31 batteries for engine start
• (1) AGM Group 27 batteries for generator start
• Seafire Engine room fire suppression system
• Drip pan under engine
• Engine room exhaust fan
• Engine room sound dampening of 3” on bulkheads, hull sides, and overhead
• Perforated aluminum covering
• Stainless steel safety rail around engine
• 24VDC overhead LED lighting with LED lighting under engines
• Aqua lift style mufflers with bypass and underwater exhaust
• Groco or similar thru-hulls and sea strainers
• Lift muffler for generator
• Stand up engine room between the engines

Fuel System

• Fuel athwartships tanks constructed of flameproof FRP with baffles and inspection plates (600 gal per side)
• Parker “Blue” fuel lines
• Sight gauges for all tanks remotely mounted for ease of reading while doing engine room checks
• Dual Racor 75/900 Fuel filter system with pressure gauge
• Dual fills on starboard side
• Tank vents located high above main deck

Freshwater System

• Two (2) water tanks of FRP, 150 gallons ea for a total of 300 gallons.
• Hot water tank - 30 gallon capacity (220vac/120vac Duel element )
• Deck fill and vents
• Kitec plumbing hose with bronze fittings
• Headhunter 10 gpm, 24vdc pressure fresh water system with accumulator tank
• Shoreside fresh water connection

Plumbing System

• Black water tank - FRP (150 gal)
• Gray water tank - FRP (55 gal)
• Sanitary plumbing constructed of ABS Trident sanitary hose
• Macerator pump/discharge pump with separate deck discharge fitting

Climate Control Systems (choice of) - one is standard

• Olympia OL60B-24 Heating System
• Cruiseair 50000 btu split reverse cycle A/C system

Control Systems

• Hydraulic steering system Teleflex or equivalent
• Electronic engine and shift controls of ZF Mathers or equivalent
• Wesmar bow thruster - 10 hp, 24VDC or equivalent
• Wesmar stabilizers

Mechanical

• Bronze thru hull fittings with bronze seacocks
• Bilge pumps - (3) of 2000 gph capacity Rule 2000 or equivalent
• All hoses double clamped below waterline

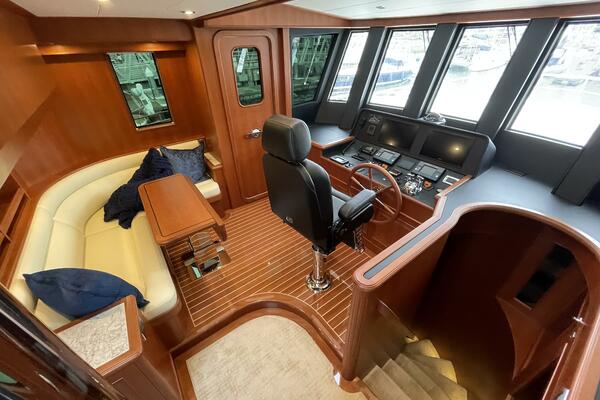

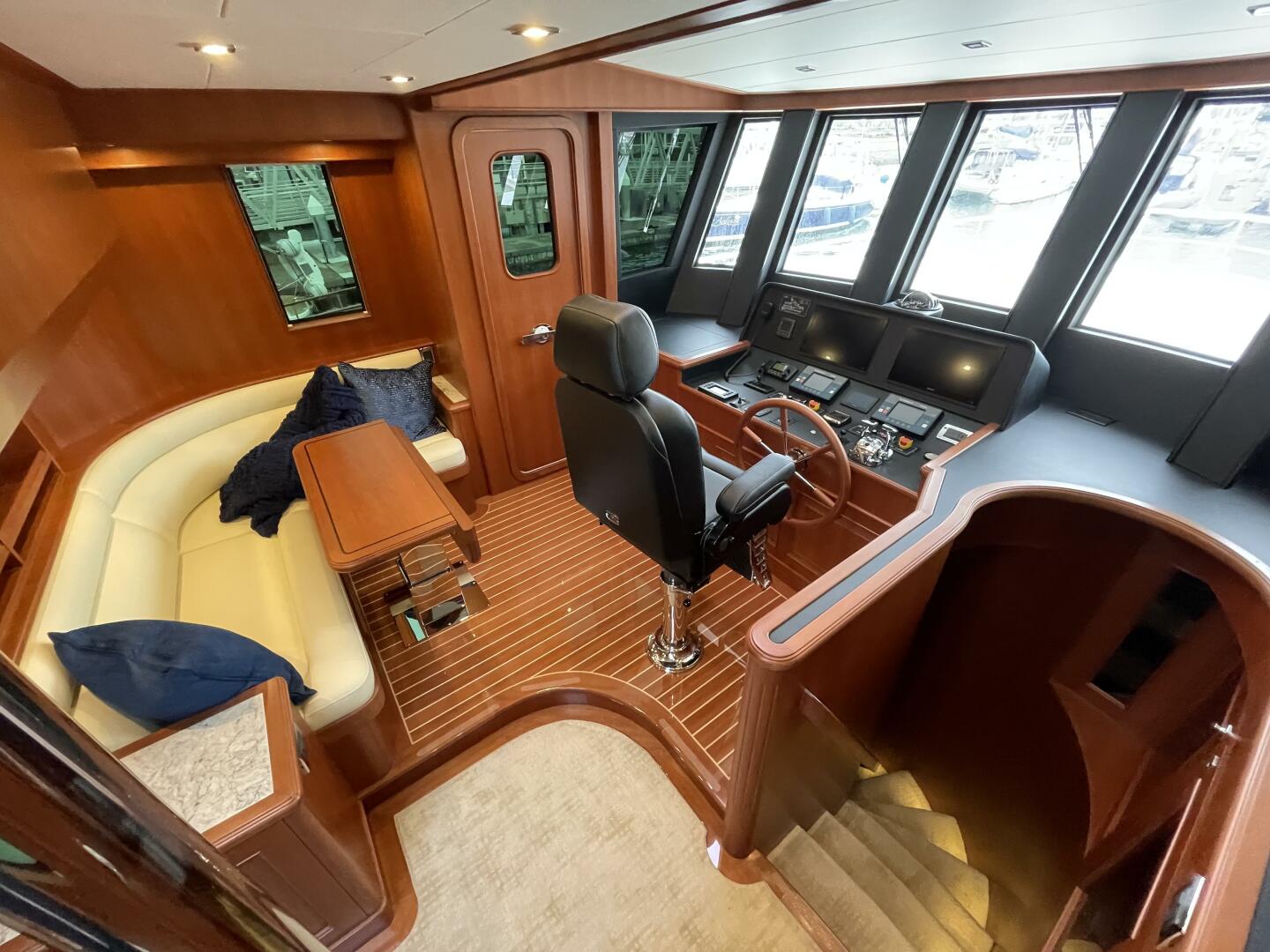

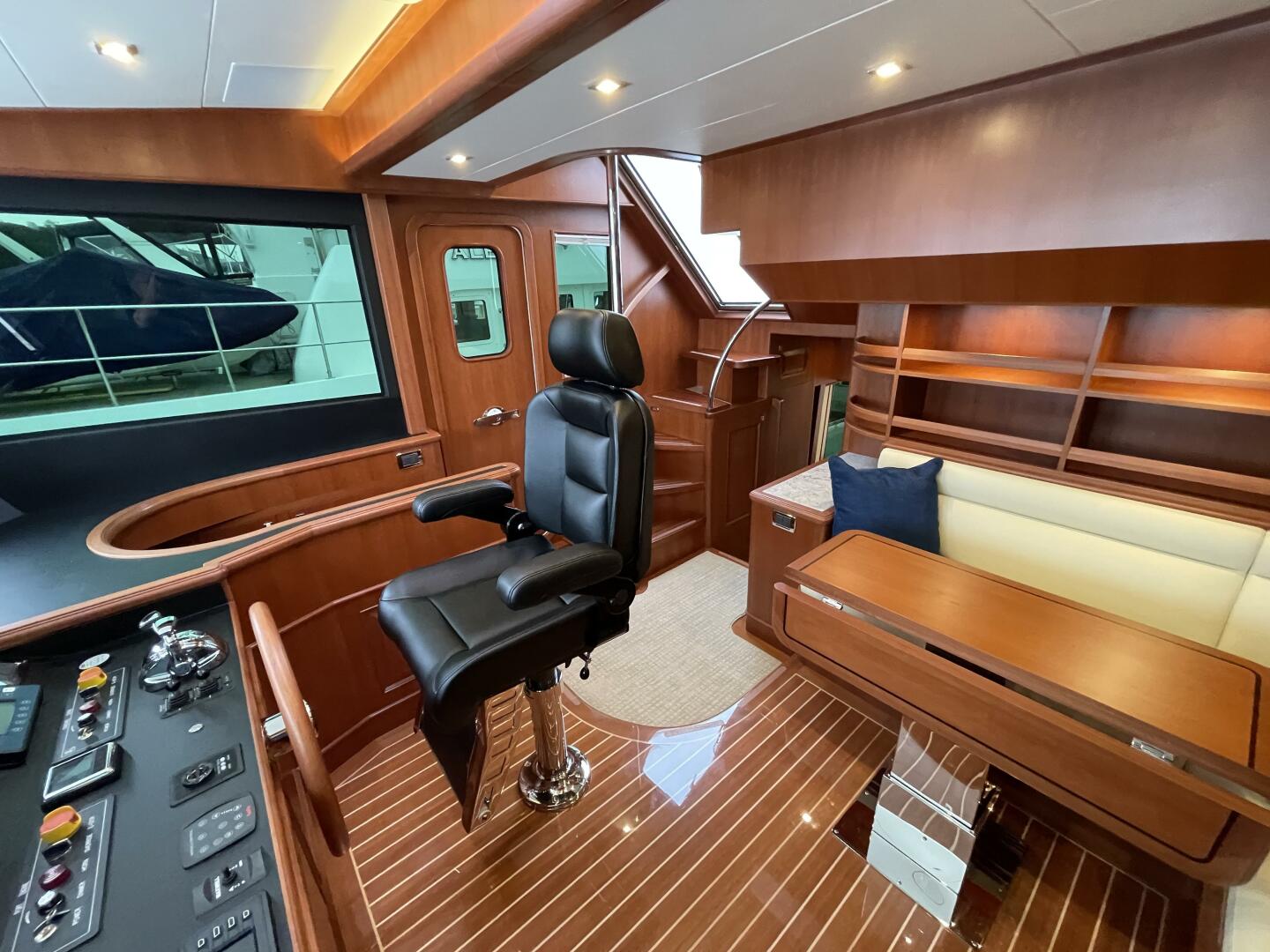

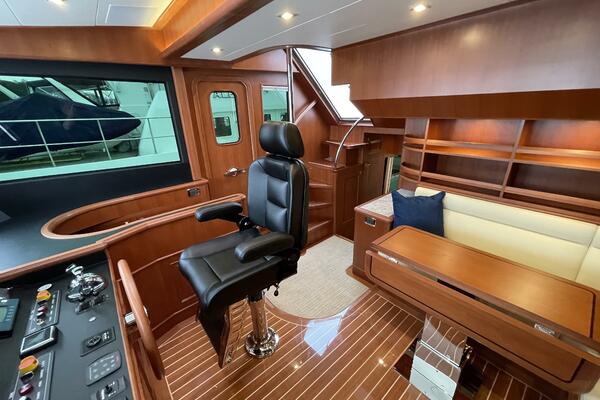

Pilothouse

• Custom wood steering wheel - 30”
• 3 x windshield wipers with washers (Exalto with Park Position)
• AC/DC electrical panels on either side of steering station
• Overhead LED lights w/ red lights above dash w/ dimmer
• Overhead panel for electronics installation, wood faced
• L-shaped settee with hi/low table that converts to berth
• Cherry & Holly flooring
• Remote start/stop switch for main engine and generator
• Pilothouse windows to be tempered and/or safety glass with black fret border
• Reading lights behind settee
• (3) 110VAC duplex electrical outlets
• 12VDC convenience outlet with USB charging.
• 1x Pompanette Platinum Series custom upholstered helm chairs with stainless steel pedestal
• Dash panel of black solid surface material with glare screen wrapped in black vinyl
• (2) sliding windows on aft bulkhead
• Port & starboard side deck access doors

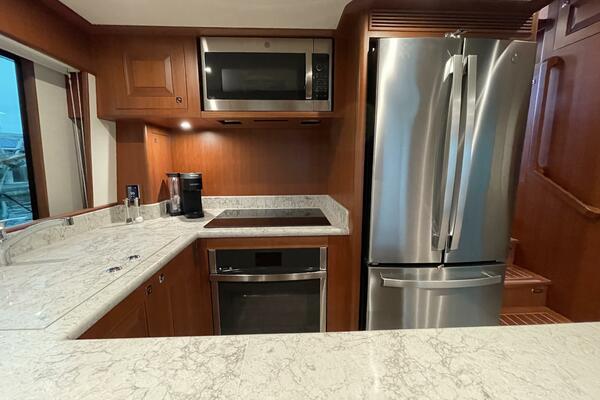

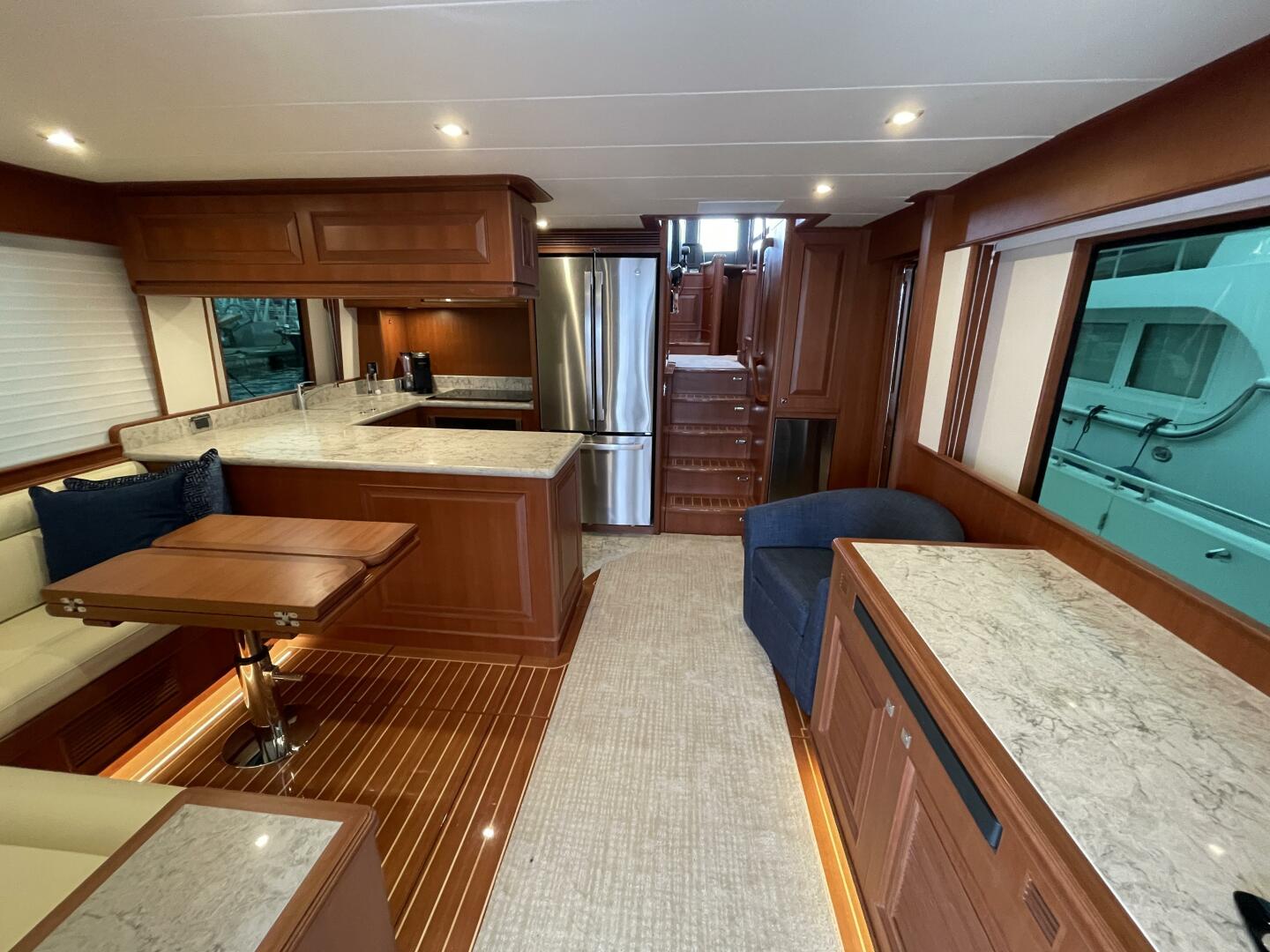

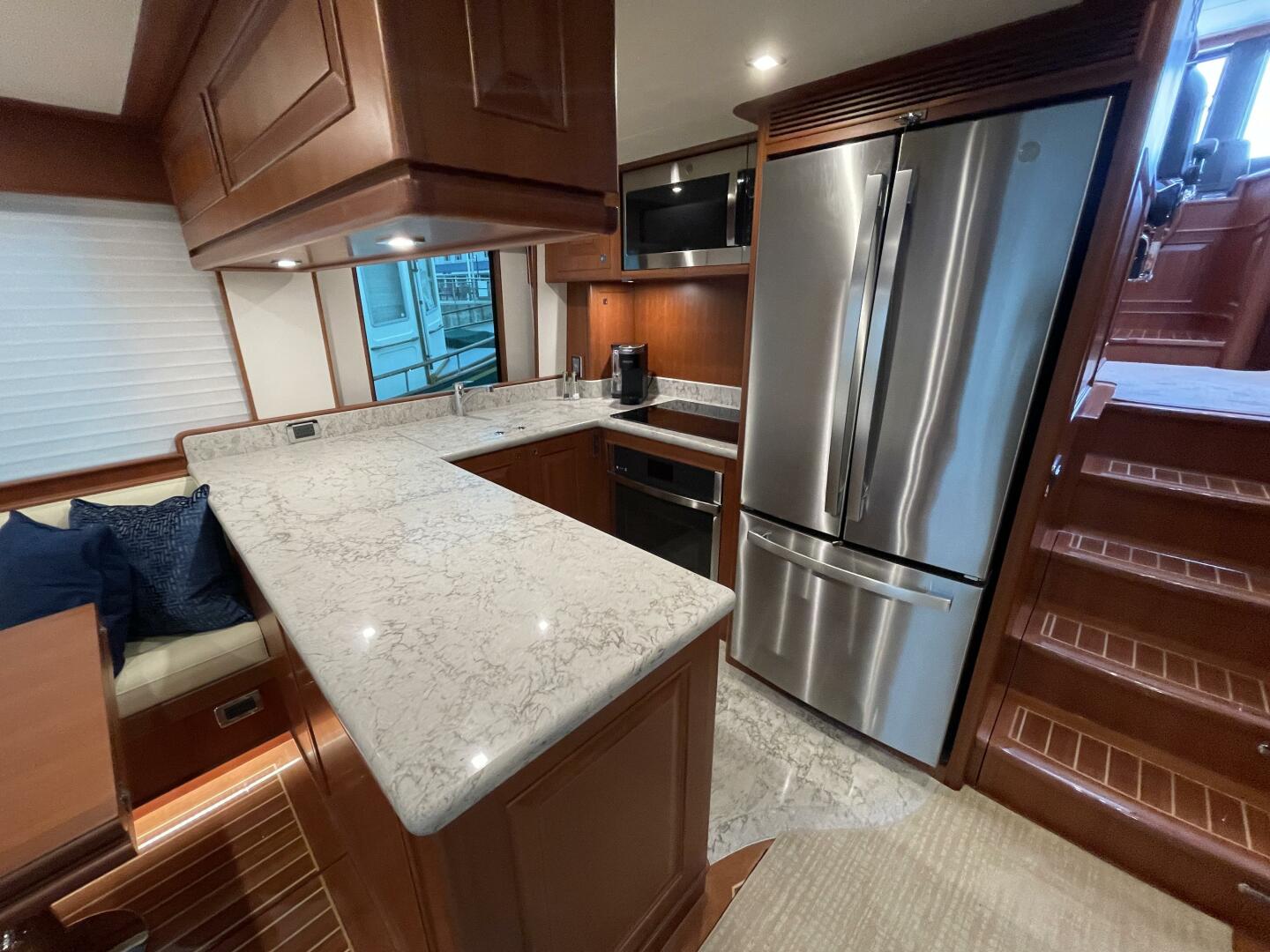

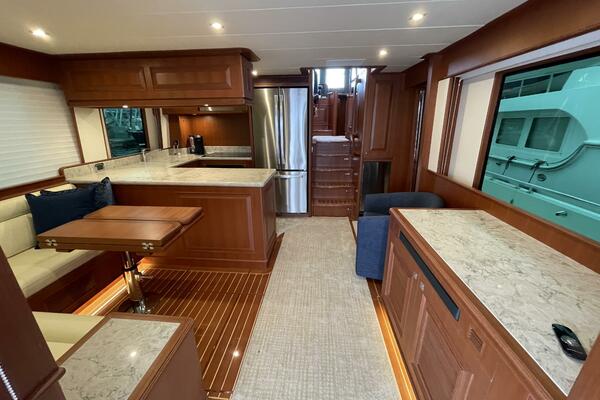

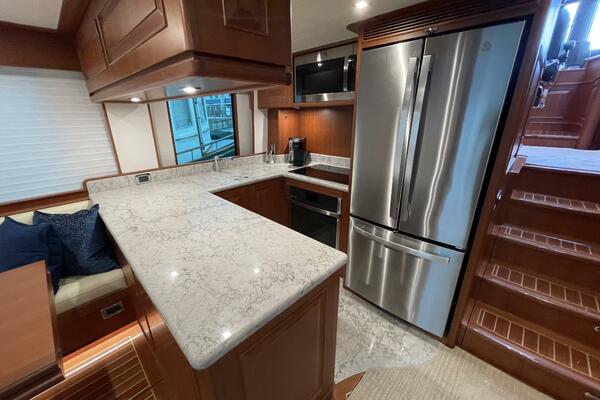

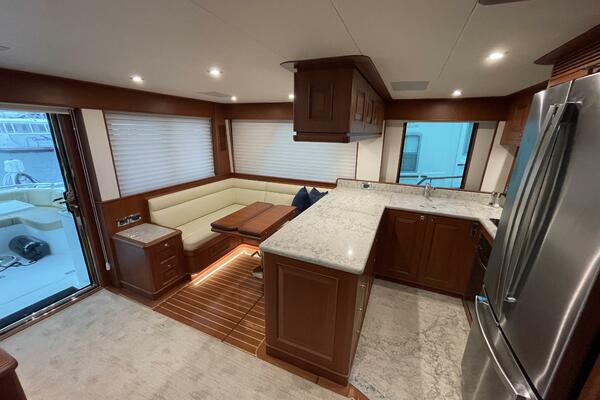

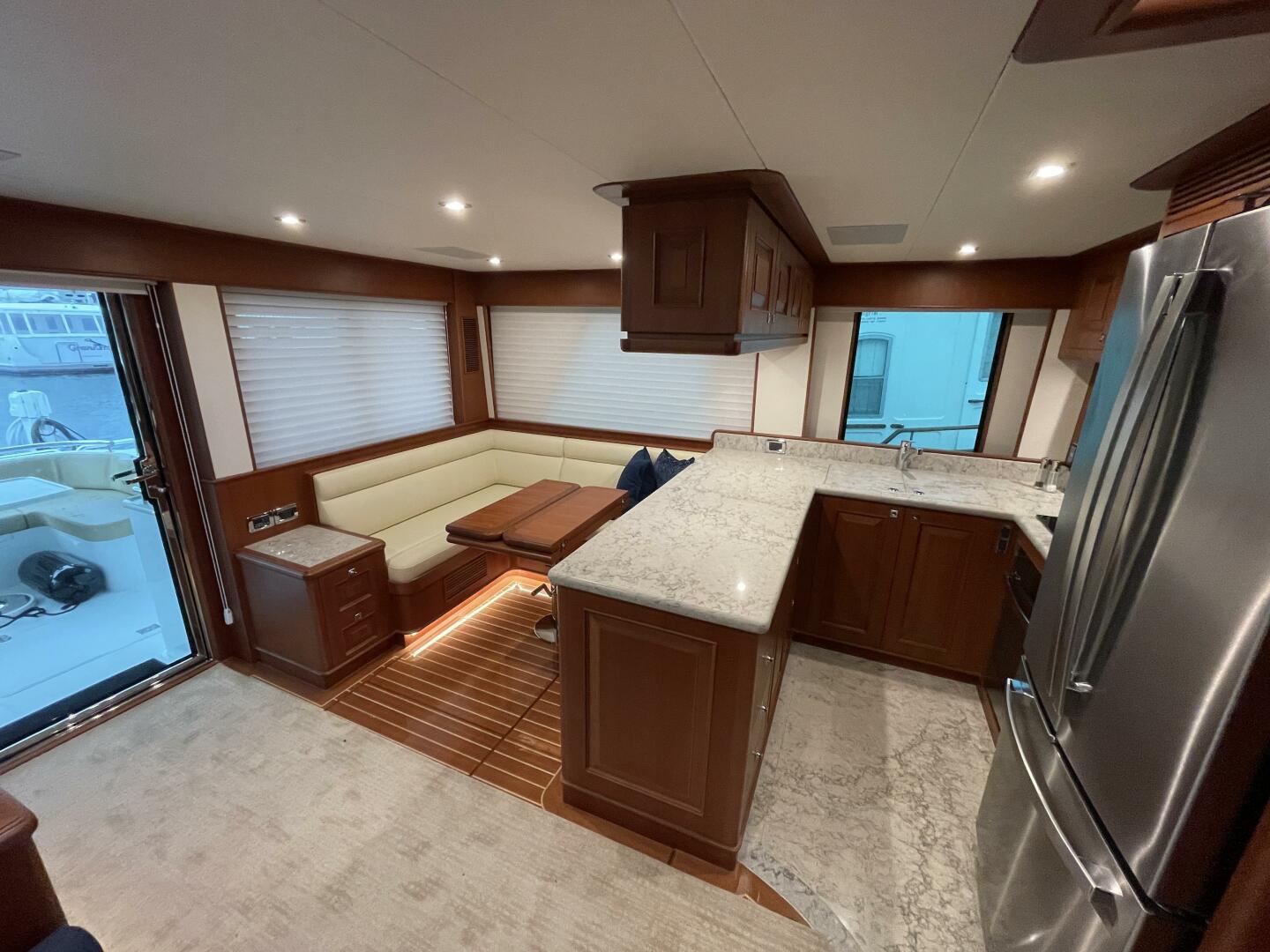

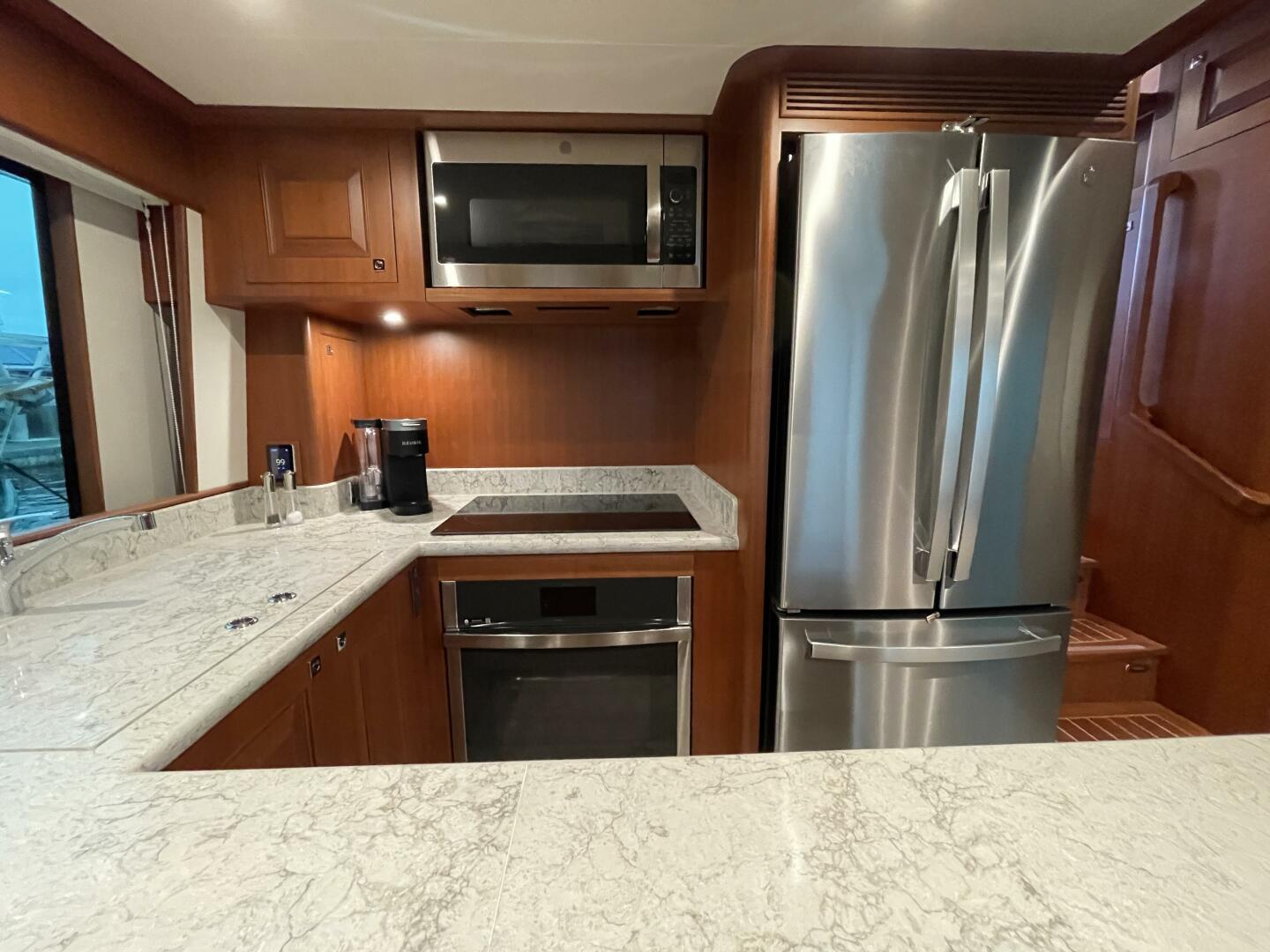

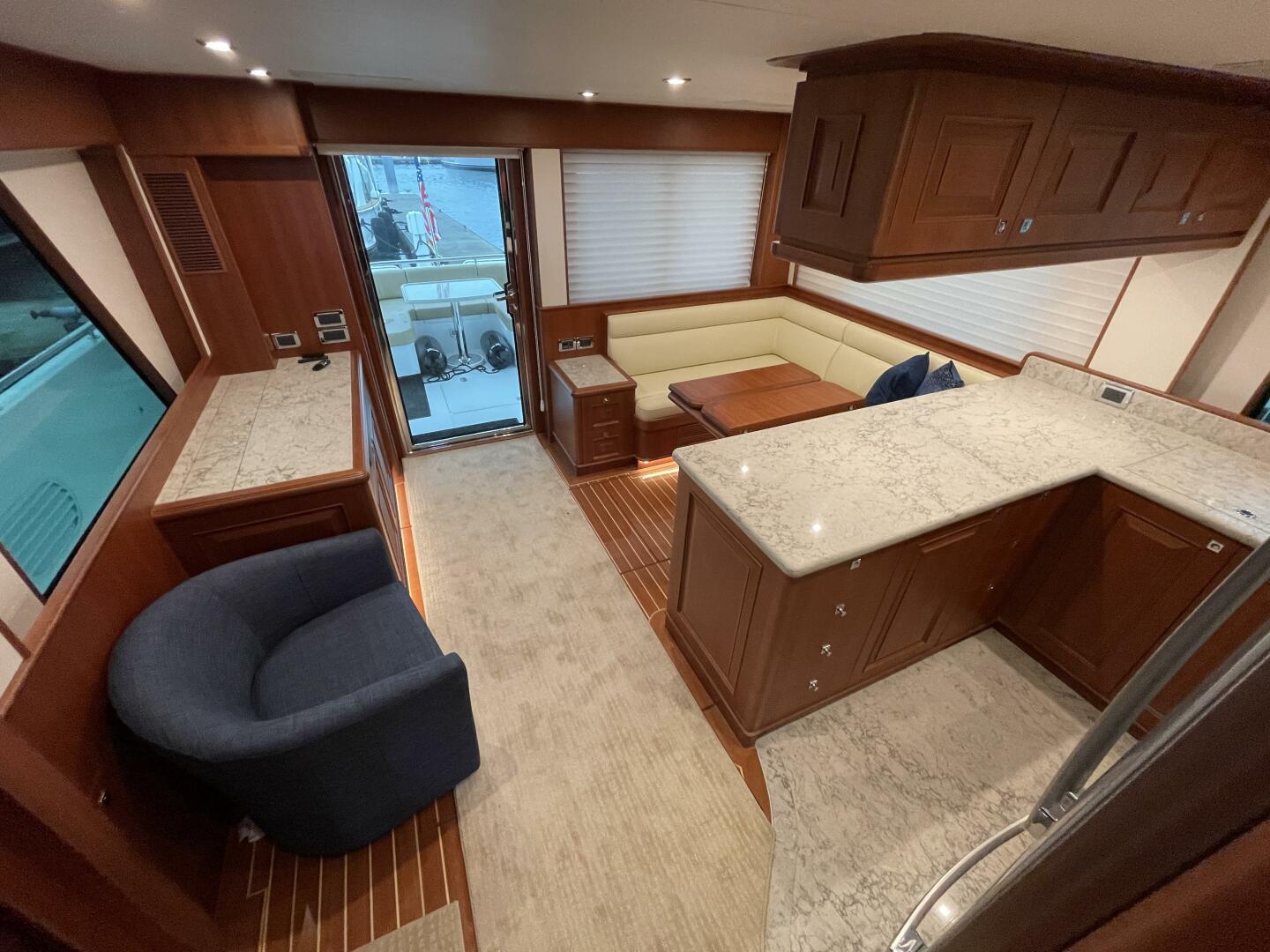

Galley

• Solid surface countertops with backsplash, Corian or equivalent
• GE Profile Range (or equivalent)
• GE Profile Over-the-Range Microwave (30”) w/ exhaust fan
• GE Profile Smart Induction Range w/4 Induction Zones and Convection Oven (30”) GE
• Bottom Freezer Refrigerator (30”)
• Trash compactor - Broan Elite, installed in the pantry - S/S or wood veneer facing
• Stainless steel sink with large single basin
• Grohe sink fixture with removable spray head
• Pantry of hardwood, full height pull out - starboard fwd side of the salon
• Drawers and overhead cabinets
• Overhead cabinets between salon and galley
• Large opening window with window treatment - located behind the salon settee
• (3) 110VAC duplex outlets, GFI
• Y valve for overboard discharge of galley sink gray water
• Cherry & Holly flooring

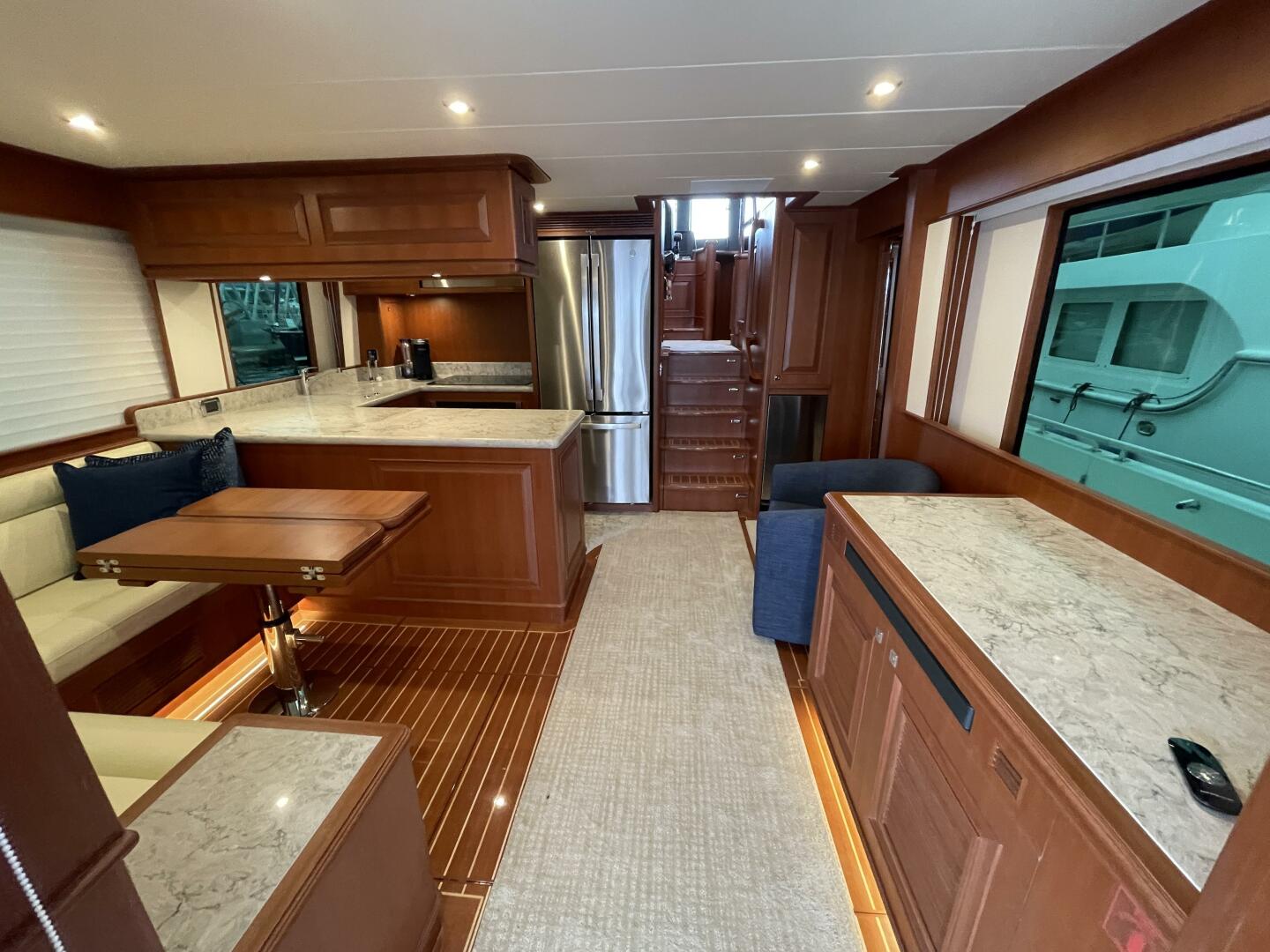

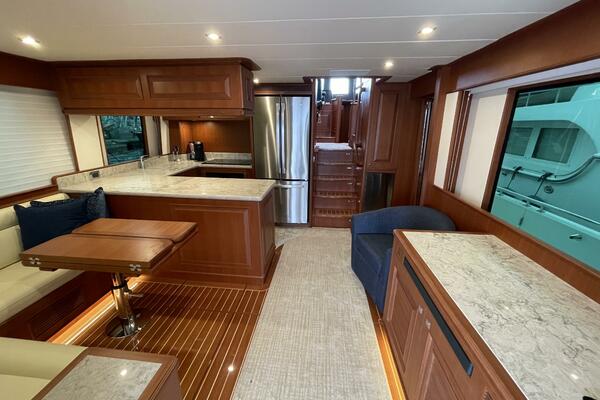

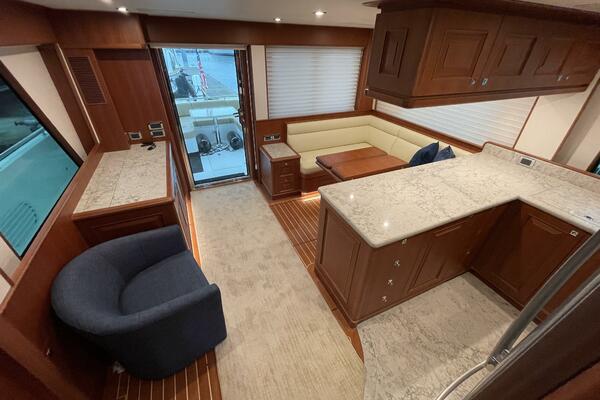

Saloon

• Built-in L-shaped settee to port with storage under
• Yacht table - hardwood, Hi/Low
• (4) 110VAC duplex electrical outlets
• Entertainment cabinet
• Samsung 40” LED TV on lift
• Wall mounted sconce style lights of 24VDC
• Saloon windows tinted with hardwood trim rings and rounded corners
• Overhead valance with room to accommodate shades
• Bamboo style drop shades
• Owner supplied furniture for space on starboard side
• Cherry & Holly flooring

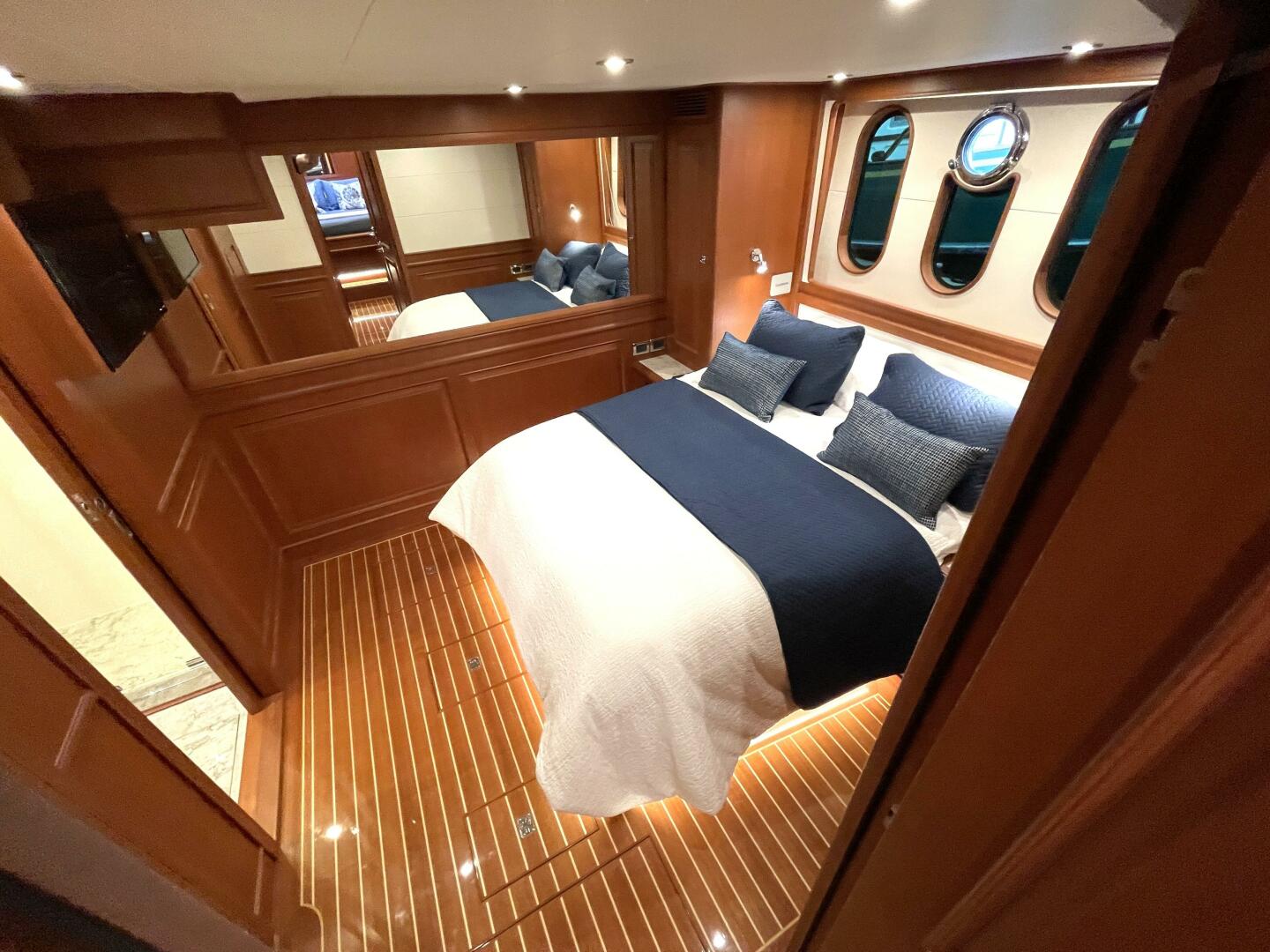

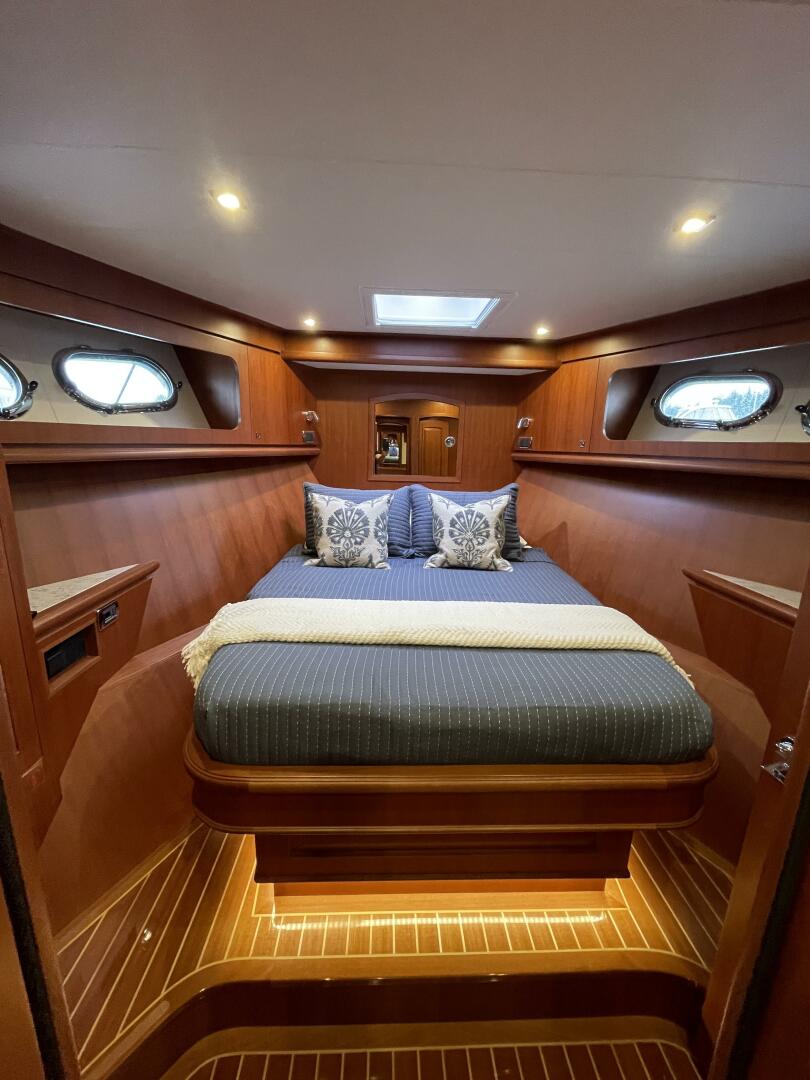

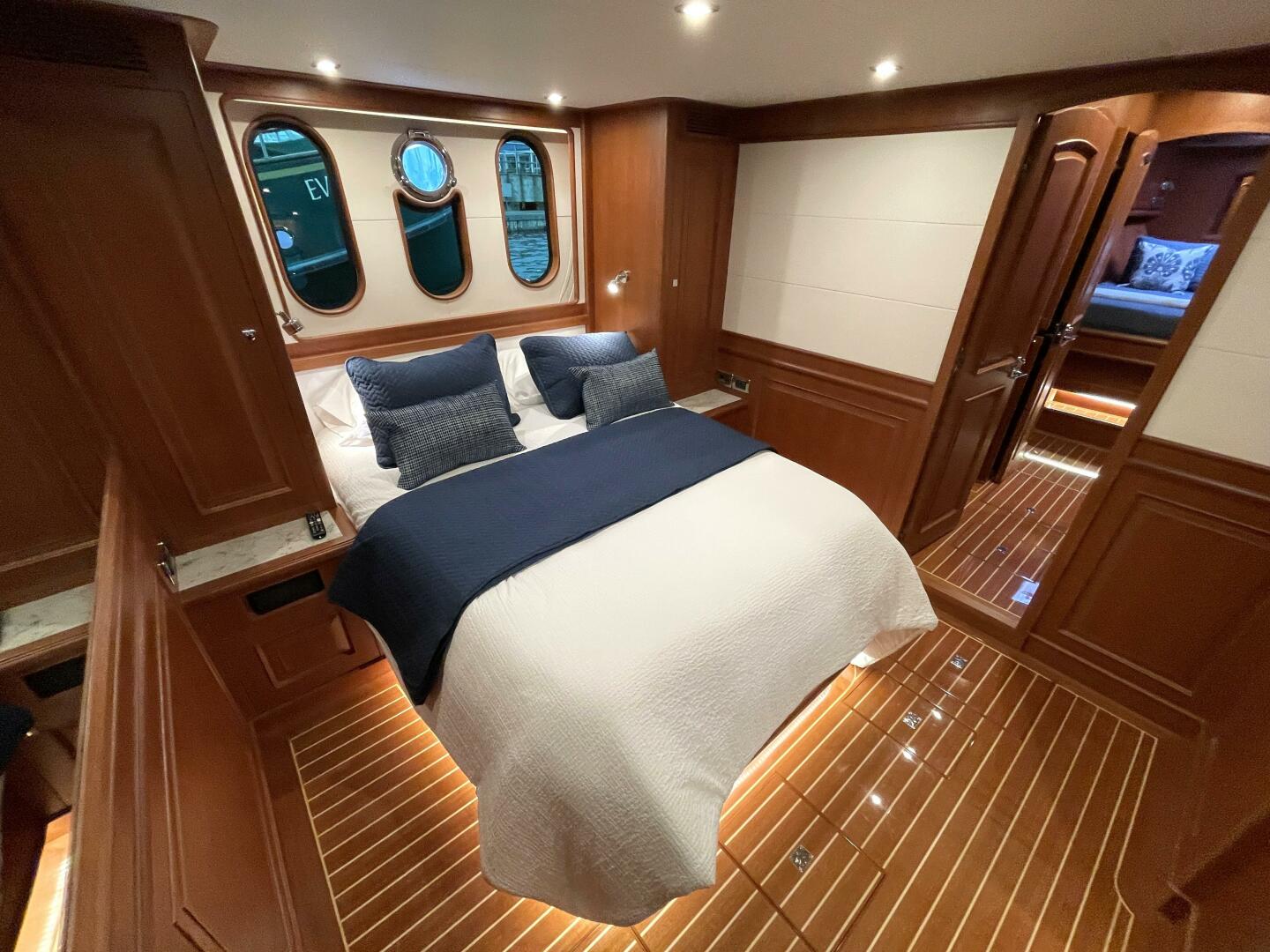

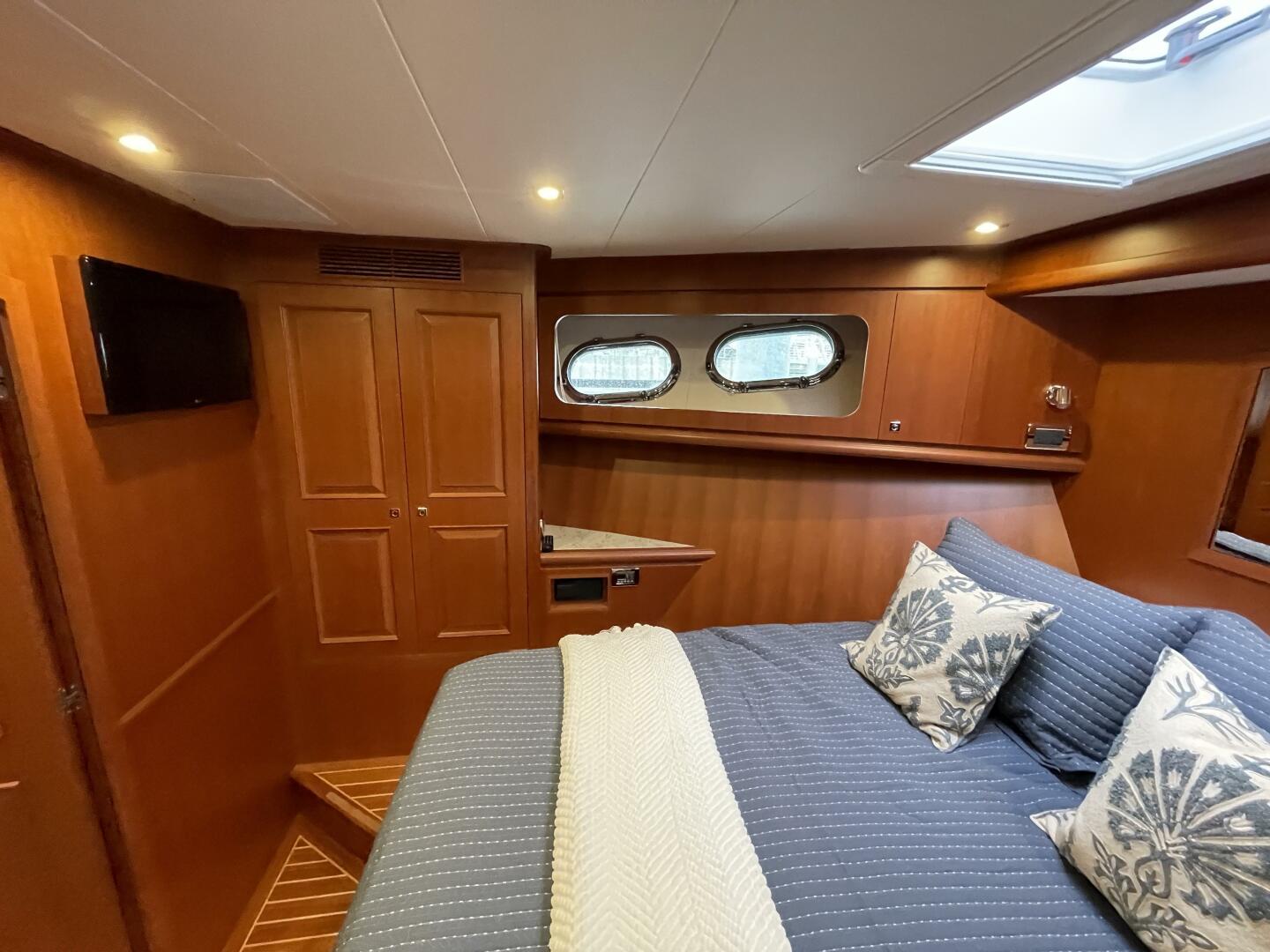

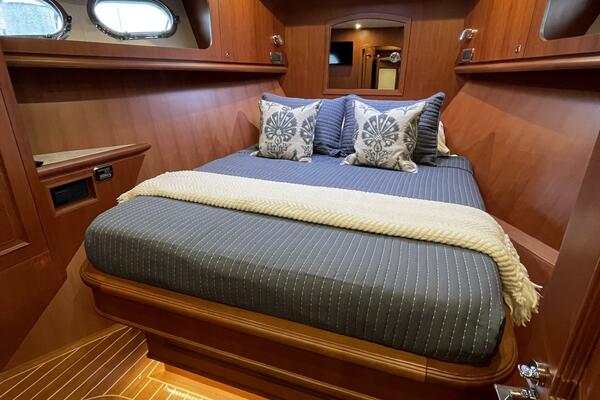

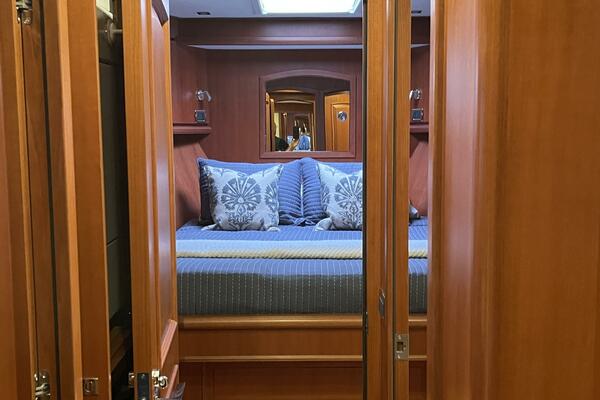

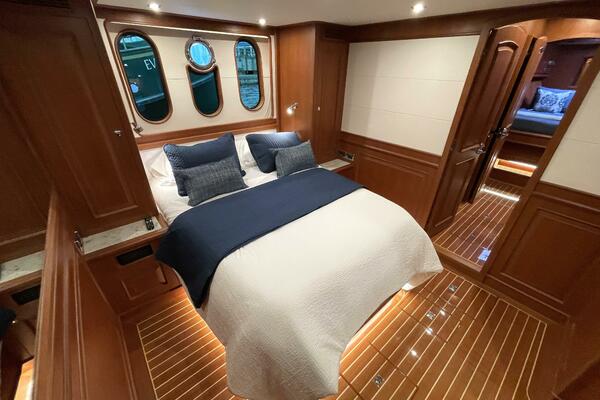

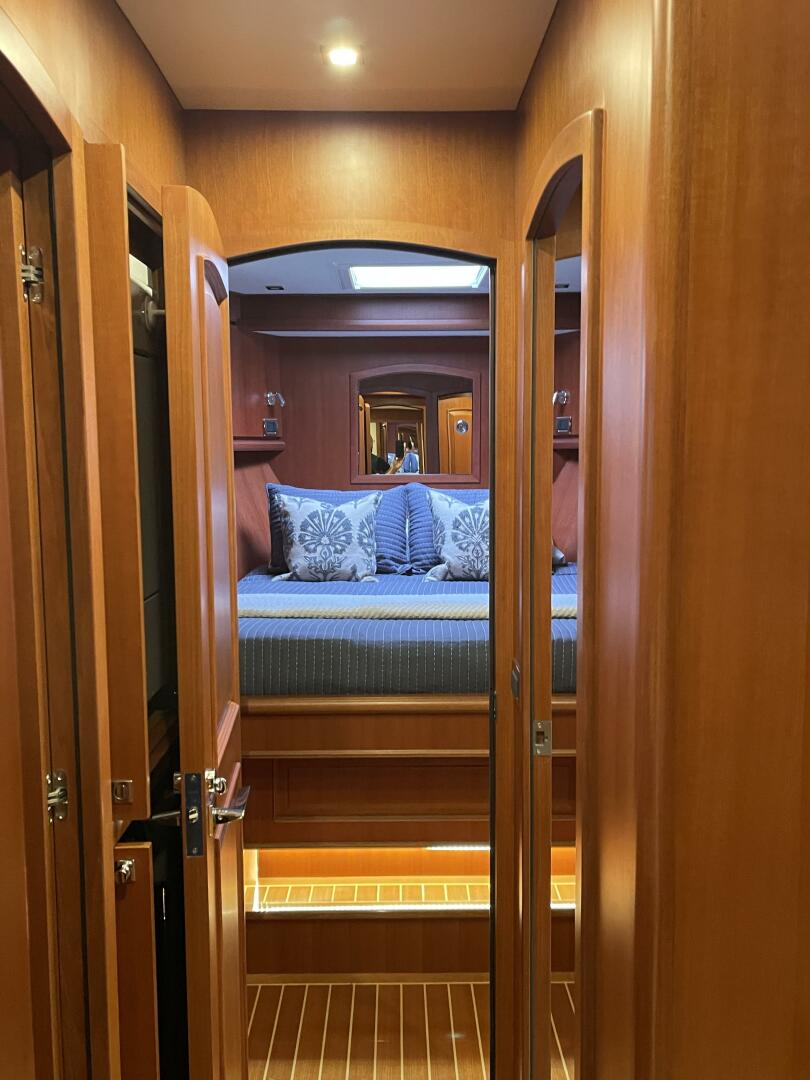

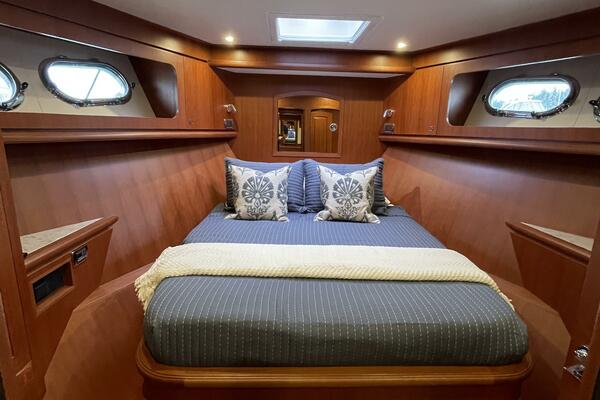

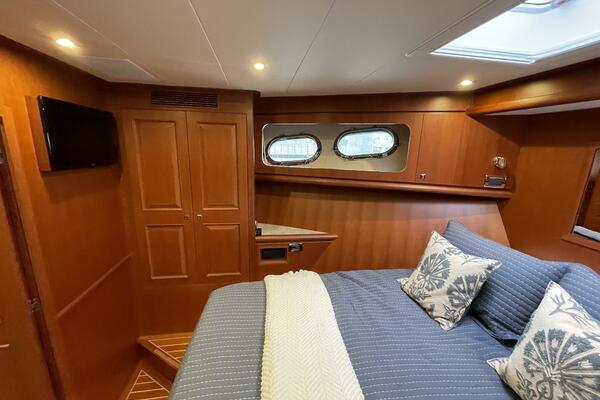

Owners Midships Suite

• Queen sized berth with 8” spring mattress and drawer storage below
• Portlights (3) port and starboard
• Cedar lined hanging lockers with automatic lighting
• Headboard with designer appointments including mirror and wood trim
• (3) 110VAC duplex outlets
• Flooring - Carpeting with pad under
• Wall treatments with foam backing
• (2) bulkhead mounted reading lamps
• Built-in seat with storage under
• Samsung 32” T.V

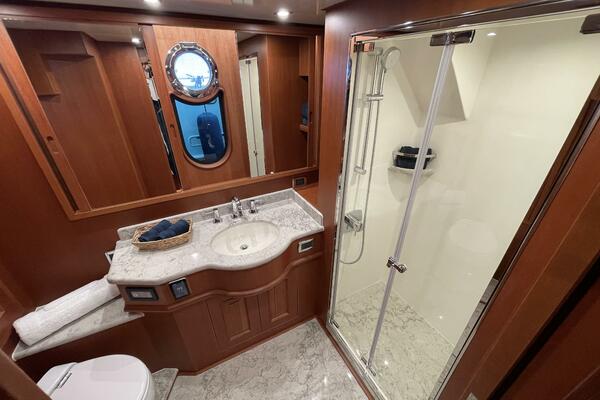

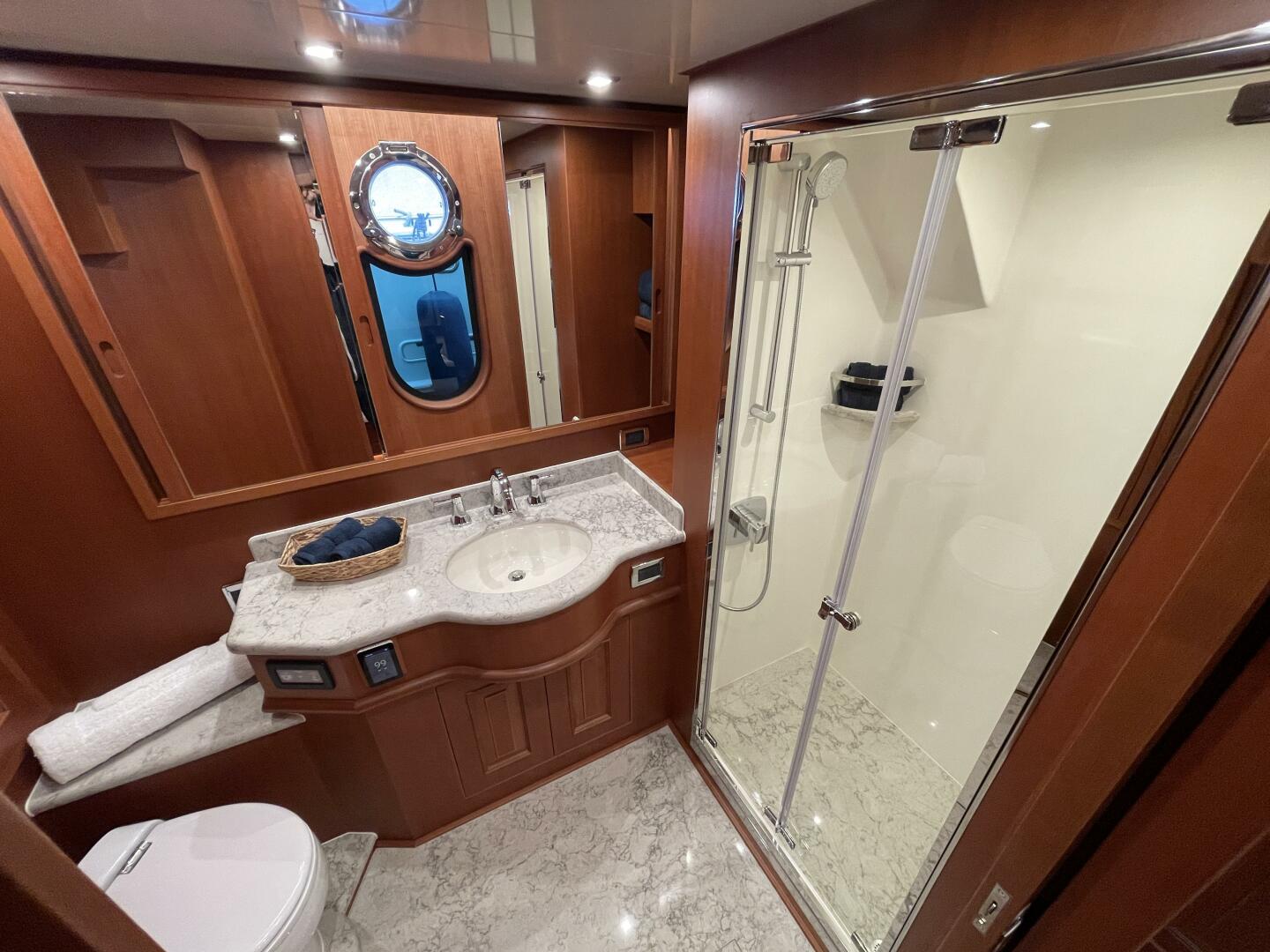

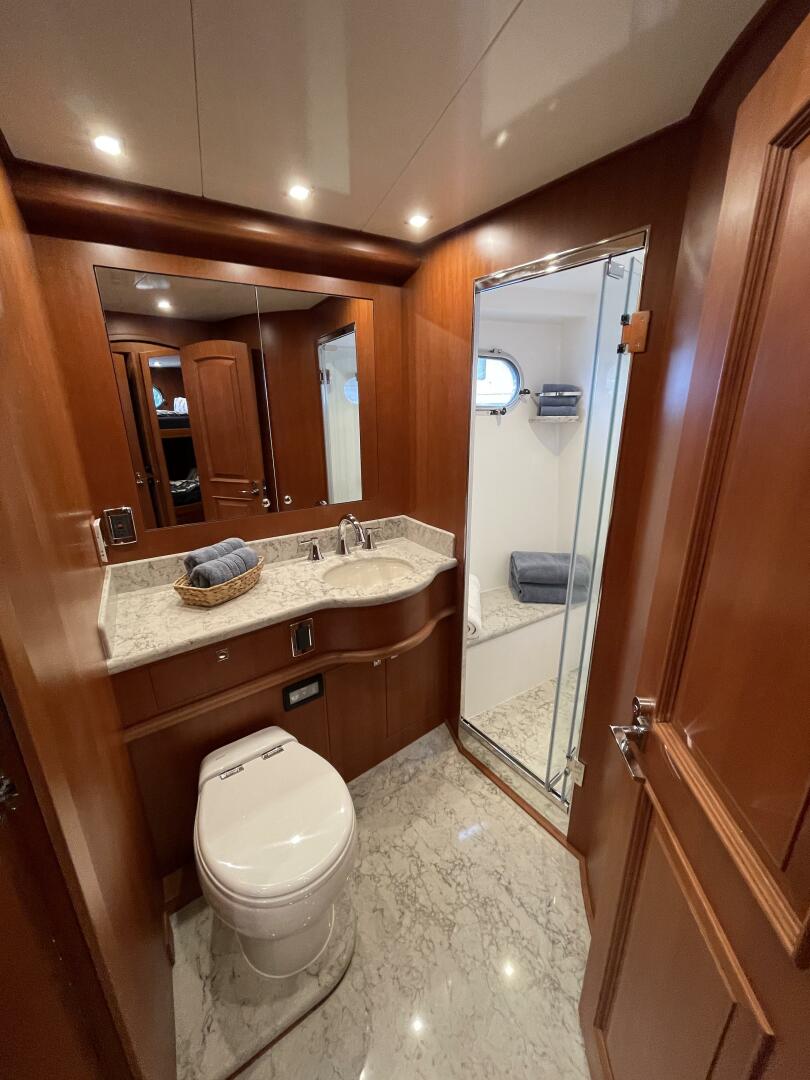

Owners Suite Head

• Built-in seat with storage under
• Portlight
• FRP shower stall with saloon style glass doors
• Grohe fixtures for sink and shower (removable wand type shower head)
• Mirrors, (1) large mounted over toilet and (1) shaving mirror adjacent to sink
• Exhaust fan – 24VDC
• Toilet - TECMA or equivalent
• Towel and toilet paper holders
• Flooring -Caesarstone Moorland Fog #6046
• Mirrors, (1) large mounted over toilet and (1) shaving mirror adjacent to sink
• 110VAC duplex electrical outlet, GFI

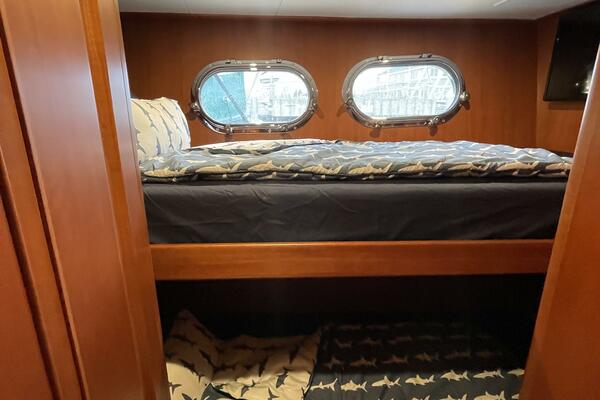

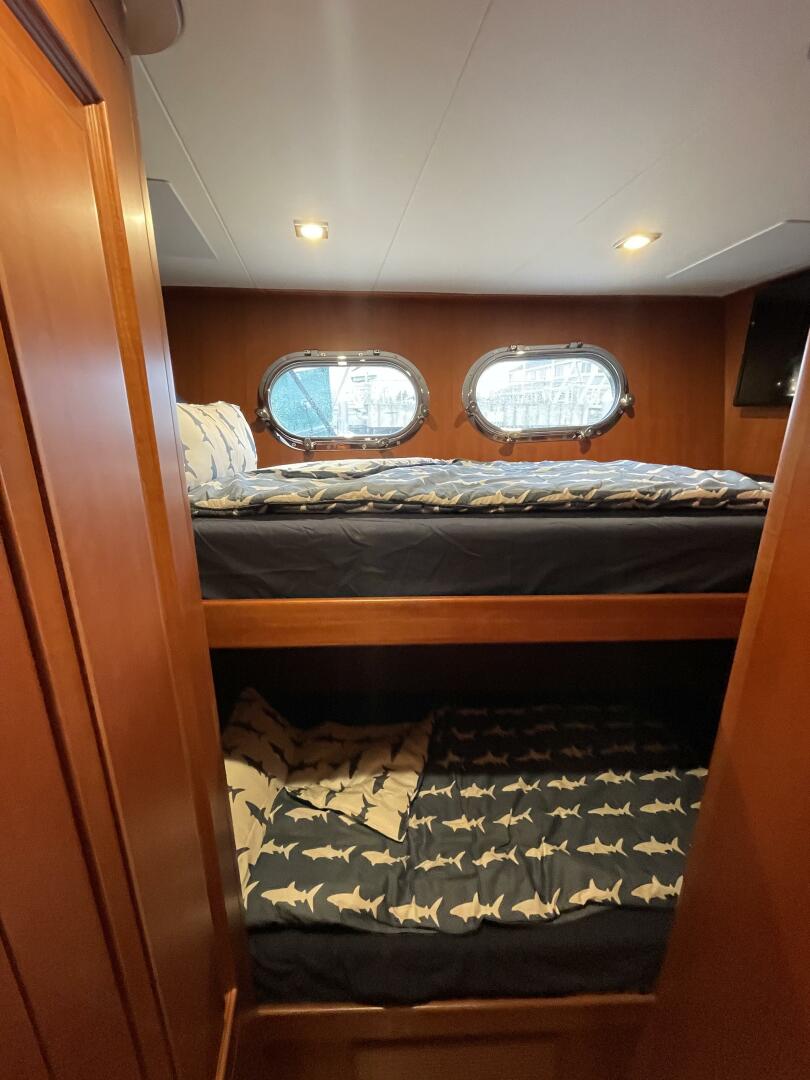

Guest Stateroom

• Stacked single bunks
• Samsung 26” T.V.
• Hanging locker
• Drawer storage

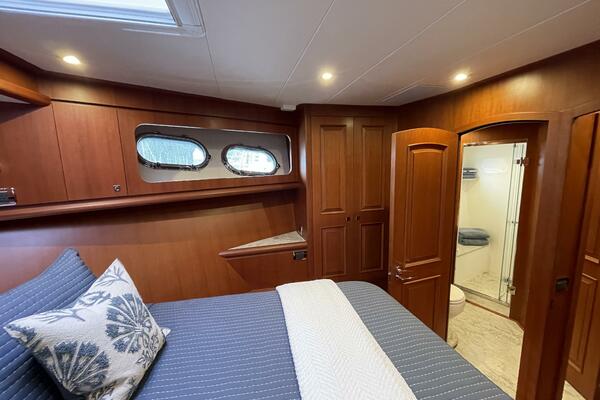

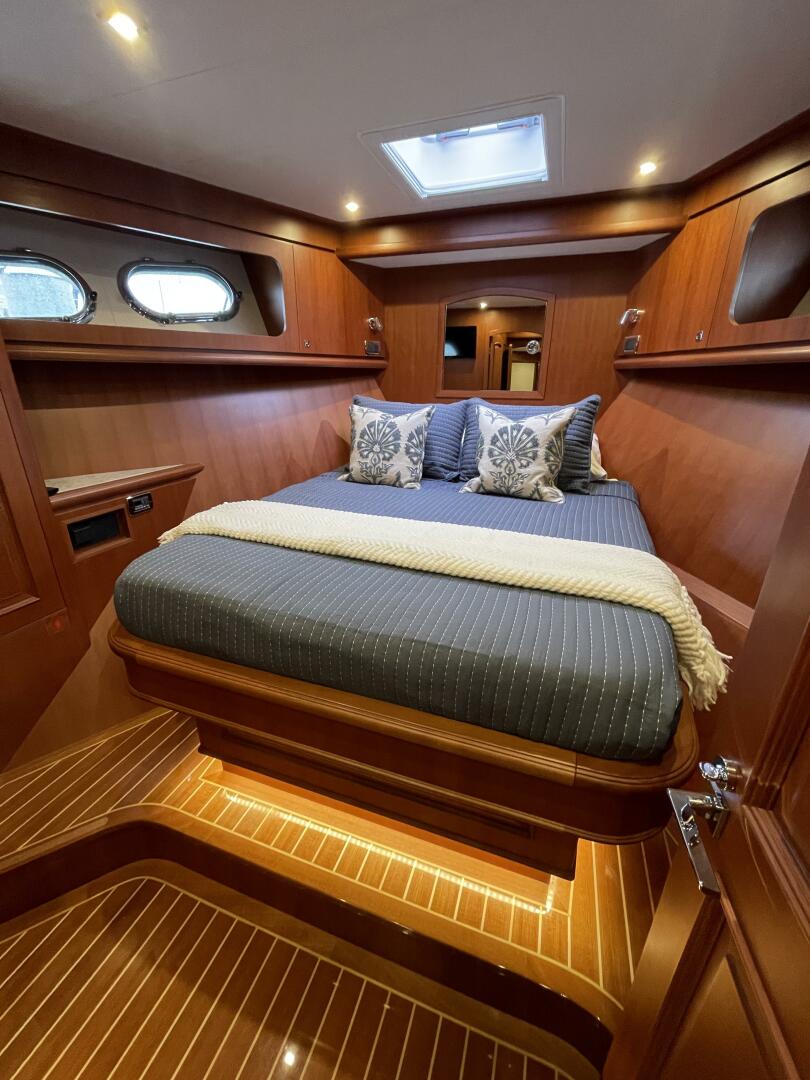

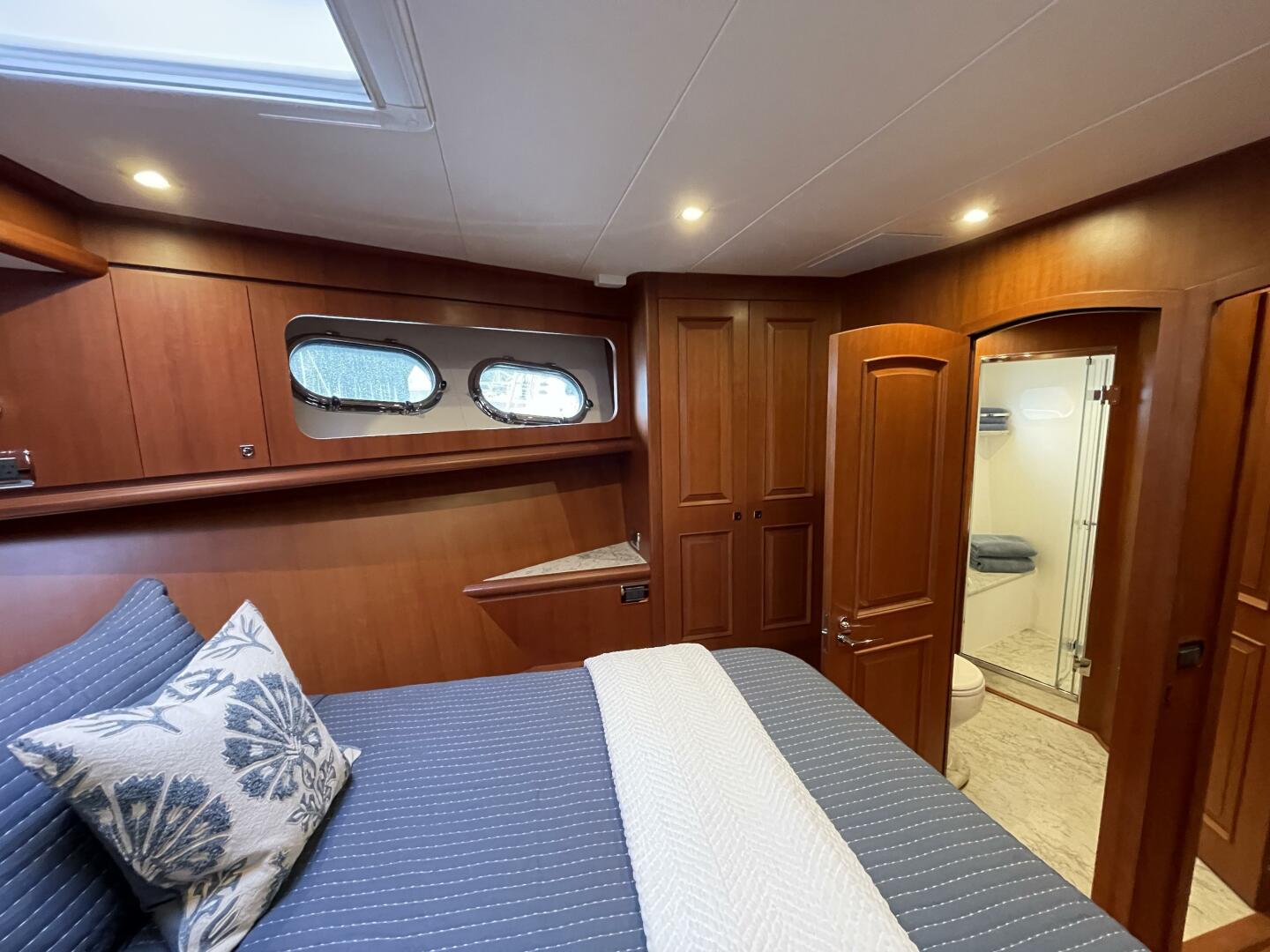

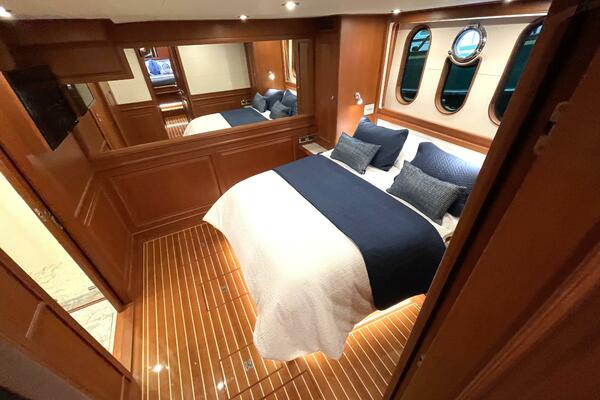

VIP Suite

• Queen sized berth with 8” spring mattress and drawer storage below
• Portlights (2) port side, (2) starboard side
• Reading lamps (2), one at each berth
• Cedar lined hanging lockers with automatic lighting
• (3) 110VAC duplex electrical outlet
• Side cabinets on either side of berth
• Forward bulkhead with designer appointments including mirror and wood trim
• Flooring - Cherry & Holly
• Over/under bunks or desk (optional)
• Reading lamps (2), one at each berth
• Cedar lined hanging lockers with automatic lighting
• (3) 110VAC duplex electrical outlet
• Flooring - Carpeting with pad under
• Samsung 26” T.V.

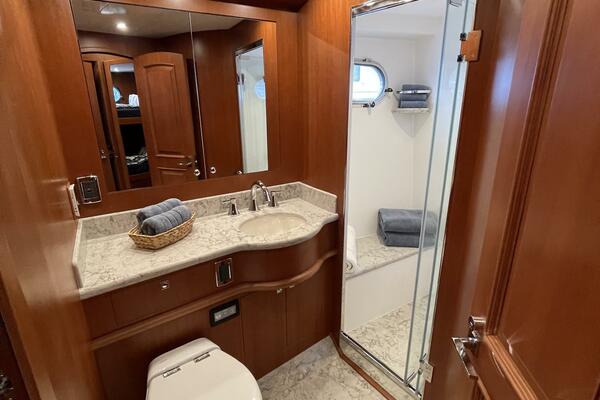

VIP/Guest Head

• Solid surface counter top of Corian or equivalent
• Portlight
• FRP shower stall with saloon style glass doors
• Toilet - TECMA or equivalent
• 110VAC duplex electrical outlet, GFI
• Grohe fixtures for sink and shower (removable wand type shower head)
• Exhaust fan, 110VAC
• Cabinet below sink
• Mirror
• Towel and toilet paper holders
• Flooring - Caesarstone MoorlandFog #6046

General Interior Features

• Hand selected cherry hardwood and veneers
• Softtouch wall coverings, foam backed
• Hardwood raised panel veneered interior passage doors with blended arched tops
• Locking latches on interior cabinetry - push/pull positive Southco or equivalent
• Interior cabinetry drawers with side mount, full extension, ball bearing drawer guides
• Interior cabinetry doors use fully adjustable Euro style hinges
• Cabinets to have pre-finished maple interiors for easy cleaning and furniture grade quality

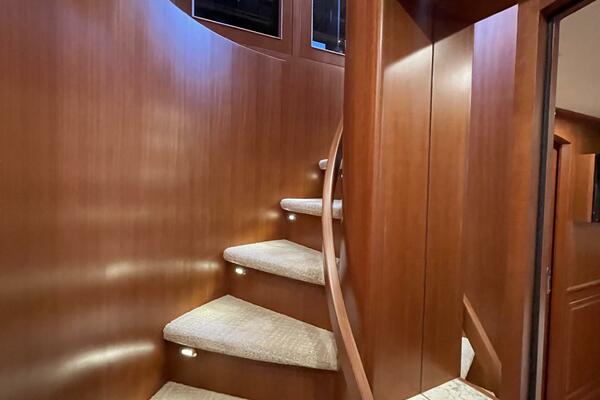

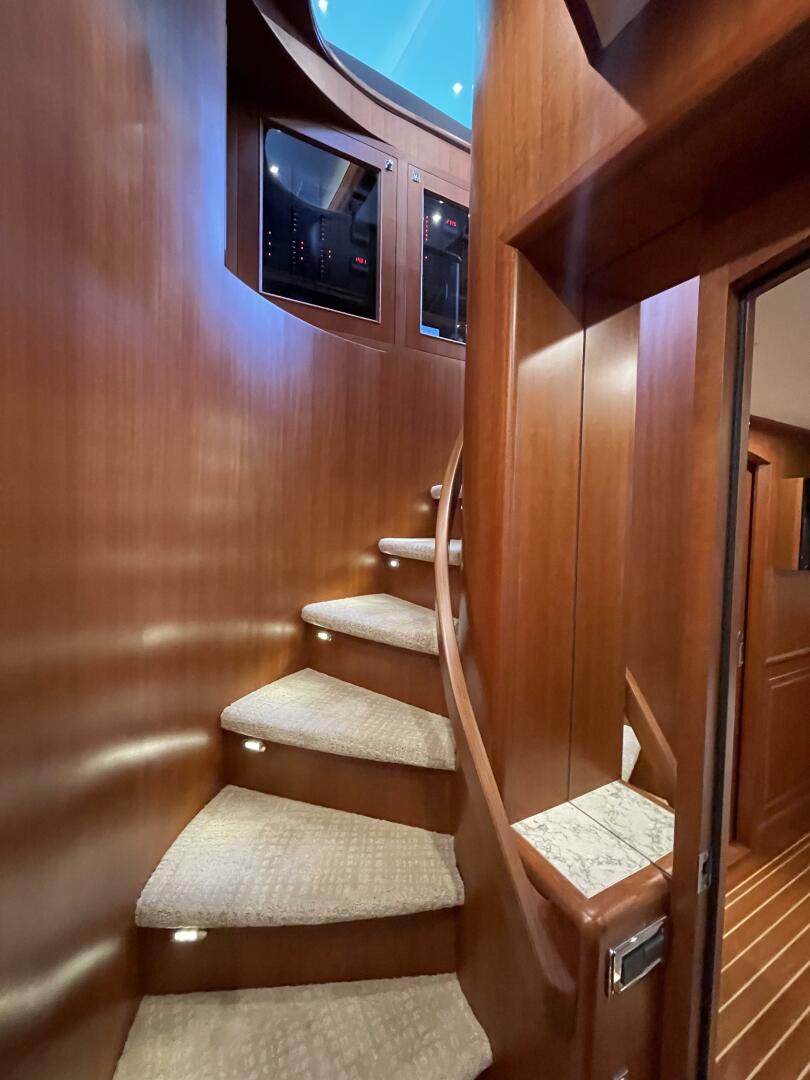

• Interior hand rails (stainless steel or hardwood) on stairways
• Hand rails (hardwood) on overhead in saloon, overhead in pilothouse, overhead in master
• Hand rails (hardwood) on either side of steering station integral to counter trim
• Overhead lights-LED

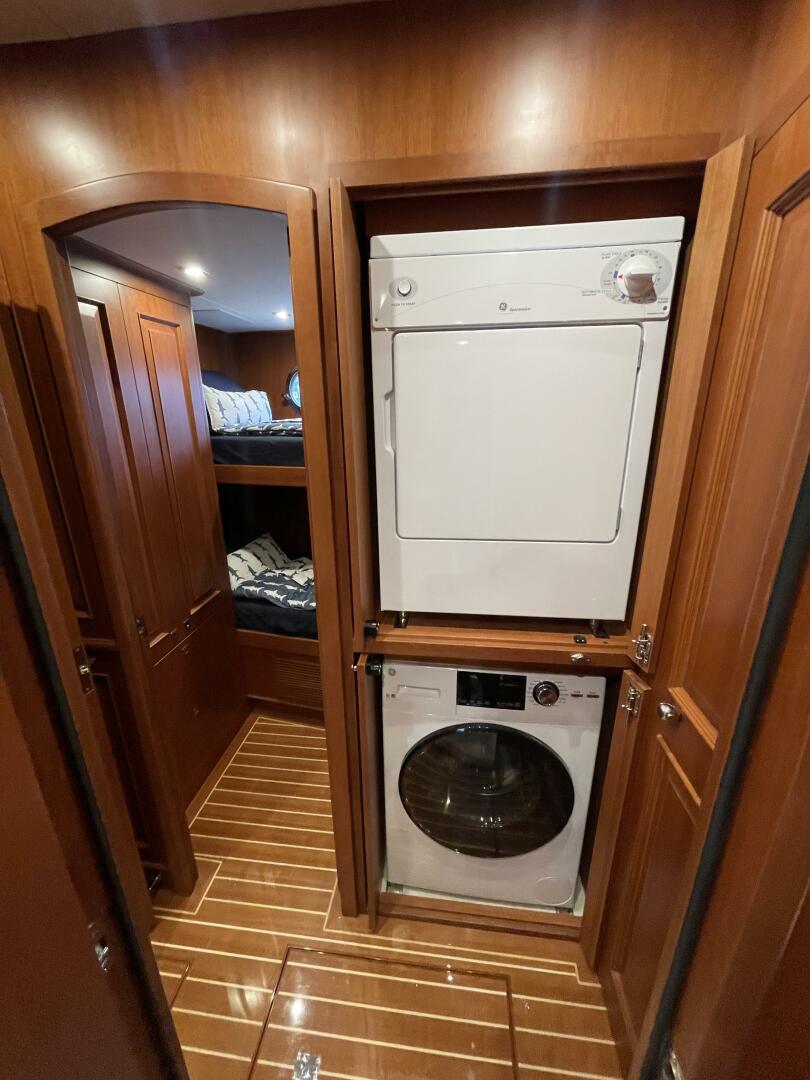

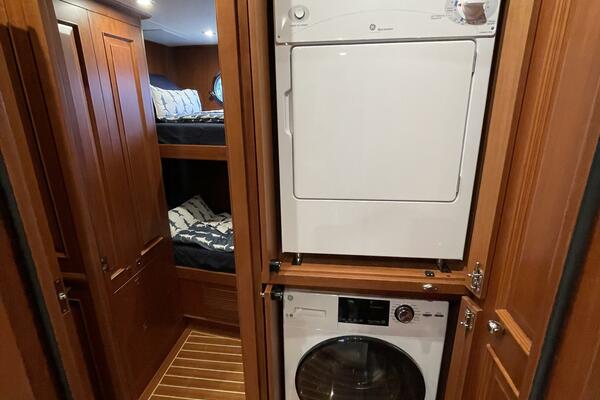

• Stacked Bosch washer/dryer or equivalent
• All headliners of acoustic soft, foam backed vinyl in eggshell or white panels
• All electrical switches and outlets are Vimar
• Dimmer switches in salon, galley, pilothouse and master stateroom
• Windows tinted (exception, 3 forward facing pilothouse windows)
• Window treatments - designer blinds in saloon and galley
• Storage areas with carpet lined bottoms and sides

OPTIONS

PARTIAL LIST

• Kevlar reinforced hull
• Cockpit helm station - starbord side station
• Wesamr stern thruster (24 VDC)
• Heated Galley, Onwers & Guest head floors - Sun Touch brand 110VAC
• 2nd Glenndinnig shore power Cablemaster system
• 5X Underwater lights
• Stainless stell BBQ
• Wood flooring: Salon, Pilothouse, Onwers suite, Guest & VIP staterooms
• Searchlight
• GARMIN navigation system

All of the above listed items are included in the advertised retail pricing.

PRELIMINARY SPECIFICATIONS & ALL RIGHTS RESERVED

-- END OF SPECIFICATIONS --

These preliminary specifications have been prepared to cover equipment and materials as accurately As possible. Specifications are continually under review and subject to change without notice.

-- ALL RIGHTS RESERVED --

This information and all associated materials and their content may not be copied, duplicated, Distributed, or used without prior permission.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
