2011 Sabre 40' _{(12.19 m)} 40 Sedan

Hull

•   Modified Deep “V” Planing hull design, with shallow pod drive tunnels
• 16 degree deadrise at transom, 23 degree deadrise amidships
• ISO NPG white gelcoat with vinylester back-up resin
• Bottom, topsides and transom vacuum-infused biaxial E-glass with Airex C70 foam core
• Stringer system biaxial E-glass with foam core
• Bulkheads vacuum-bagged biaxial E-glass with polypropylene honeycomb core
• Molded E-glass swim platform with molded-in anti-skid surface
• Hull side rubbing strakes
• PVC rub rail with stainless steel cap
• Painted (IMRON) double boot top
• Gold recessed cove stripe
• DECK and HARDTOP
• ISO NPG gelcoat
• Vacuum-infused biaxial E-glass with balsa core
• Molded-in anti-skid deck surfaces

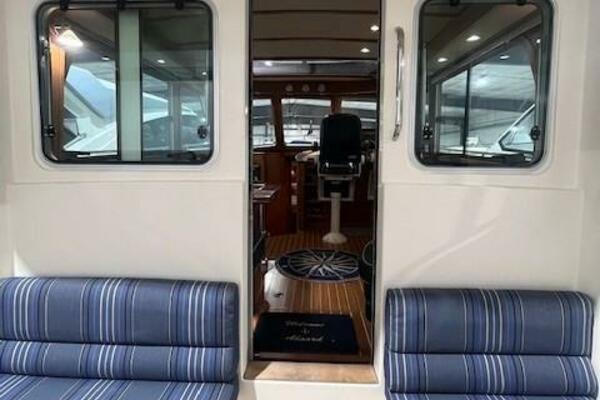

• Sliding aft salon door slides starboard to port
• Sliding windows in salon on cabin sides
• Top hinged windows in salon aft bulkhead
• Hinged access door to side deck at helm
• Flush, outward opening, transom door with latch
• Anchor locker with slam latch
• Large lazarette locker hatch with gas struts and compression latches
• Large engine room hatch in main salon with compression latch
• DECK HARDWARE
• 1 1/4" Diameter type 316 stainless steel perimeter rail system
• (6) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit)
• (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off
• (2) Custom cast stainless steel mid-rail line chocks
• (2) Custom cast stainless steel skene chocks forward
• (4) Cast stainless steel hawse pipes in transom and hull sides
• Fiberglass bow pulpit with dual anchor roller

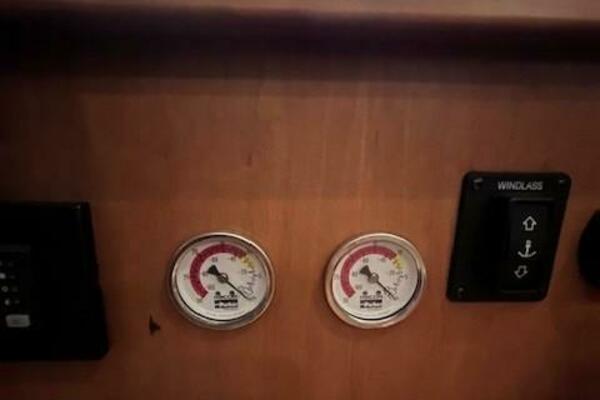

• Anchor windlass, electric rope-chain type
• Flag staff and socket on taffrail
• Burgee staff on bow pulpit
• (3) Lewmar Low Profile polished aluminum hatches w/screens
• (6) Custom stainless steel opening port lights
• Teak toe rails
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion
• HELM STATION
• Cummins DTS single lever electronic controls
• VesselView 7 - Cummins Smart Craft display (engine data, tank levels, vessel data, alarms)
• Triple windshield wipers with washers
• Ritchie Compass
• Switch controls for horn, running lights, anchor light, engine room blower
• Stazo 400mm custom teak steering wheel with tilt helm. - (2) Stidd N-series single helm seats
• PROPULSION

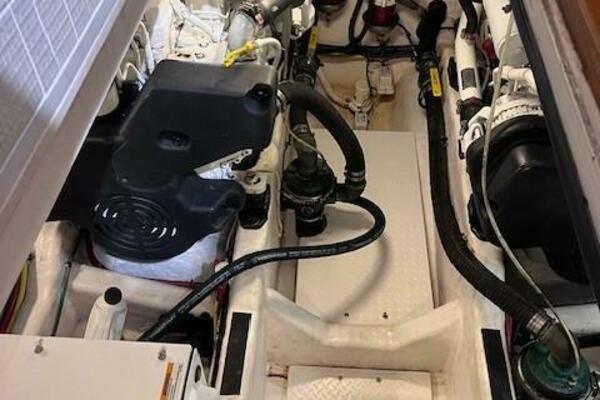

• Twin Cummins QSB 5.9l 380hp electronic, fresh water-cooled engines
• Twin CMD Zeus 3500 pod drives, with integrated steering and trim tabs
• 120A, 12V alternators each engine. - (2) Exhaust by-pass mufflers
• Engine room blower
• Engine room vent ducts
• Engine room floor with FRP anti-skid. - White gelcoated engine room
• Mylar face foam noise barrier
• FUEL SYSTEM

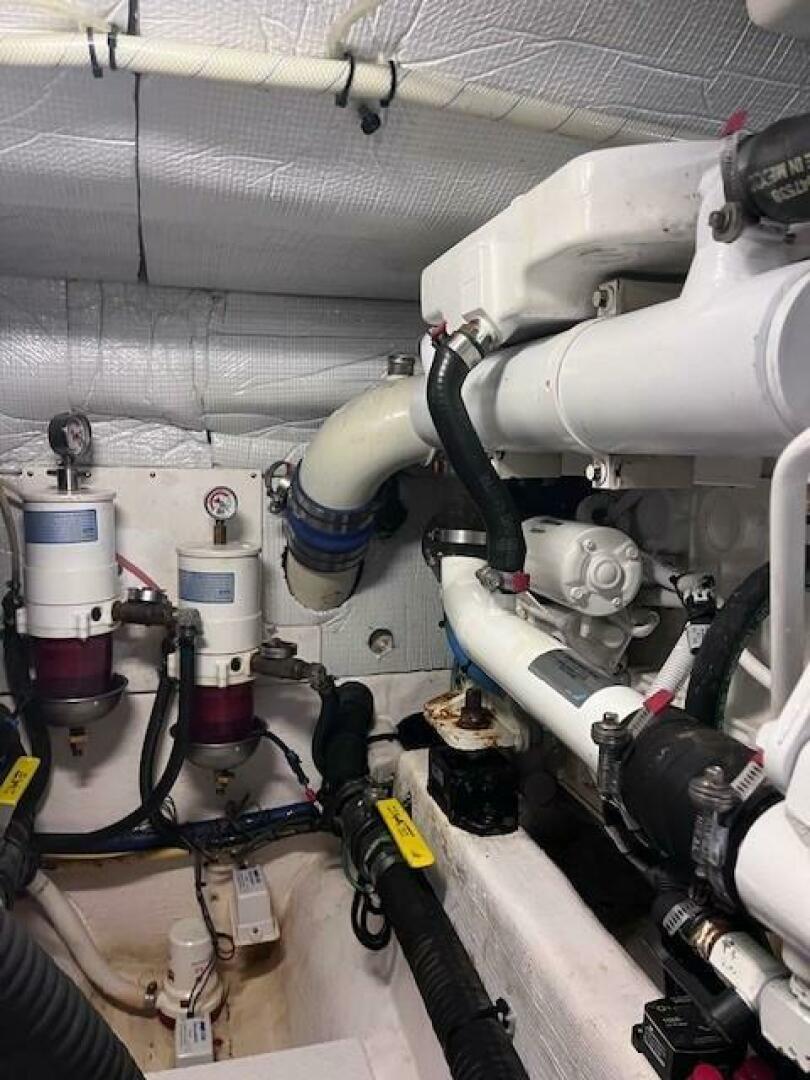

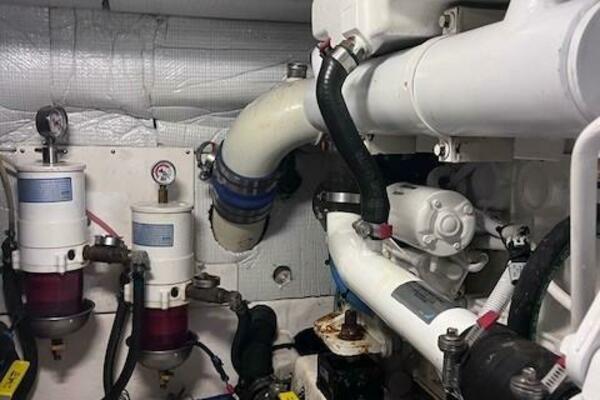

• (2) 190 gal diesel fuel tanks port and starboard. - Racor fuel filters with water in fuel probes
• (2) 2” “Diesel” deck fill plates
• STEERING and TRIM SYSTEMS
• CMD helm, with joystick
• Trim tabs integrated in CMD Zeus pod drives. - Autopilot integrated in CMD Zeus system
• NEW Mercury GPS receiver and “Skyhook” GPS position hold systems
• 12VDC ELECTRICAL SYSTEM
• Two AGM Group 31 dedicated engine start batteries. - Two AGM 4D deep cycle ship's
• service batteries
• One AGM Group 24 generator start battery
• Remote control battery switches with controls at helm. - Manual emergency battery crossover switch
• Illuminated main circuit breaker distribution. - Digital battery monitor
• Lighting: Danish cabin reading lights - High output LED lights in the overhead – Halogen bar lighting in appropriate locations - Fluorescent engine room lighting - Cockpit courtesy lights
• Marine-grade, tinned wire throughout
• 120VAC ELECTRICAL SYSTEM

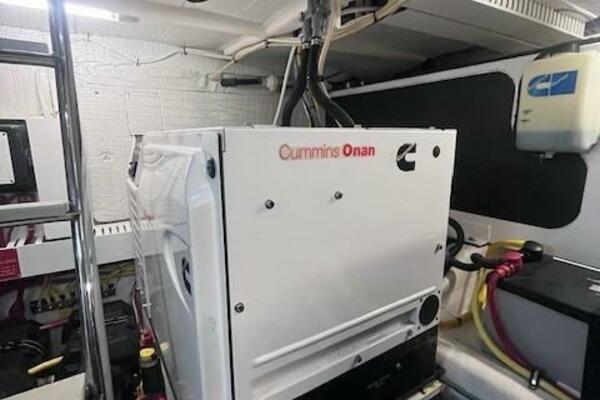

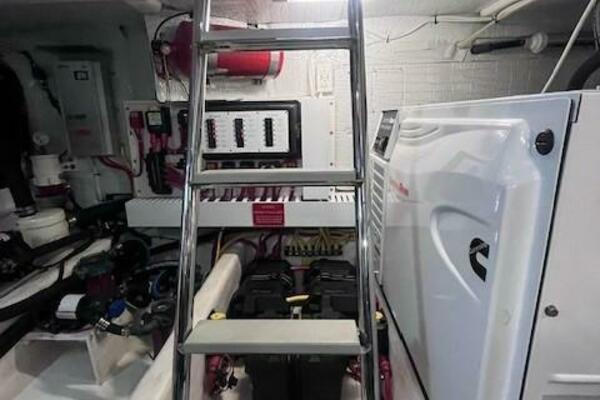

• Onan 9.0 kw generator
• Onan display, dedicated start battery, Water lift muffler, Cooling water intake strainer, Sound shield, Transfer switch
• (2) 30A AC shore power inlets and (2) 50 ft. cords
• Fail safe galvanic isolator
• Illuminated main circuit breaker distribution panel
• Digital AC system monitor
• (1) 120V outlet in each cabin and (1) in engine room
• All galley and head receptacles are GFI protected
• Additional outlets positioned in locations appropriate for entertainment systems in main and forward cabin
• 50amp, 3-bank battery charger
• Reverse cycle heat/ air conditioning in (3) zones
• FORWARD STATEROOM
• Spacious Island Berth layout with 5" cushion
• 3⁄4” laminated trim
• Cherry hull ceilings
• Drawers under berth
• A/C return grills under drawers
• (2) drawers in bureau w/locker w/shelf above and single louvered door
• Upper enclosed shelves with storage behind. Locker face to have
• (2) louvered doors
• Recessed shelf with fiddle on starboard main bulkhead with 19” flat screen TV and DVD player
• Large cedar lined hanging locker to port, with louvered door, shelf and hangar pole
• Open shelf above port hanging locker

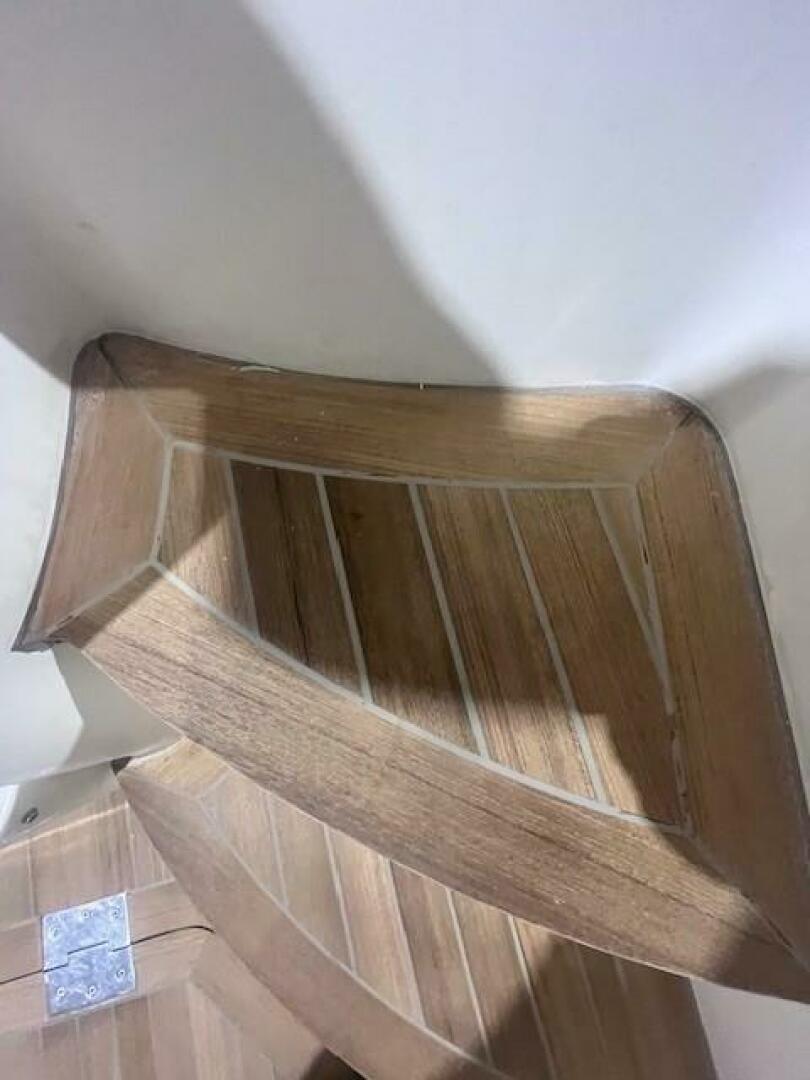

• Teak and holly sole
• Sound deadening soft headliner panels
• Pocket door to forward stateroom
• SECOND STATEROOM
• Convertible dinette berth
• Cherry hull ceilings
• Drawers under berth
• A/C return grille beside
• Forward bulkhead storage locker, and shelf
• Night stand with drawers below
• Teak and holly sole
• Sound deadening soft headliner panels
• Pocket doors between lower foyer and second stateroom
• HEAD
• Stainless steel under mount sink
• Circular shower stall with seat and locker outboard
• Hot and cold pressure water
• Electric shower sump pump
• Storage lockers
• Solid surface vanity top with bull nose
• Towel bar
• Wood trimmed mirror over sink
• Ventilation blower
• GALLEY
• Mid level galley
• Solid surface galley counter top
• Stainless steel under mount sink with Scandvik faucet
• Vitrifrigo 2-drawer Refrigeration with stainless steel doors
• Isotherm 1-drawer Freezer with stainless steel door
• Two burner touch control electric cook top
• Convection microwave with stainless steel door above aft counter
• Drawers and storage lockers below counter
• Built-in waste basket
• Large drawer under microwave opens athwartships
• MAIN SALON
• “L” settee to port, 5” foam cushions, with storage and Sabre tool drawer under
• High Gloss finished folding table with hi-low pedestal, lowers to coffee table height
• Bar and entertainment unit to starboard including: 19” flat screen LCD TV on lift with DVD player
• Sound deadening, soft headliner panels
• Barrel chair
• DÉCOR
• Varnished cherry interior finish
• Screens on all opening ports
• Ocean Air screen/blinds on deck hatches
• Ocean Air blinds on side windows and side door
• Dovetailed maple drawer boxes
• FRESH WATER SYSTEM
• Water capacity 140 gals
• Stainless steel, 11 gal. hot water heater, operates on 110-VAC or engine heat
• Temperature control valve on hot water supply
• Hot and cold water pressure system 12V
• Fresh water spigot in engine room
• Cockpit shower, hot and cold
• Fresh water wash down in anchor locker
• WASTE DISPOSAL
• Polyethylene holding tank with 60 gallon capacity
• Jabsco Quiet Flush fresh water MSD
• Diaphragm waste pump on holding tank
• SAFETY
• Fire extinguishers, (4) at 2 1/2 lbs
• Marelon sea valves on all thru-hull fittings below waterline
• Bonding system to safeguard against galvanic corrosion
• Automatic fire extinguishing discharge system in engine space with override
• (3) Automatic 12V electric bilge pumps. - (3) high water switches and alarm
