1955 Concordia 39' _{(11.89 m)}

Accommodations

The Concordias are known for their simple elegance (above and below decks). Finished with raised panel varnished pine bulkheads and doors and varnished locust trim, teak sole, 2 large opening hatches, the one in the main cabin being the beautifully detailed "butterfly" type, four opening ports and six fixed ports. Hatches and forward opening ports are equipped with screens. On cooler or damp days, there is a shipmate kerosine heater that keeps the cabin comfortable and dries out damp clothing. Starting forward is the forepeak with room for anchor chain, spare anchor, sail storage and 2 Concordia pipe berths. Next, aft to starboard is a generous hanging locker. Across to port is the head which is plumbed directly to the holding tank. Holding tank has a Y-valve for deck or overboard discharge via manual waste pump. Head has a stainless steel sink with a foot pump for fresh water. Continuing aft is the Main Cabin with settees P&S with blue corduroy cushions and the comfortable Concordia fold down berths with storage shelves and lockers above. There is a centerline varnished locust drop leaf table with four drawers for storage. Next aft is the Galley split P&S around the companionway and engine box. To starboard is a 2 burner gimballed alcohol stove with storage behind and below, while to port is the sink and icebox with storage behind and below. During the 2015 restoration, the entire interior (including bulkheads and ceiling) was removed, refinished and reinstalled. In the process, the interior has been rewired, upgraded to LED lighting and the icebox was rebuilt with 2 in. foam insulation.

• Shipmate kerosene bulkhead heater
• 2 burner Origo gimballed alcohol stove
• Raritan PHII head
• Custom Concordia holding tank
• Brass ships clock
• Brass trawler lamp
• Brass oil lamp
• CO2 and smoke detectors
• (3) USB charging ports in main salon
• Icebox drain foot pump
• Galley sink with manual water pump

Spars and Rigging

Masthead rigged yawl with keel stepped sitka spruce main mast. Deck stepped sitka spruce mizzen mast. Roller furling headstay. All spars are maintained with 2 annual coats of varnish. Standing rigging was replaced in 2016. New lifelines installed with starboard side gate in 2022.

• (4) bronze self tailing winches in the cockpit
• (2) bronze self tailing winches for mast halyards
• (1) bronze self tailing winch on boom for reefing
• Running rigging is double braid and in good condition
• Mainsail Lazy Jacks
• 2016 Harken drum furler
• Spinnaker pole
• 130% RF Genoa - Downs Sails 2016
• Mainsail - Downs Sails 2016
• RF Working Jib - Downs Sails 2017
• Asymmetrical Spinnaker (blue & white) - Downs Sails 2023
• Mizzen Staysail (blue & white) - Downs Sails 2023
• Mizzen Sail - Doyle Sails
• Additional older sails

Electrical

• (2) Rolls AGM house batteries 2020
• (1) Rolls AGM engine battery 2020
• Bass Products 16 circuit breaker panel with digital meters
• 125 amp alternator
• Rewired with marine grade insulated tinned stranded copper wire
• LED running lights
• LED interior lighting
• Solbian SP-47L Solar panel (portable)

Electronics

All new electronics were installed in the 2015 rebuild.

• Raymarine RD418HD 4K W 18" radar
• Raymarine e95 radar/chart color display
• Raymarine EV-100 tiller pilot w/ i70 control head
• Raymarine S100 wireless autopilot remote
• Raymarine i70 multifunction display
• Raymarine 130 GPS receiver
• ICOM IC0506-41 VHF w/ AIS receiver
• Raymarine AIS700 Class B transceiver (2021)

Mechanical

Yanmar diesel, fresh water cooled, installed 2015 with a three bladed prop on 1 in. stainless shaft.

• Yanmar 3JH5E w/ 1175 engine hours
• Fresh water cooled through heat exchanger
• Racor fuel/water separator
• GORCO bronze intake strainer
• PSS dripless shaft seal (2024)
• 3 blade bronze propeller
• (2) Rule 2000 electric bilge pumps with float switches
• Edson bronze manual bilge pump, cockpit installed
• Custom aluminum fuel tank (2015)

Hull and Deck

Construction: Hull is carvel single planked 1 1/8" mahogany over white oak 1 3/8” square steam bent frames all bronze fastened on 9" centers with additional intermediate frames added in the mid-section and forward. Floor timbers are of white oak, 1 1/2" thick. Bilge stringers are out of 2" x 4" fir. Decks have been redone with marine plywood fastened to white oak deck beams and covered with Dynel and epoxy. The cockpit sole is caulked teak over white oak frames and the cockpit seats are solid teak. Housetop is Dynel cloth glassed over plywood fastened to white oak beams. Trunk cabin sides, combings, deck hatches, companionway hatch, and cockpit locker sides are solid mahogany with brightwork in excellent condition. The toerails and handrails are black locust. The backbone - keel, deadwood, stem, horn timber, and sternpost are all made of white oak and rudder is of solid mahogany. Topsides are painted white with a blue boot top and cove. The bottom is painted in an ablative green finish. Decks are painted Hatteras off-white. See “Previous Survey Remarks“ section below for an overview of structural work done over the years. Full survey can be made available for serious inquiries.

• 35 lb. Delta Plow anchor with chain & rode
• Fortress secondary anchor with chain and rode
• Forward hatch pup tent with screens & cover
• Sunbrella covers for forward hatch & main skylight
• Sunbrella companionway dodger
• Sunbrella cockpit cushions
• Sailcloth awning for cockpit
• Bronze seahood
• Concordia smoke head for stove
• Concordia dingy brackets (deck mounted, removable)
• Folding boom gallows
• Locust tiller
• Fenders & dock lines
• Lifesling
• Safety gear

Previous Survey Remarks

2024 Survey:

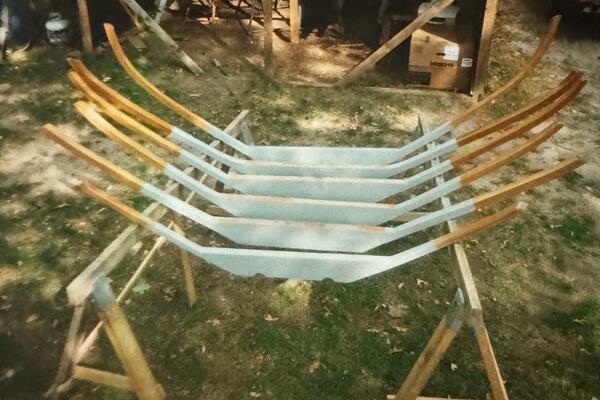

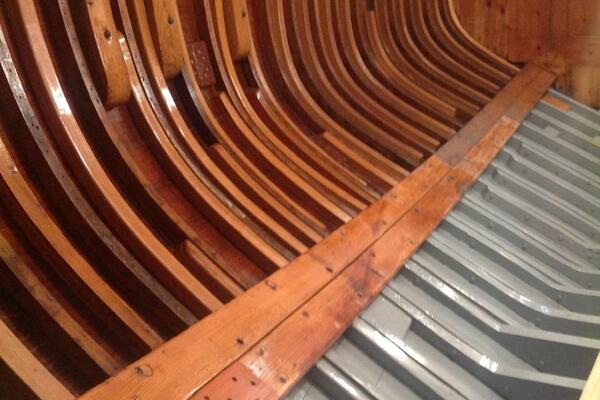

“This boat has had consistent care and upkeep over the current ownership for several decades including a bottom refastening in 1985 and a major structural refit period from 2005-2015 including the entire removal of the interior accommodations down to the frames. The rudder, ballast keel, deadwood, and engine were removed for repair of the floors, frames and planks. Planks 6-13 were replaced (garboard and planks 1-5 were replaced in an earlier refit and were reinstalled). Floors 7-30 were replaced and the 6 floors below the mast step timber were replaced/incorporated with new laminated ring frames. The forward 3 feet of the keel was replaced and 2 feet was scarfed on to the back of the keel timber. The main chainplates and backing blocks were removed, refurbished and reinstalled. The original intermediate laminated frames at the hard turn of bilge were replaced with new longer laminated frames. Installed a new laminated oak outer stern post and the oak deadwood was replaced. All backbone keel bolts and floor fasteners were replaced with Monel. The boat was completely rewired to ABYC Standards w/Bass Products distribution panel. All new LED interior lights and new electronics were installed. In 2014 the boat went to Concordia Co. for a new Yanmar engine, shaft, shaft log, cutlass bearing, PSS dripless shaft seal, 3-blade bronze prop, new bronze thruhulls for intake and exhaust, new fuel tank, holding tank, and new mahogany cabin skylight”

2015 Survey:

“The vessel has been inspected several times over the rebuild of the boat. The undersigned visited the boat several years ago when the ballast keel was dropped and at that time was able to inspect the keel timber. Also at that time the interior had been removed from the boat allowing the inspection of the frames. That started a long process of rebuilding this vessel. All along the best materials have been used. The new keel bolts and floor timber bolts were Monel. Also at that time the outer stern post was replaced and the inner stern post refurbished. The lower stem cheek pieces were replaced along with the cheek pieces on the horn timber. The forward 3 feet of the keel was replaced and 2 feet was scarfed on to the back of the keel timber. All the bolts in the back bone are now Monel. In doing this work 8 bottom planks were replaced new. It should be noted that in 1985 the bottom was refastened. The floor timbers were replaced from floor 7 aft to floor 30. Six of these floors in the area of the mast stop were replaced with "ring" frames. This is a combination of a laminated ring frame going from one side of the boat to the other side and sandwiched between two sections of the floor timber. This helps the boat in the area of stress between the mast step and the chain plates. All the through hulls with the exception of the head discharge have been replaced. In 1985 - 1986 the deck was redone and covered with Dynel. In 1987 - 1988 the coach roof was covered with Dynel. In this recent over haul the fuel tank was replaced with a 22 gal aluminum tank and a custom Concordia holding tank was installed. As part of the over haul a new Yanmar 38 hp diesel was installed. As can be seen from the report, SAFARI has been meticulously restored to the finecraft she once was. The restoration went beyond just rebuilding in kind, but took into consideration known issues in the class and corrected them. The new floor to frame design in the area of the mast step will greatly strengthen the hull in this area. All the new laminated sister frames will also strengthen the hull. With the new engine, new wiring and all the new systems, this is now one of the best Concordia's around. Given all that has been done, there are presently no further recommendations and this vessel would be considered a good marine risk."
