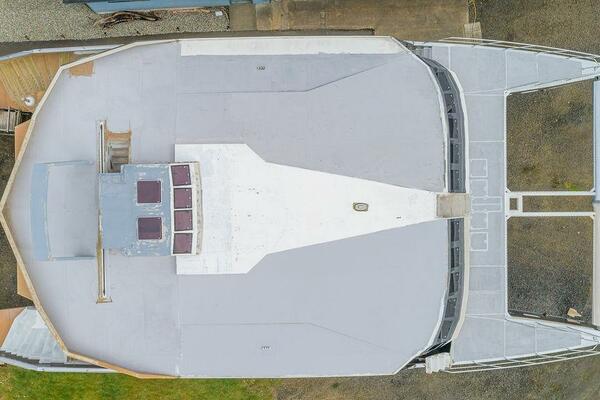

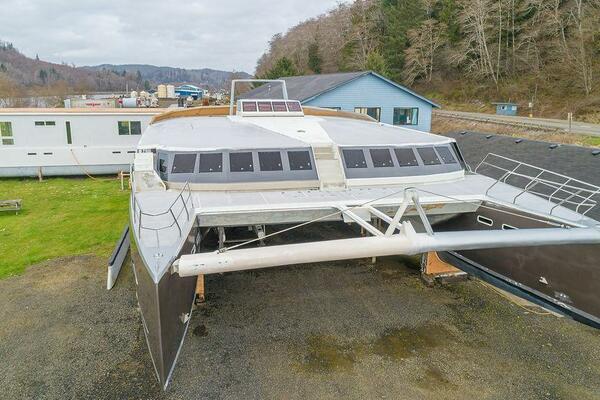

2025 Catamaran 86' (26.21 m) Bloomfield 86 Motorsailor
Raymond, Washington, United States
AMAZING CHARTER OPTION! FINISH THIS BUILD HOW YOU WANT, AND PUT "MAI CAT" INTO CHARTER, OR TAKE HER CRUISING WITH ALL OF YOUR FAMILY AND FRIENDS! CREW QUARTERS ALLOW YOU TO HAVE YOUR OWN CREW ABOARD WHEN YOU ARE NOT! "MAI CAT" IS AN AMAZING PLATFORM WHICHEVER WAY YOU GO!
- Catamaran
- Sail
- New
- Diesel
- Composite Hull
$ 3,600,000 USD
€ 3,065,526 Euros
$ 4,959,900 CAD
£ 2,691,990 GBP
Description
From the builder:

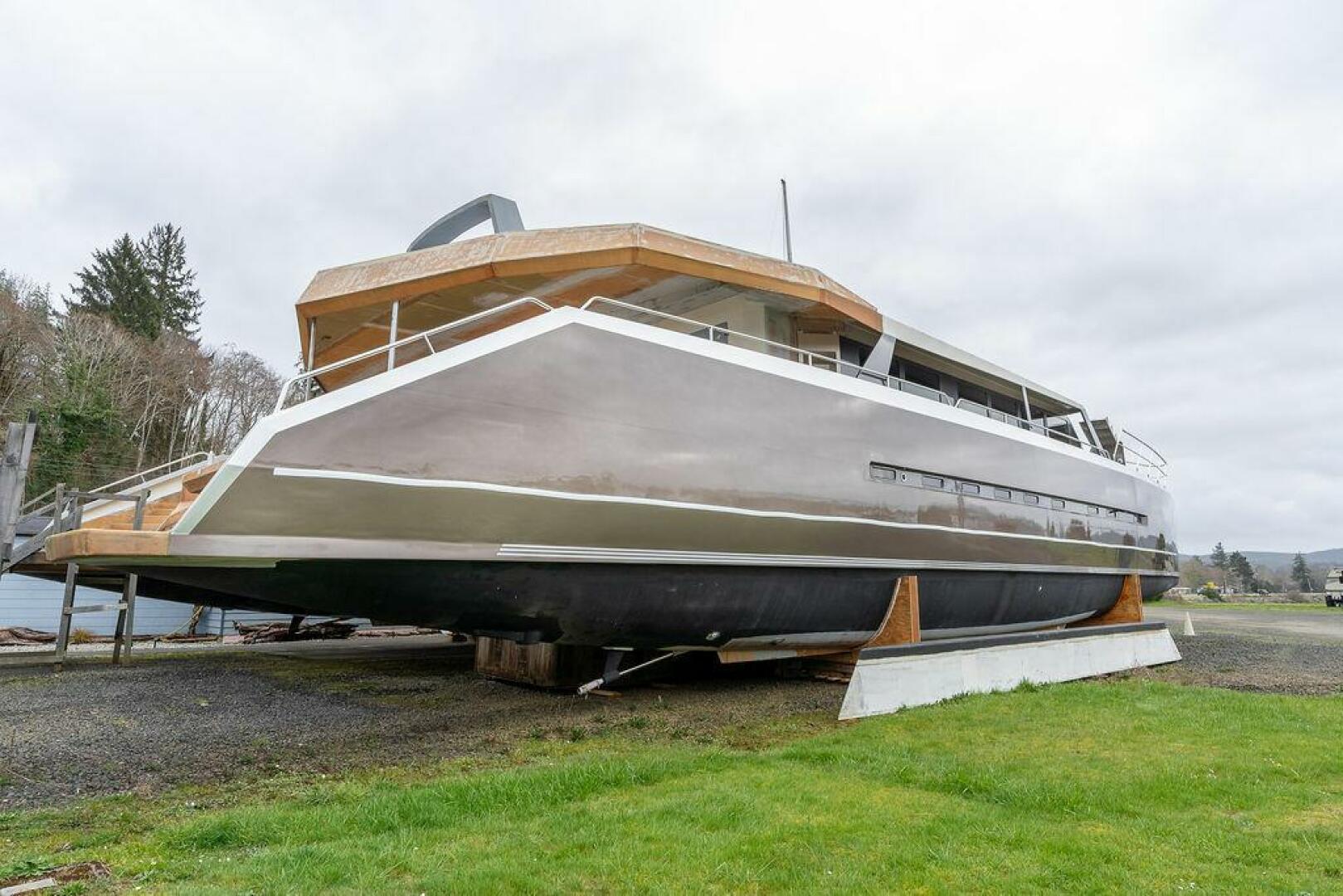

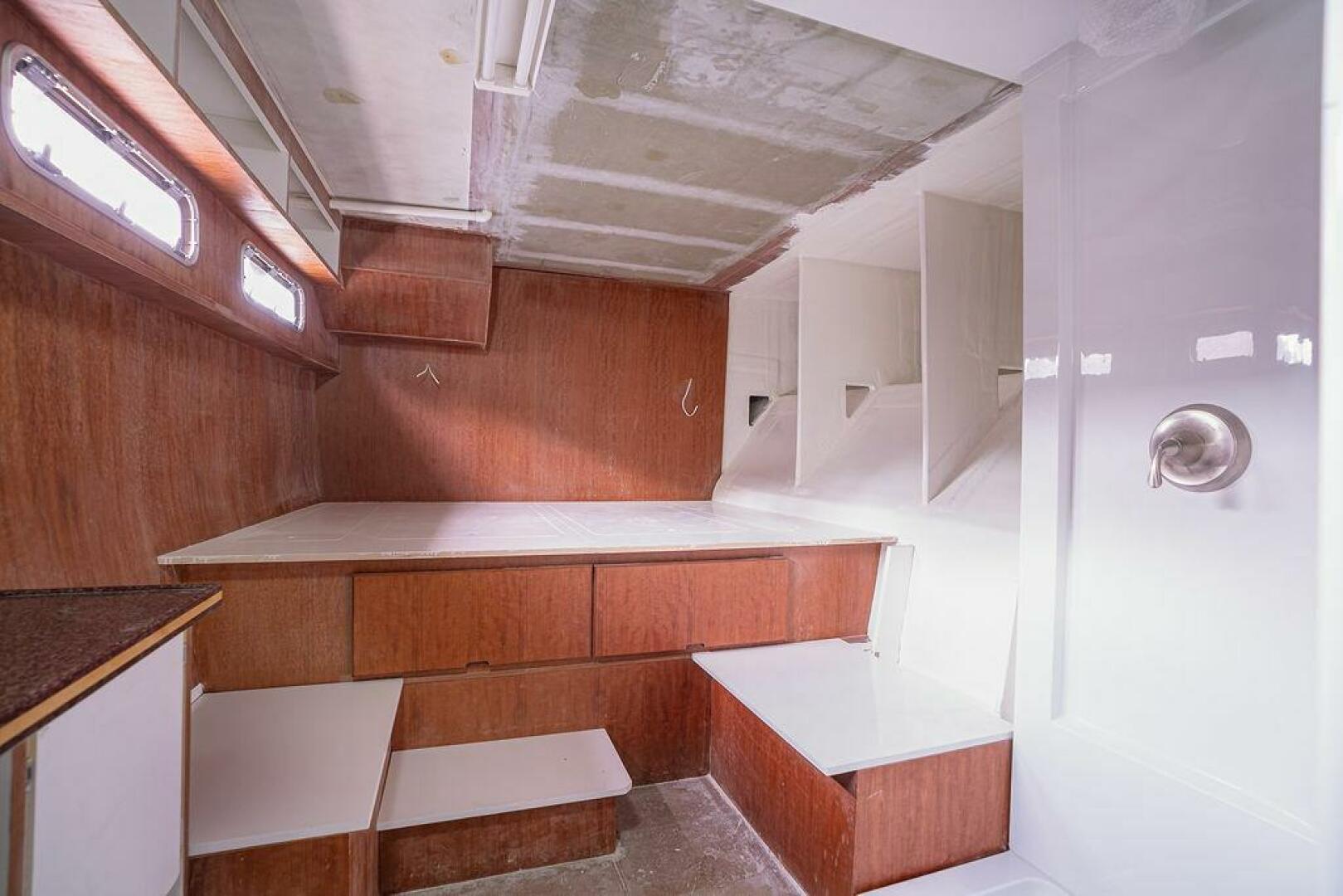

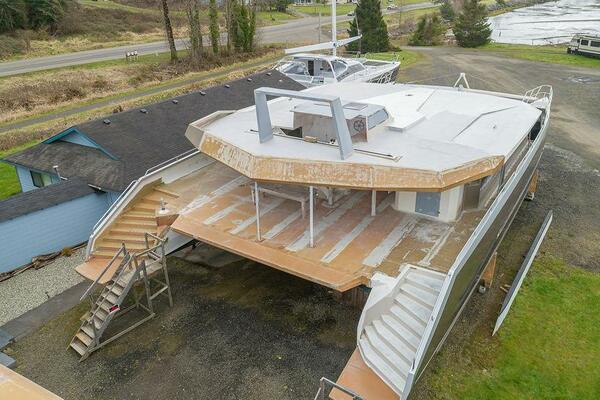

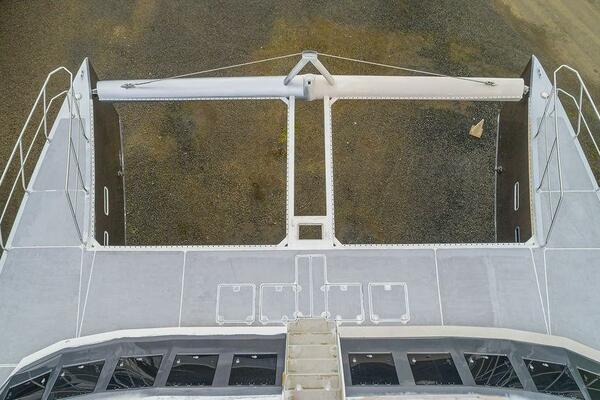

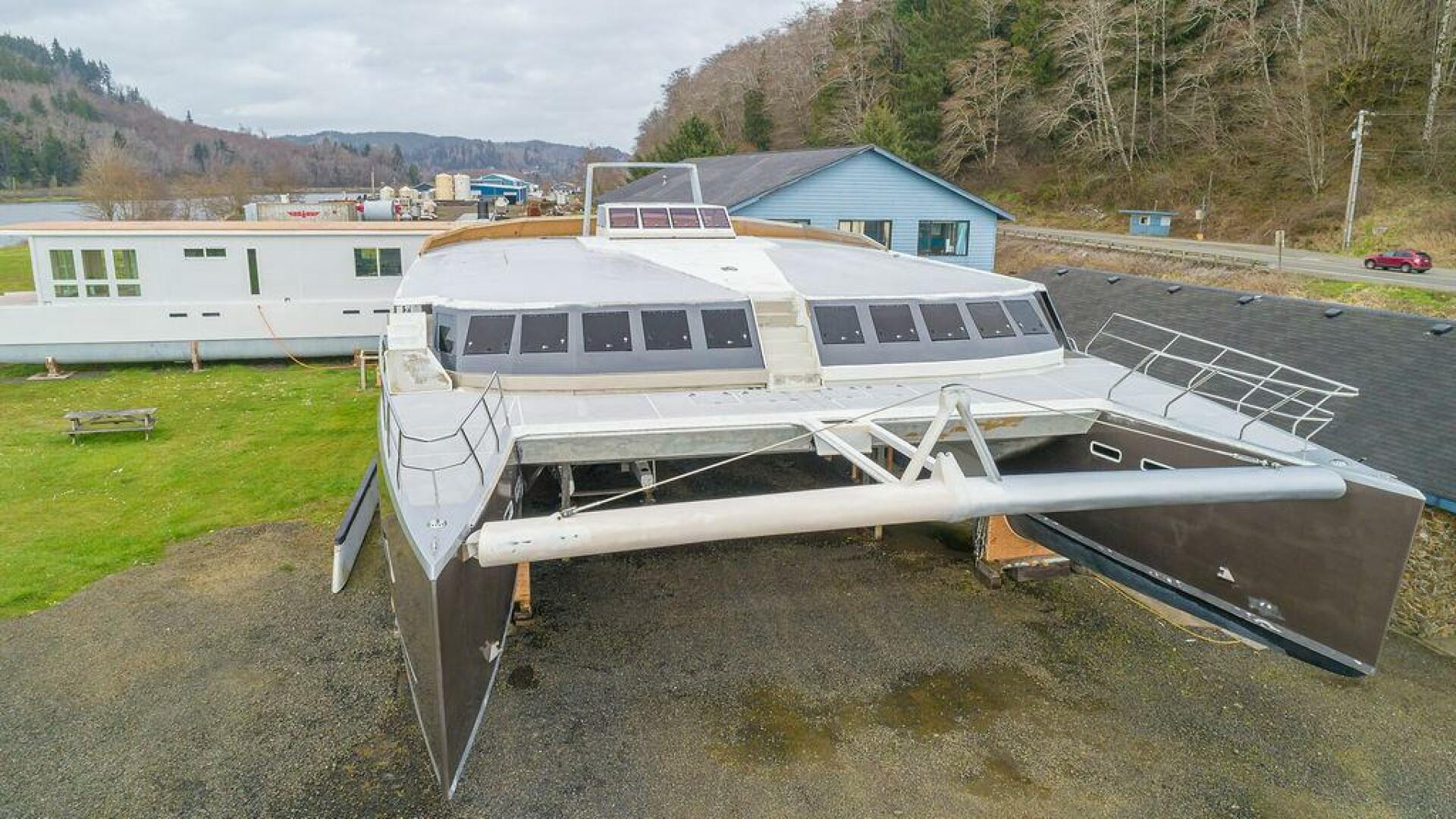

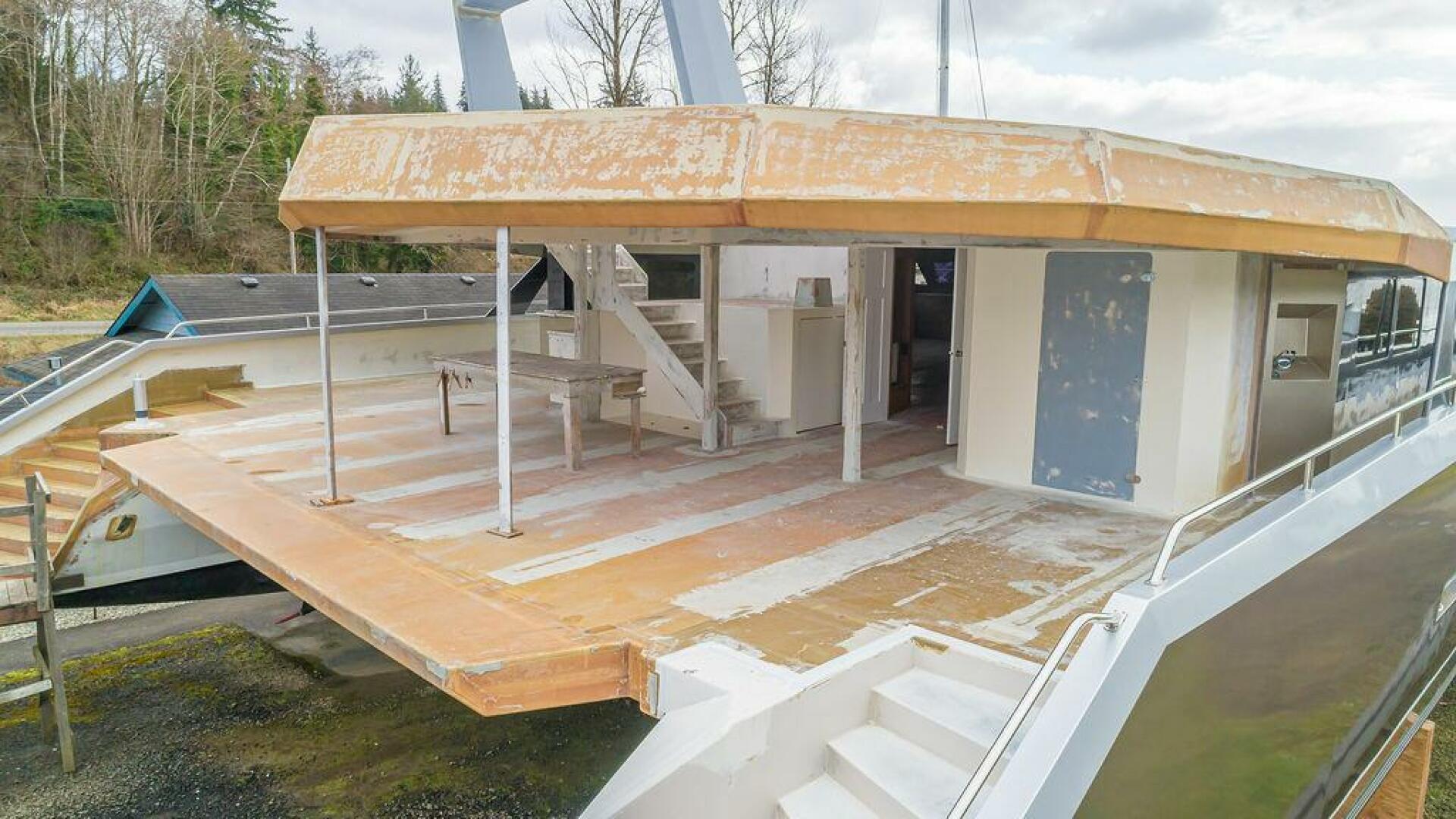

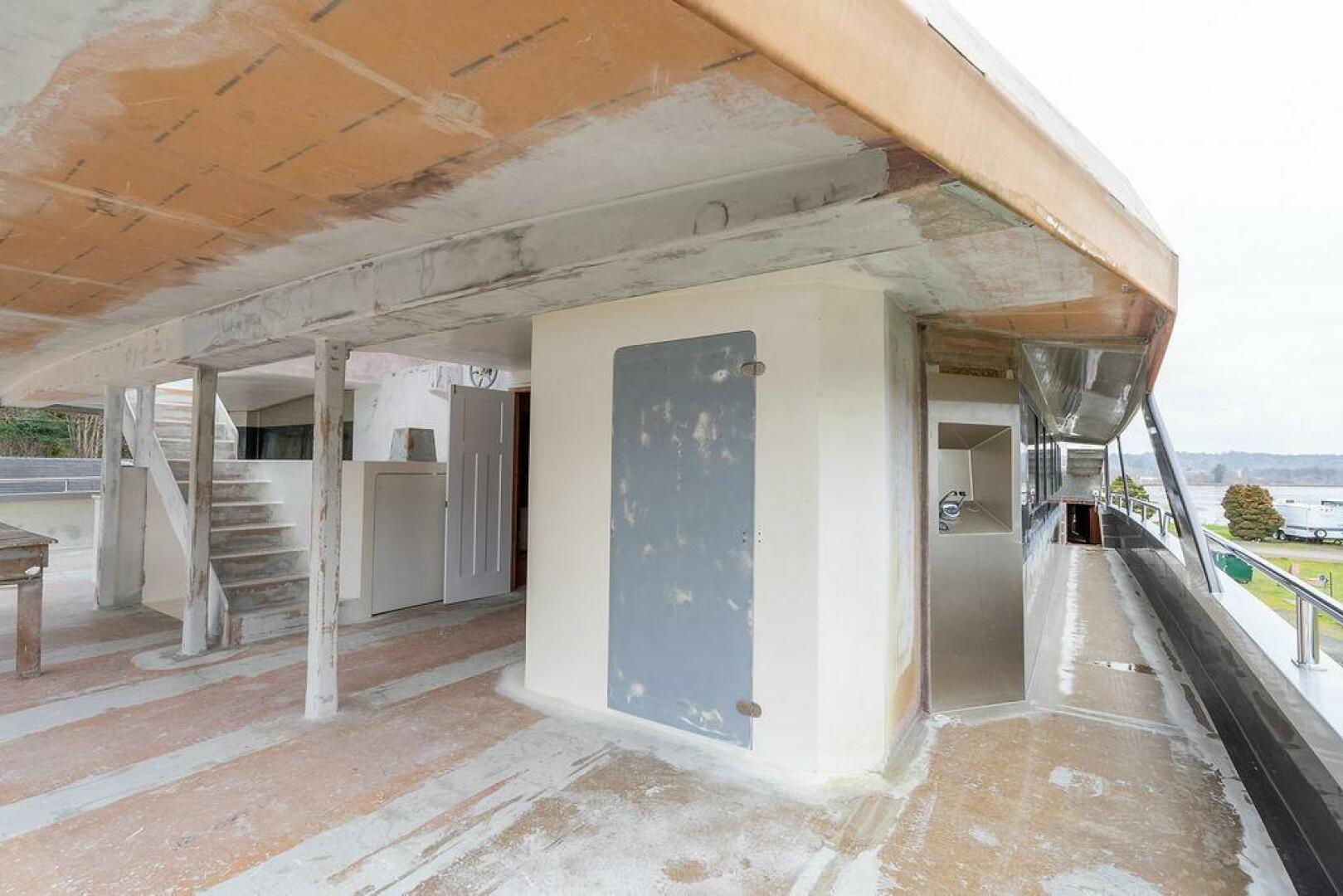

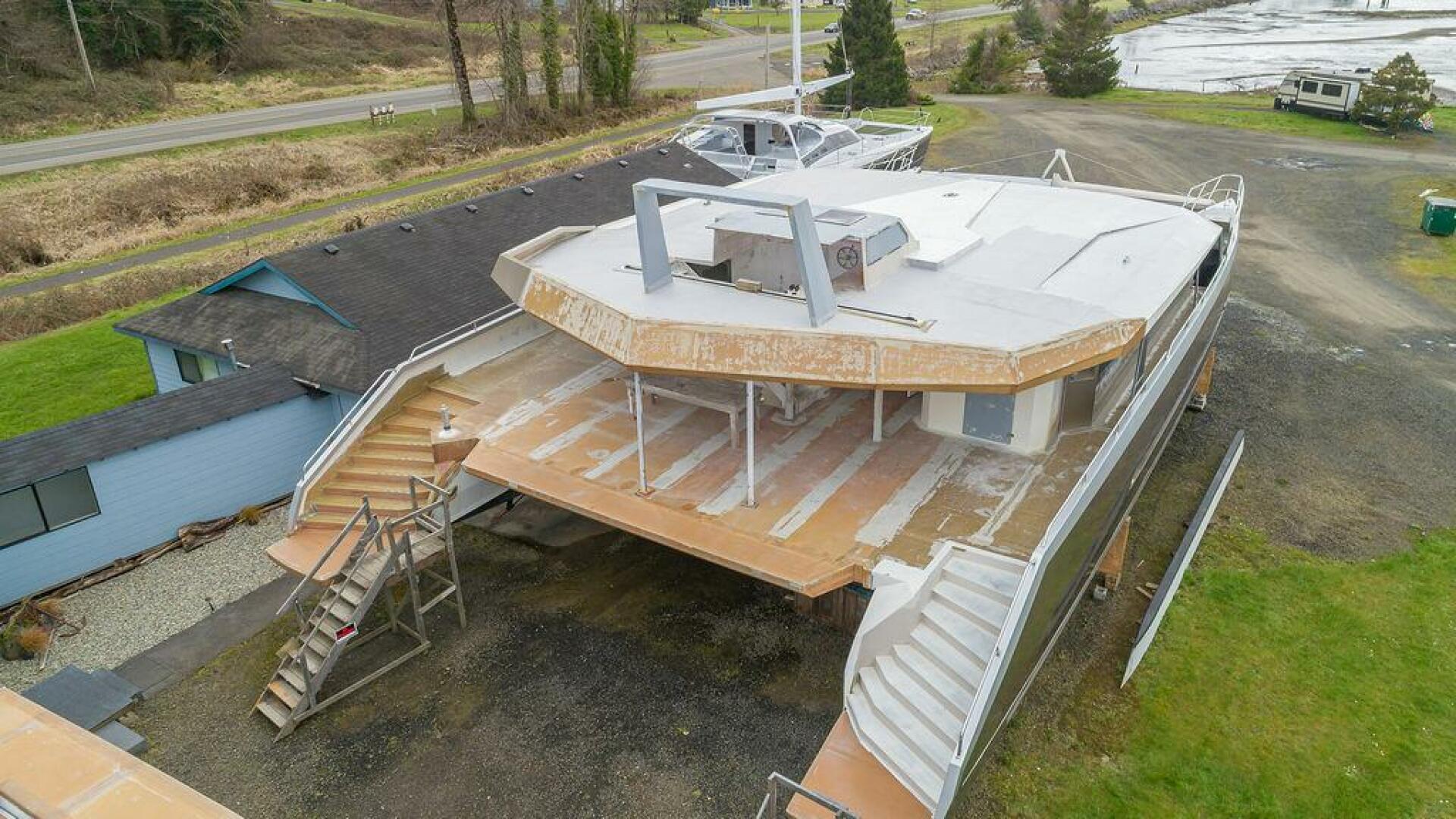

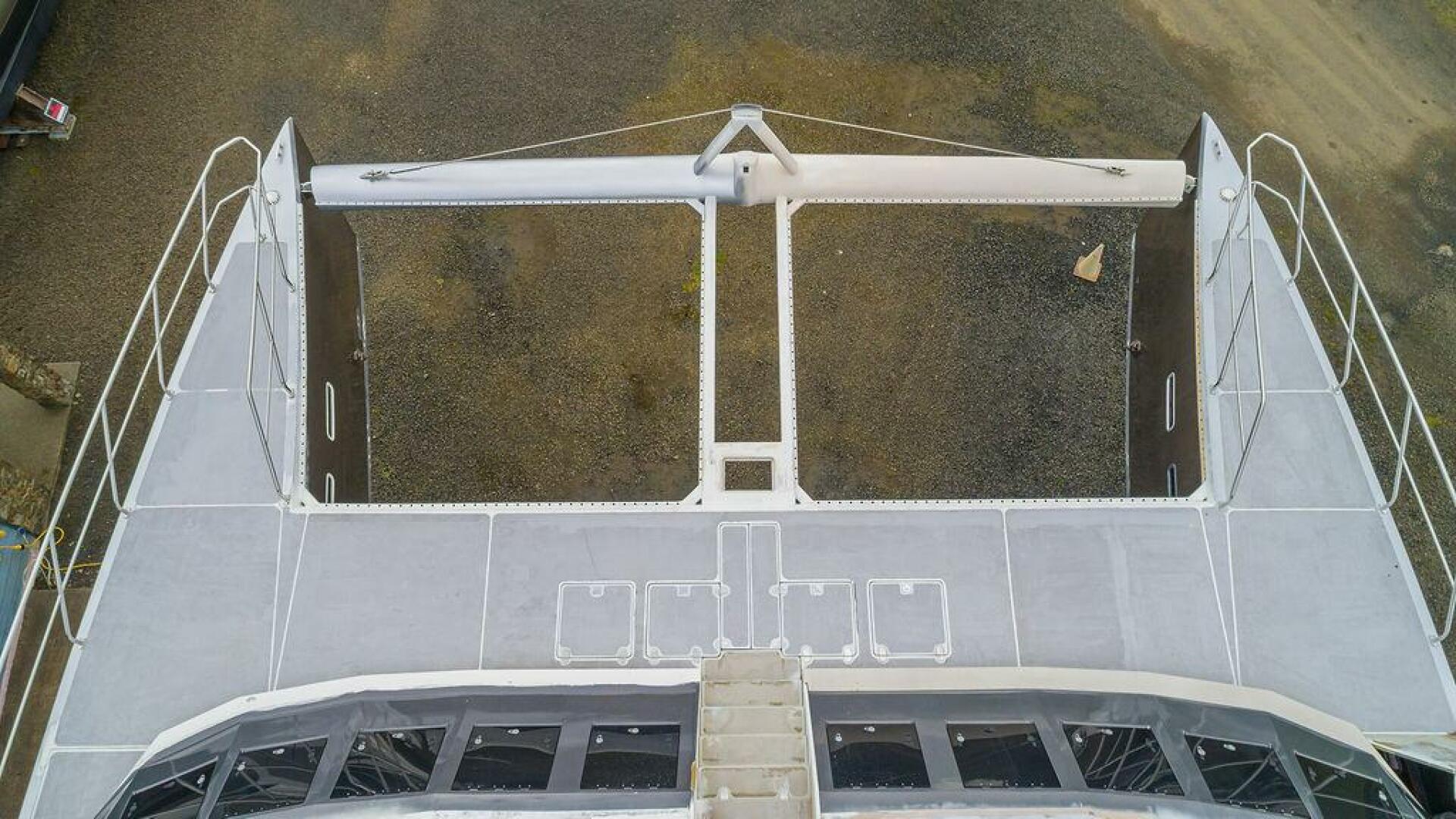

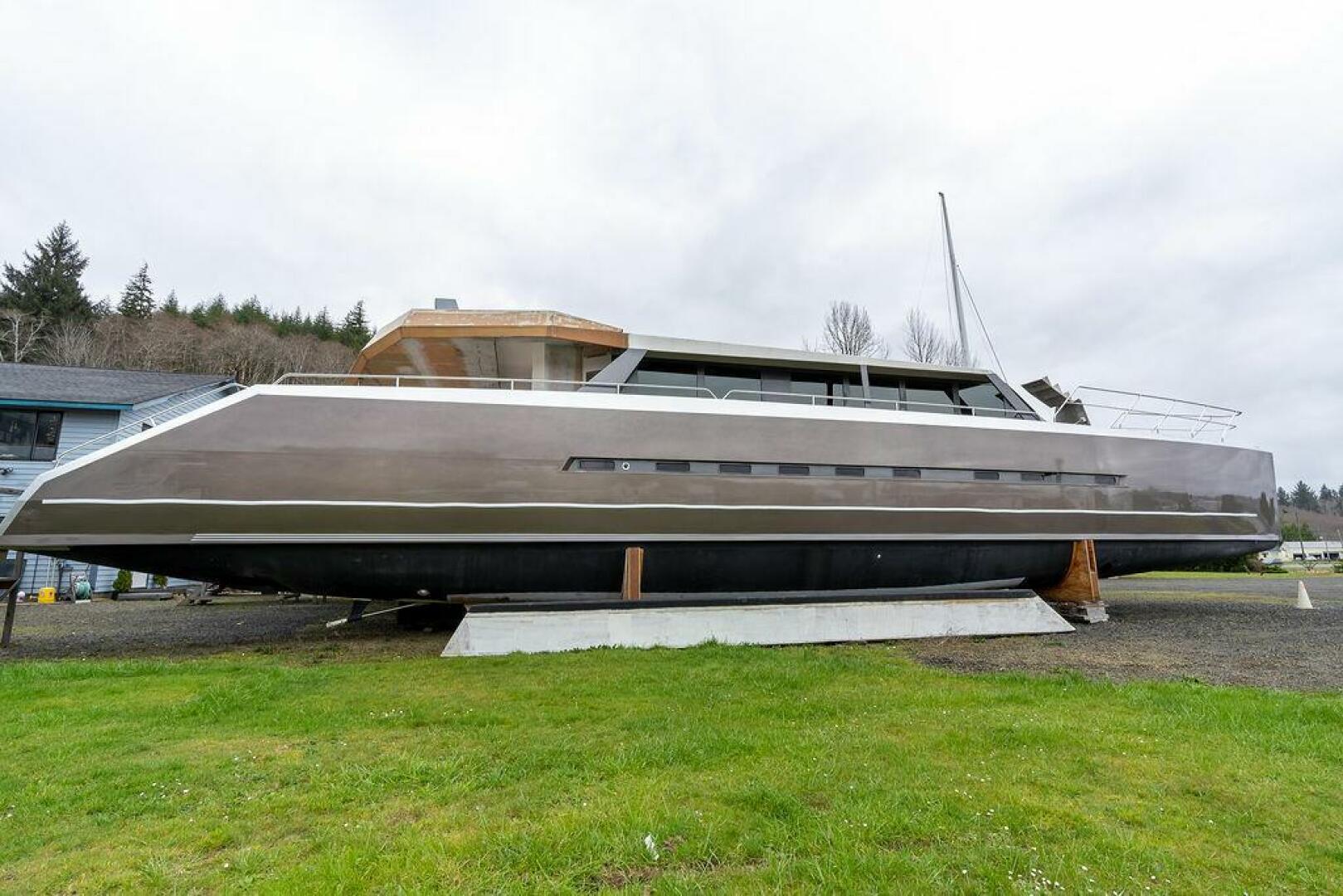

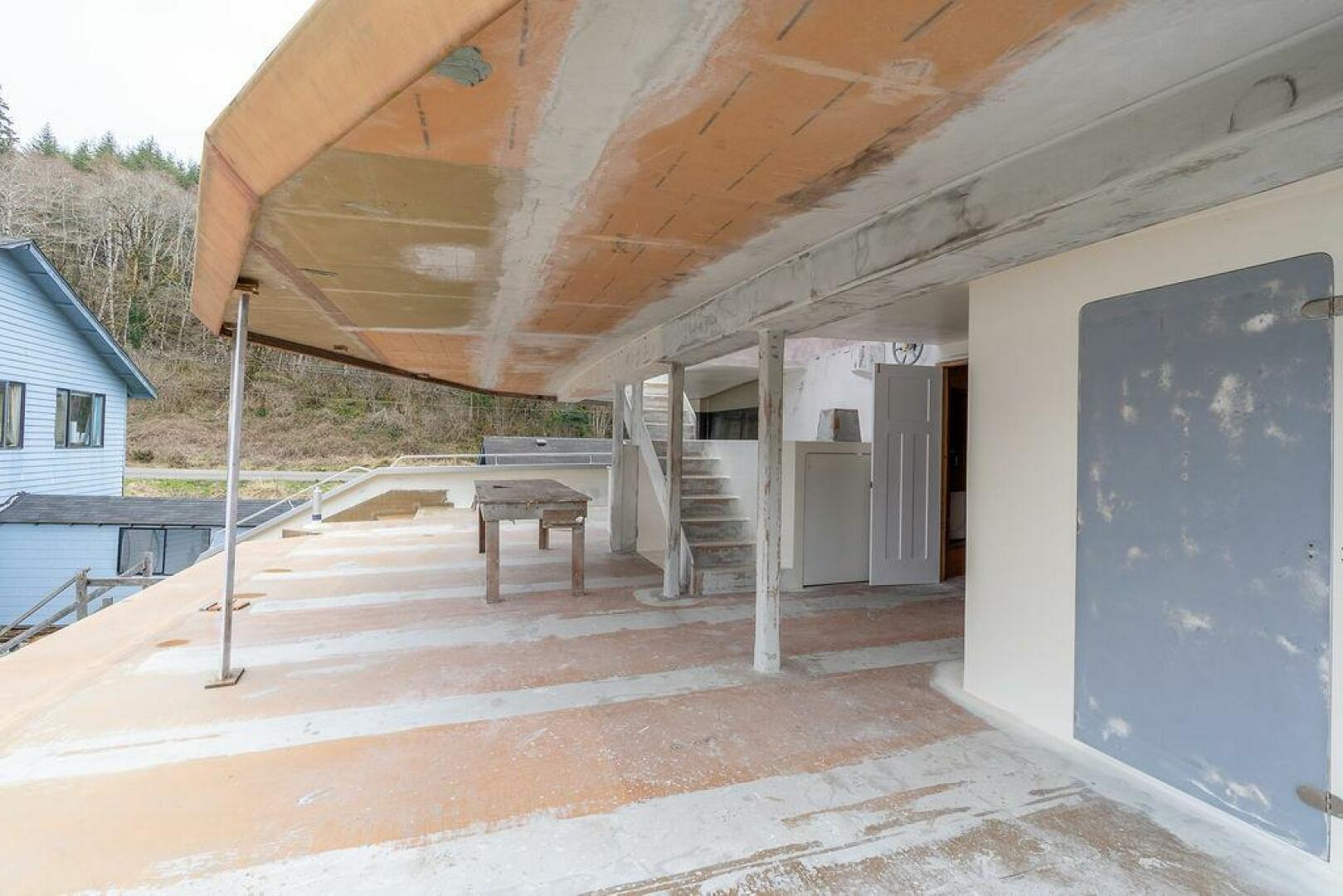

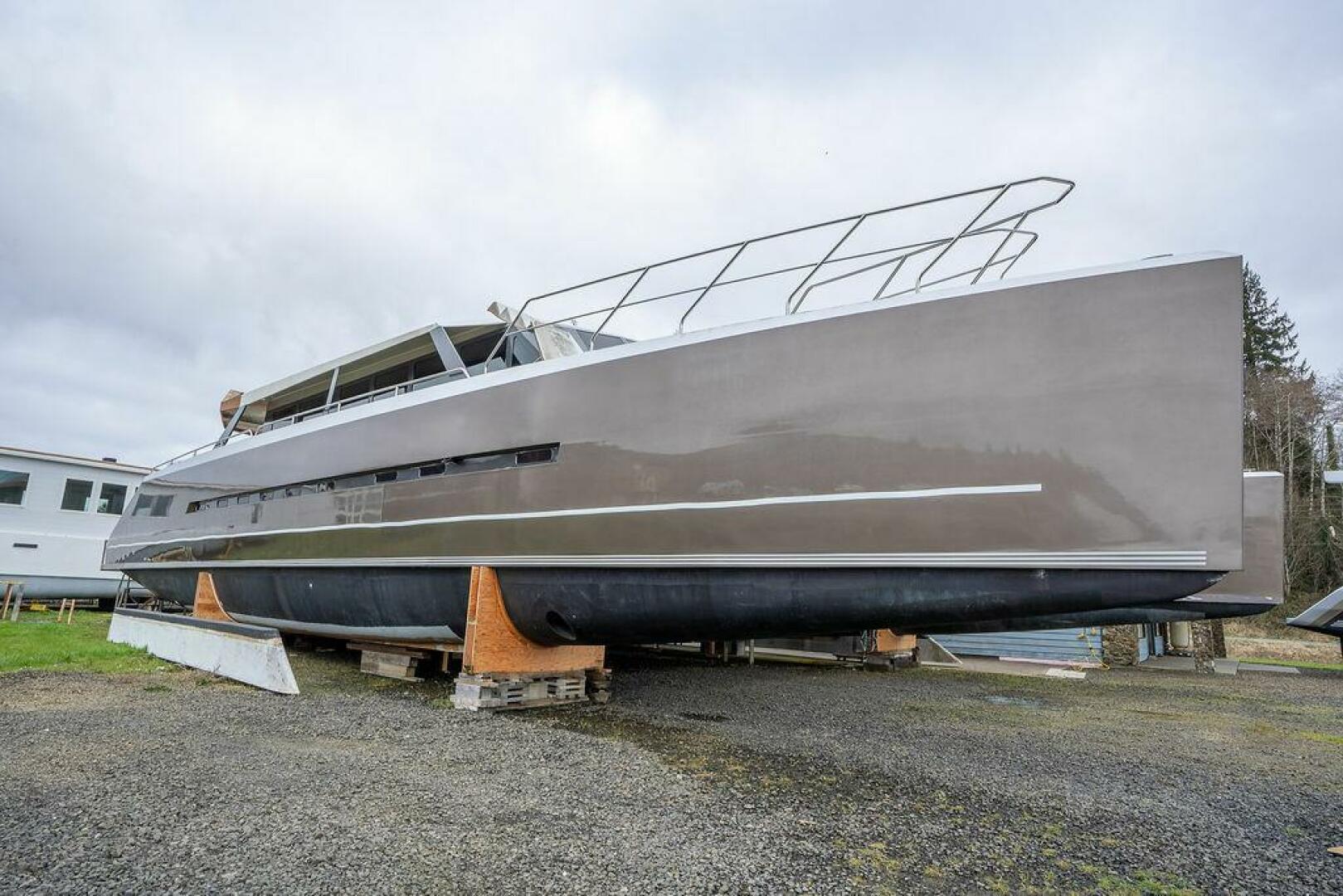

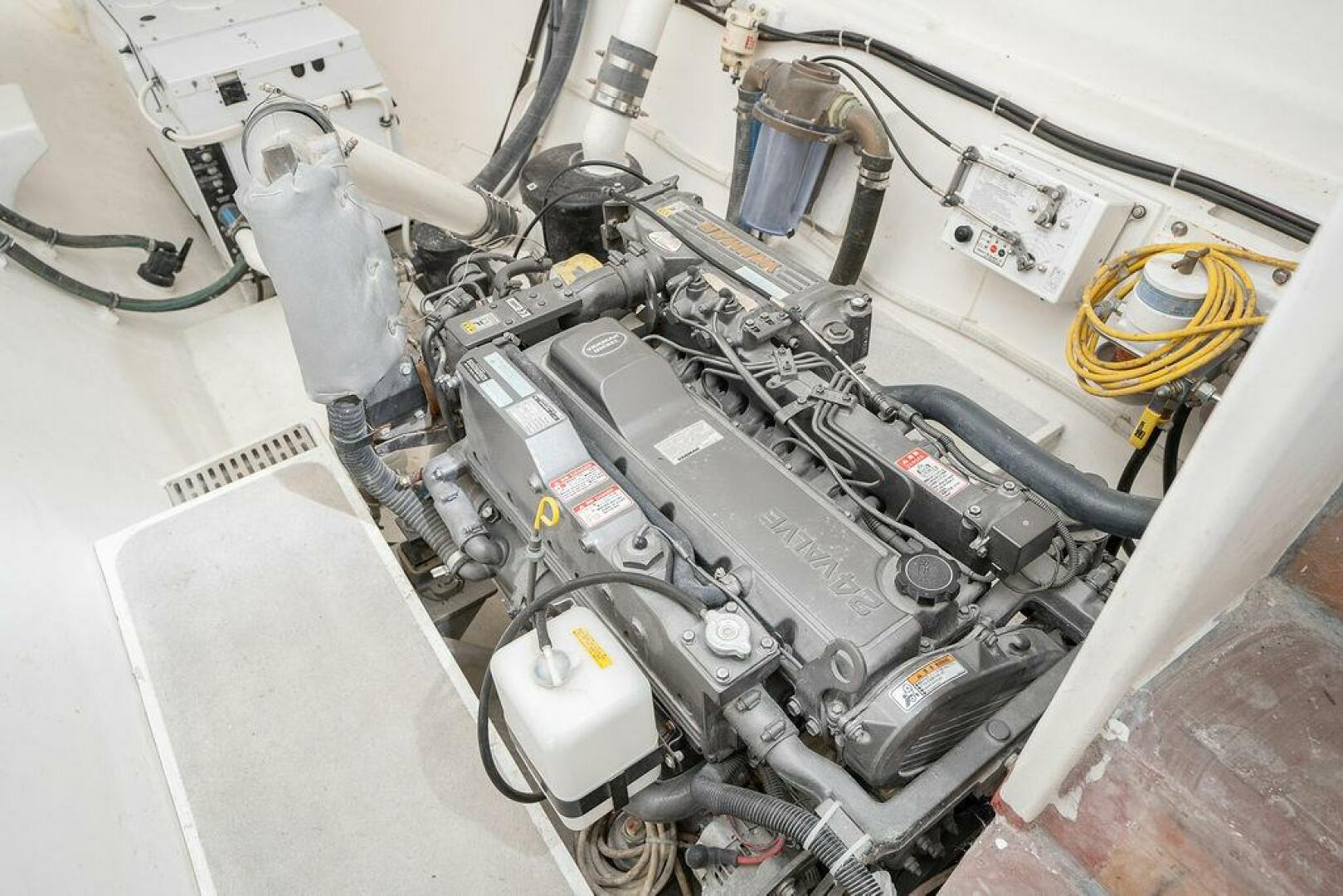

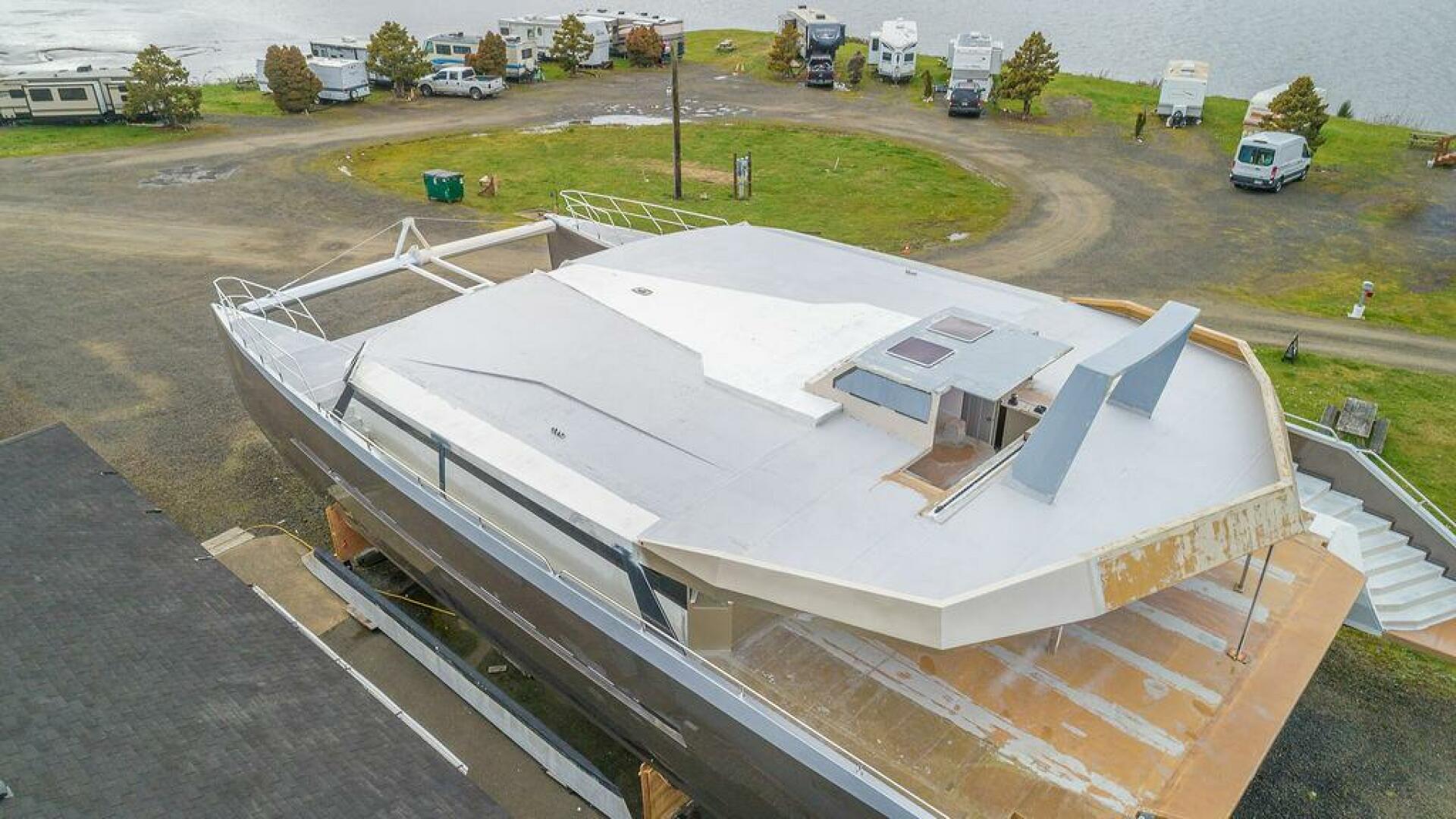

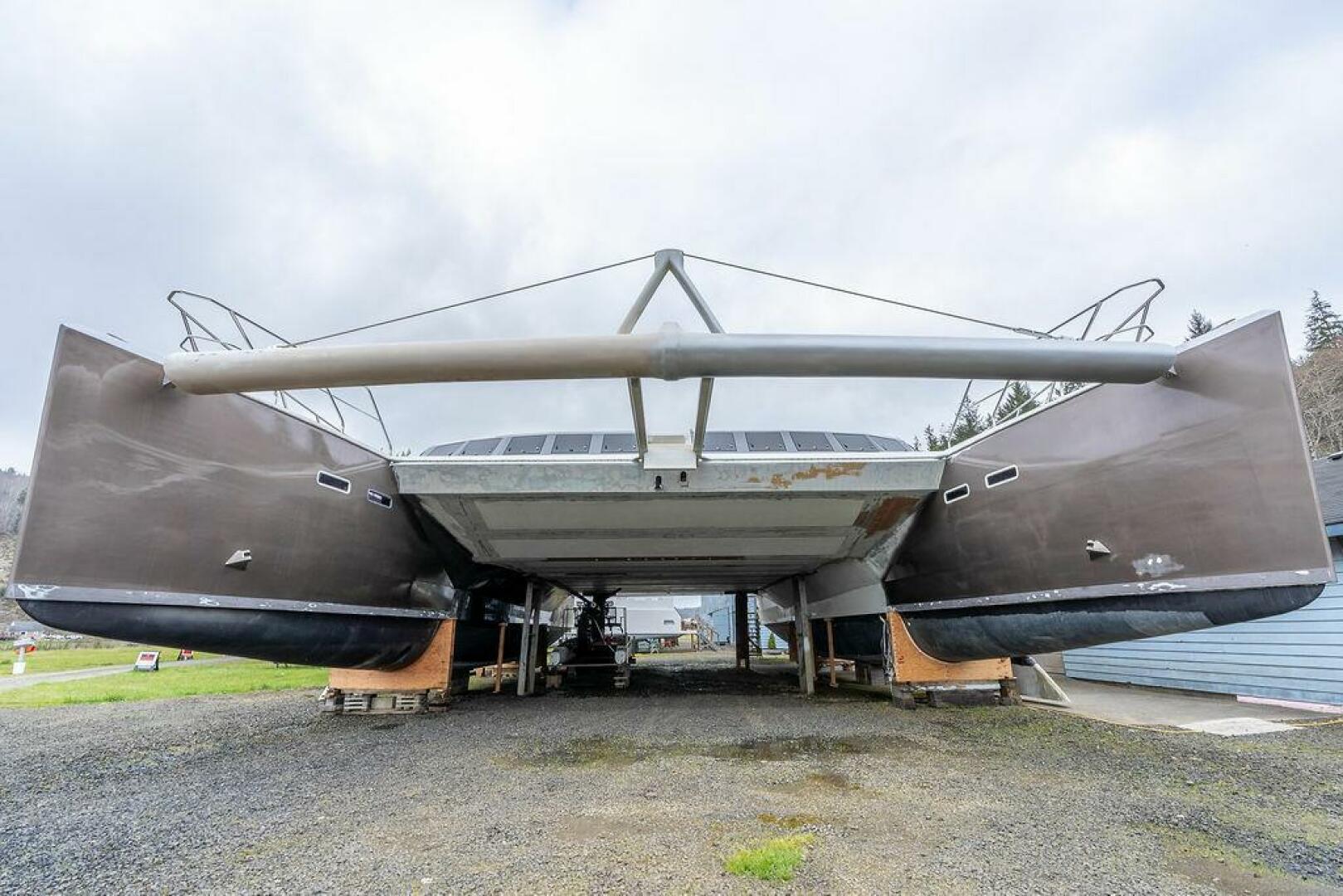

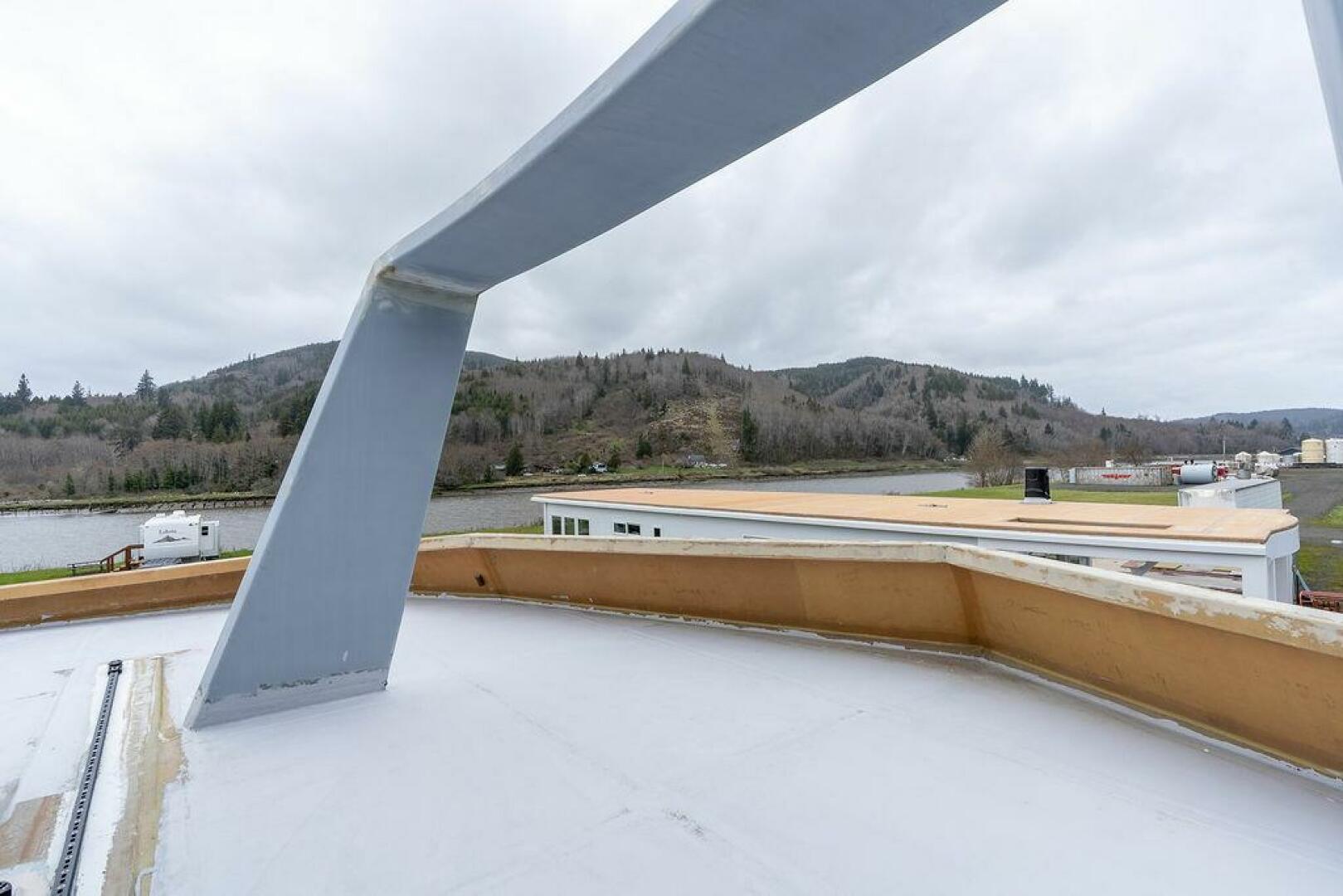

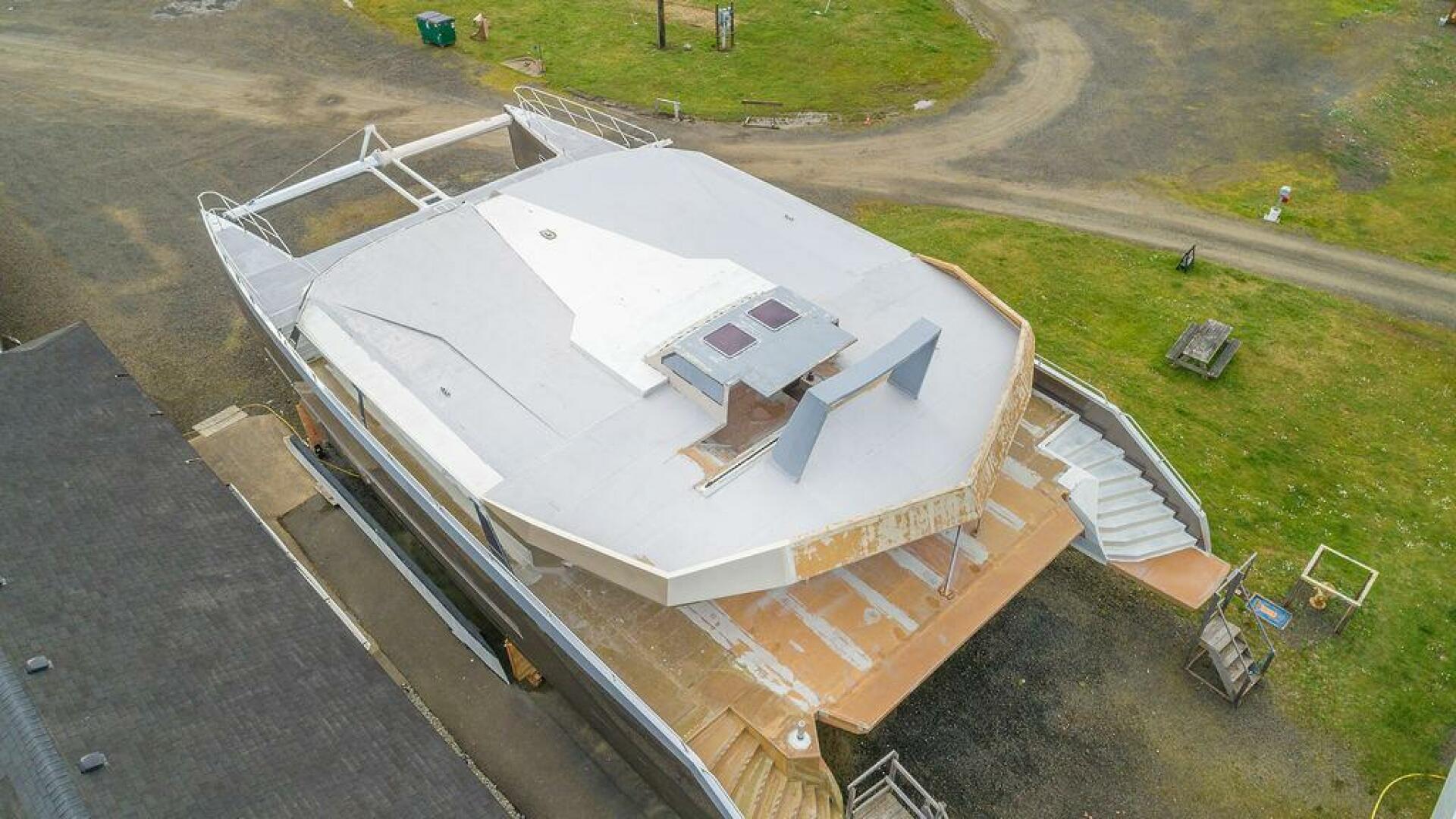

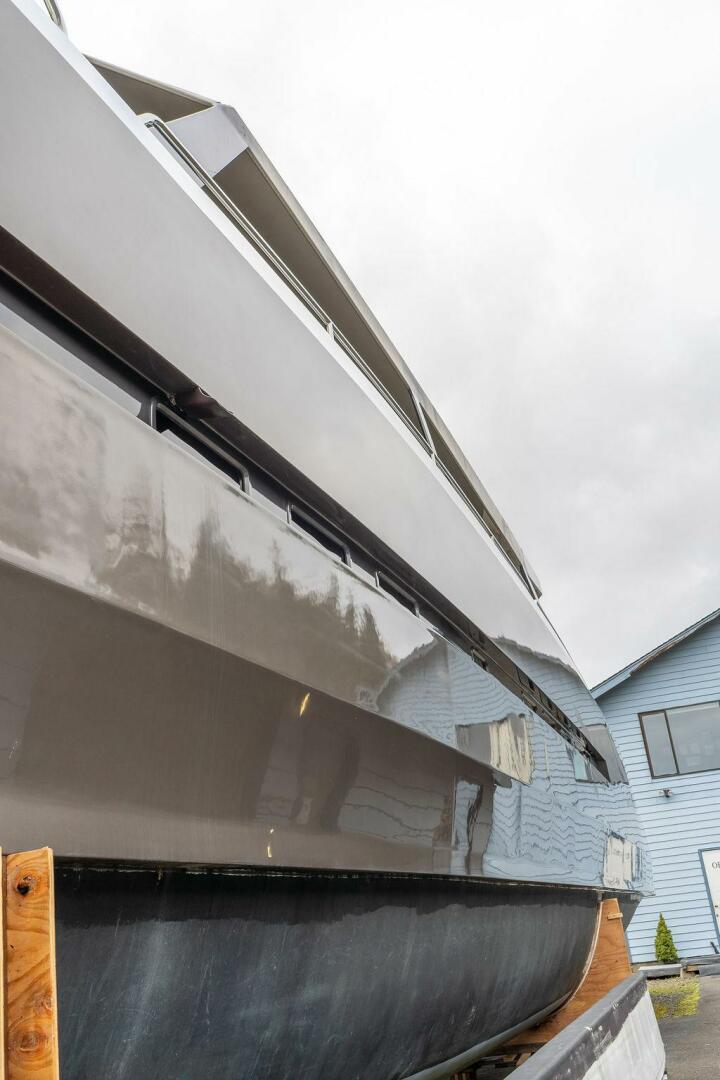

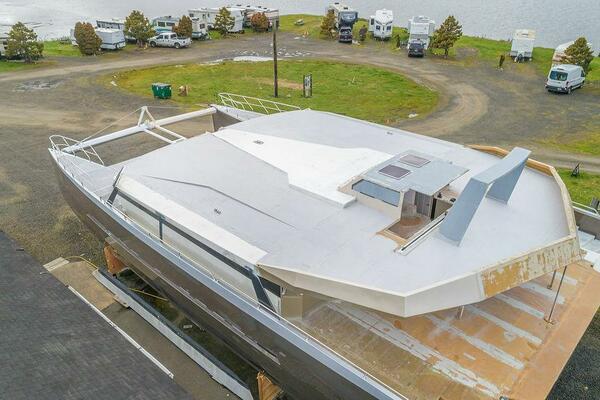

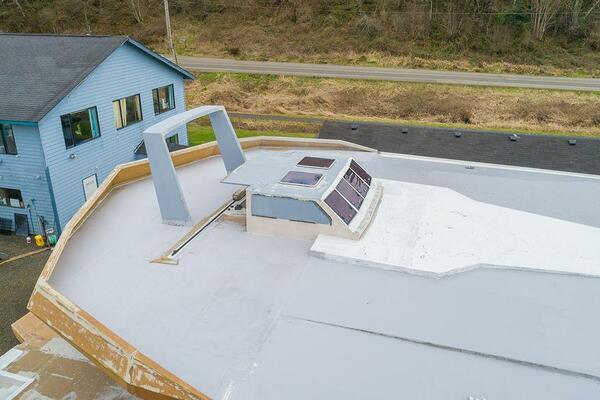

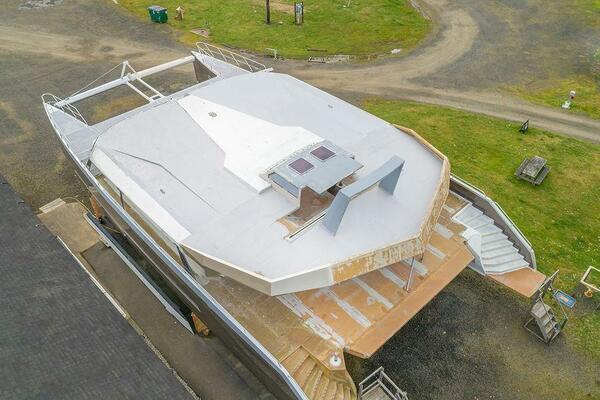

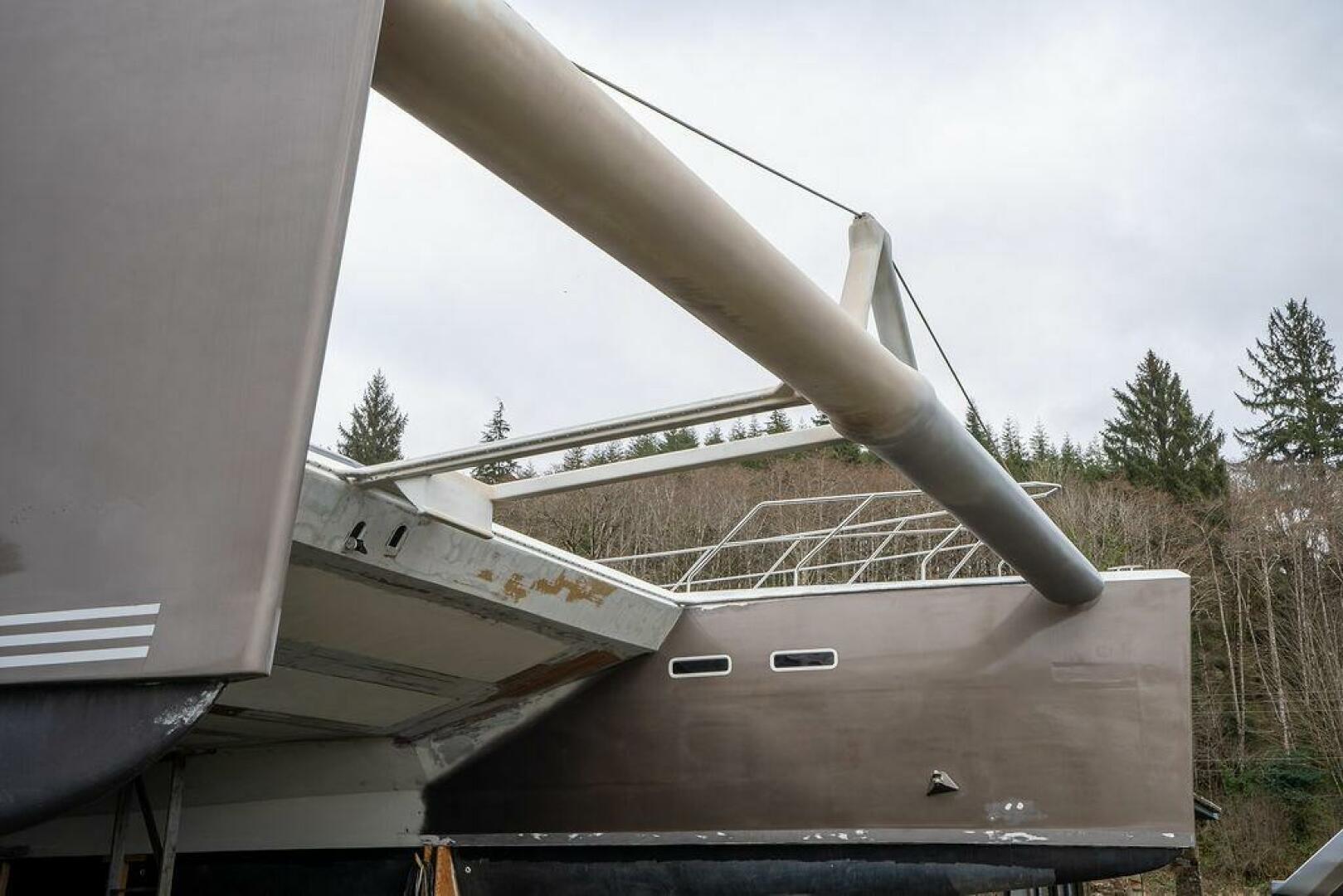

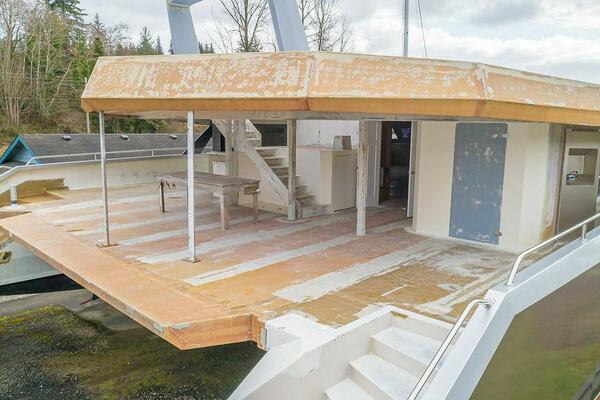

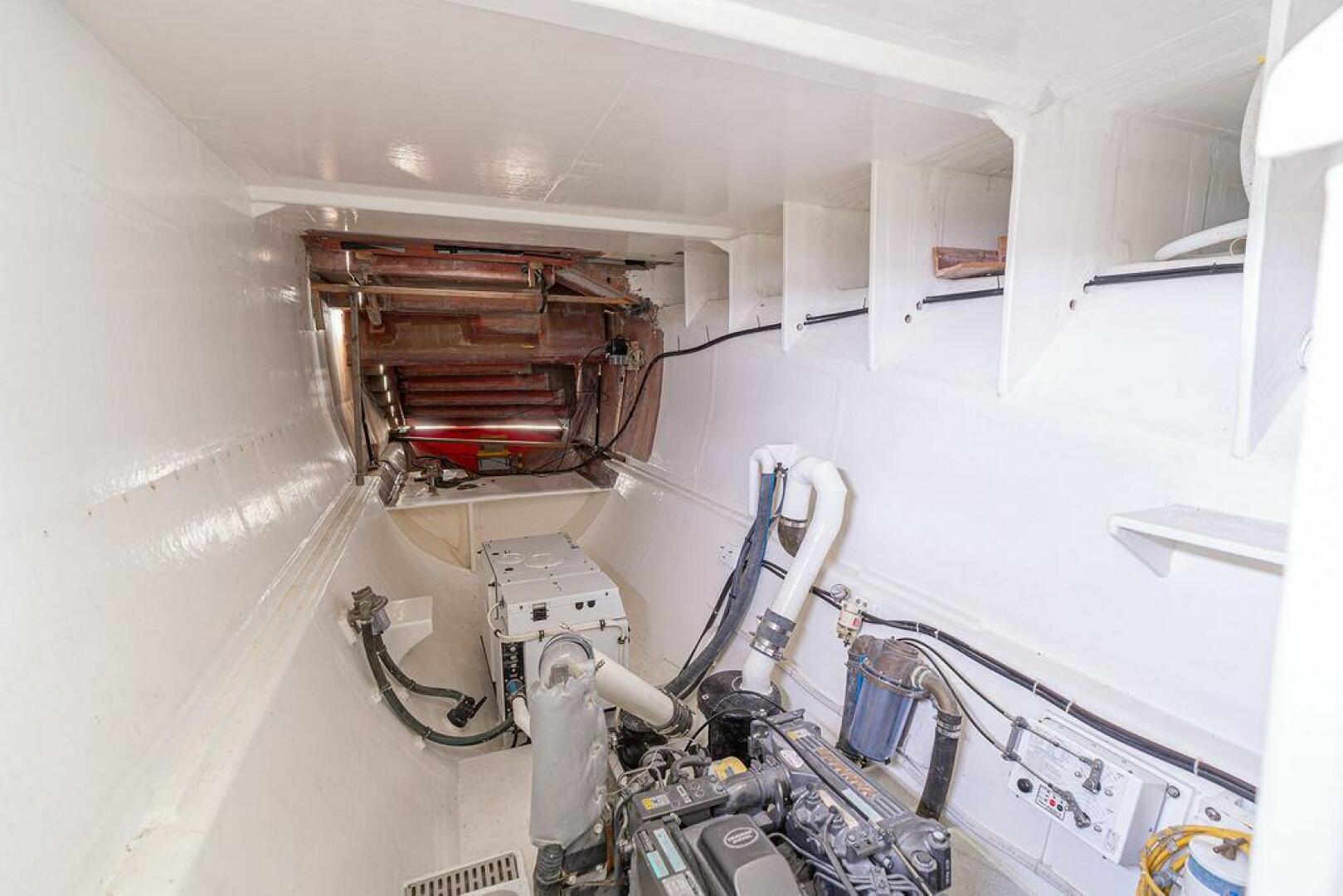

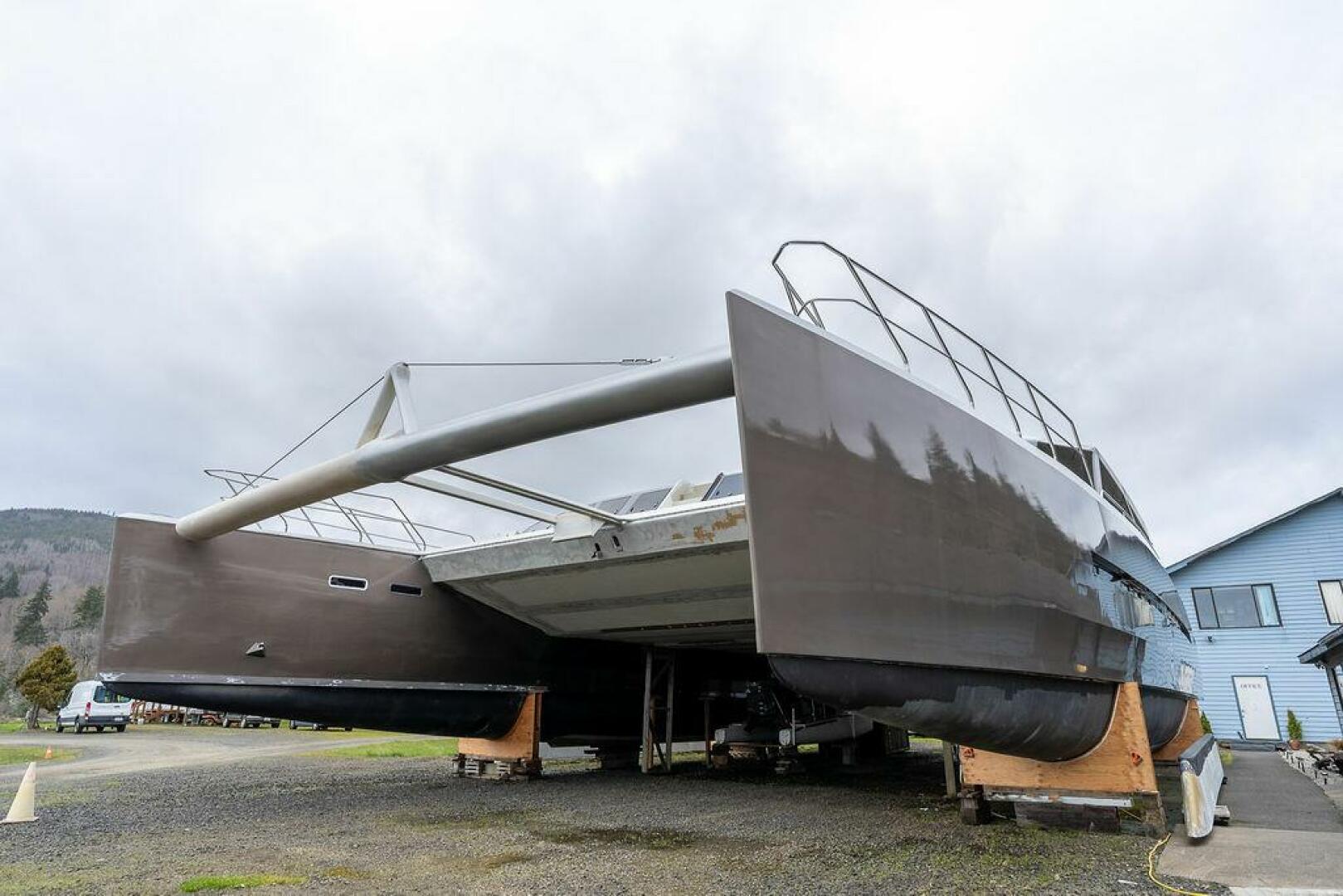

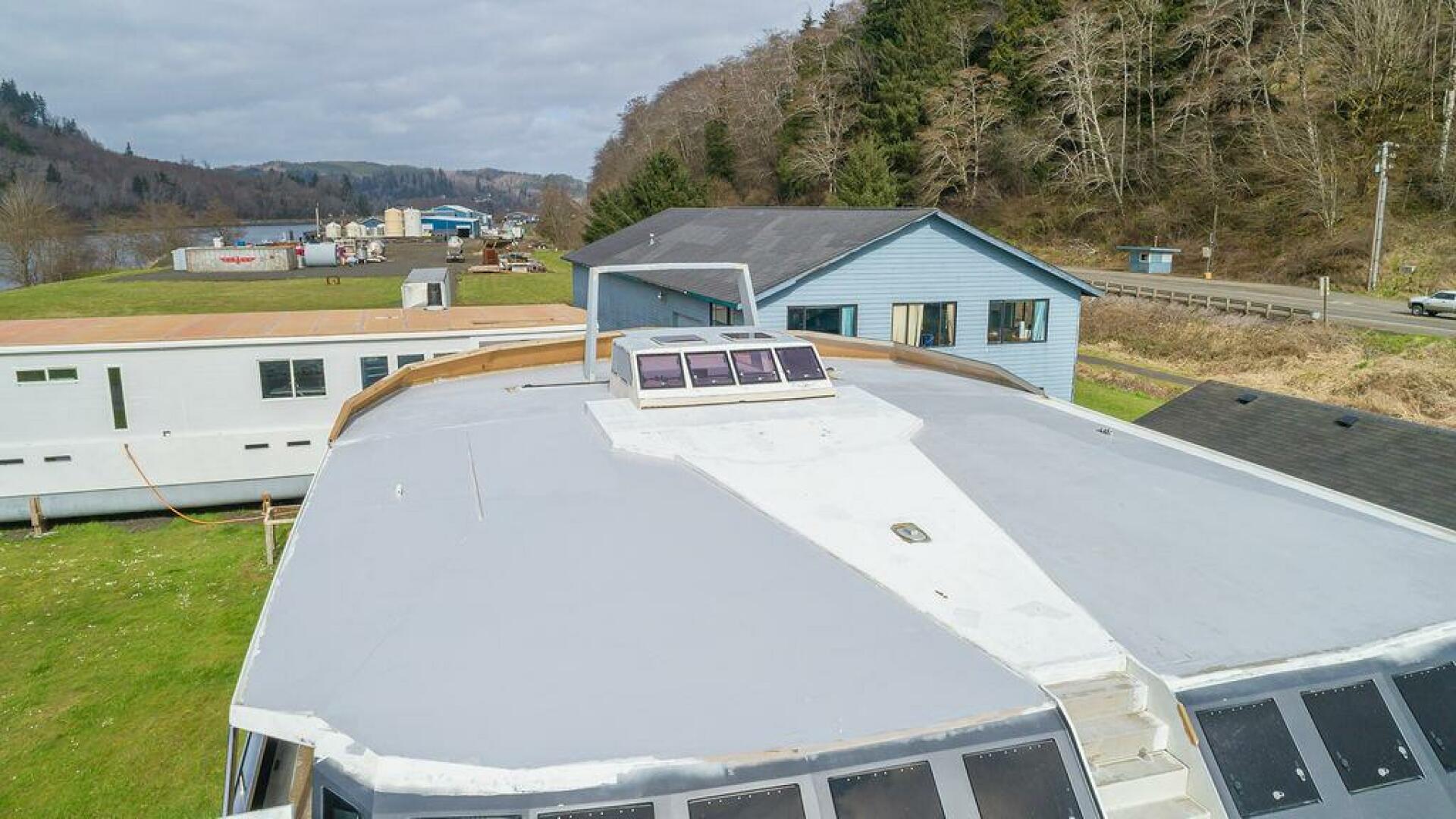

" We are continuing the build, and she is in the final fairing for painting. Forebeam has been installed and the drop-down beaching ladder which will allow the front bow net to be ordered. The aft deck shower and bathroom being completed while the aft deck bar or lounging area has not been started yet, that whole layout will be up to the new owner. Forward crew quarters are about finished as seen in photos. Engines are installed (Twin 315 HP Yanmar diesel), watermaker is here, 1800 GPD, more than a gallon per minute when running. Heat and A/C will be water chiller type systems as well as conventional heat pump type. The radar arch will also handle an awning for the upper aft deck lounging. The draft is about 5' with keel, rudders (Carbon fiber posts) and props (full feathering and adjustable pitch) also hang down. The planned colors are metallic 2 stage PPG paint, dark grey around windows, bronze hulls and light Gold Champagne topsides, all with clear coat."

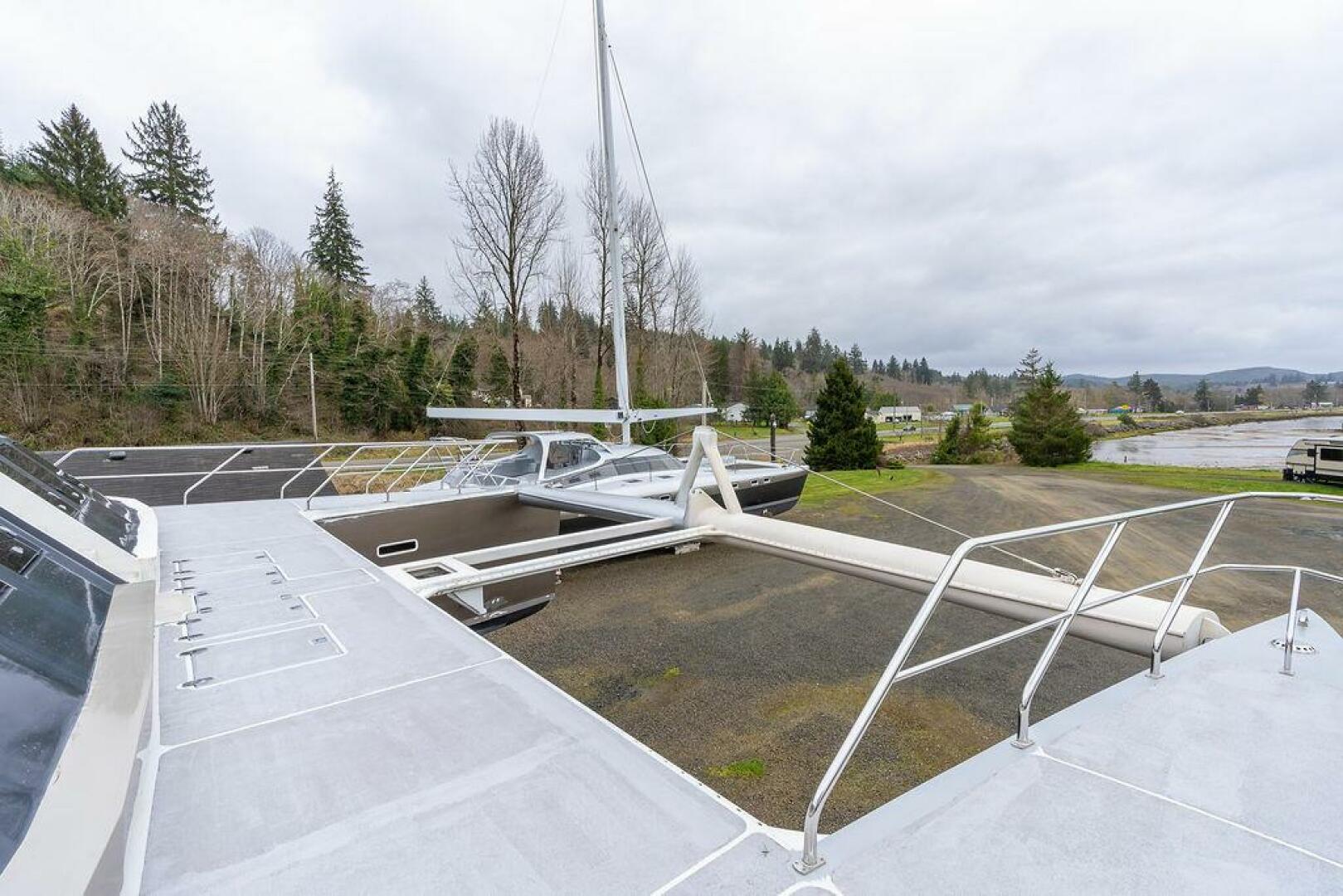

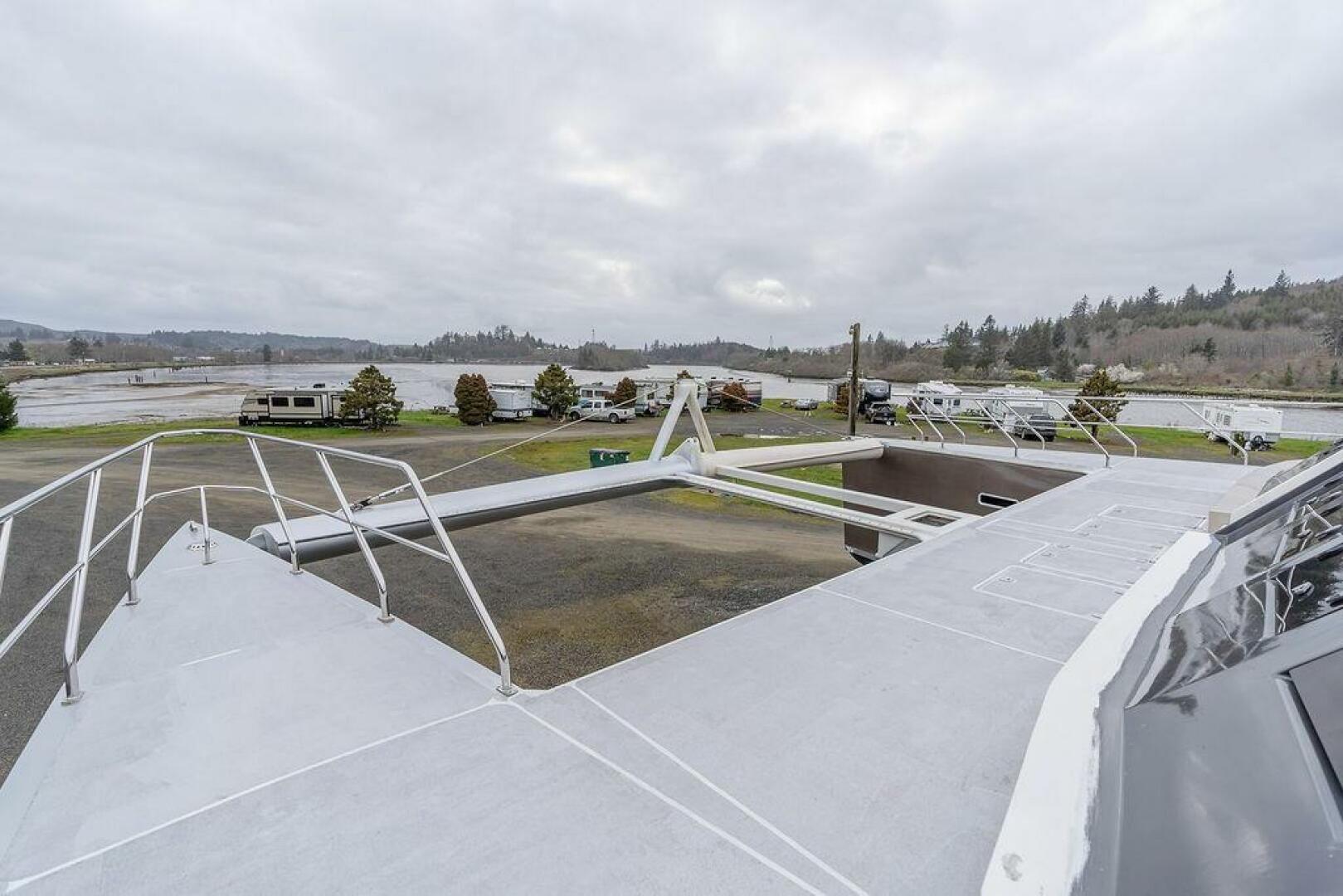

You will not find a better option out there, if you are looking for a cruising option, or a fantastic charter option. With the amazing amount of deck space for large groups, huge interior volume, and two large "garages" in the both hull sterns, you will never lack space.

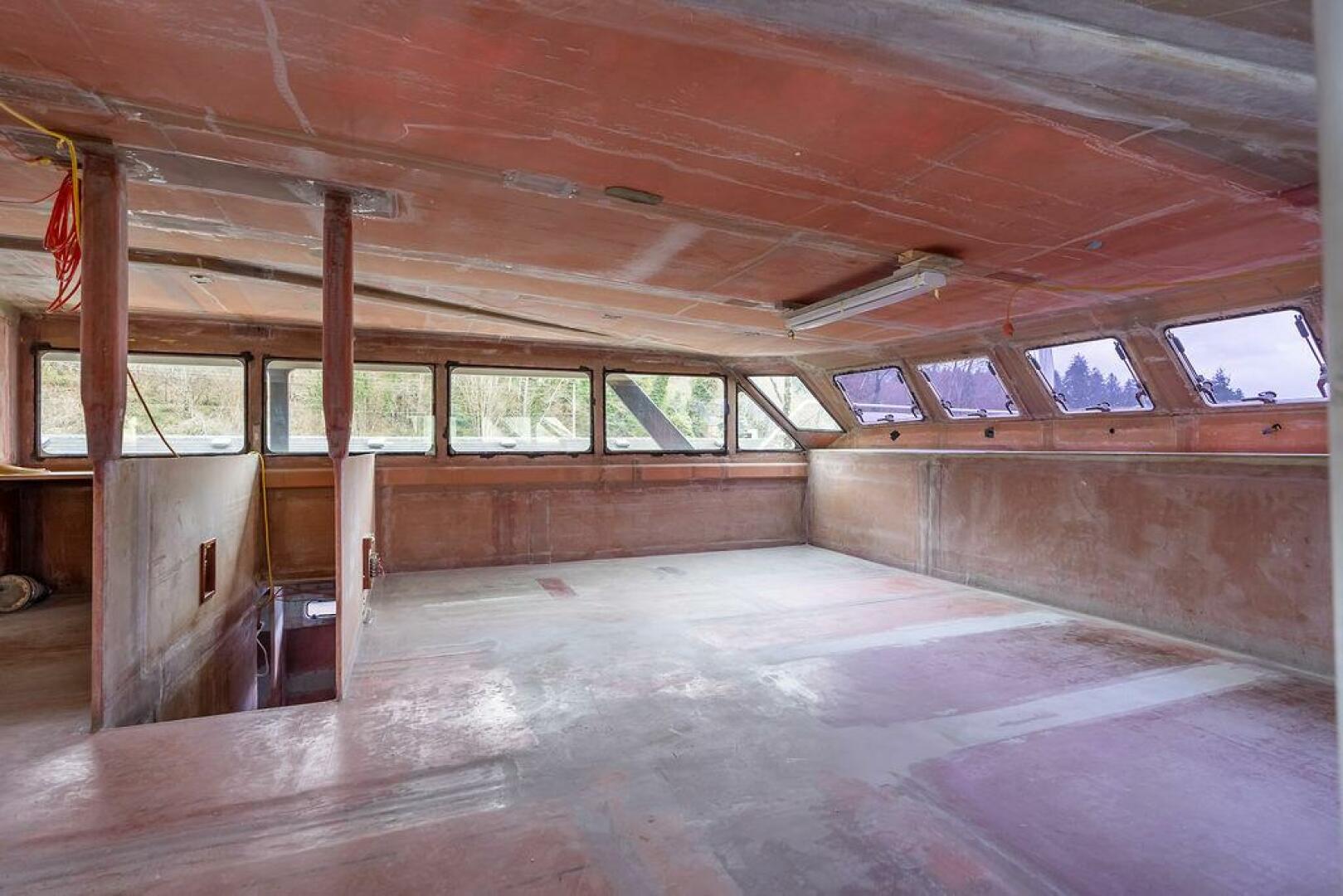

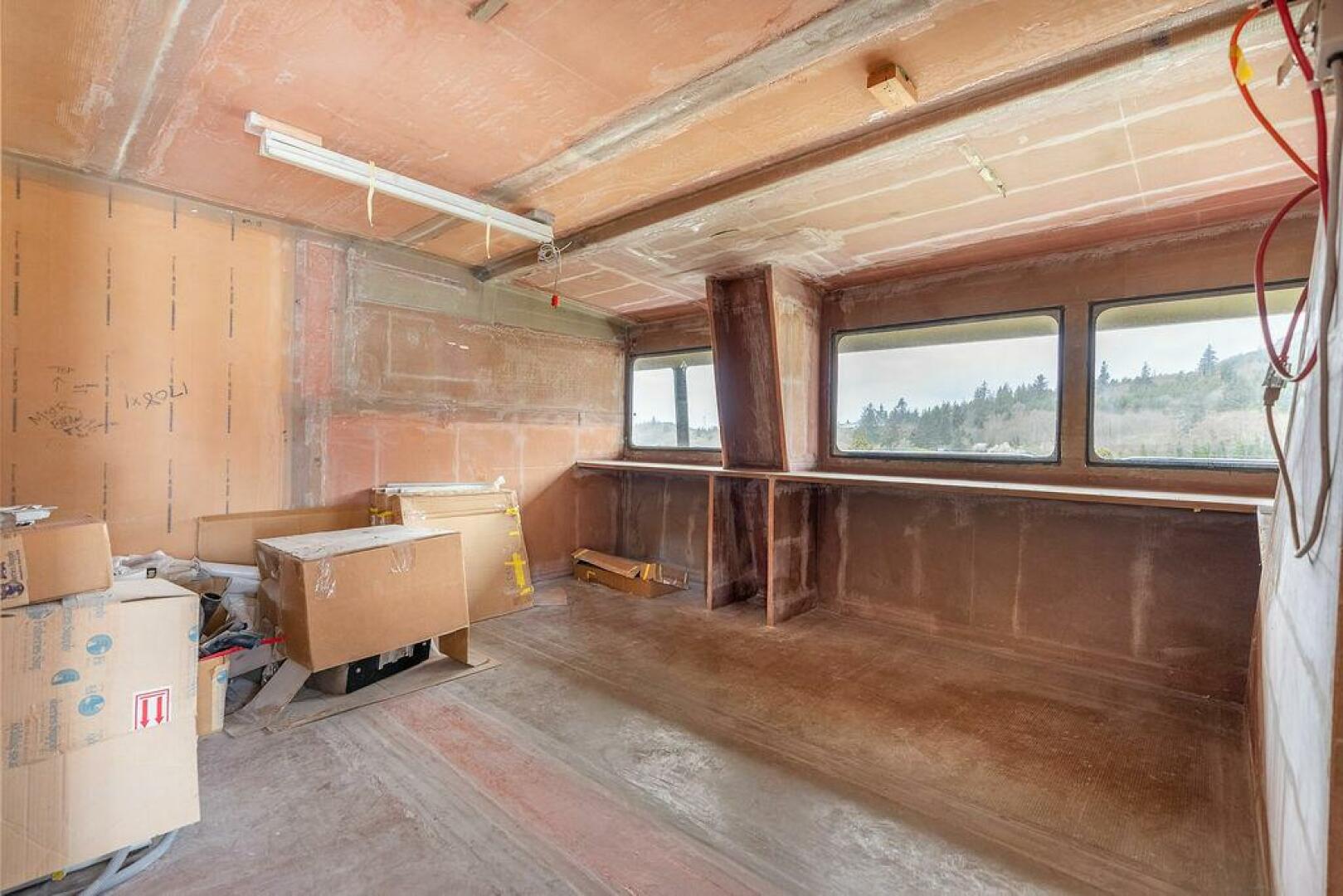

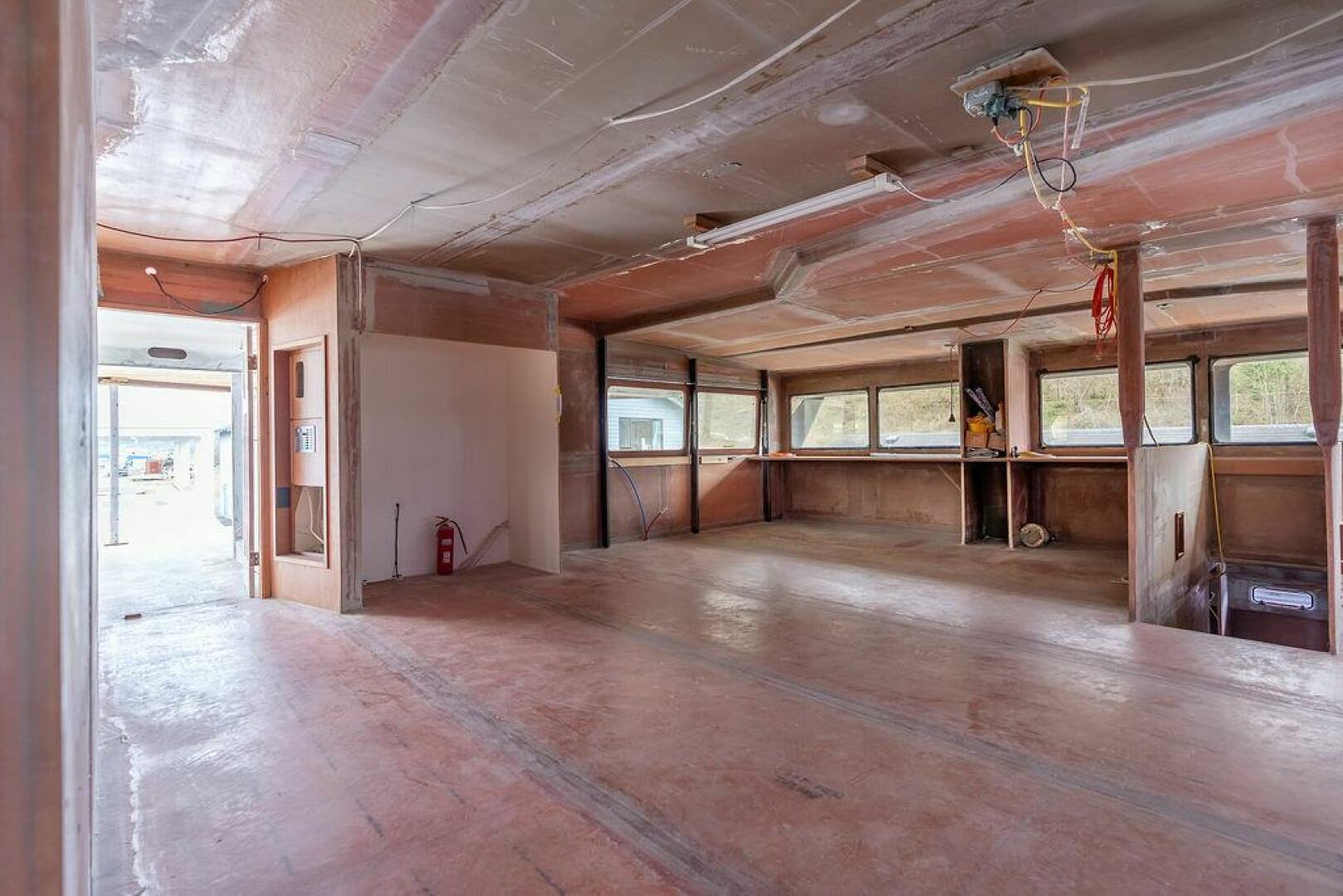

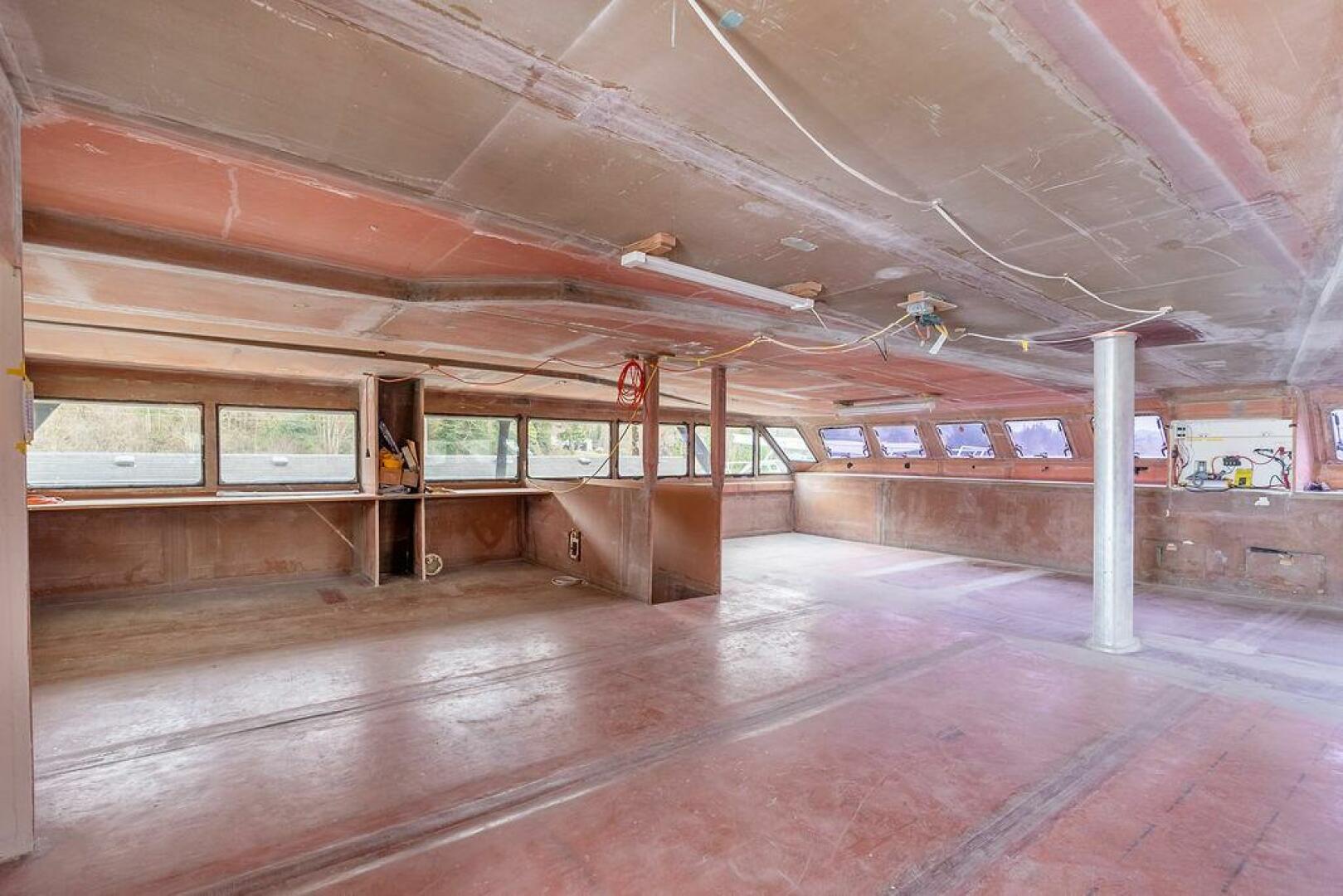

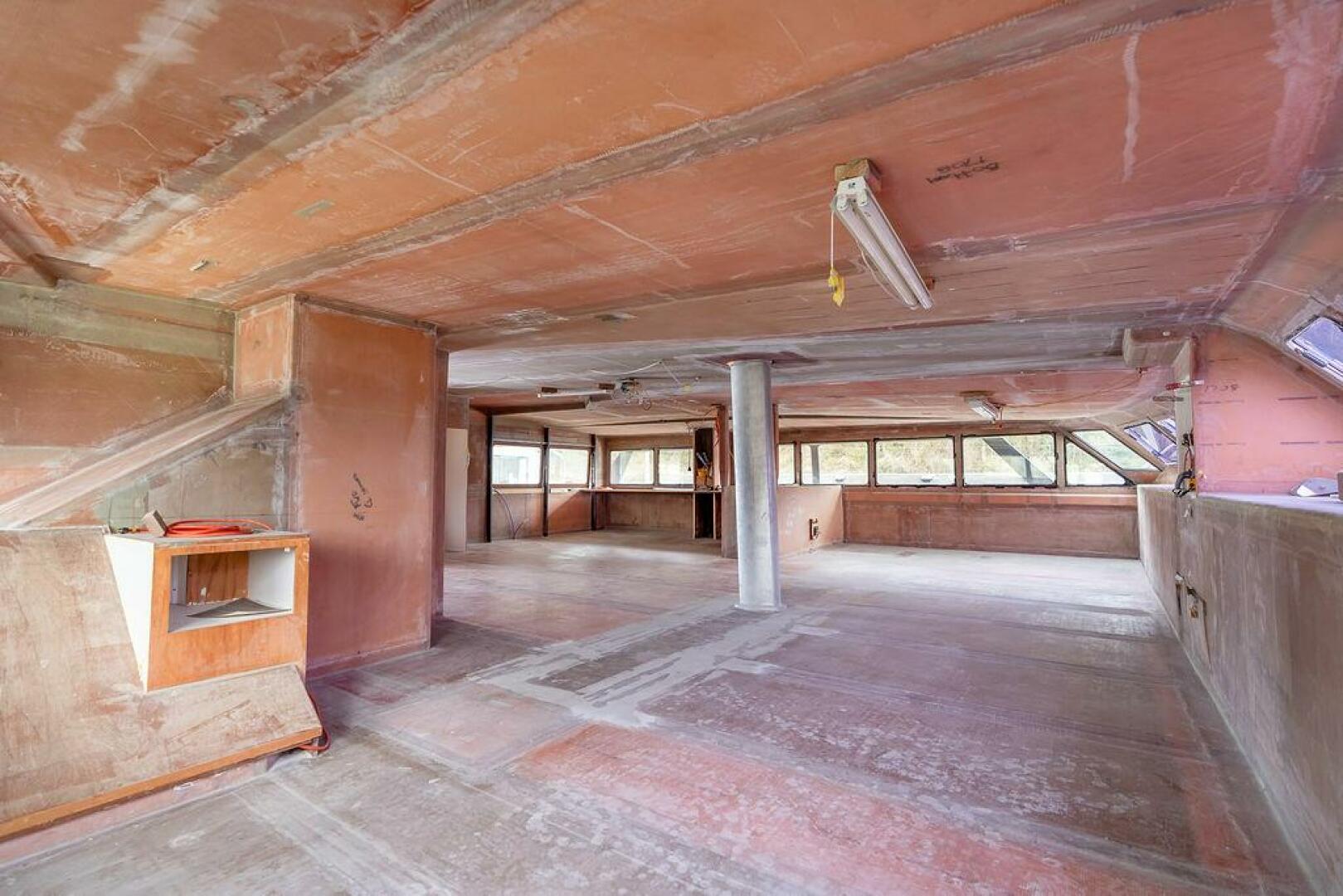

Bring your interior designer, or use a local designer, and bring your vision to life as you wish. The builder and the brokerage have access to designers. This boat is pretty much a blank slate, and you can make it as grandiose, as contemporary, or as plain as you like.
MAI CAT is built from Airex® Foam, E-Glass, Kevlar, Carbon Fiber, Vinyl ester Resin, Divinycell Foam. No rot, and excellent strength. There are Kevlar beaching pads built into the hulls. With current completion %, you would save approximately 2 YEARS of build time!!
Data Sheet
LOA: 86' (26.21 Meters)
Type: Sail- New
Year: 2025
Beam: 42'
Draft Max: 5'
Cabins: 4
Heads: 7
Crew Cabins: 2
Maximum Speed: 18.25 Knots
Cruise Speed: 13.03 Knots
Fuel Type: Diesel
Hull Material: Composite
Bridge Clearance: 86'
Fuel Tank: 2000 Gallons (7570.82 Liters)
Fresh Water: 220 Gallons (832.79 Liters)
Holding Tank: 1000 Gallons (3785.41 Liters)
Dry Weight: 40000
Engines
Engine 1
- Engine Make: Yanmar
- Engine Model: 6LPAM-STP2
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 315.00
- Power KW: 234.90
- Fuel Type: Diesel
Engine 2
- Engine Make: Yanmar
- Engine Model: 6LPAM-STP2
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 315.00
- Power KW: 234.90
- Fuel Type: Diesel
Full Details
Overview

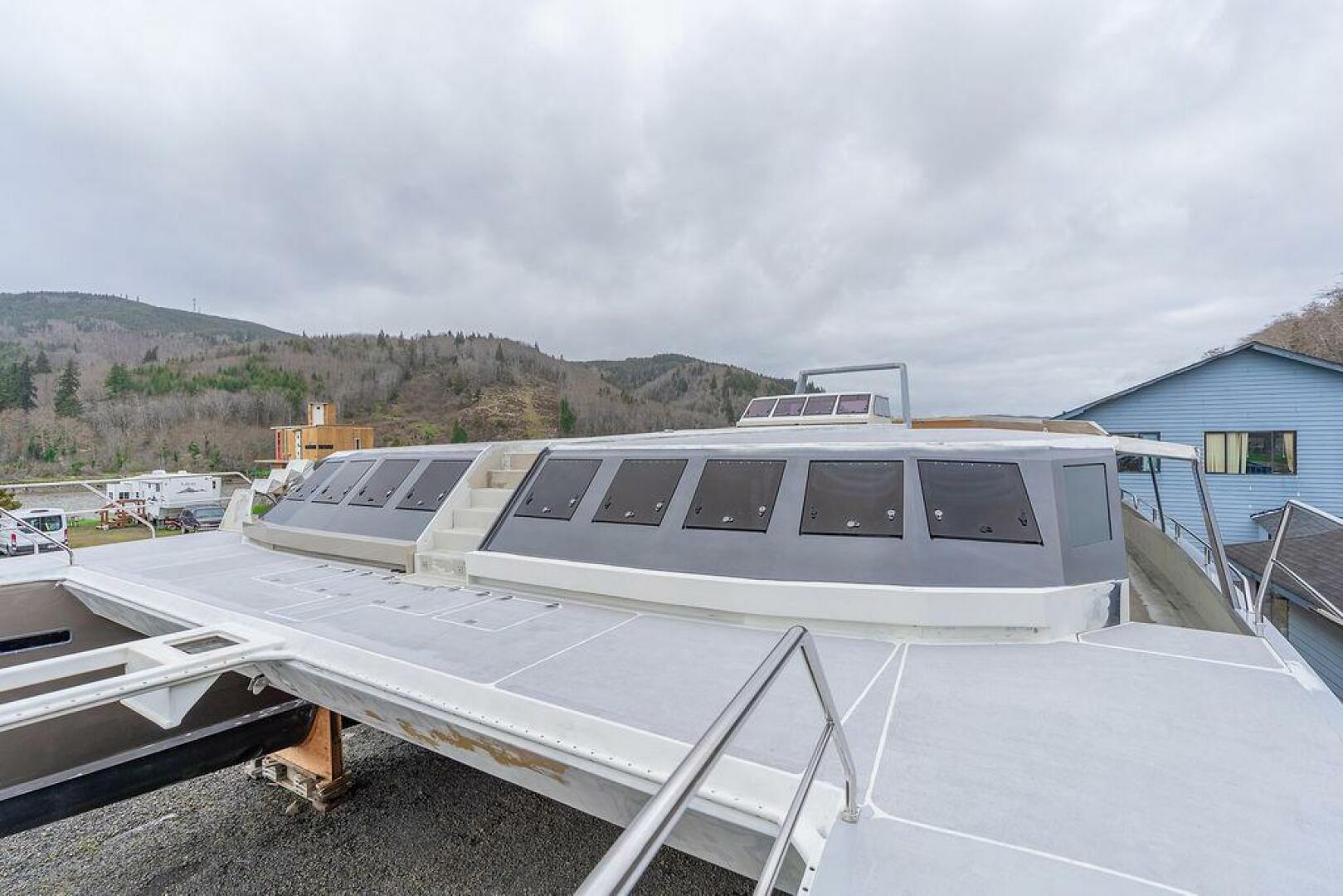

Hull/Exterior
- 86’ Bloomfield Innovative Design

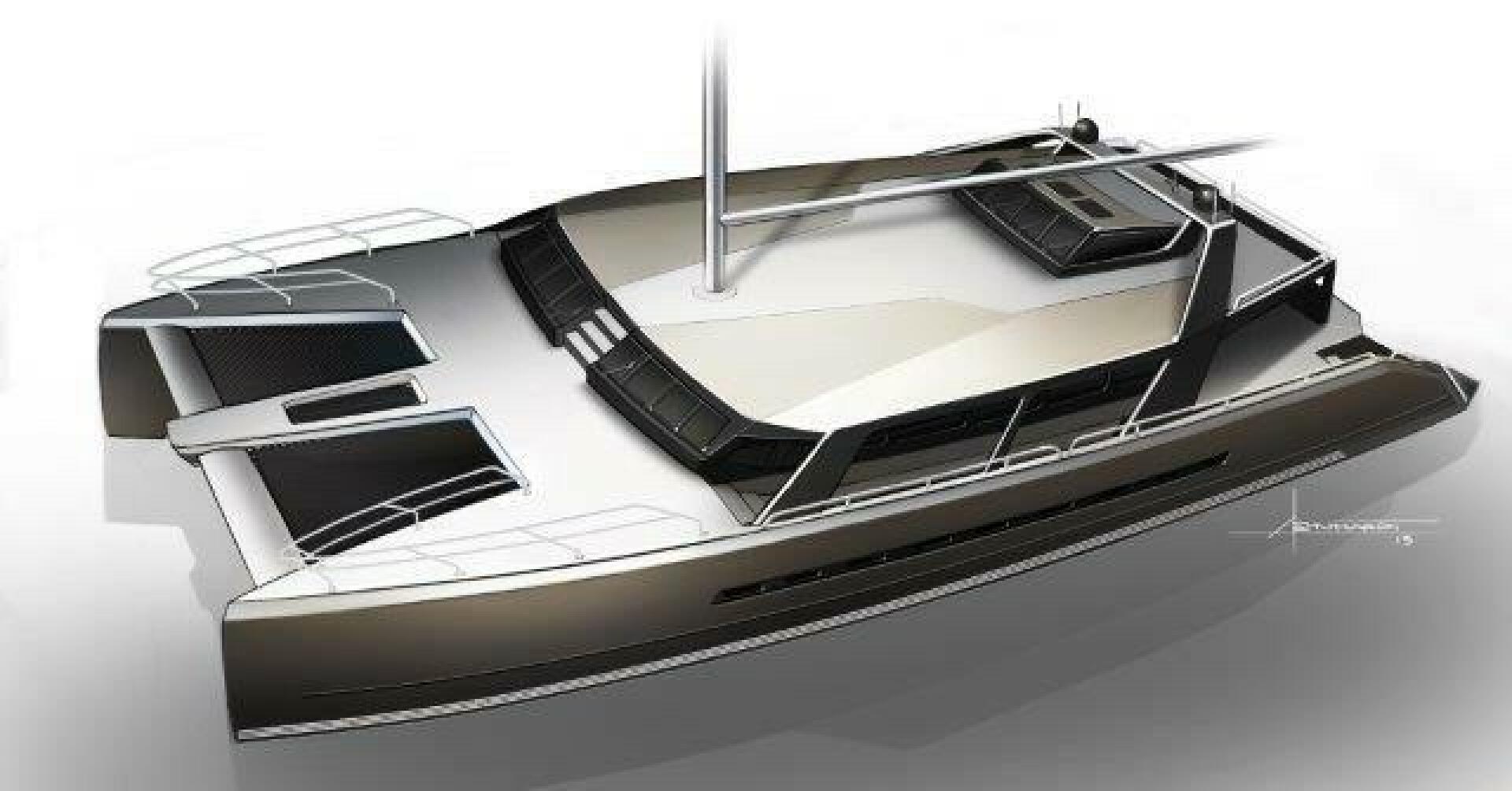

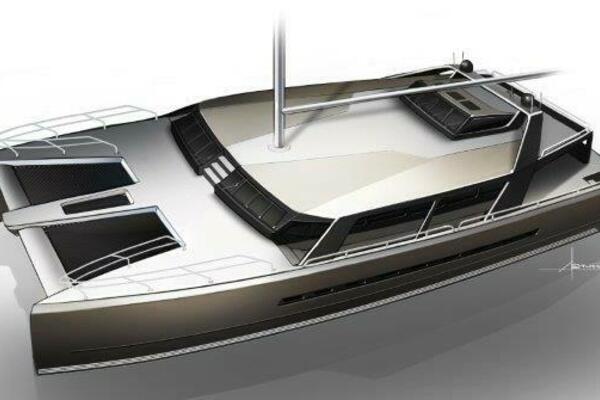

- Concept designs by Lehnhardt Creative LLC
- Beam 42’
- Displacement 40,000 lbs light
- Foam Core Composite:
- Motorsailing: 18 – 21 mph
- Motor only – cruise -15 mph

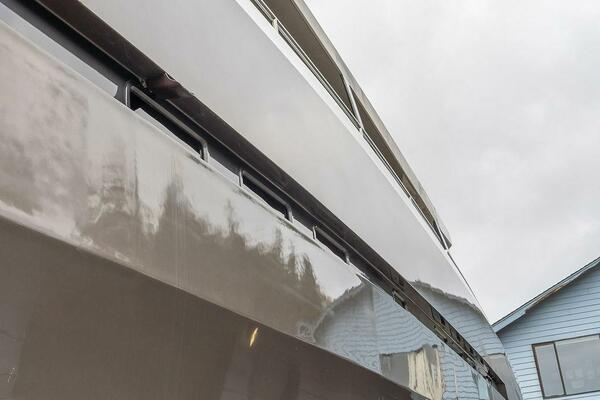

- PPG two stage Metallic paint scheme with gelcoat custom non-skid surface. Dark shadow Grey, Crystal Laurit Silver, Champagne Beige metallic; Fiberlay Grey 1902 gelcoat
Engine/Propulsion

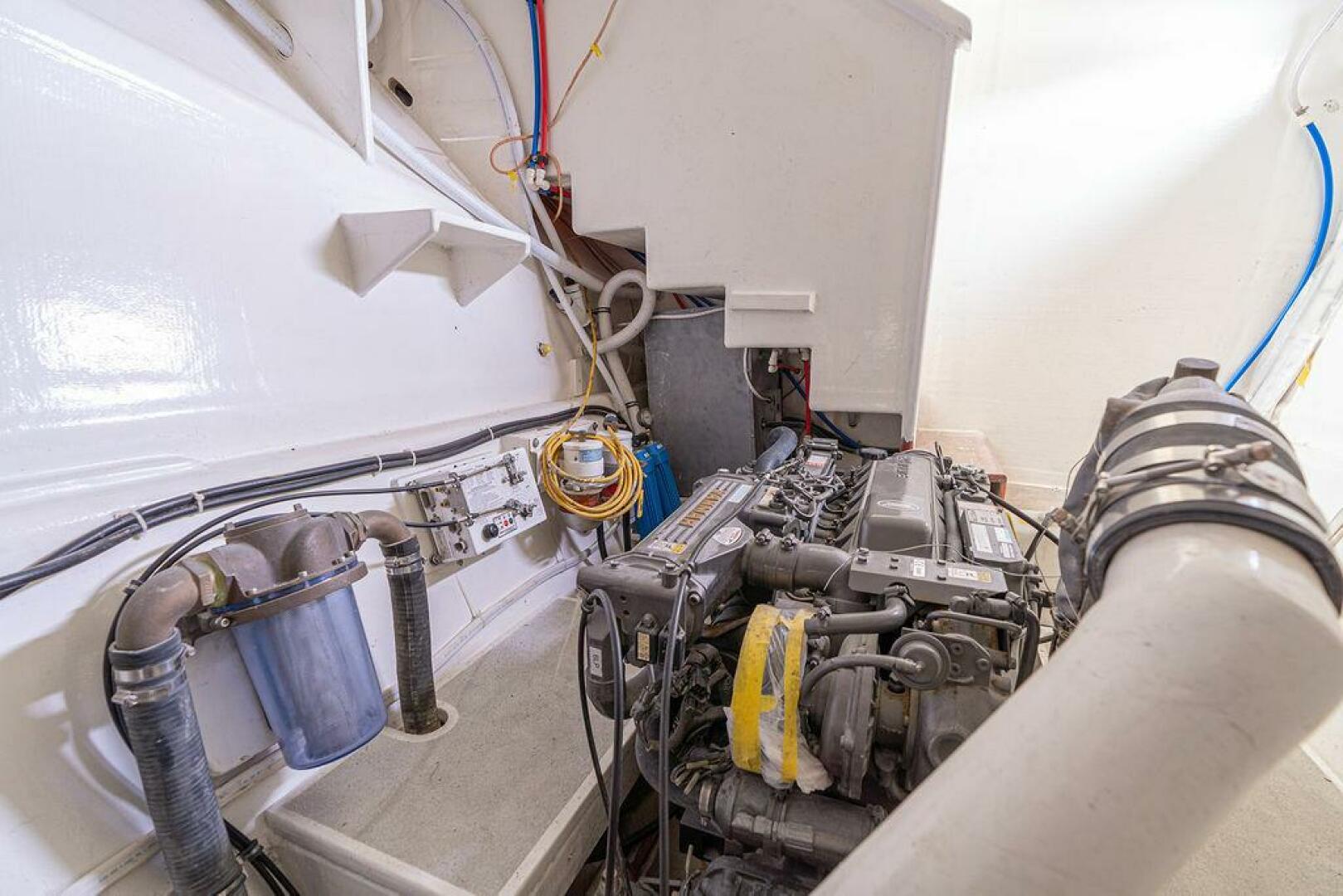

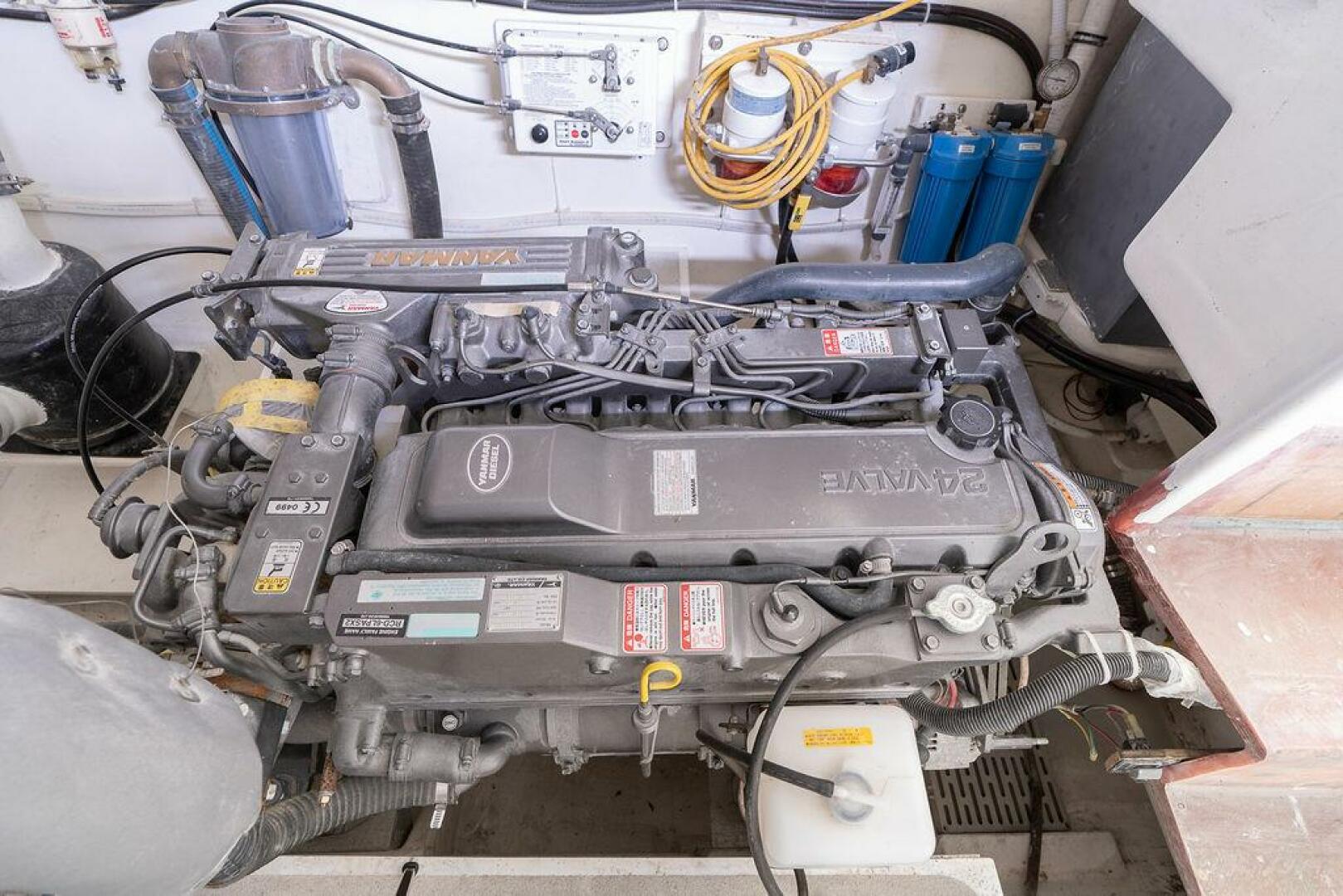

- Twin Yanmar 315HP 6LPAM-STP2 W/KMH50 2.43:1 gears (SN:M52413 & M52477) w/offshore Cruise Kits and Manuals
- Fresh water cooled – 12V Start

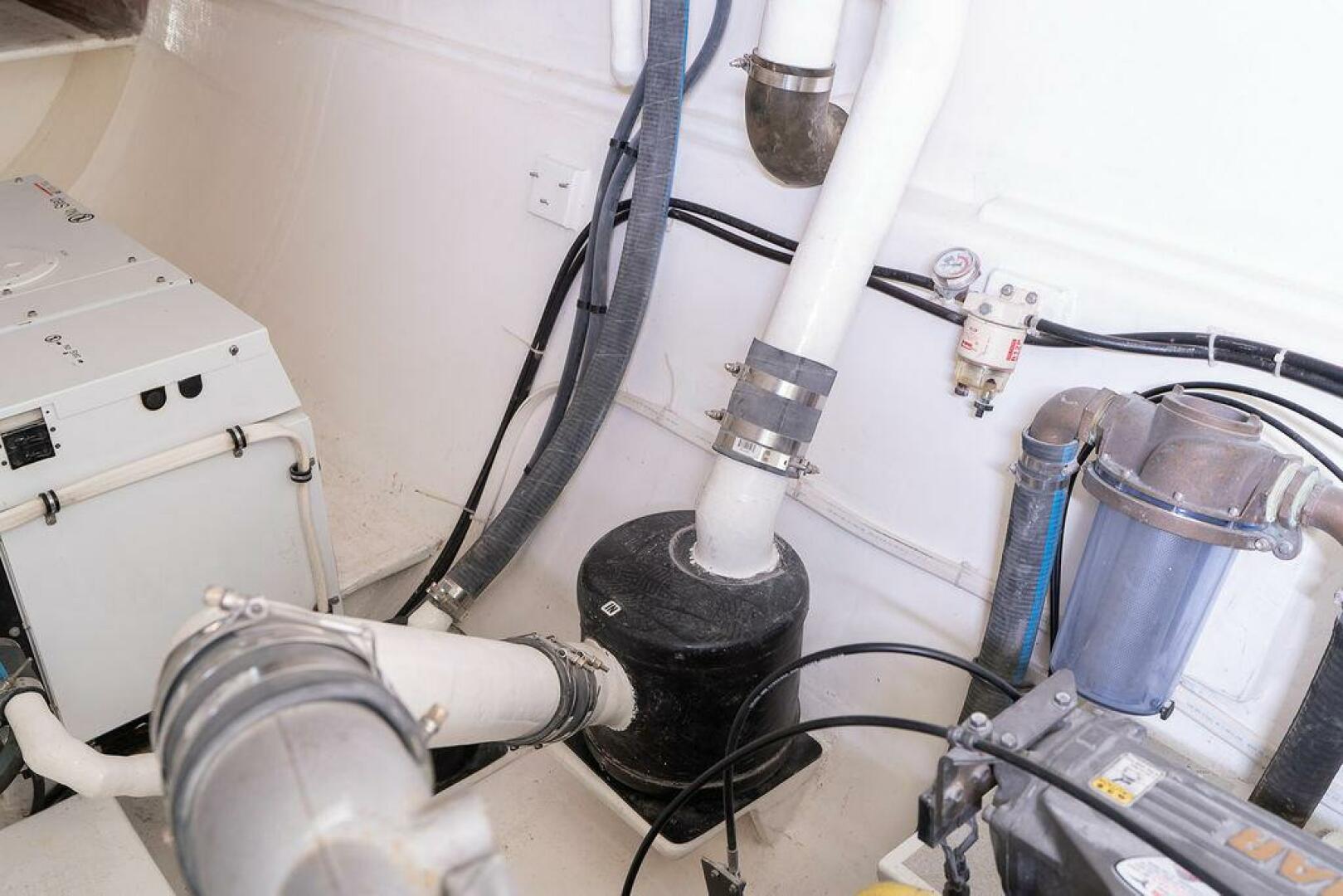

- VernaLift Silent Mufflers
- PYI – 3 blade, bronze feathering and adjustable
- Teleflex Hydraulic Steering
- Custom Carbon Fiber Rudder Shaft and Bearings Assembly by Waterat Sailing Equipment
- Dripless Propeller Shaft Seals
- Rule 4000 Automatic Bilge Pump
Interior
- GeneralTeak walls, trim, teak and holly flooring
- Metallic PPG silver cabinetry with light weight drawers
- Hook and loop silver carpeting
- 12V DC lighting and 110V Outlets

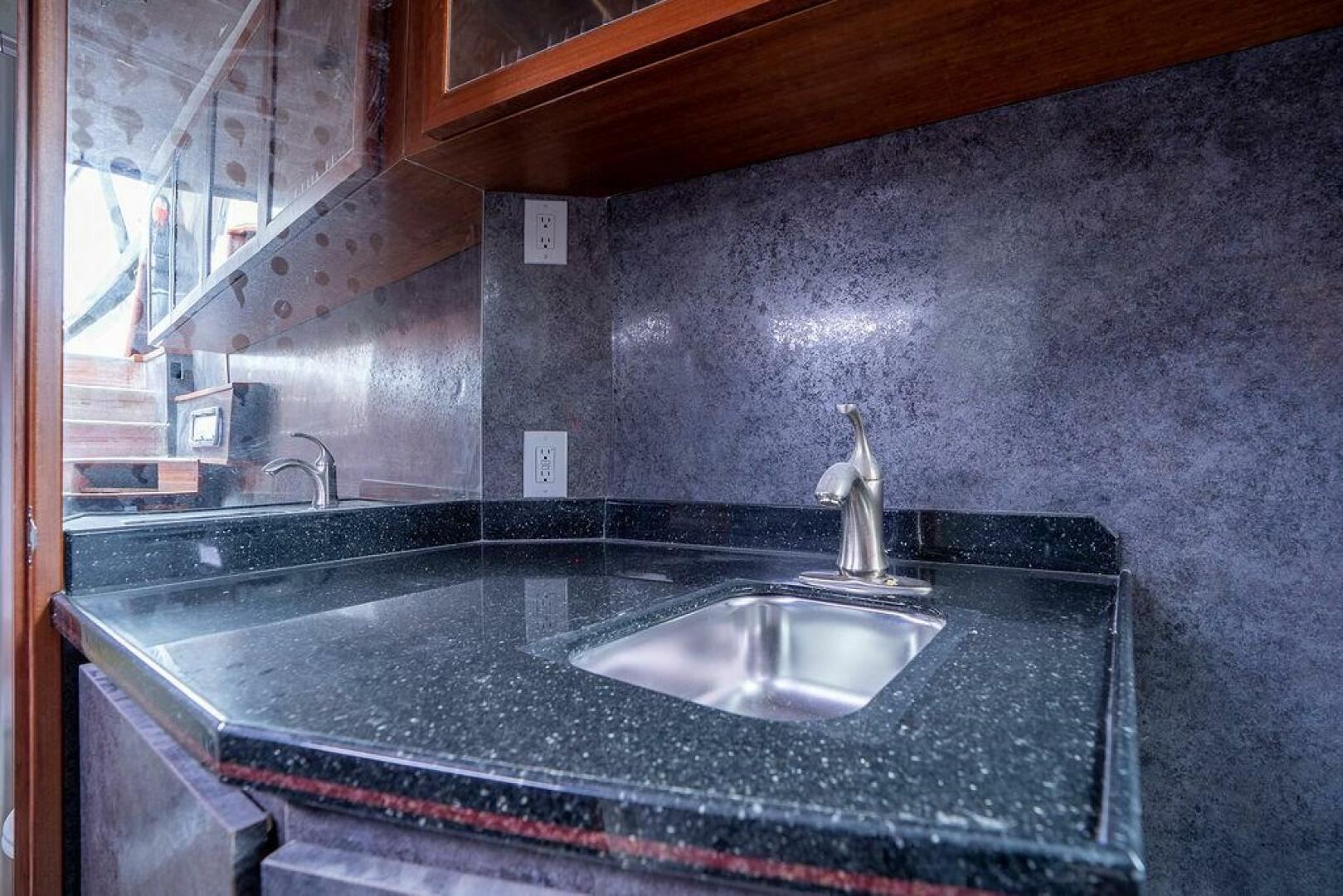

- Karadon Solid Surface countertops in Hulls
- Lewmar Series 60 Flush Hatches with screens
- Main Salon and BarLewmar Flush 2G 70 Dark Grey Opening Hatches (10 in Main Salon)
- Lewmar Flush G2 Gray Opening Hatches (4 – )
- Double Pane Insulated Cool Gray reflective windows on Port and Starboard sides
- To be determined

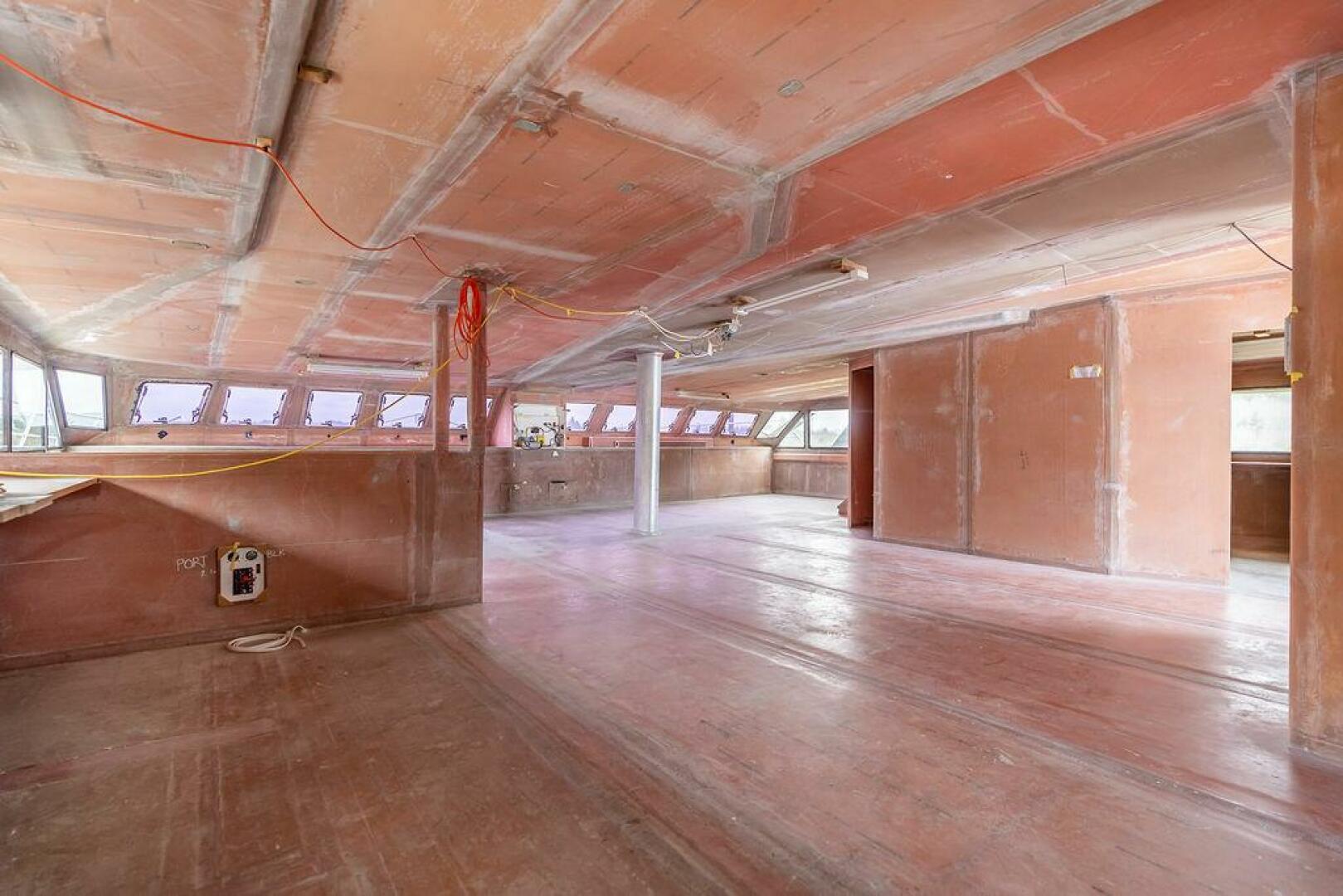

- 560 sq. ft.
- GalleyTo be determined
- Window pass-thru’s to aft deck
- 300 sq. ft.

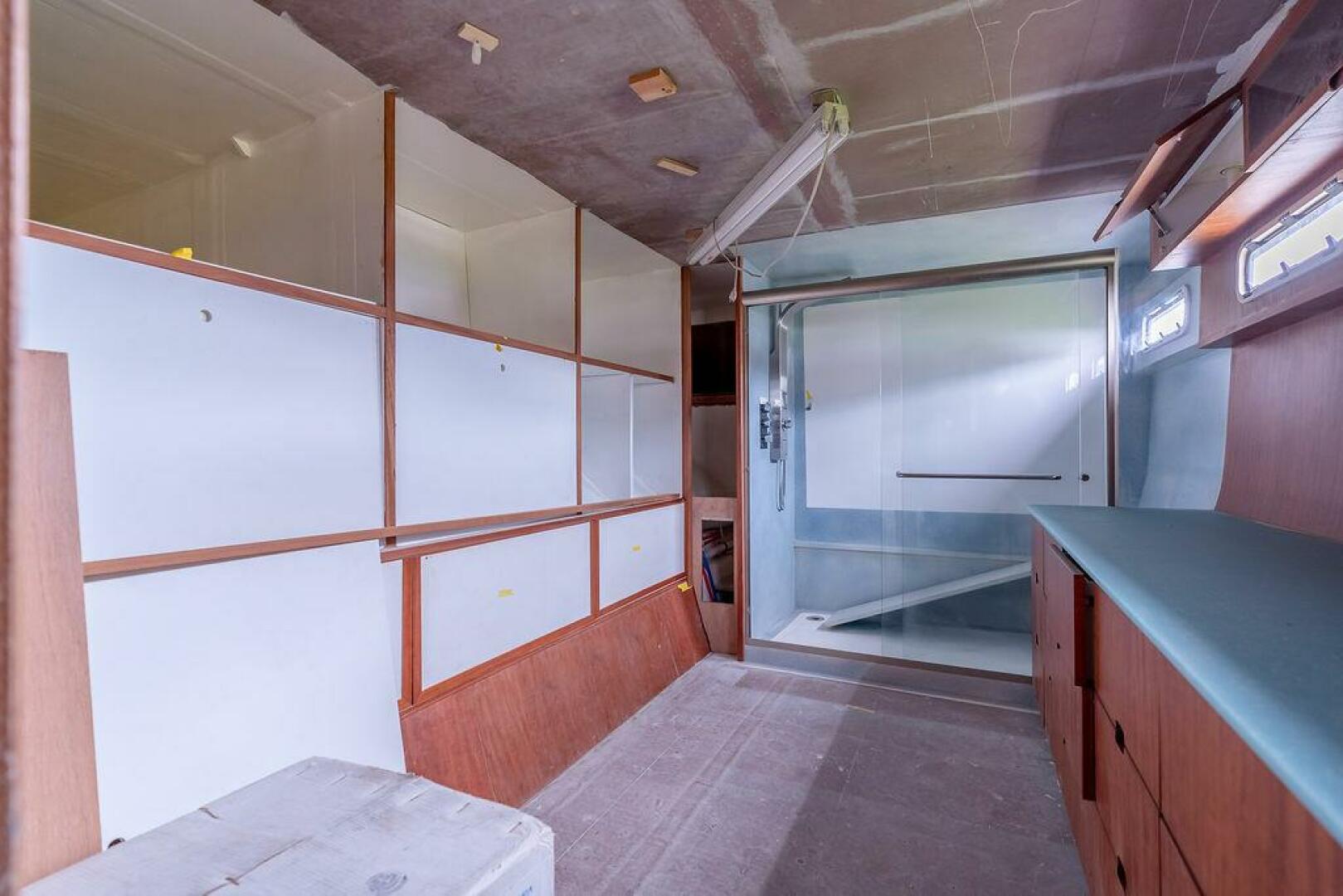

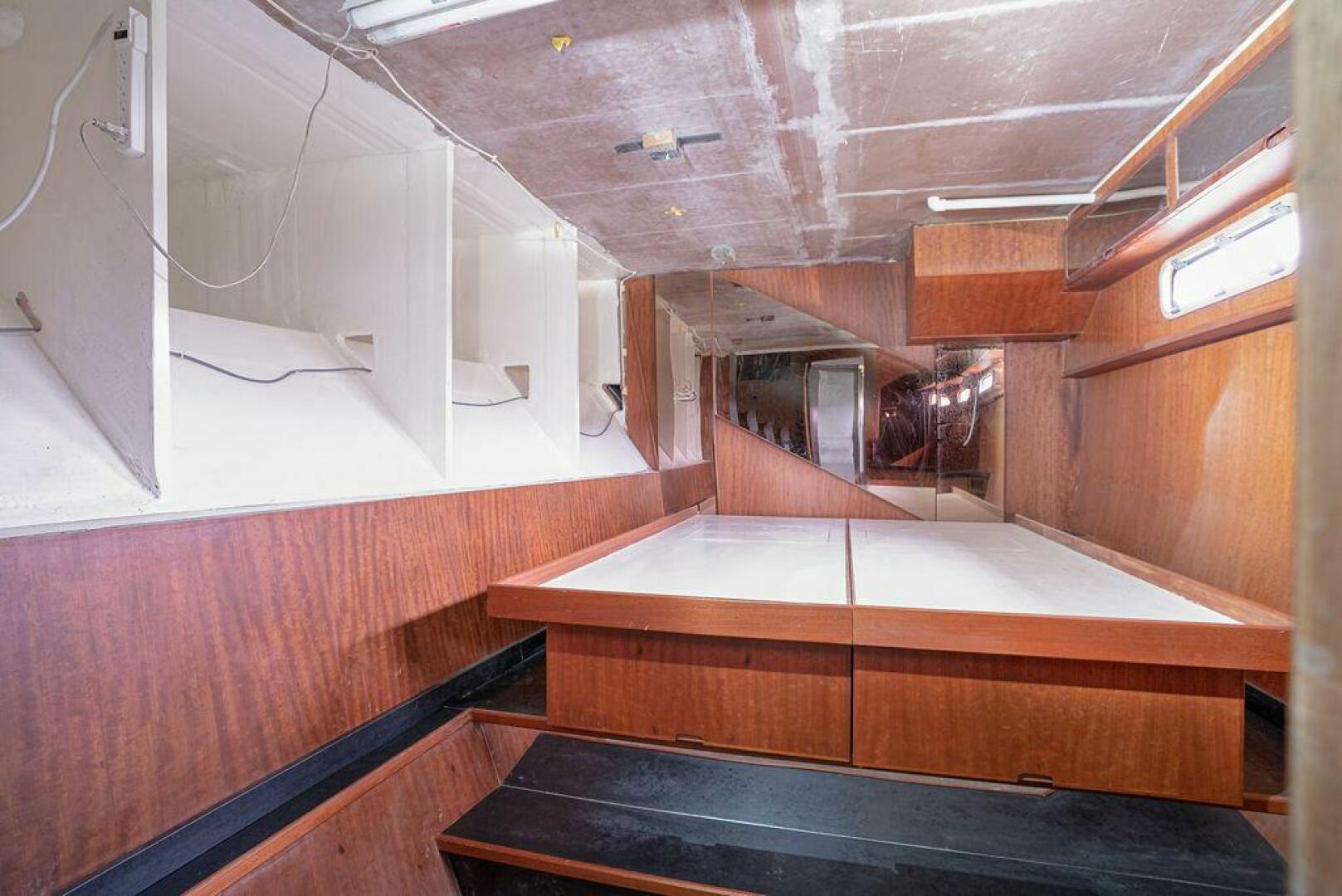

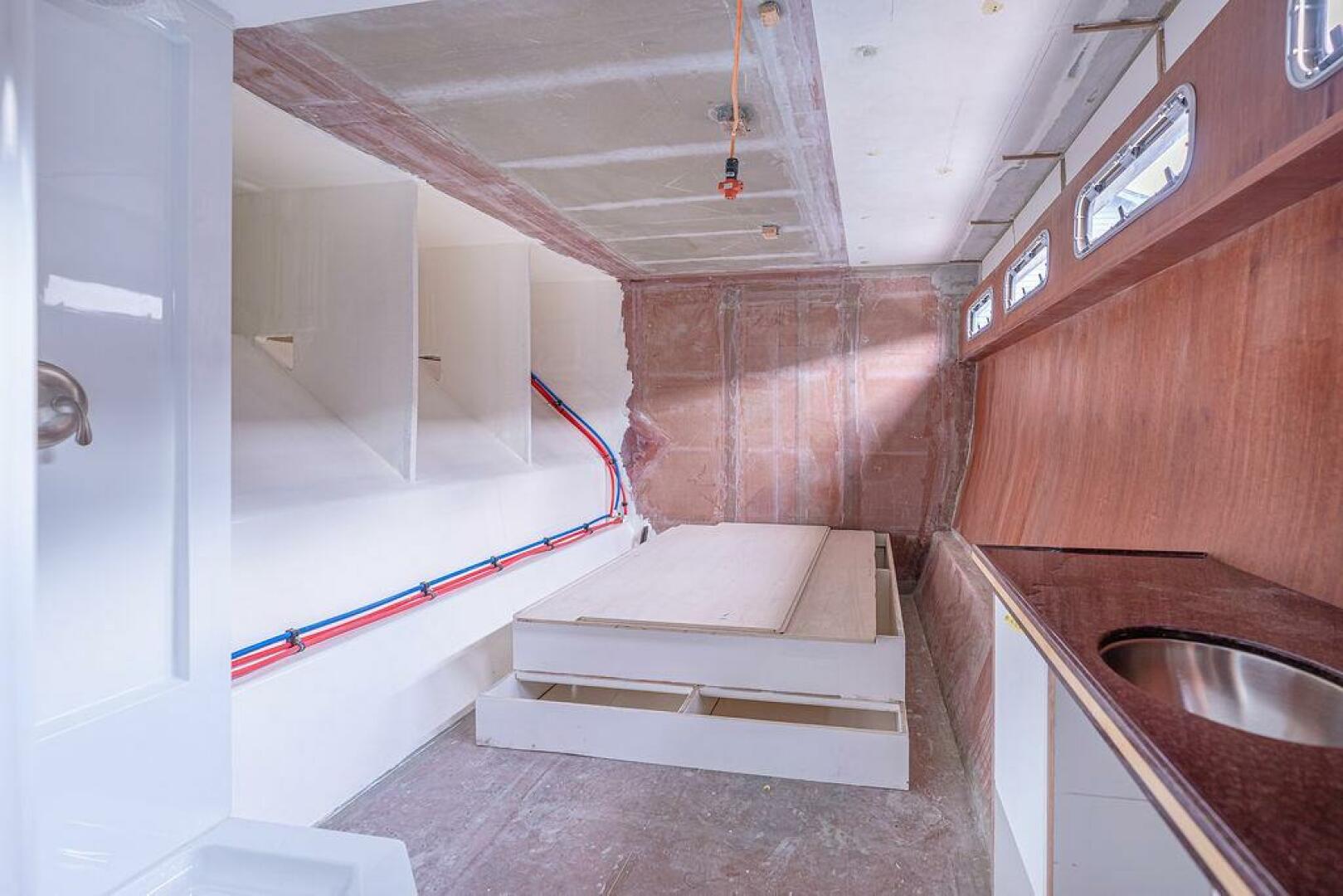

- Staterooms (four)Queen Beds with clothes closet and other storage
- Sapele and Makore wood with smoked mirror highlights and indirect lighting

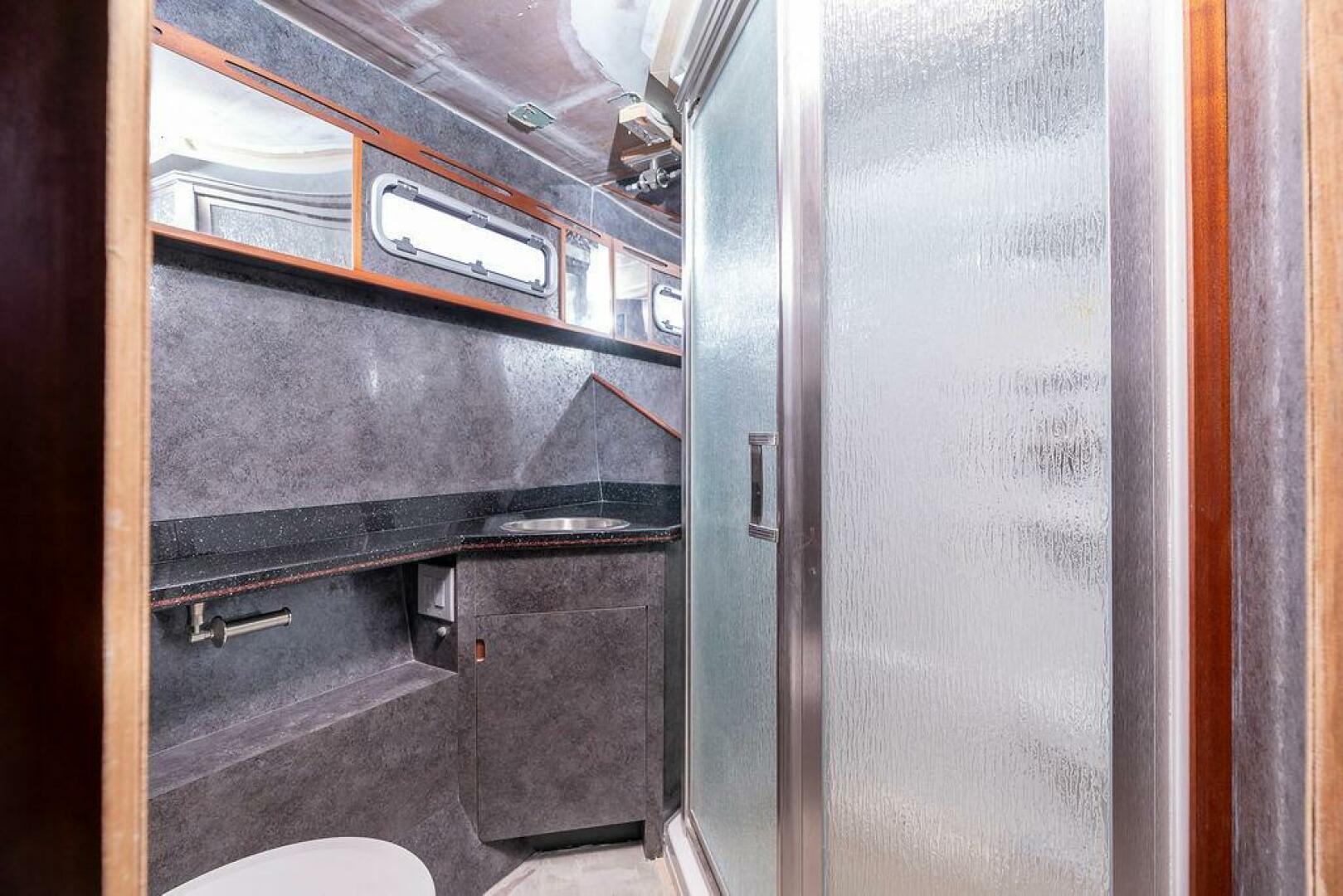

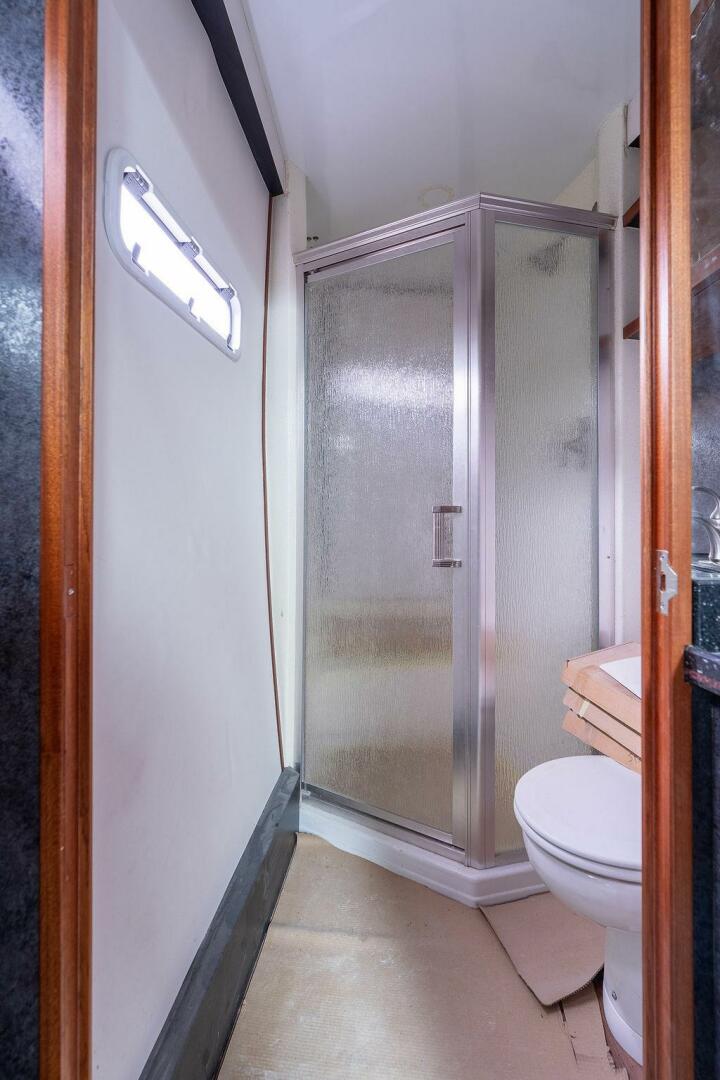

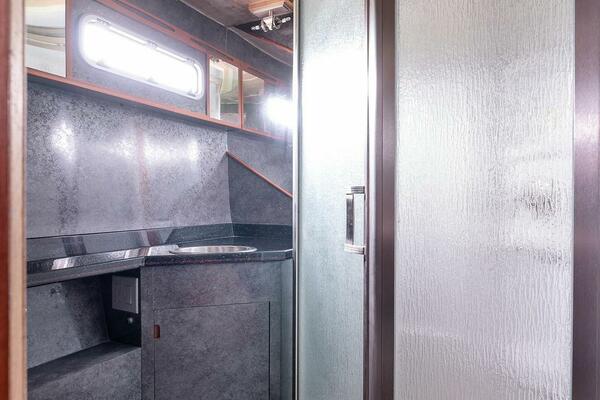

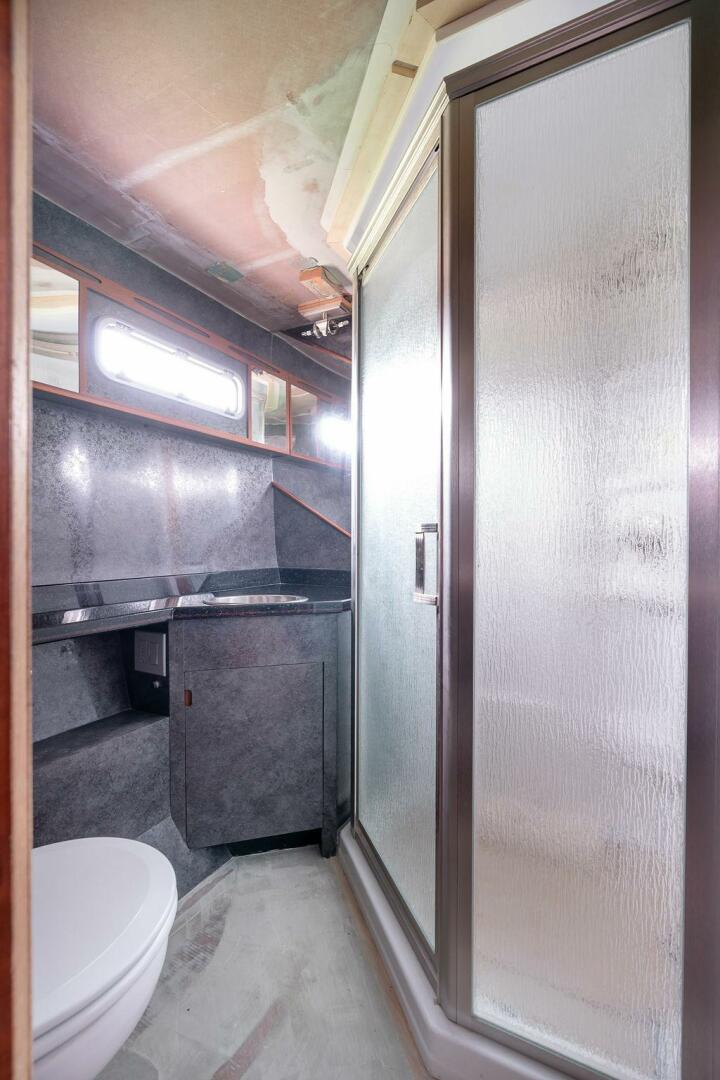

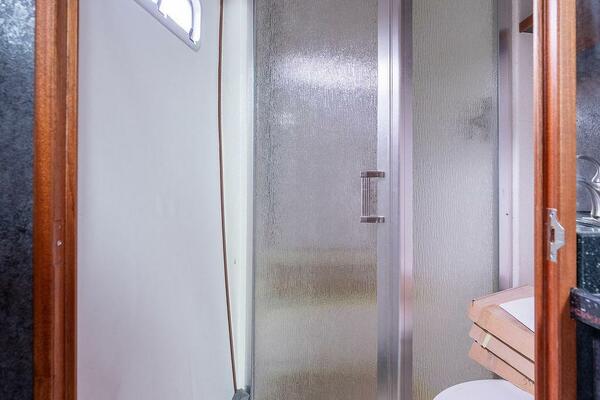

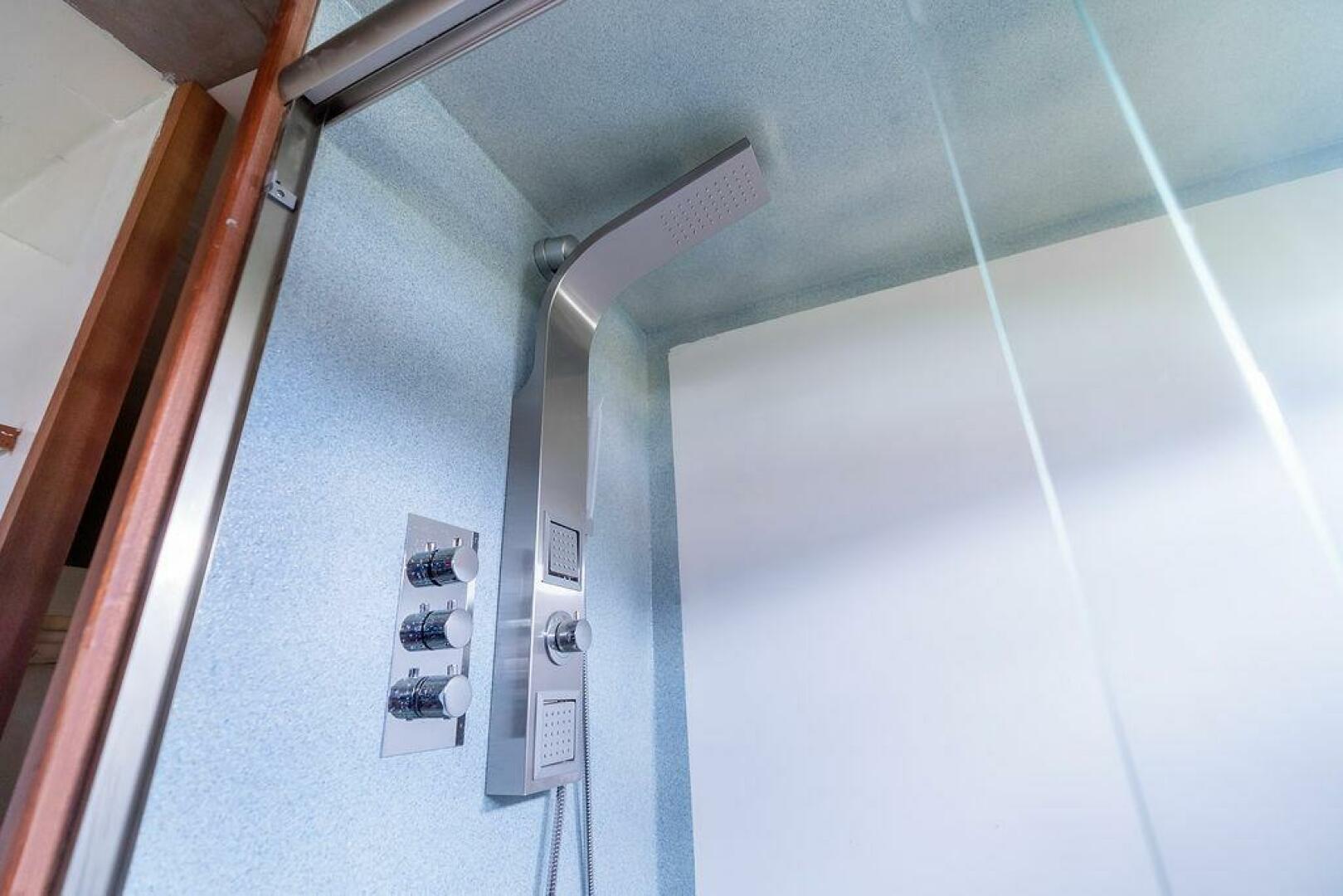

- EnSuite Head with Raritan 24V porcelain toilet, NeoAngle Shower, Kohler faucets & fixtures, Solid Surfaces

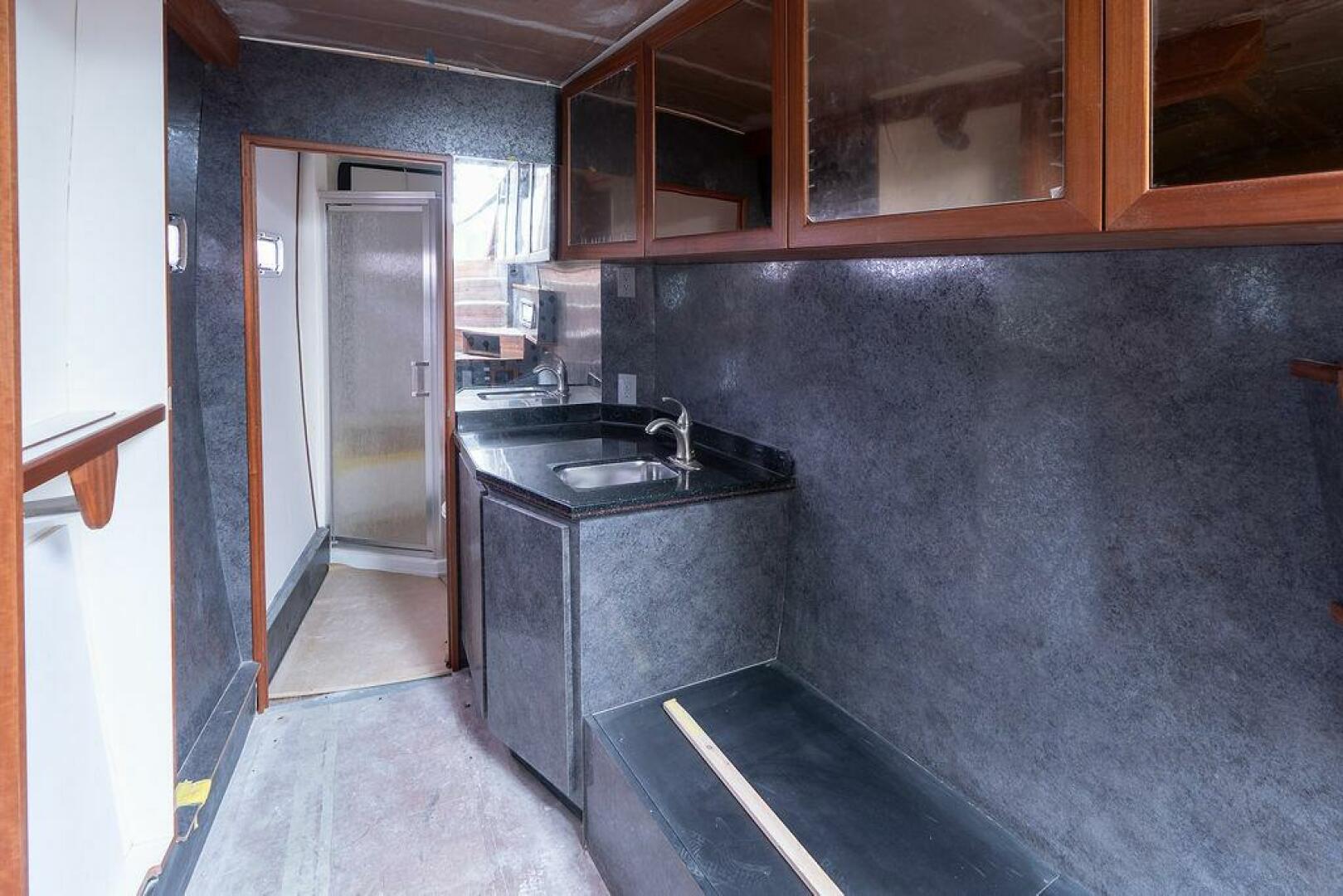

- CREW QUARTERs (two)Queen Bed
- Kitchenette
- EnSuite Head with Raritan 24V porcelain toilet and NeoAngle Shower, faucets & fixtures, Solid Surfaces

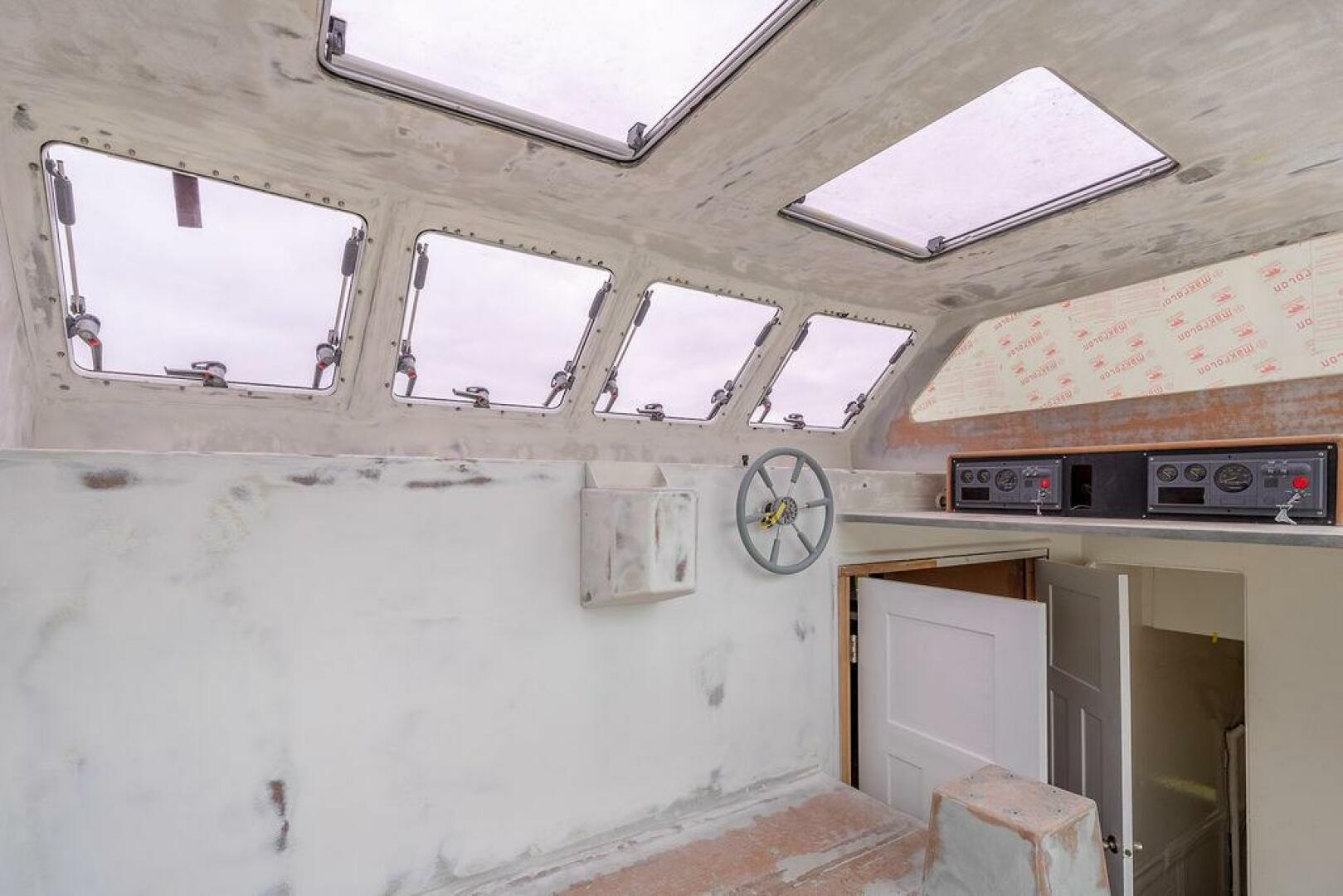

- Pilot House(2) Llebroc Aspen Help Chairs w/headrest in Leather Neutral

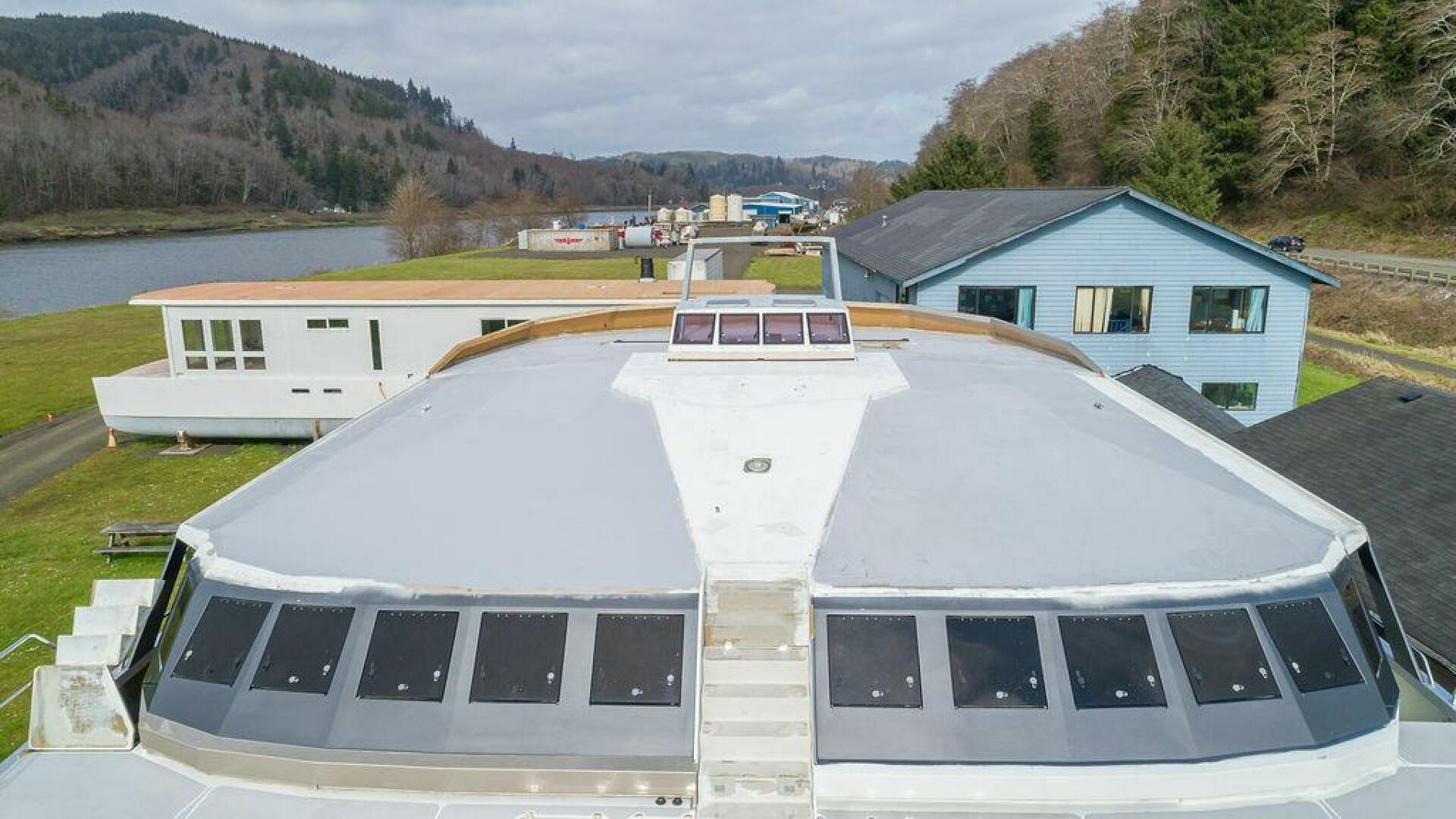

- (4) Lewmar Flush 2G 70 Grey Opening Hatches forward
- (2) Lewmar Pilot Hatch 78 overhead sliders
- Removable side windows
Systems
- Fuel System(2) 1000 gallons diesel tanks built-in

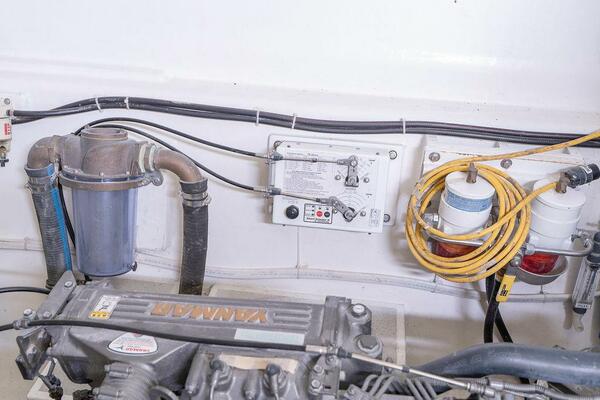

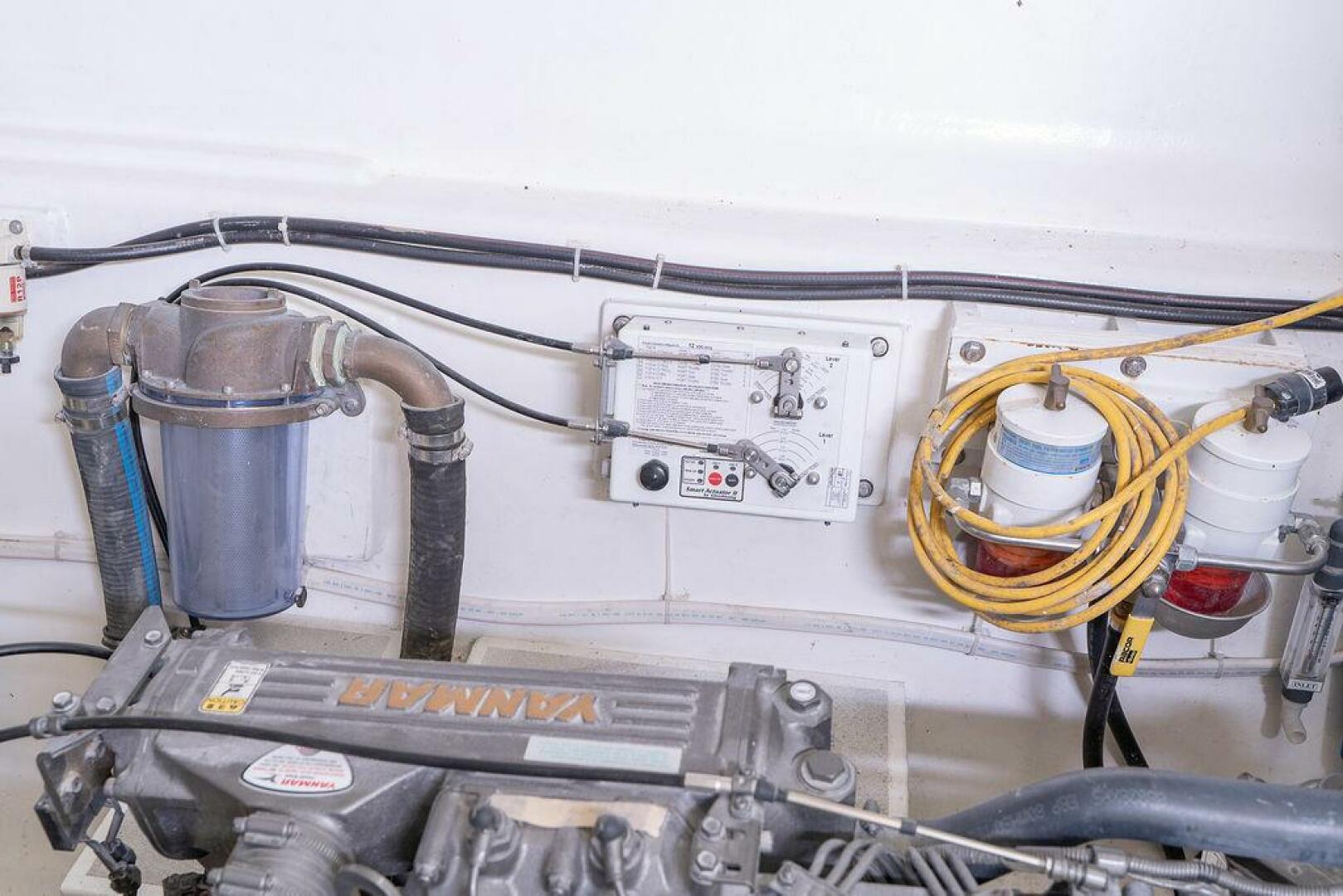

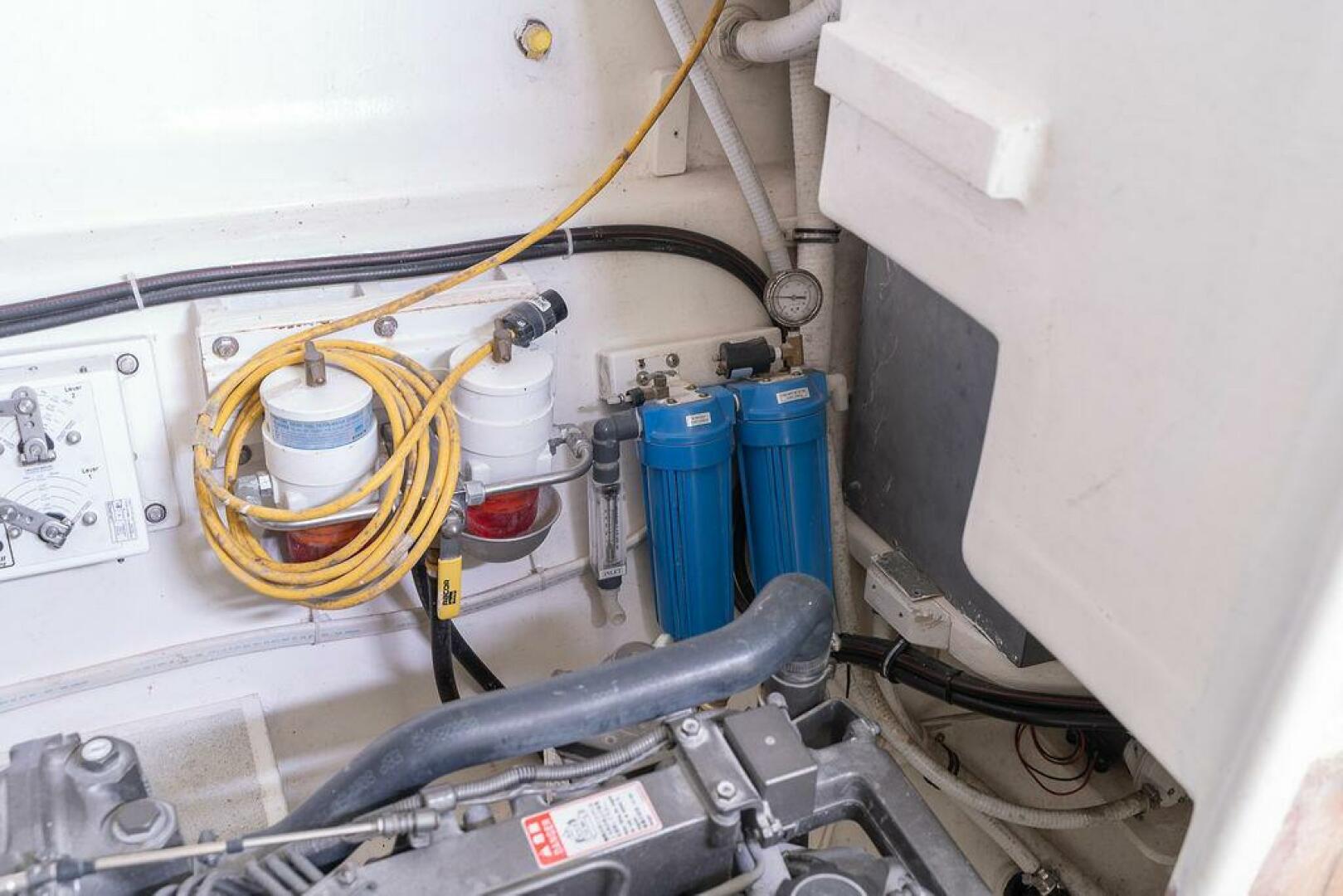

- Dual Racor Filter System w/Vacuum Gauge
- (2) 50Gal Below Deck Gas Tank for toys
- Electrical110V / 240V / 12V

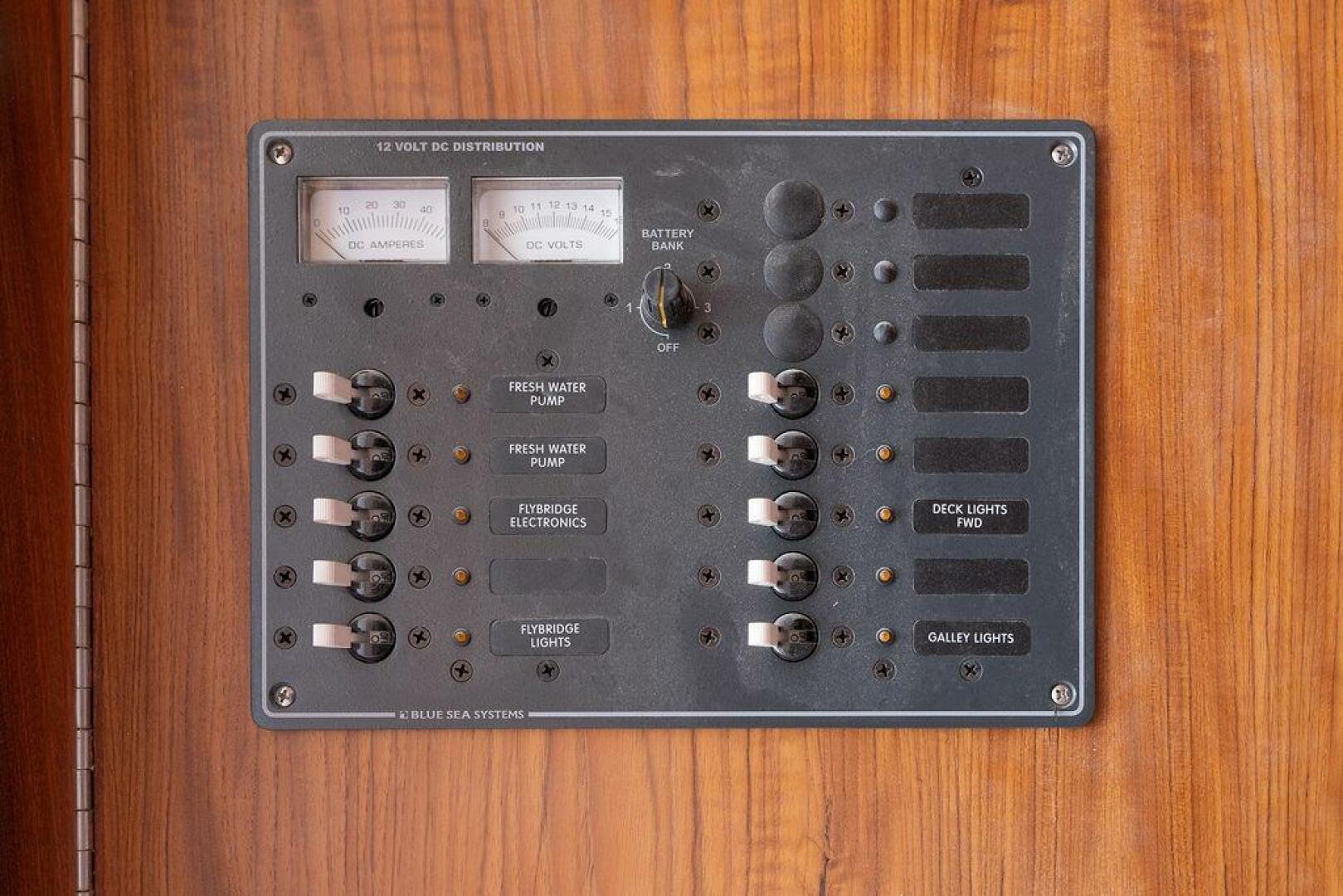

- Blue Sea Systems 7372 Panel – 240VAC – 50 Amp
- Blue Sea Systems 7372 Panel – 120/240 VAC

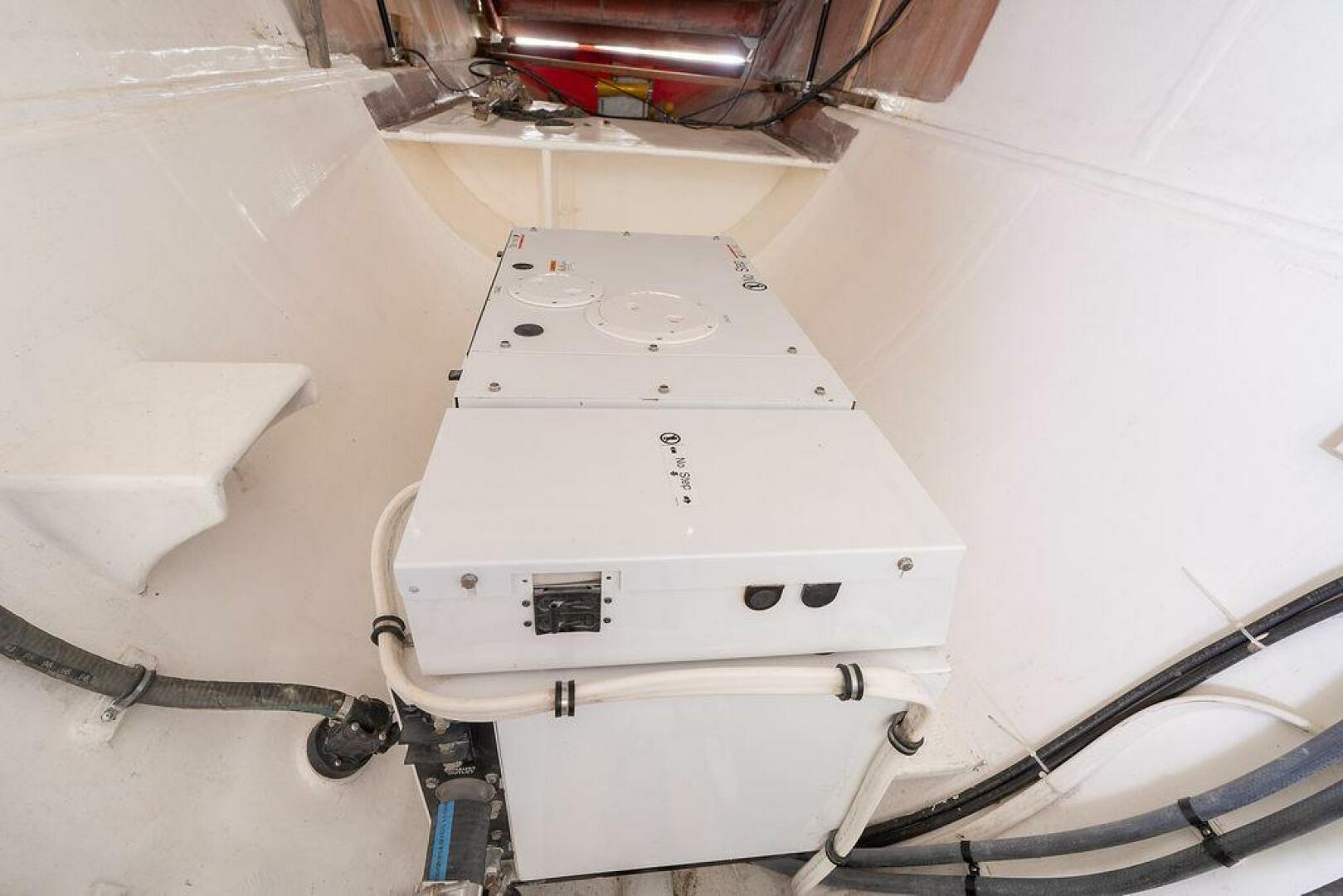

- Cummins/Onan 13kw Generator w/sound shield, 120/240 VAC, 1ph, 60Hz, 12V DC start, heat exchange cooled, wet exhaust w/offshore Cruise Kits and Manuals
- Cummins/Onan 11kw Generator w/offshore Cruise Kits and Manuals

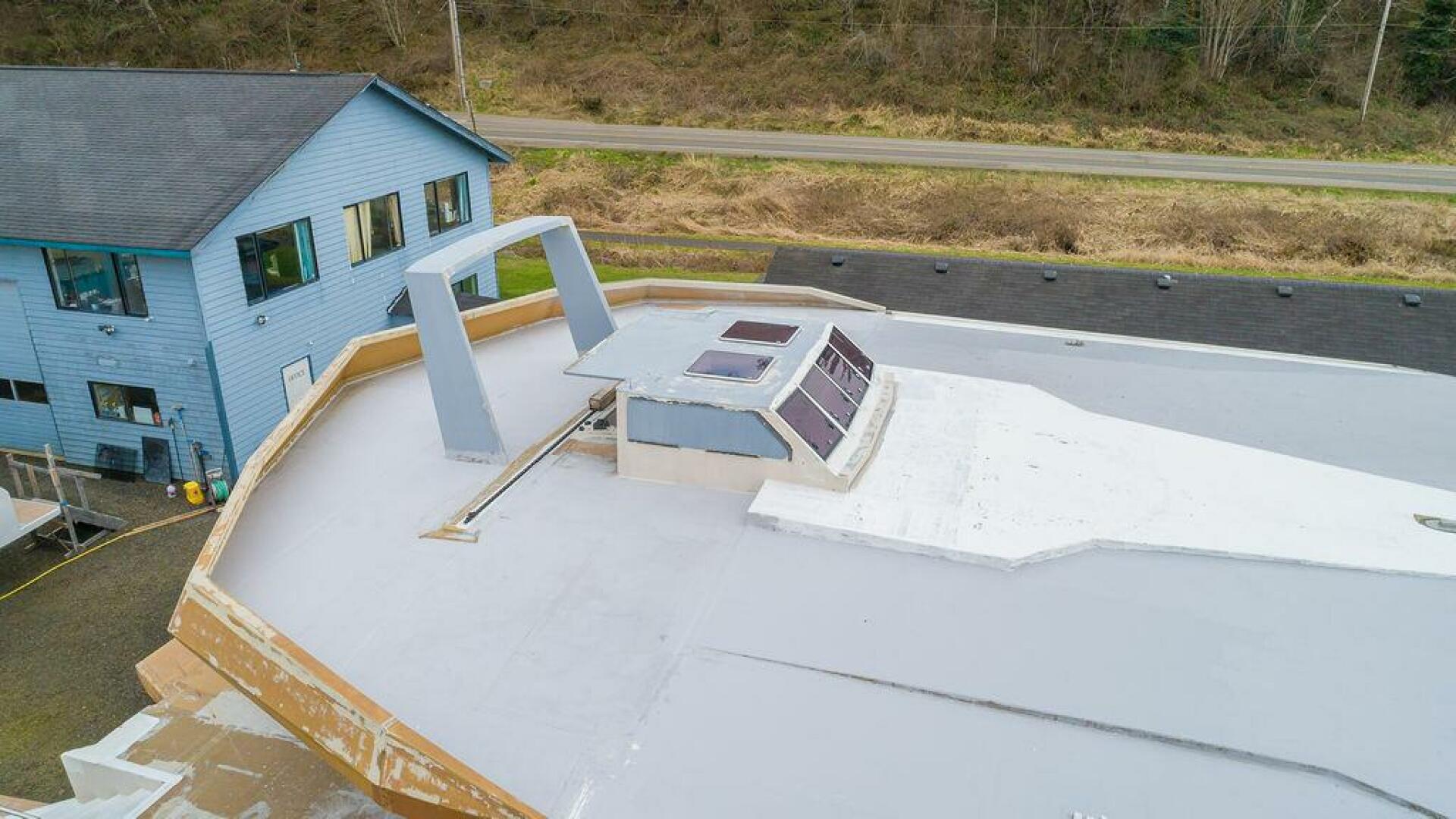

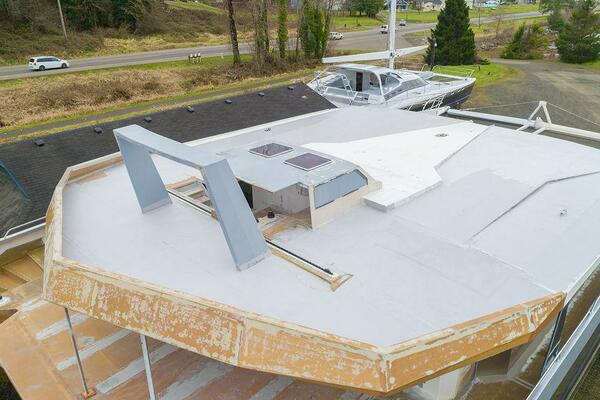

- RiggingAluminum Mast 96’ and Boom 30’ by Ballenger Spar Systems, Inc.
- Profurl Electric furler NEDC 520 24V
- Lewmar 65EST EVO Electric Winch
- (2) Harken 2 speed radial self-tail 60.2STA Aluminum Winch
- Neil Pryde Sails incl. Main w/ 2 reefs, 2-ply leech and Lazybag, Genoa, Staysail
- Bow Thruster – Starboard ForwardLewmar 300TT 10.8kw 24V Tunnel Thruster with Glendinning Electric Controls
- Three stations: Port, Starboard, Helm
- Anchoring/Deck Hardware(2) 47# Fortress Anchor
- (2) 60’ ½ “ Galvanized High Test Chain G43
- 600’ ¾” Deep Six Nylon 6 Strand spliced to chain
- Argo Windlass by Quick – 3000W, 24V, SS 316, 10mm-3/8” gypsy w/drum and Remote Control
- 24’ Sea Anchor
- Forward drop down beach boarding stairs
- Waste Water(7) Raritan Elegance 24V Porcelain Toilets
- (2) Black/Gray Holding Tanks 500 gallon each with Pumpout or Macerator
- Fresh Water(4) 55 Gal Holding Tanks
- (2) 110V/Heat Exchange 20 gallon Water Heaters
- PEX SeaTech Quick Connect Fittings
- 1800 GPD Water Maker

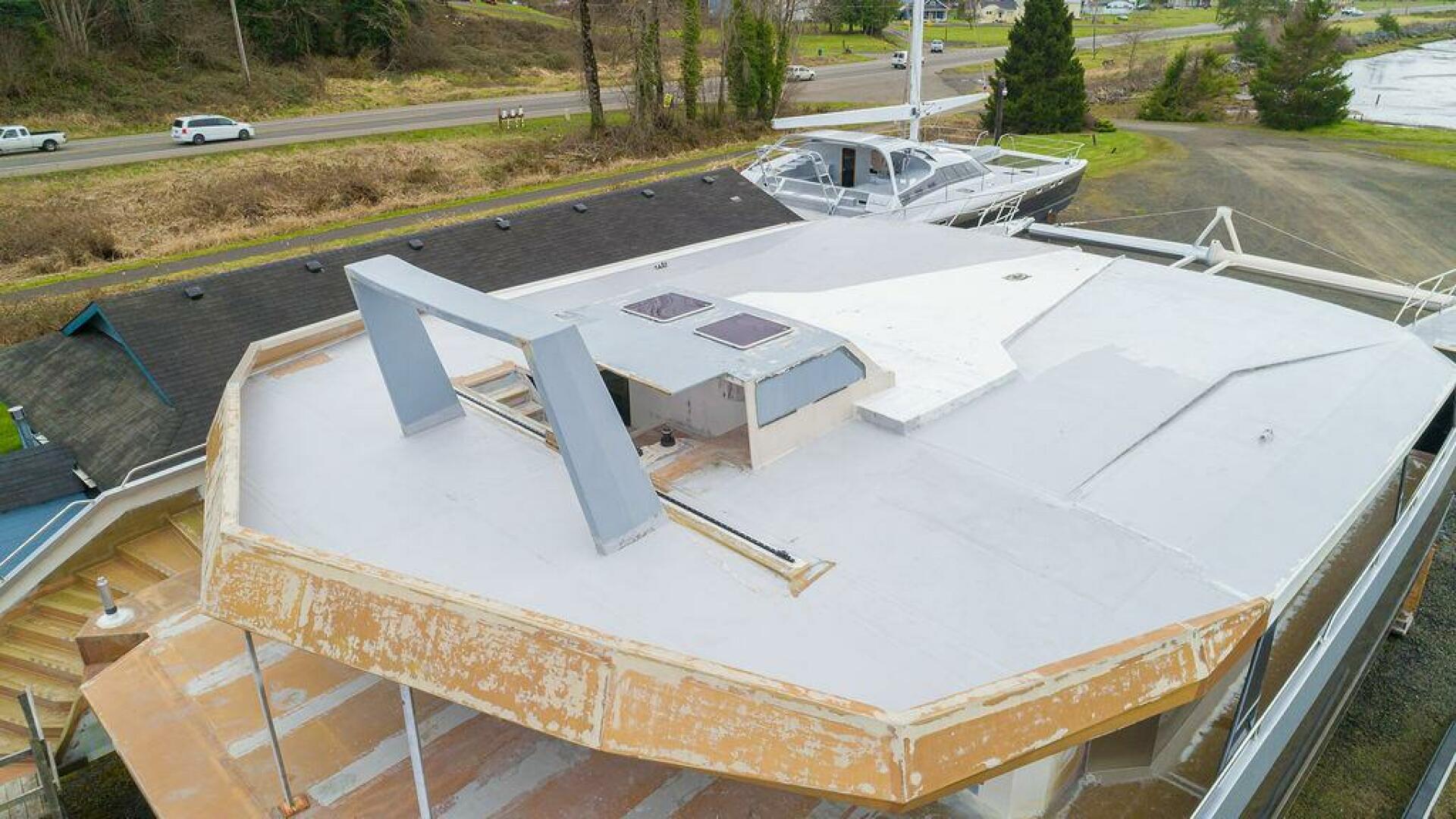

- AC/HeatingWater-chilled A/C and Heat Pump

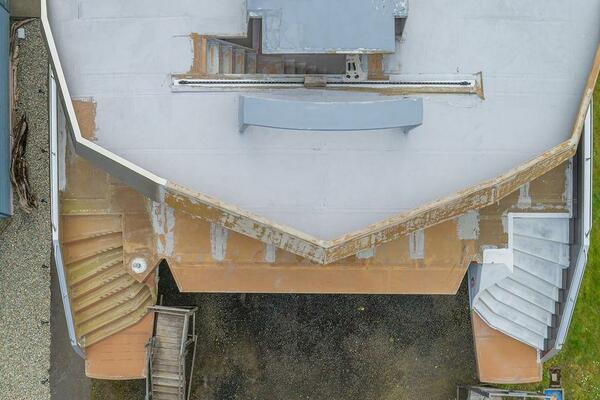

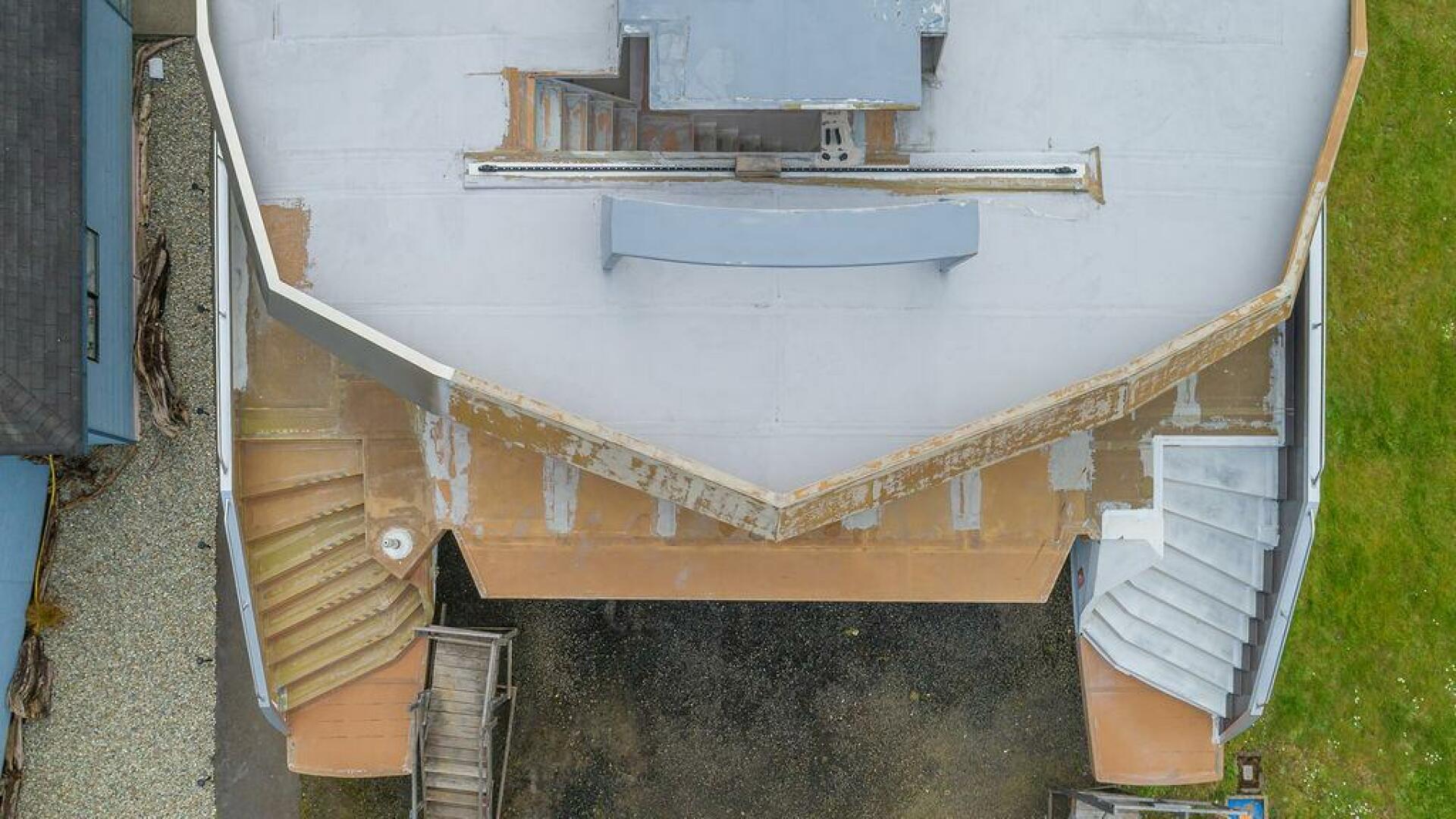

- Dinghy Garage – Boarding StairsHydraulic lifting stairs to load toys on both Port and Starboard Stairs
- Winch – keel rollers
- (2) Garelick 4 step Periscope Ladders flush mount for easy dive exit
- Nick Jackson Davit 1,200 lb
- Available15’ Triumph Center Console Polymer Hulls w/ 40HP Yamaha
- 14’ Novurania Rigid Inflatable MX430 w/60HP Yamaha v2
Offered at current state of construction, approximately 70% complete
Hull laid in the United States and according to the Jones Act, can be chartered in US waters.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
