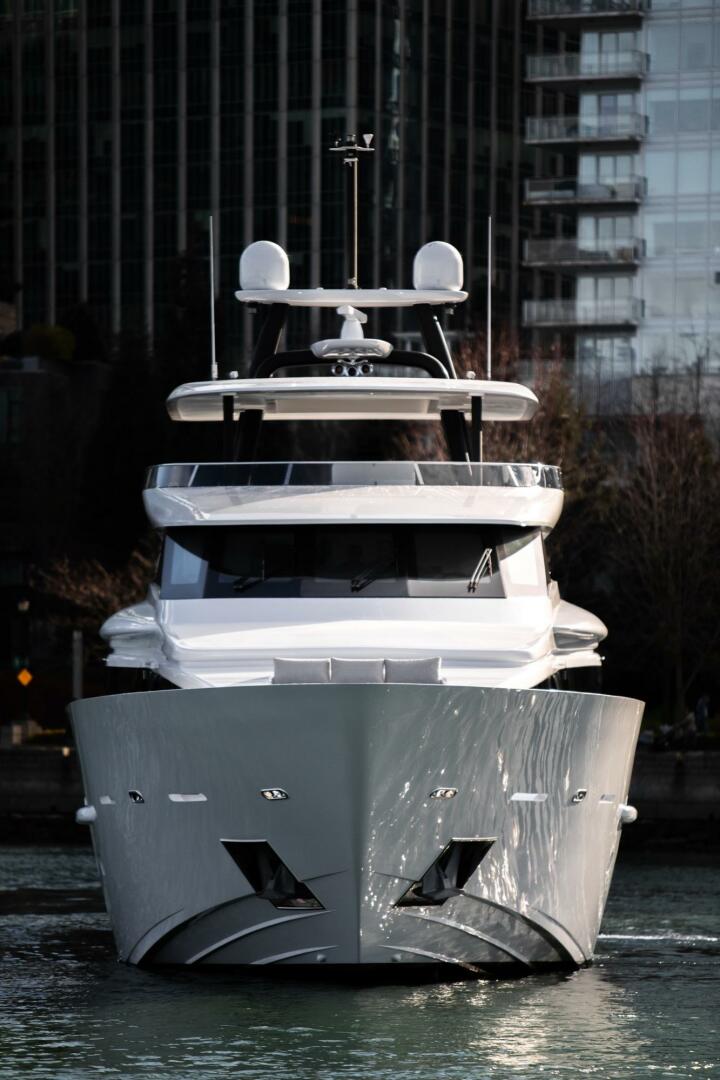

2020 Crescent 117' _{(35.66 m)}

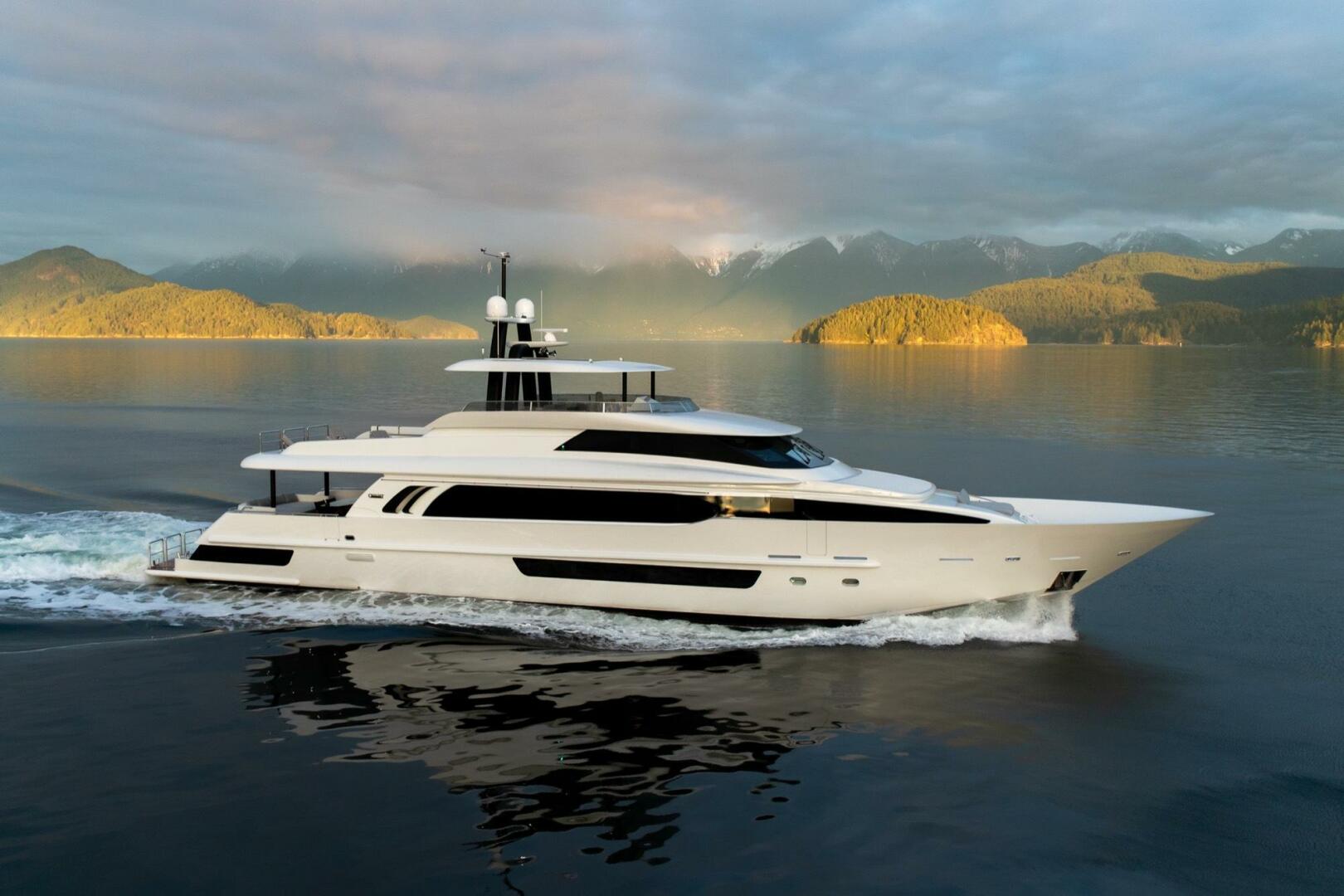

CRESCENT LADY offers versatile interior and exterior spaces with excellent areas for entertaining, lounging, and dining. Designed by renowned naval architect Gregory C. Marshall, CRESCENT LADY showcases a contemporary, elegant profile and an interior designed to remain timeless.

Flooded with natural light through expansive windows, the interior features clean, modern styling complemented by high-quality joinery and refined fabrics and finishes.

CRESCENT LADY accommodates up to 10 guests in five beautifully appointed staterooms. The full-beam master suite includes a king-size bed, generous wardrobe, and an ensuite bath with a Jacuzzi tub. Additional accommodations include two king VIP staterooms and two double staterooms with single beds, each with its own ensuite. Crew quarters provide comfortable accommodations for 5 in three cabins.

KEY FEATURES:

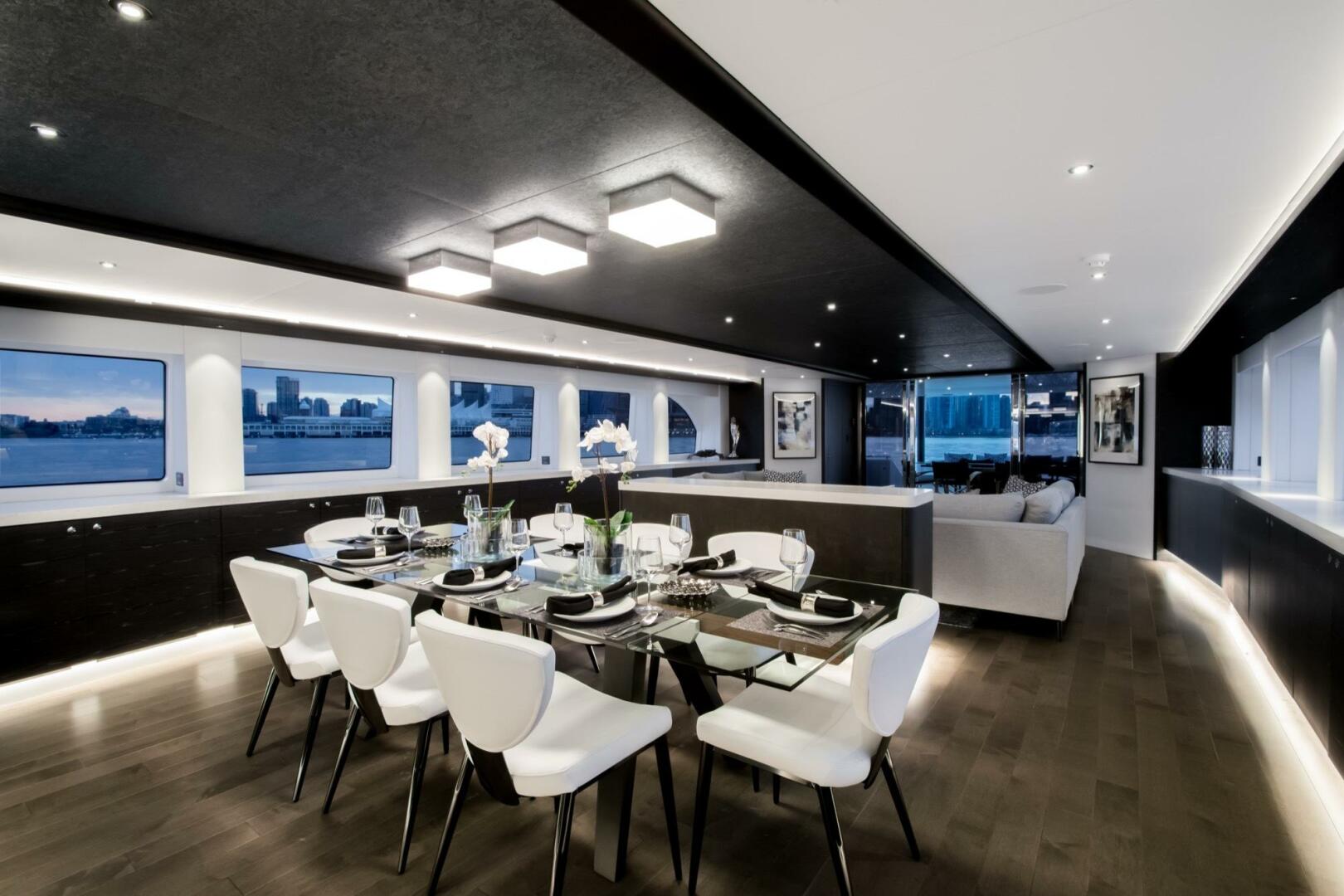

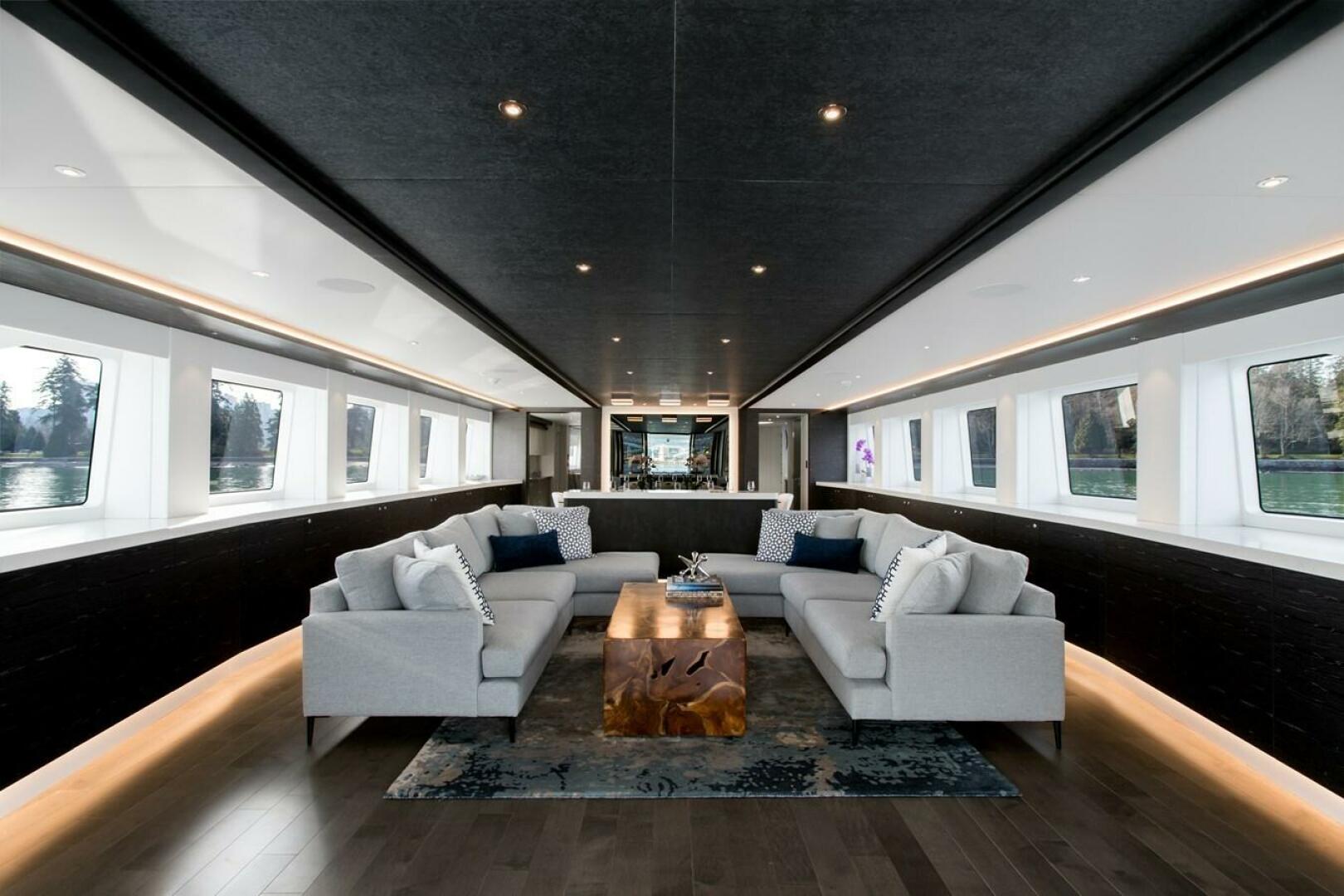

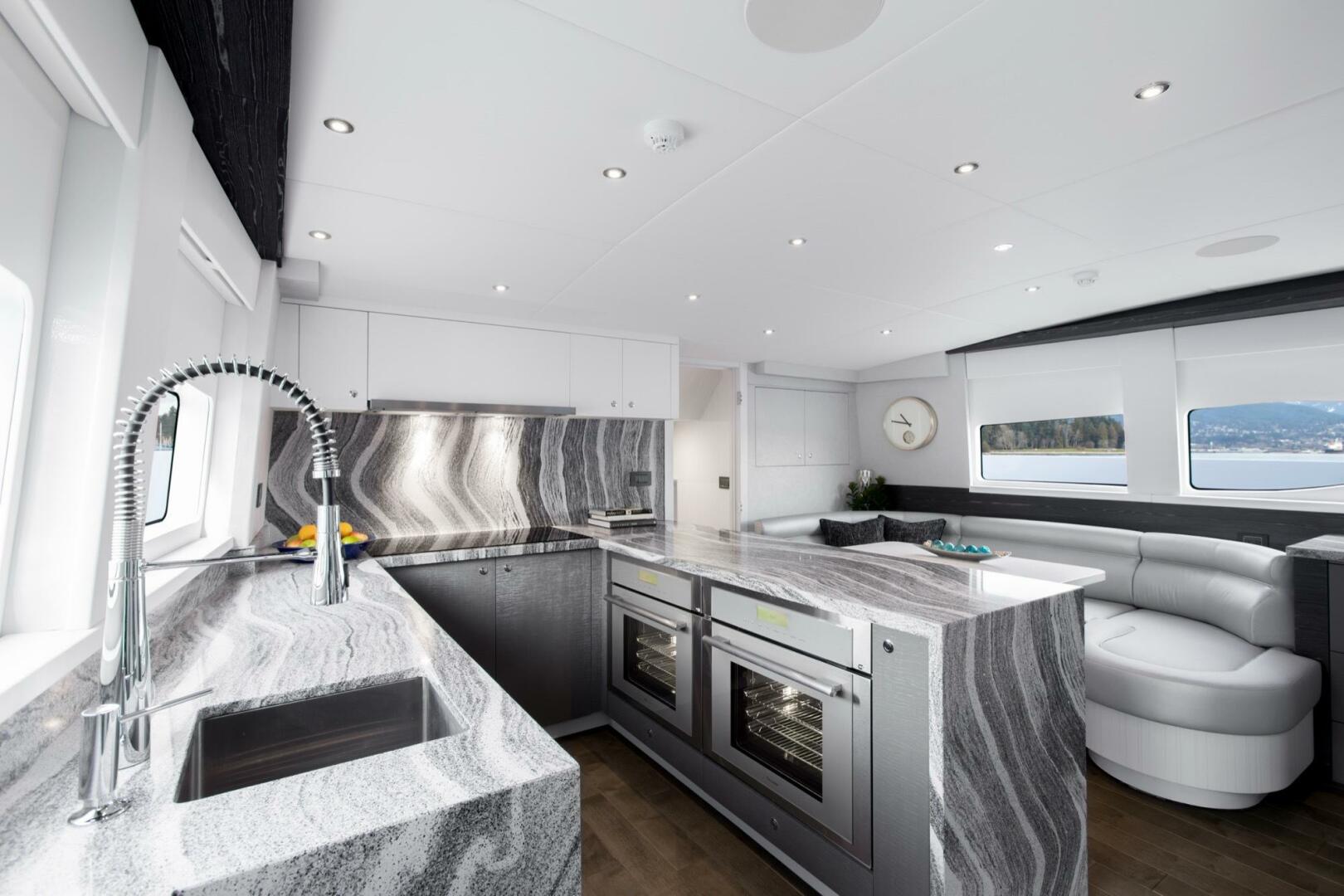

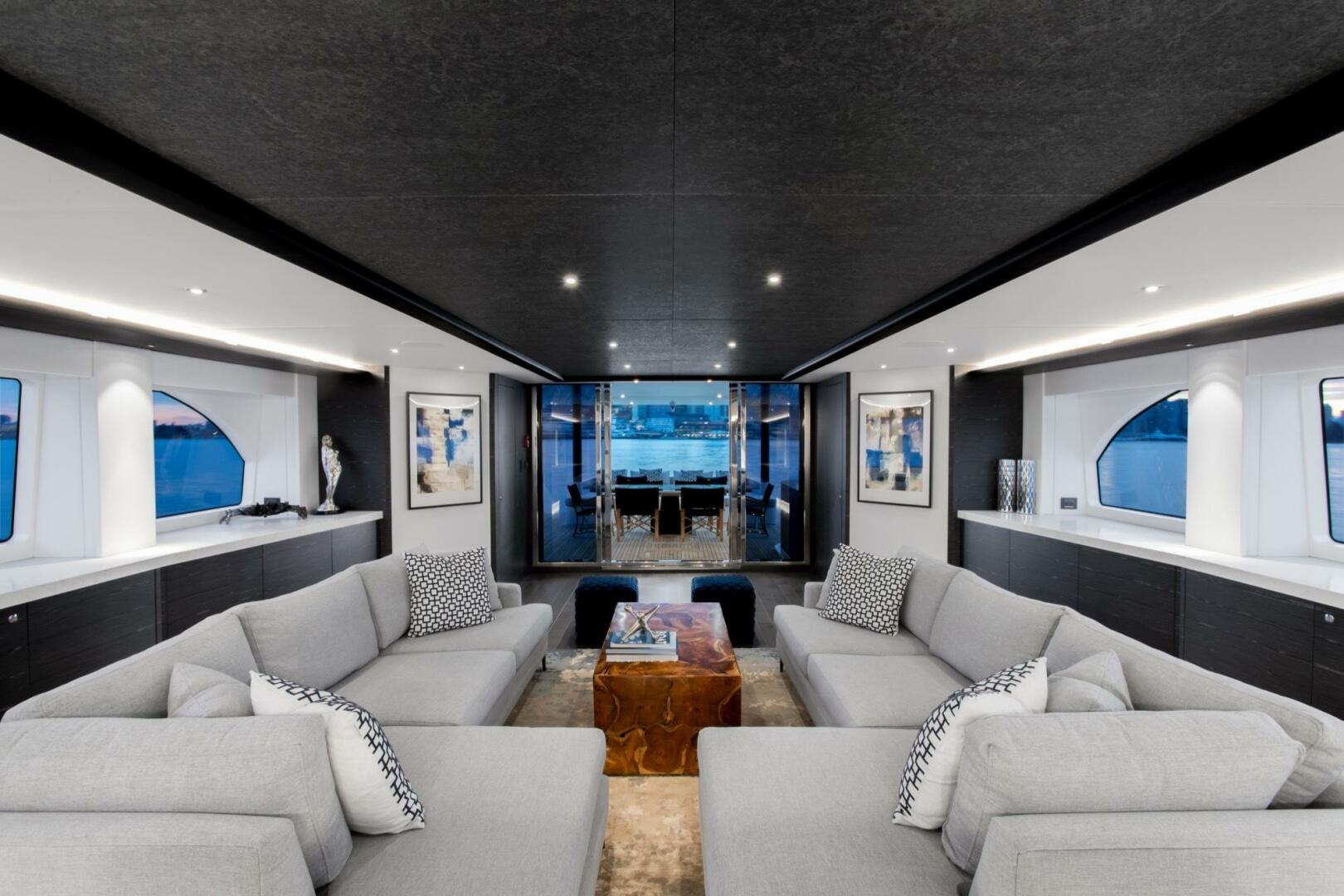

• Interior: Open-plan salon with abundant natural light, formal dining, and casual “country kitchen”; contemporary styling with oak, stone, and premium fabrics
• Accommodations: 5 staterooms for 10 guests, full-beam master suite with king bed and Jacuzzi tub, 2 VIP kings, 2 doubles; crew quarters for 5 in 3 cabins
• Design: Naval architecture, interior, and exterior by Gregory C. Marshall
• Shallow Draft: 6.50' (1.98m) shallow draft – ideal for Bahamas cruising
• Performance: Top speed 26 knots, comfortable cruising around 18 knots; ABT-Trac stabilizers for smooth underway and at-anchor comfort

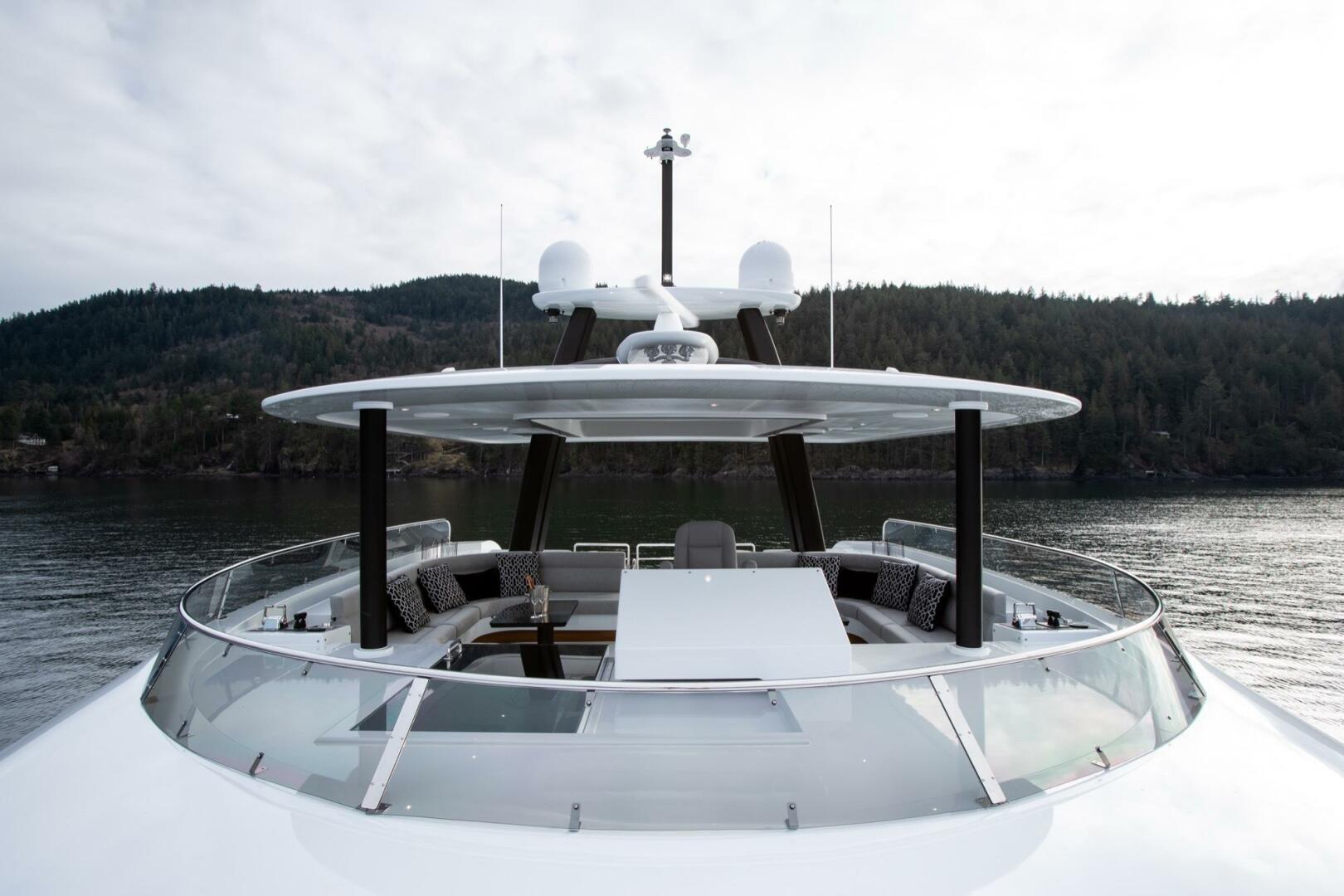

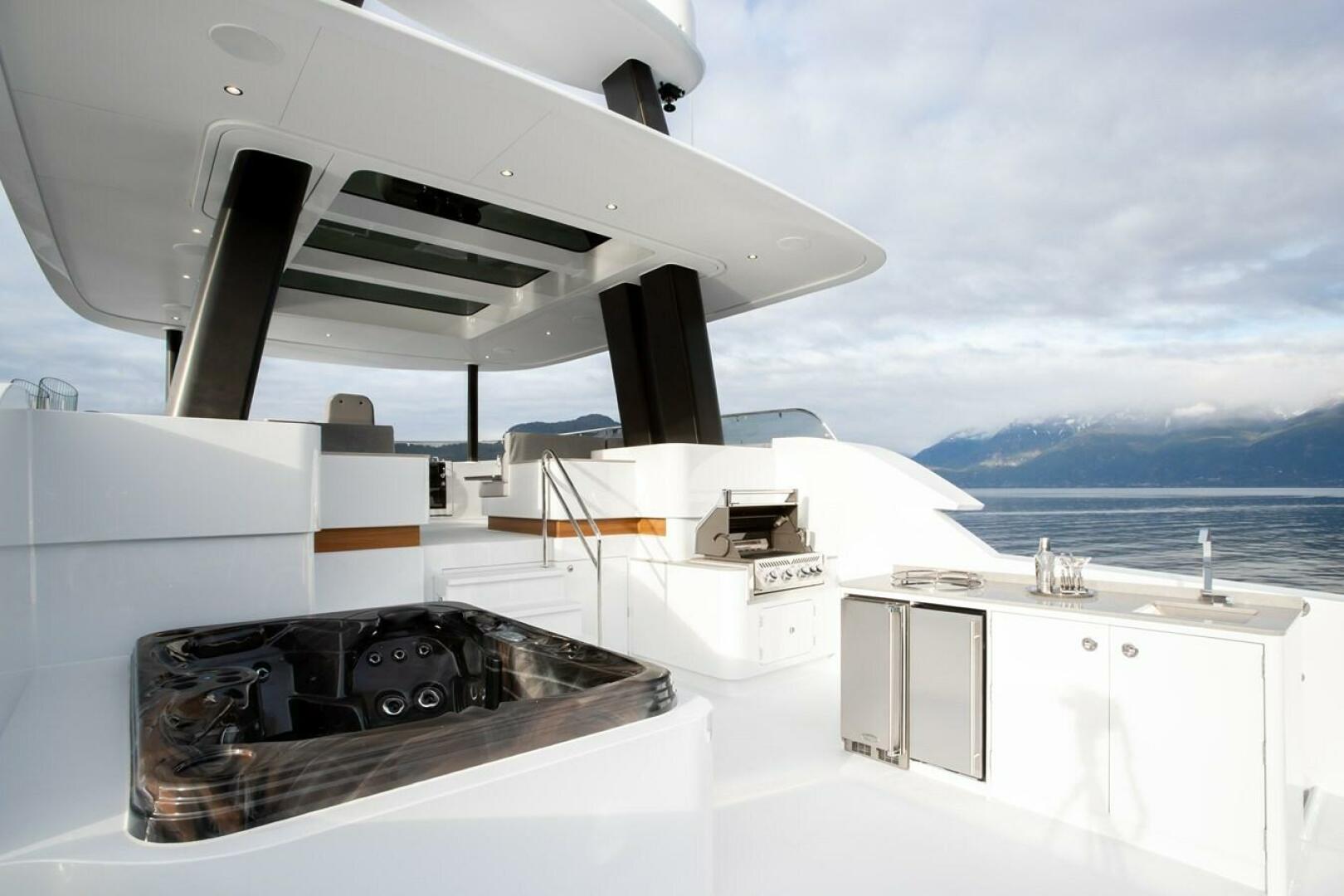

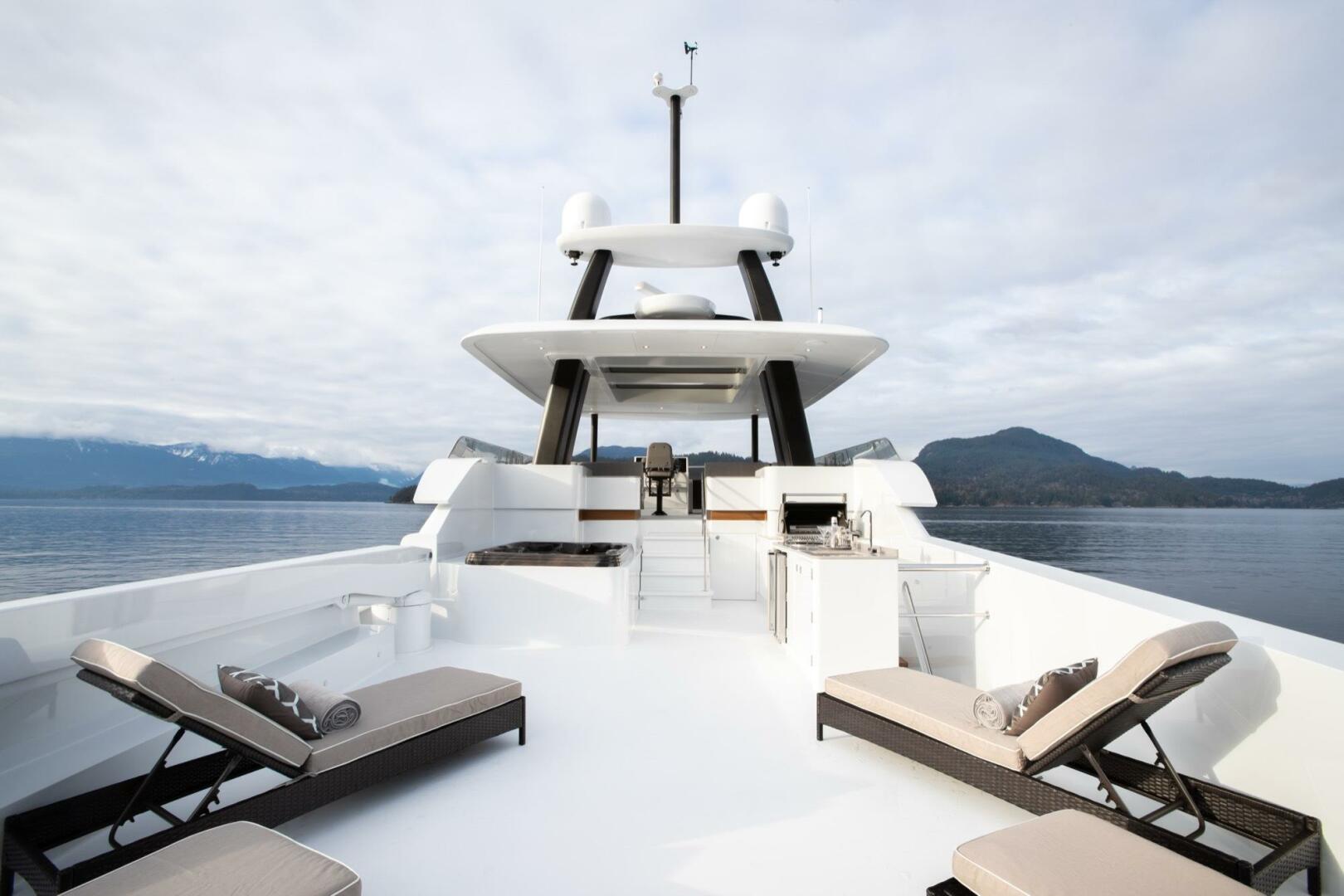

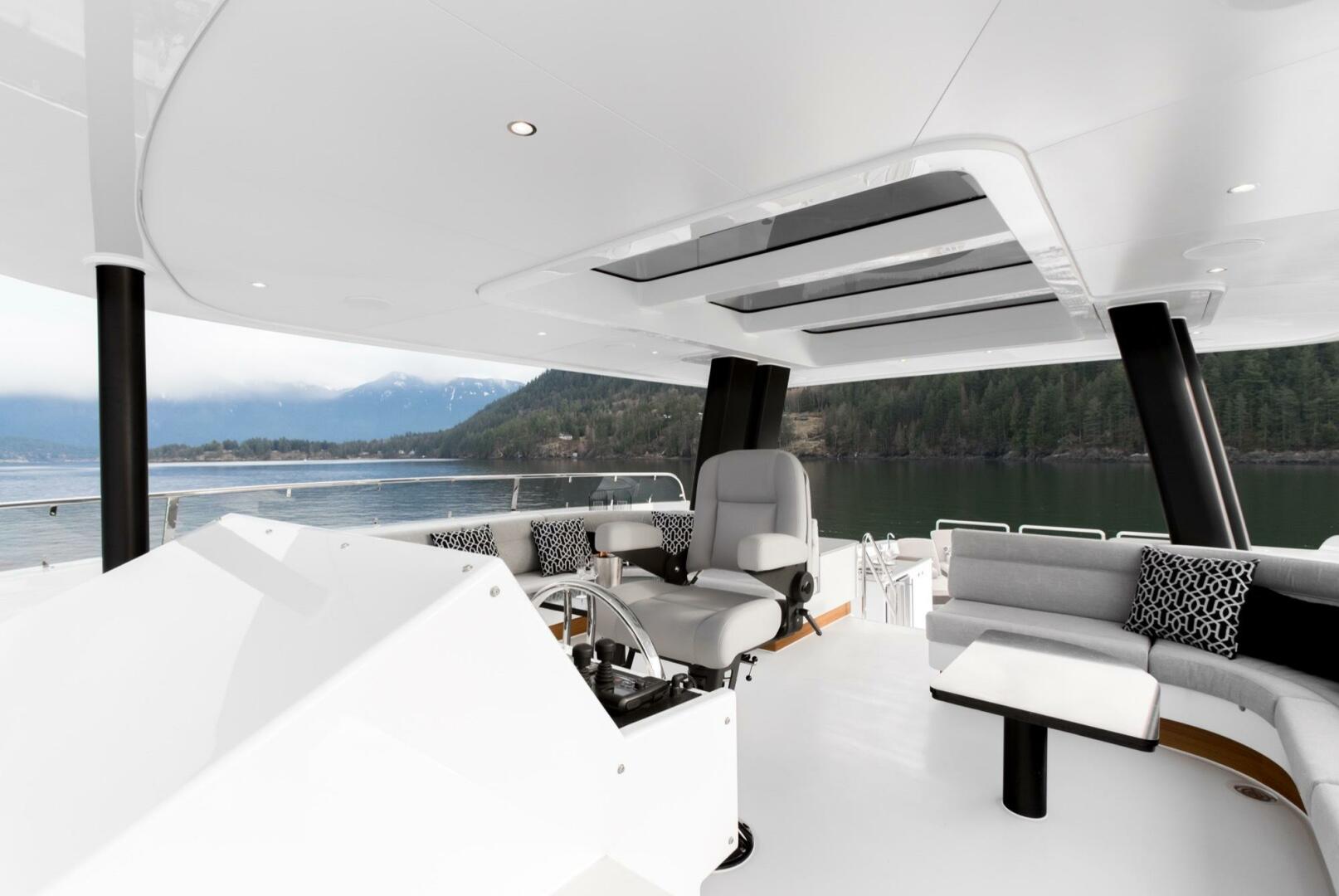

• Deck & Entertainment: Raised pilothouse with extra guest seating and wing stations; sundeck with Jacuzzi, lounging areas, BBQ, and tender storage

CONSTRUCTION

Fiberglass hull and superstructure, with teak decks

DIMENSIONS

General

Length Overall (L.O.A.):

• 117.00 feet
• (35.66 meters)

Beam (molded):

• 24.00 feet
• (7.32 meters)

Draft (loaded):

• 6.50 feet
• (1.98 meters)

Tonnage: 232 gross

Capacities

Fuel Capacity:

• 4,500 US Gallons
• (17,035 liters)

Water Capacity:

• 1,300 US Gallons
• (4,921 liters)

Holding Tank:

• 1,546 US Gallons
• (5,851 liters)

Grey Water:

• 120 US Gallons
• (454 liters)

Watermakers:

• 75 US Gallons
• (454 liters)

Speed

Maximum: 26.0 knots

Cruising: 18.0 knots

Economical: 10.0 knots

Range

Maximum: 860 nm

Cruising: 1,720 nm

Economical: 3,440 nm

MACHINERY

Main Engines

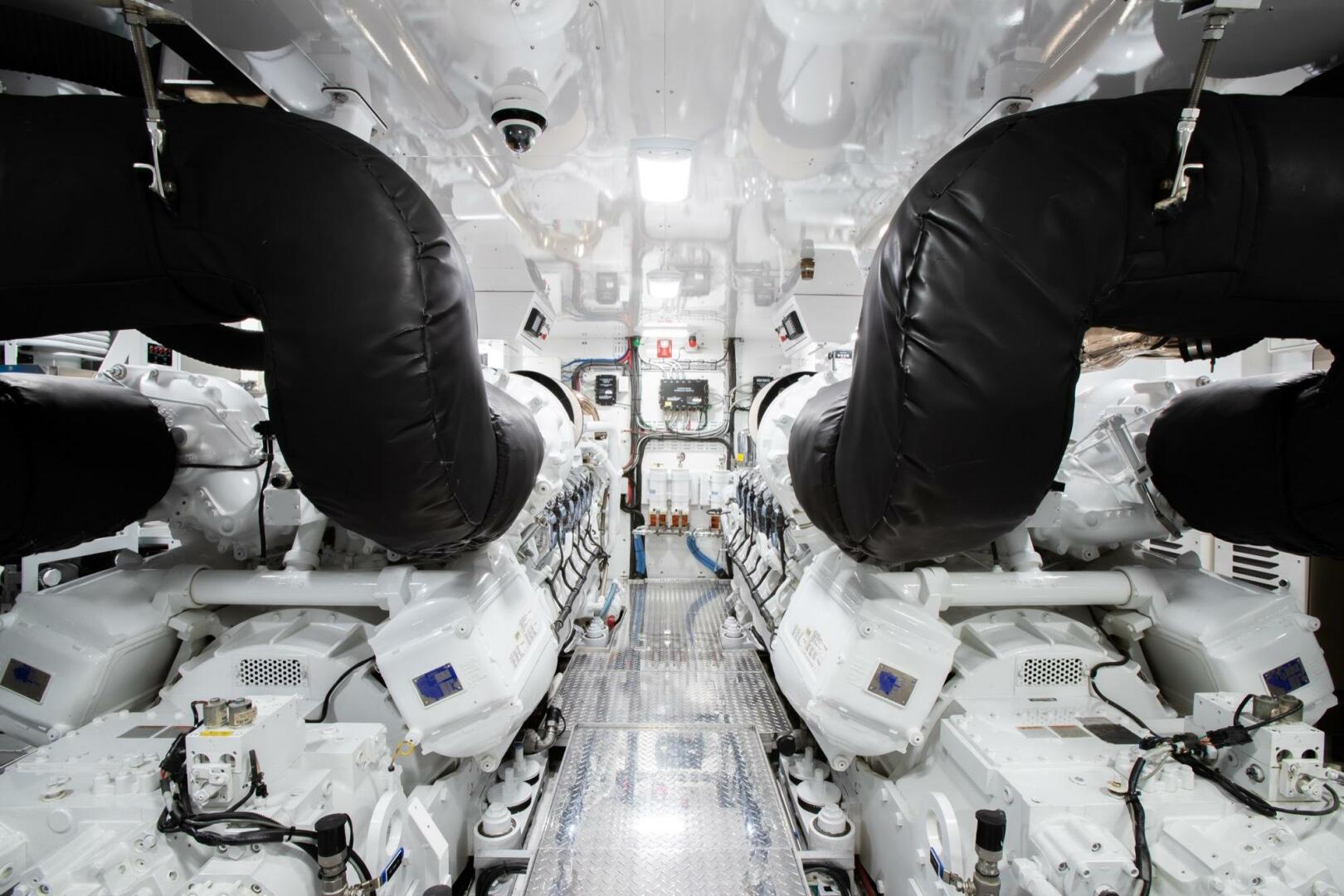

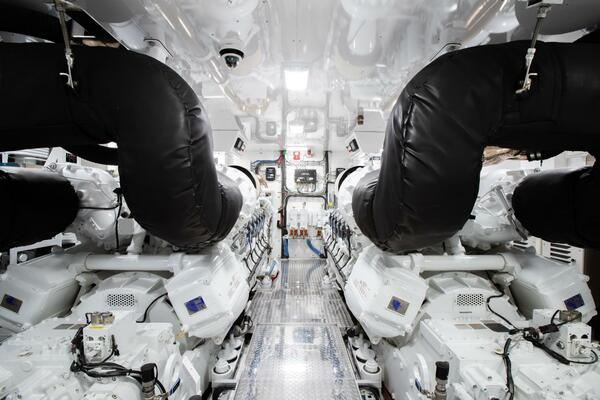

Engine Type: (2) MTU 12V 4000 M90, @ 2,735 Hp each

Drive:

• Polished Cypriot nickel bronze exhaust piping
• Polished chrome MTU/DDC Rocker covers

Ratio: 2.50:1 (Model: DD6984A)

Generators & Electricity

Generators:

• (2) Northern Lights 55 kW generators
• Port 323 / Starboard 326

Shore Power:

• (2) ASEA Model AC25Q-3
• (2) 480V 3 PHASE

Batteries:

• (2) Victron Energy Centaur battery charges 24v 60 Amp
• Victron Energy SKYLLA-TG battery charger 24v 100 amp
• Discover Dry Cell Traction valve regulated batteries throughout

Lighting:

• controlled lighting system, fully integrated into the vessel's entertainment system
• Underwater lights: (4) 350 watts
• Crestron green light system

Air Conditioning

Type:

• Aqua Air (3) 50-ton chillers
• Dometic CruiserAir reverse cycle heating and air conditioning controls
• Air compressor

Other Machinery

Watermakers: (2) Sea Recovery 1800 GPD

Stabilizers: ABT TRAC Zero Speed

Trim Tabs: BCS Trim Tab controls

Bow Thruster: 50 Hp hydraulic system

Stern Thruster: 38 Hp hydraulic system

Fuel Separator & Filtration:

• RCI Technologies
• Racor

Sewage System:

• Headhunter RF 200B
• Sting Ray Headhunter salt water pump

Fresh Water Maker: (2) Sea Recovery 1800 GPD

Fresh Water System:

• (2) Headhunter Mach5 fresh water pumps
• Shelco Micro Guardian water filter (4FOS2)
• Sanitron Ultra Violet water purifier

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

VHF: Icom (IC-M510) NEW 2025

Navigation Systems

Radar:

• Garman 1226 XHD2
• NEW Garmin MR-18HD3
• (3) 22’ Garmin SPS touch screens
• (2) Multi-function Garmin mini displays

Auto Pilot: Garmin

Depth Sounder: Garmin

GPS: Garmin

Chart Plotter: Garmin

Wind Instruments: Garmin

Entertainment System:

a. Video Equipment

   TV’s:

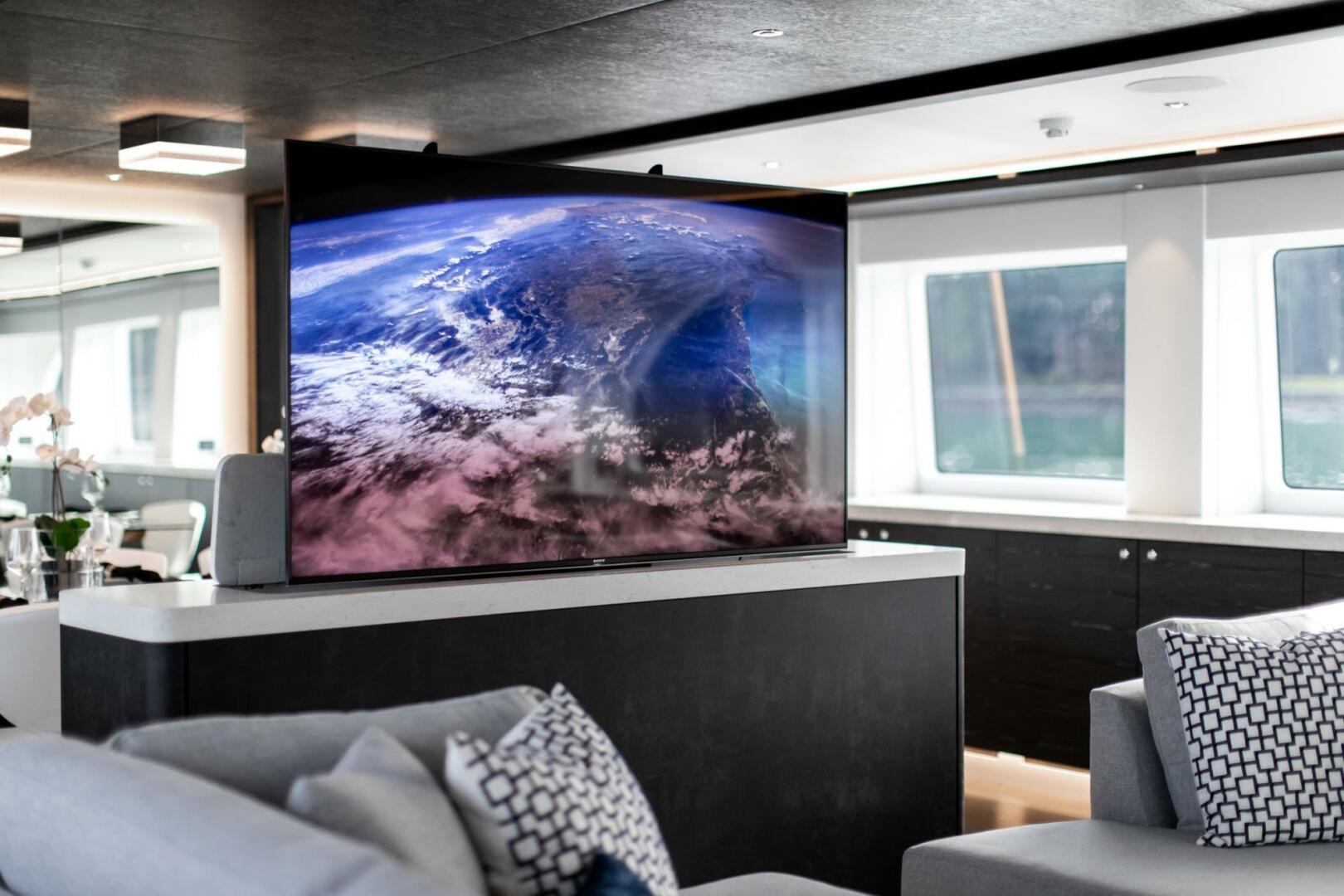

• Main Salon: 65” Sony TV on a lift is hidden under a 2" white quartz counter controlled by Crestron iPad controller
• Master Stateroom: 56” Samsung TV with surround sound speakers
• Guest Staterooms: (2) 24” Insignia TV
• VIP Stateroom: (1) 32” Insignia TV
• Country Kitchen Dining Area: (1) TV

Aft Deck: (1) TV

b.   Audio Equipment

   Stereo’s: Creston entertainment & lighting system

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

Cooking Equipment:

• (2) Thermadore (MEDS301WS/01) stainless steel and glass smart WiFi enabled oven with steam capabilities
• Thermadore (MB30WS/01) stainless steel and glass microwave
• Thermadore (CIT365TB/01) five burner Schott Ceran induction cook top with expanding stainless steel range above

Refrigeration/Freezer: Subzero (ID-24F) dual freezer drawers

Dishwasher: Yes

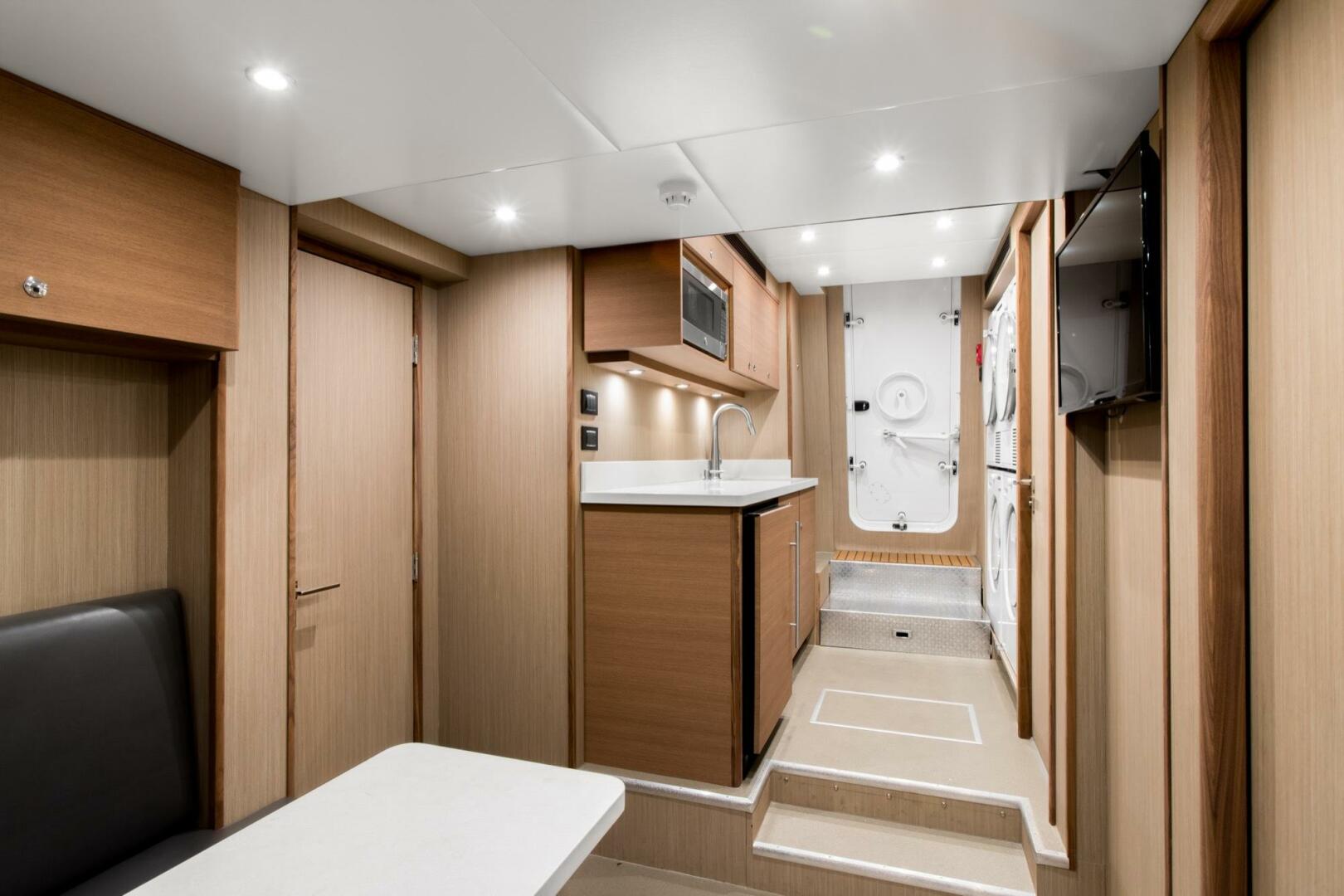

Crew Galley/Mess Equipment

• GE stainless steel microwave
• U-line refrigerator
• (2) Asko Classic Series stacked front load

Additional Galley Equipment

Cooking Equipment: Upper Deck: Napoleon built-in grill with burners and infrared mode

Refrigeration/Freezer:

• Upper Deck: Full size wet bar with stainless steel sink, refrigerator, and ice maker
• Aft Deck: Full size wet bar with stainless steel sink
• NEW Electactic 4.5 cu. ft. refrigerator
• NEW Kndko 100 lbs high capacity ice maker

Laundry Equipment

Main Laundry Equipment: 24" front load washer & dryer

Crew Laundry Equipment: (2) Asko Classic Series stacked front load washer & dryer

DECK EQUIPMENT

Anchor Windlass System: (2) Maxwell VWC 4500

Aft Warping Capstans: Maxwell 3500

Anchors: Stainless steel "Pool" type (about 300 lbs.)

Boat Crane and Davits:

• Steelhead Marine CT2500 davit with max capacity 2,500 lbs.
• (2) Port and Stvd side entry doors

Swimming Platform:

• Euro Transom with chandleer stairs
• Shore power connection available port and starboard
• Removable stainless steel staple rails
• NEW swim platform awing with poles
• NEW Aft deck sun shades

Spa: Balboa Coast Spas 4 person Jacuzzi

ACCOMMODATIONS

CRESCENT LADY boasts expansive interior and exterior spaces that are perfectly suited for entertaining, lounging, and dining in style.

Designed by renowned naval architect Gregory C. Marshall, the CRESCENT 117 combines a sleek, contemporary exterior with an elegant interior that remains timeless in its appeal.

Natural light floods the interior through the yacht’s large panoramic windows, highlighting the clean, modern design and refined craftsmanship. High-quality joinery, luxurious fabrics, and tasteful soft furnishings create an inviting and sophisticated atmosphere throughout.

Accommodating up to 10 guests in five beautifully appointed staterooms, the CRESCENT 117 offers exceptional comfort.

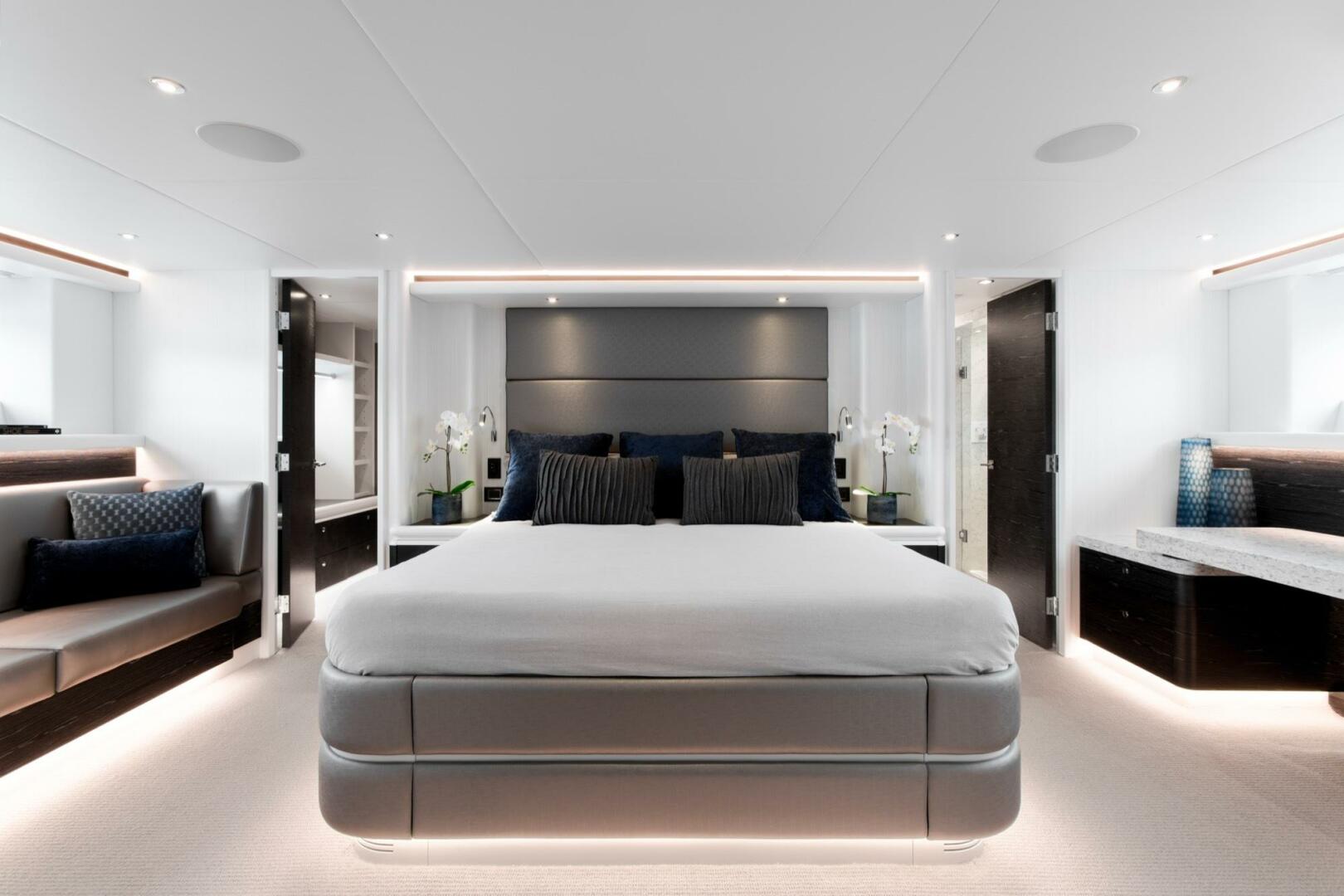

Master Stateroom

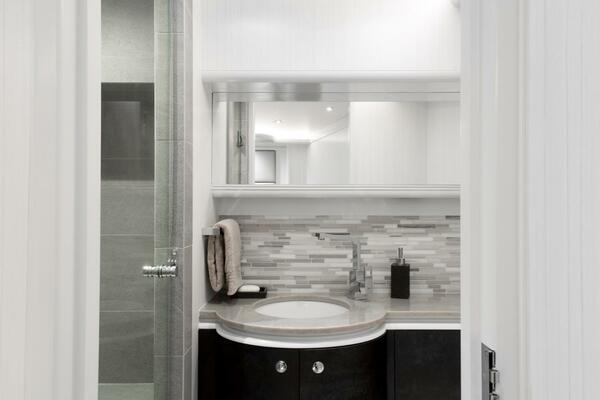

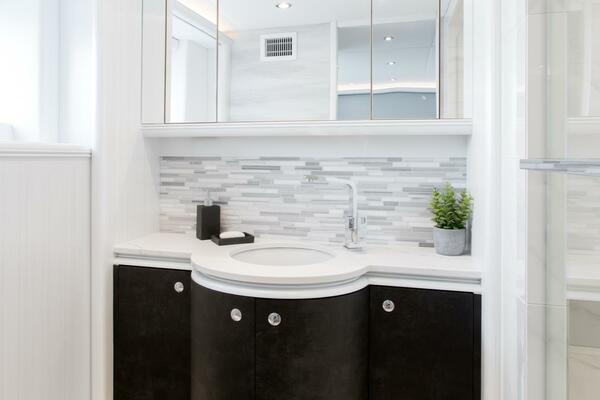

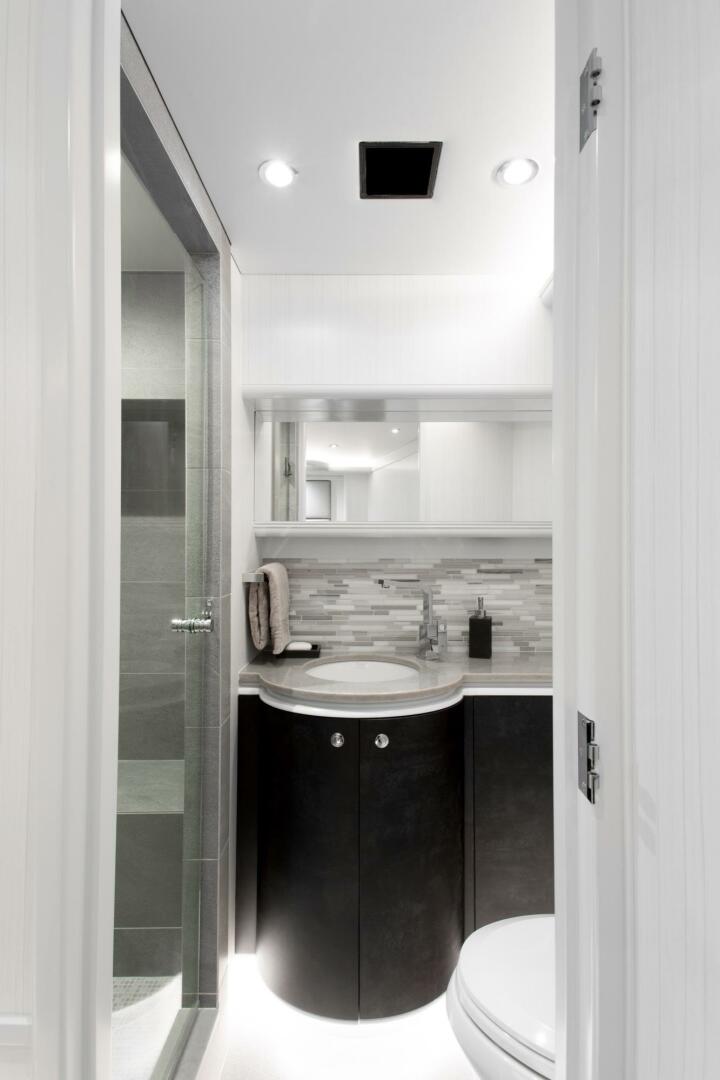

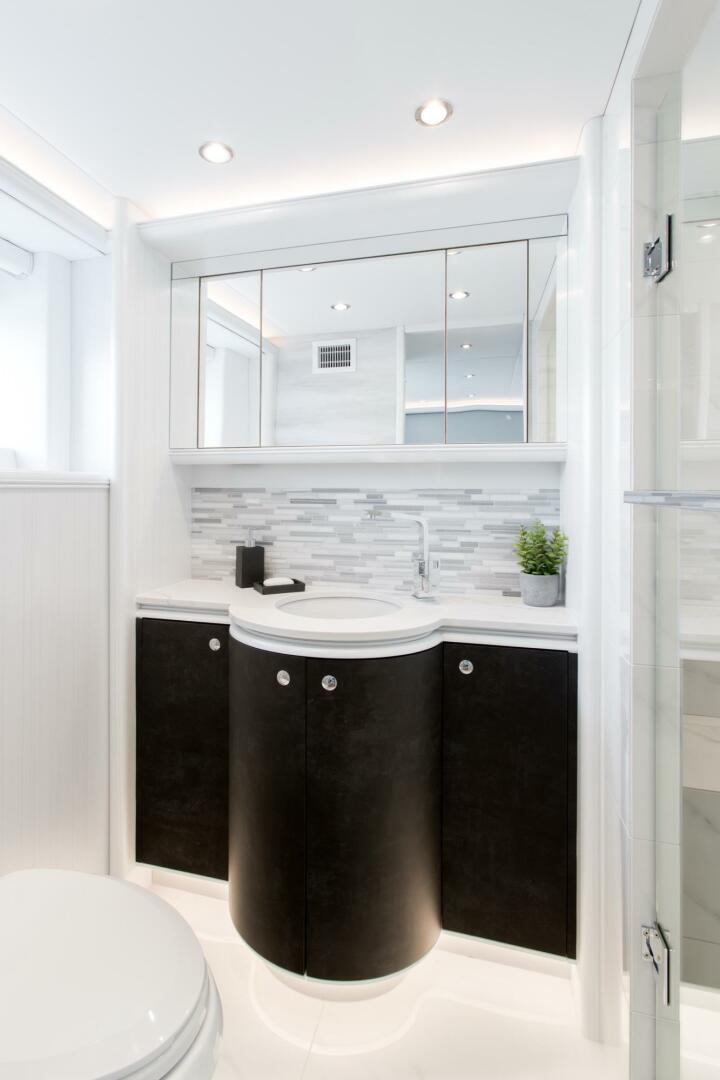

Full beam master stateroom with walk around king berth, bedside USB charging, Crestron lighting, 56" Samsung TV with surround sound, quartz desk, seating area, and large cedar-lined walk-in wardrobe. Ensuite features dual Grohe faucets, Kohler sinks on quartz, Headhunter toilet, and Grohe Smart Thermostat shower with rainfall head, glass door, and seating area.

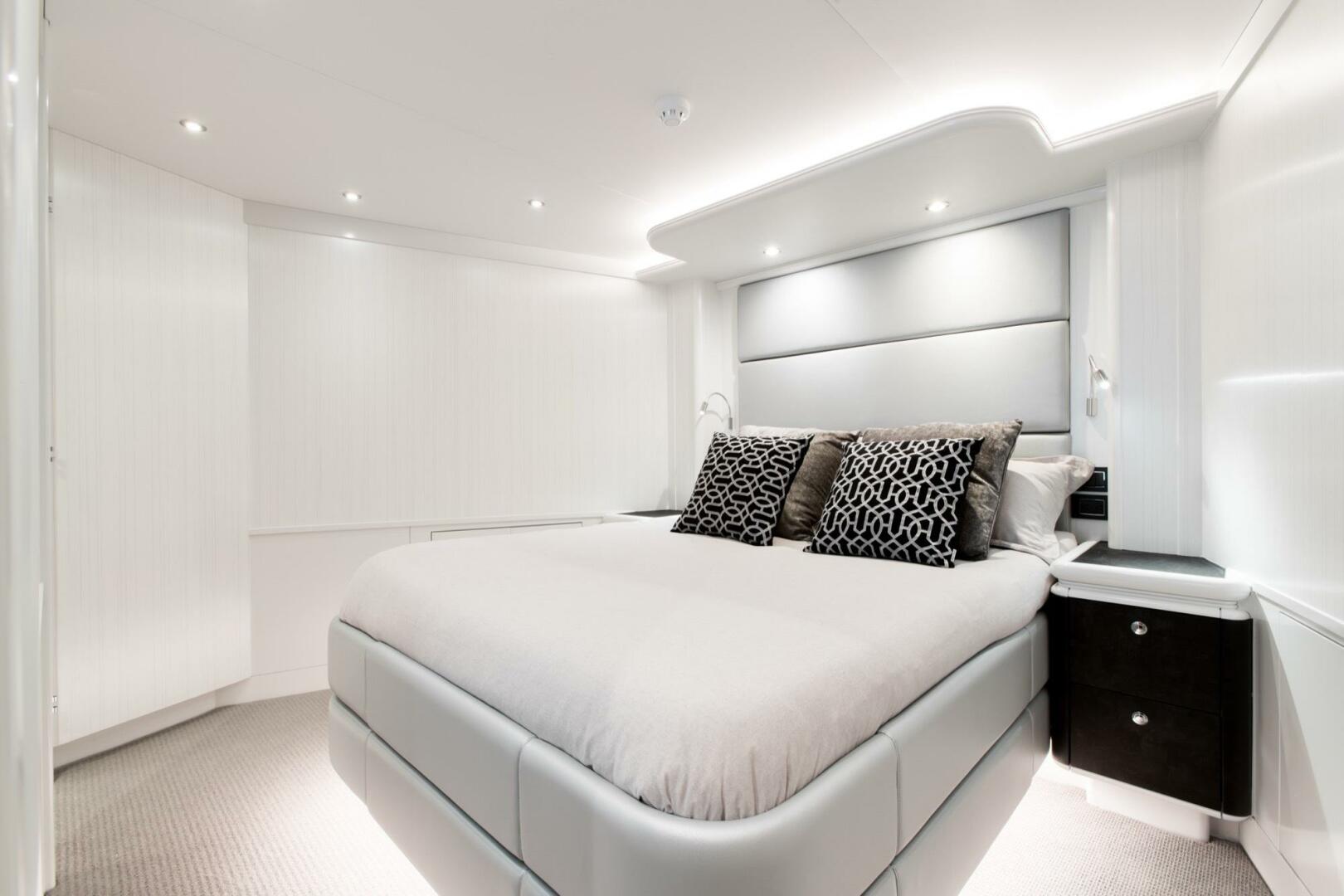

Forward VIP Stateroom

Features a queen berth with bedside tables and LED reading lights, 32" Samsung TV, Dometic climate control, and a cedar-lined walk-in closet. The ensuite includes a Grohe faucet, Kohler sink on quartz counter, Headhunter Royal Flush toilet, and Grohe shower with glass door and seating.

Lower Deck VIP Stateroom

Queen berth with bedside tables, LED reading lights, 24" Insignia TV, desk with storage, and a cedar-lined closet. Ensuite with Grohe fixtures, Kohler sink on quartz, Headhunter toilet, and glass-enclosed shower with seating.

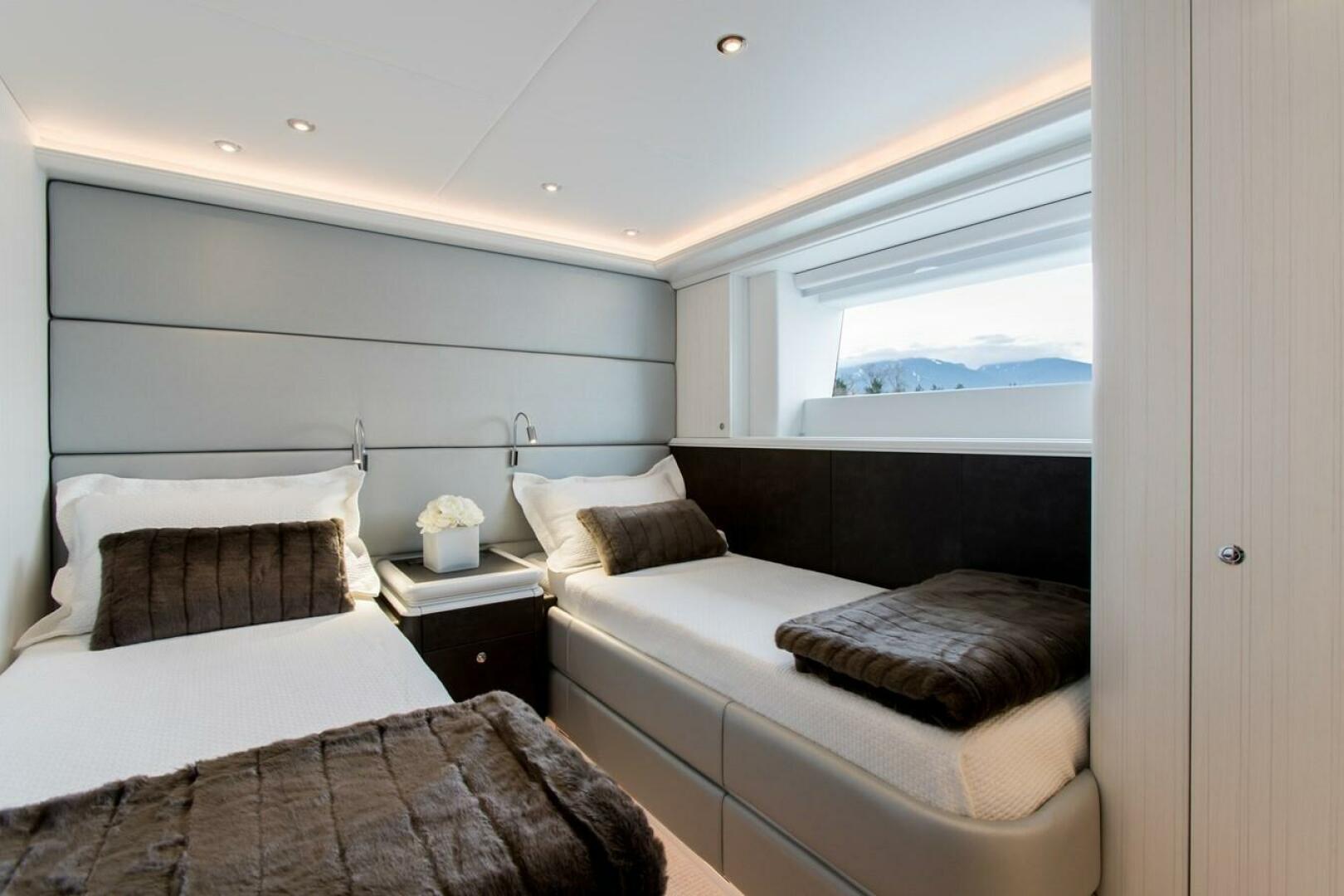

Port Mid Guest Stateroom

Twin berths with reading lights, 24" Insignia TV, Hunter Douglas blinds, and Dometic climate control. Ensuite with Grohe and Kohler fixtures, quartz counter, Headhunter toilet, and shower with glass door and seating.

Starboard Mid Guest Stateroom

Twin berths with bedside table and USB ports, 24" Insignia TV, Hunter Douglas blinds, and Dometic controls. Ensuite with Grohe and Kohler fixtures, quartz counter, Headhunter toilet, and shower with seating.

COMMENTS

2020 Crescent 117 built by Crescent Yachts with Gregory Marshall design — clean lines, modern interior, super-yacht feel. Semi-displacement fiberglass build: fast, efficient, 26-knot top end with long range. Full-beam main salon and massive windows give a bright, open, “bigger yacht” vibe. Smart separation of guest/crew, raised pilothouse, and strong entertainment flow. Overall, a turnkey 35m yacht with big-boat amenities at an excellent value point.”
