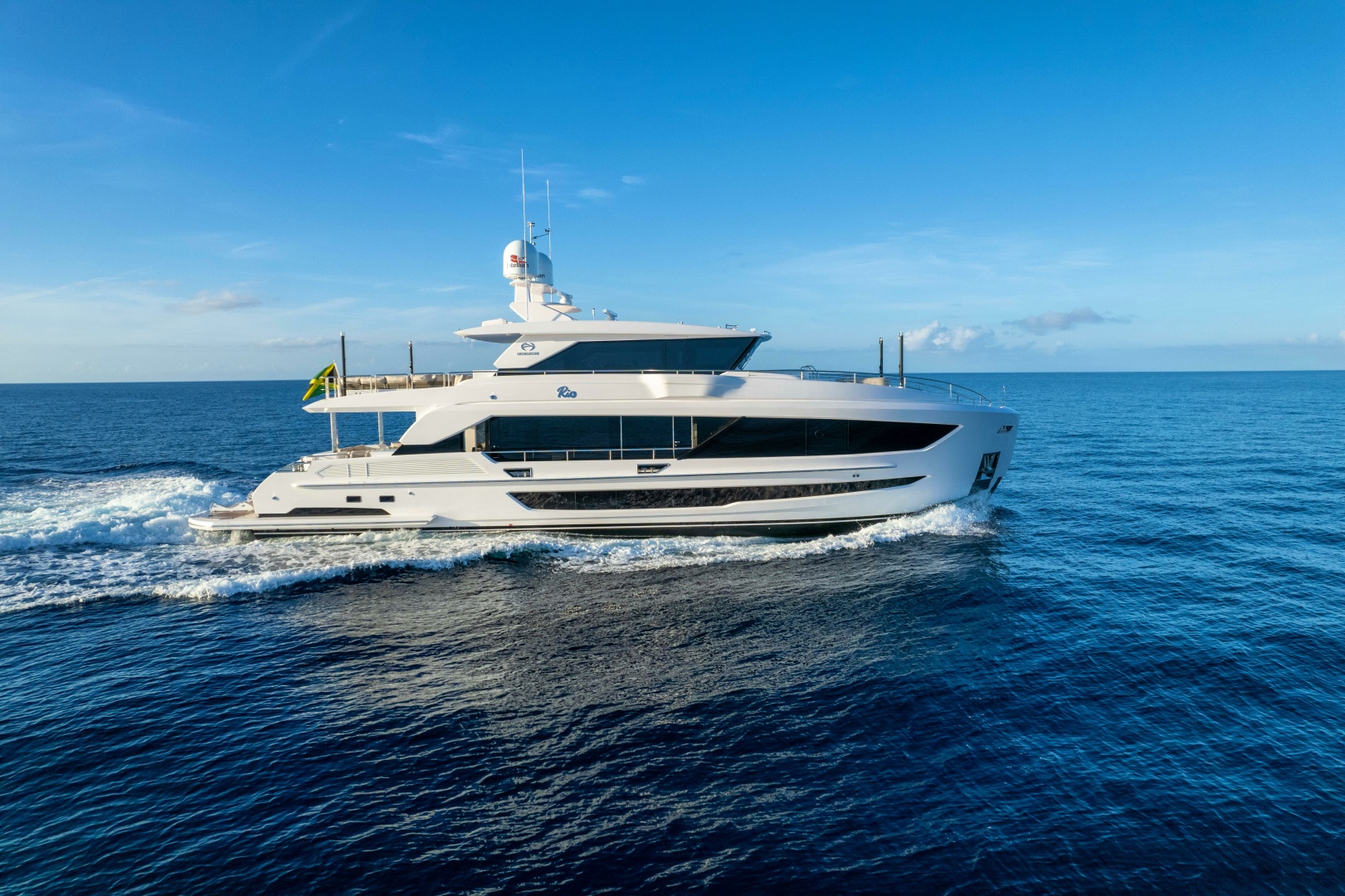

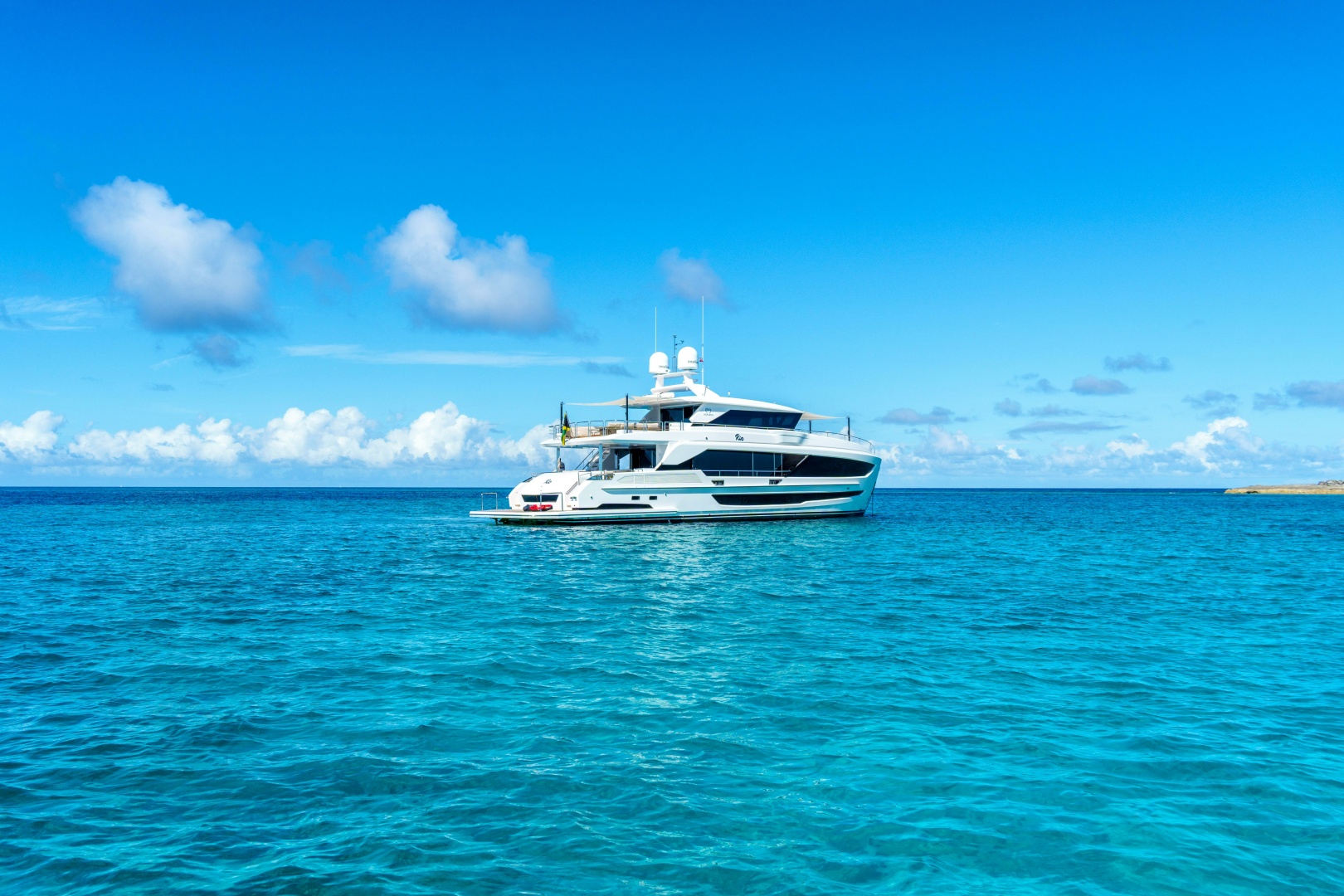

2023 Horizon 90' _{(27.43 m)} Custom

SUMMARY

• The Horizon FD90 stands out for:
• Her enormous volume and 23’ beam
• On-deck full-beam master
• Enclosed galley layout
• Skylounge option
• Exceptional engineering, stability, and quiet performance
• A layout designed for both private use and successful charter

SUMMARY

• The Horizon FD90 stands out for:
• Her enormous volume and 23’ beam
• On-deck full-beam master
• Enclosed galley layout
• Skylounge option
• Exceptional engineering, stability, and quiet performance
• A layout designed for both private use and successful charter

DIMENSIONS

• L.O.A.: 90’-0” (27.45 m)
• L.W.L.: 81’-4” (24.79 m)
• Hull Beam: 23’ 4” (7.11 m)
• Max Beam (with bump out): 23’ 7” (7.19 m)
• Draft (half load): 6’-0” (1.83 m)
• Height (W.L. to hardtop): 22’ 10” (6.66 m)
• Displacement (half load): 229,280 lbs (104 tons)
• Fuel: 3,480 US gal (13,170 L)
• Fresh Water: 400 US gal (1,500 L)
• Engines: Twin MTU 16 V10 (1600hp)
• Generators: 2 × Onan 29kW (60Hz)

DIMENSIONS

• L.O.A.: 90’-0” (27.45 m)
• L.W.L.: 81’-4” (24.79 m)
• Hull Beam: 23’ 4” (7.11 m)
• Max Beam (with bump out): 23’ 7” (7.19 m)
• Draft (half load): 6’-0” (1.83 m)
• Height (W.L. to hardtop): 22’ 10” (6.66 m)
• Displacement (half load): 229,280 lbs (104 tons)
• Fuel: 3,480 US gal (13,170 L)
• Fresh Water: 400 US gal (1,500 L)
• Engines: Twin MTU 16 V10 (1600hp)
• Generators: 2 × Onan 29kW (60Hz)

WALKTHROUGH

The Horizon FD90 is one of the most spacious and innovative yachts in the 90-foot class, offering a true superyacht experience in a highly manageable size. With a 23’4” beam, a Fast Displacement Hull Form (FDHF), and Horizon’s signature High-Performance Piercing Bow (HPPB), she provides exceptional comfort, stability, and efficiency at every speed. Below is a complete deck-by-deck walkthrough of this remarkable yacht. MAIN DECK

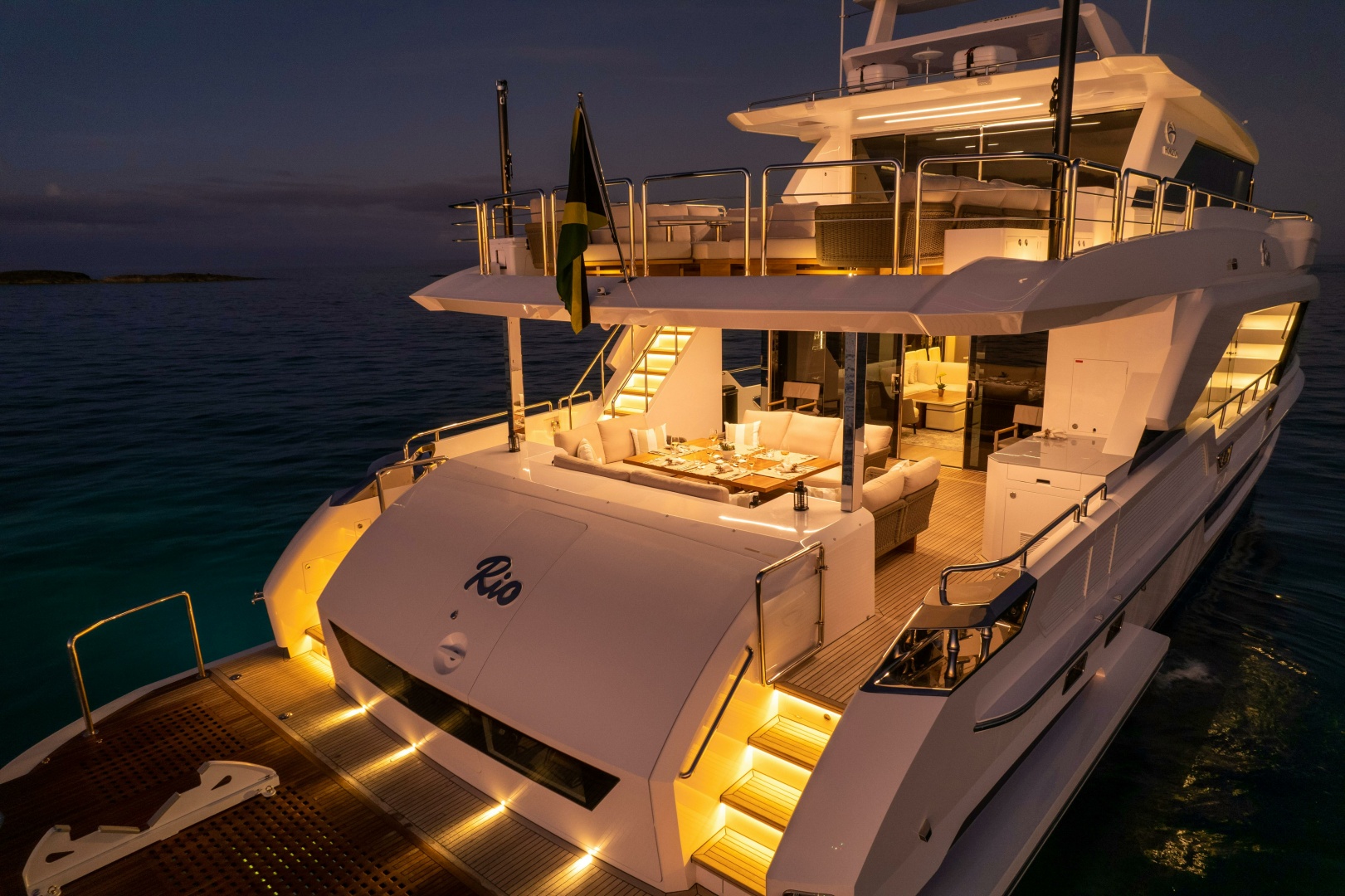

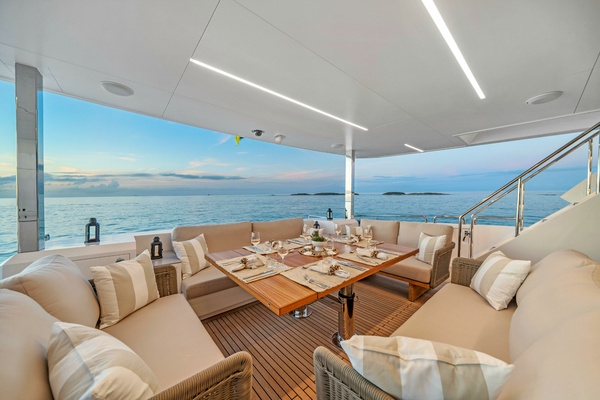

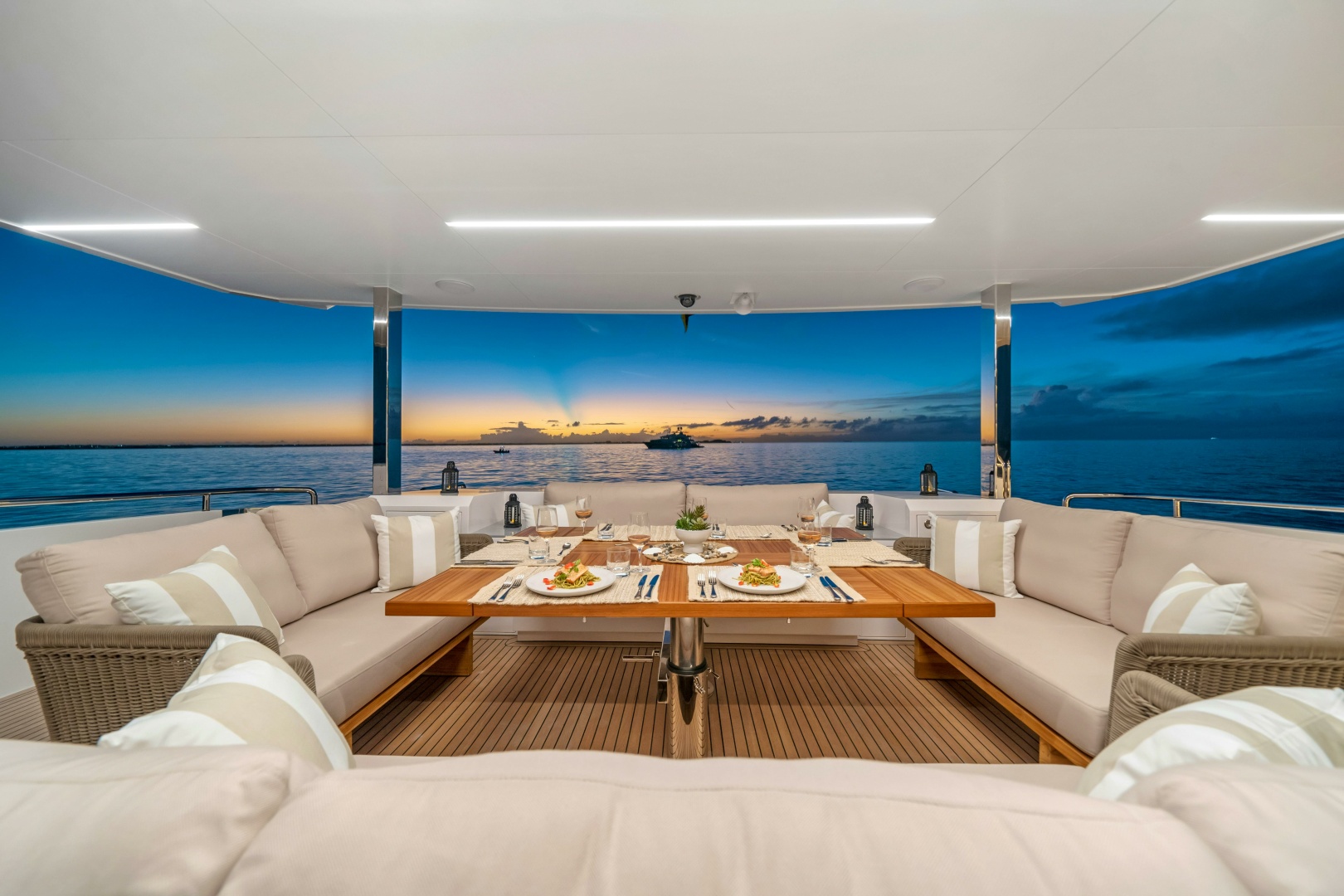

Aft Deck
Guests are welcomed onto a wide, teak-finished aft deck featuring:

• A large 10-person dining table
• Wet bar / serving area
• Ample built-in seating
• Easy access to side decks and the beach club

The space flows seamlessly into the salon through oversized sliding glass doors. Salon

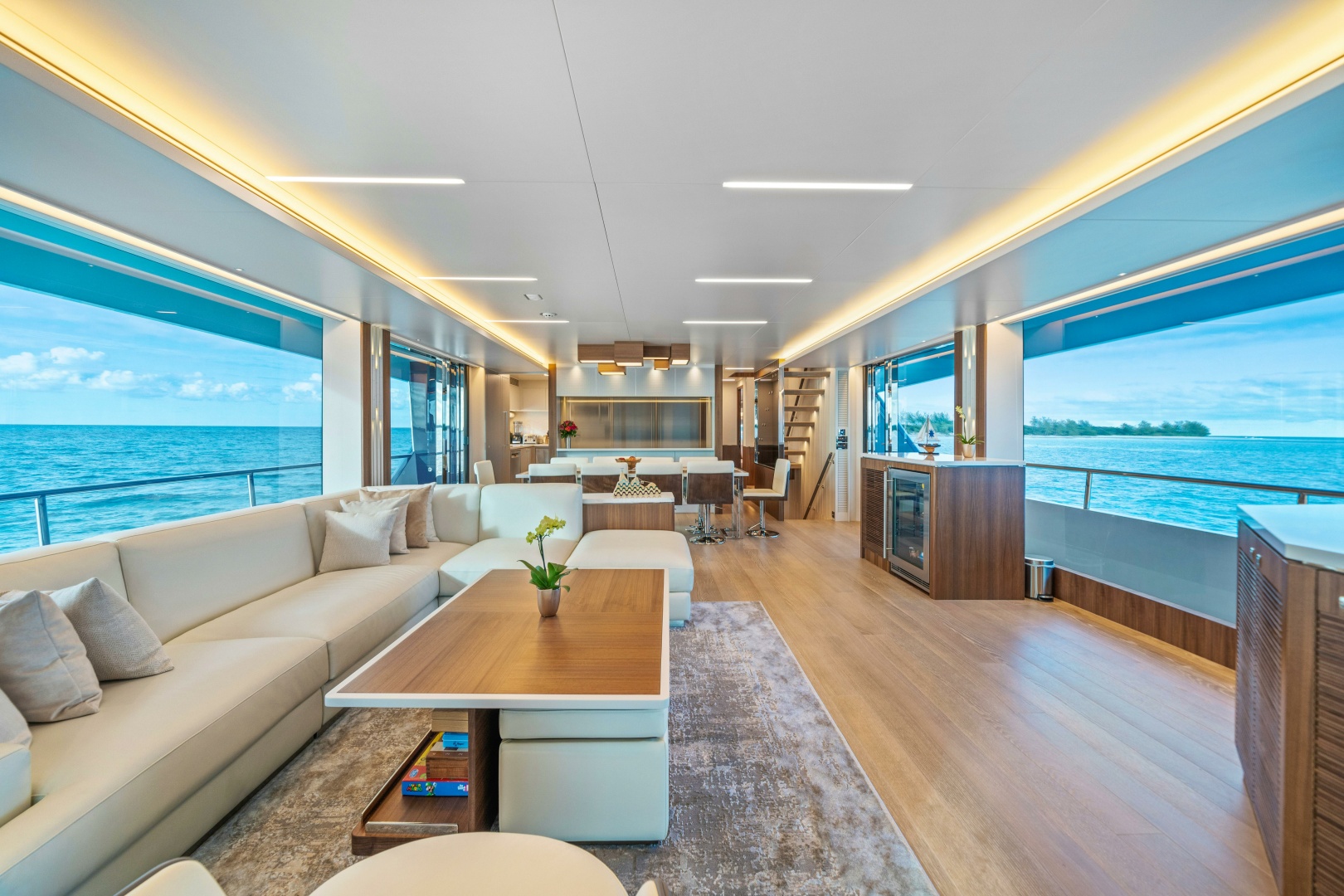

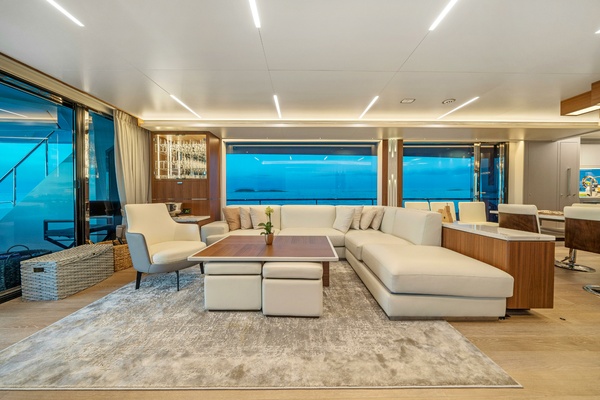

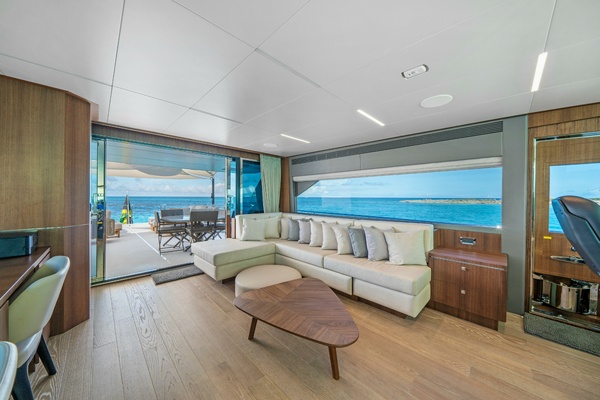

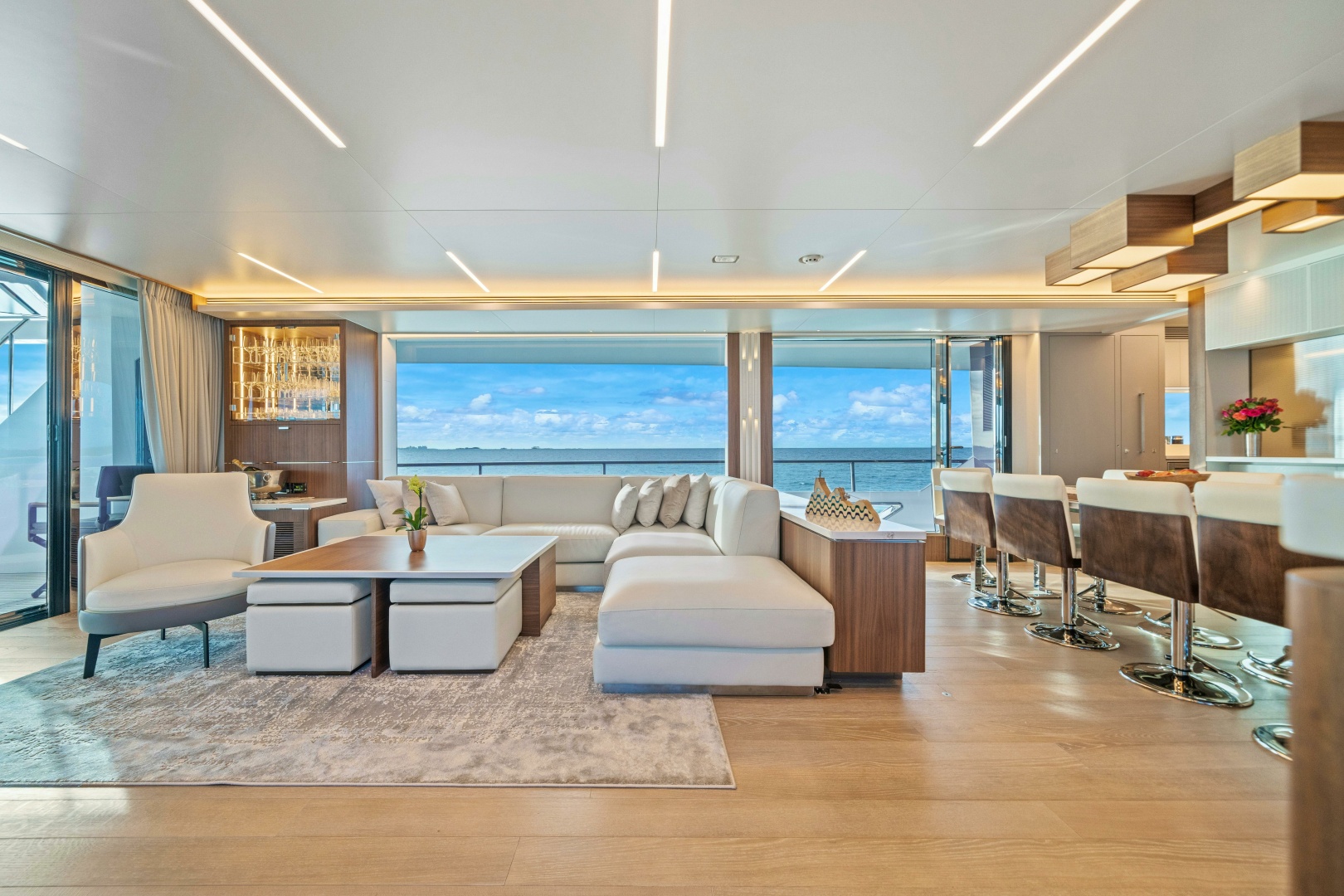

The salon takes full advantage of the FD90’s massive beam, offering:

• Floor-to-ceiling windows
• Opposing sofa arrangements with lounge seating
• A large pop-up TV
• Custom cabinetry and refined woodwork
• Bright, open volume comparable to yachts well over 100 feet

This is one of the most spacious salons in its class. Enclosed Galley (Unique to this FD90)
This vessel features the highly desirable enclosed galley configuration, offering:

• Complete privacy between guest areas and the working galley
• Professional-grade Miele/Sub-Zero appliances
• Side-door crew access for discreet service
• Full-height refrigeration and excellent storage

Compared to the open galley layout, this format reduces noise, enhances service flow, and gives the main deck a more formal, elegant feel. Formal Dining Area

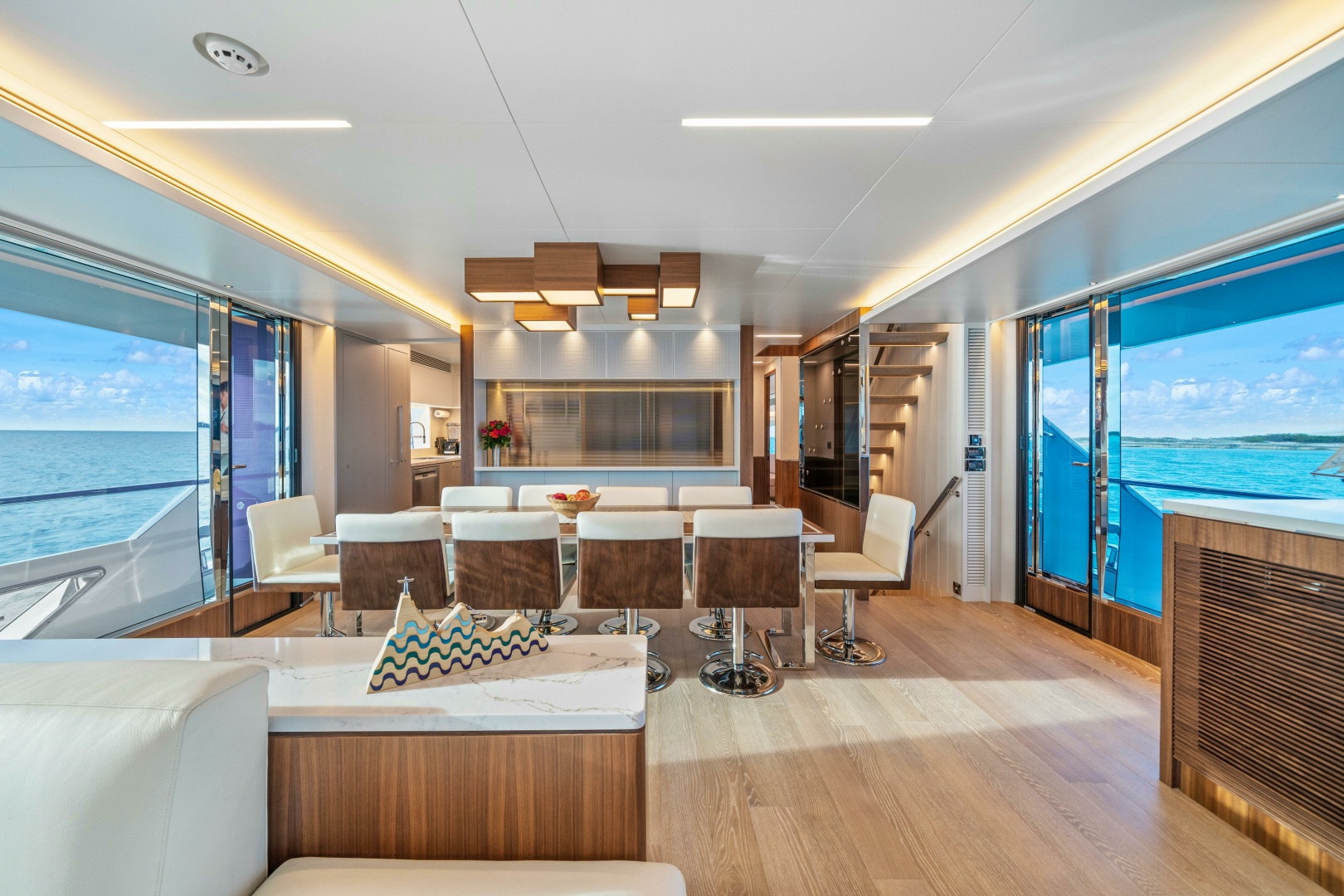

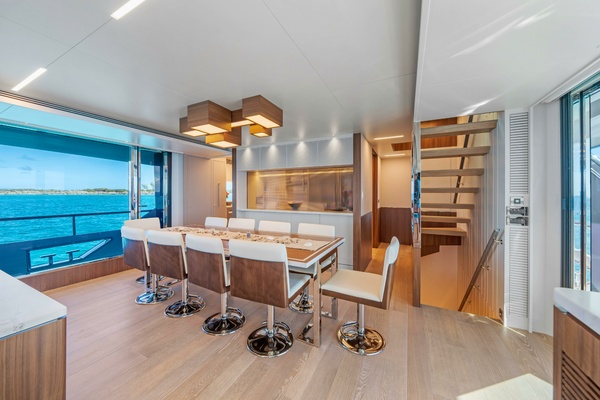

Positioned forward of the salon with:

• Seating for eight
• Excellent natural light
• Easy service from the enclosed galley

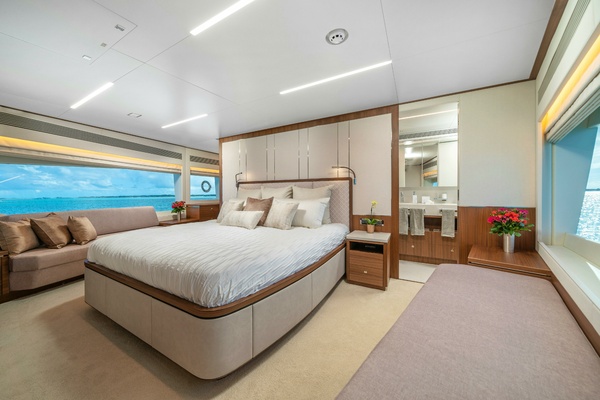

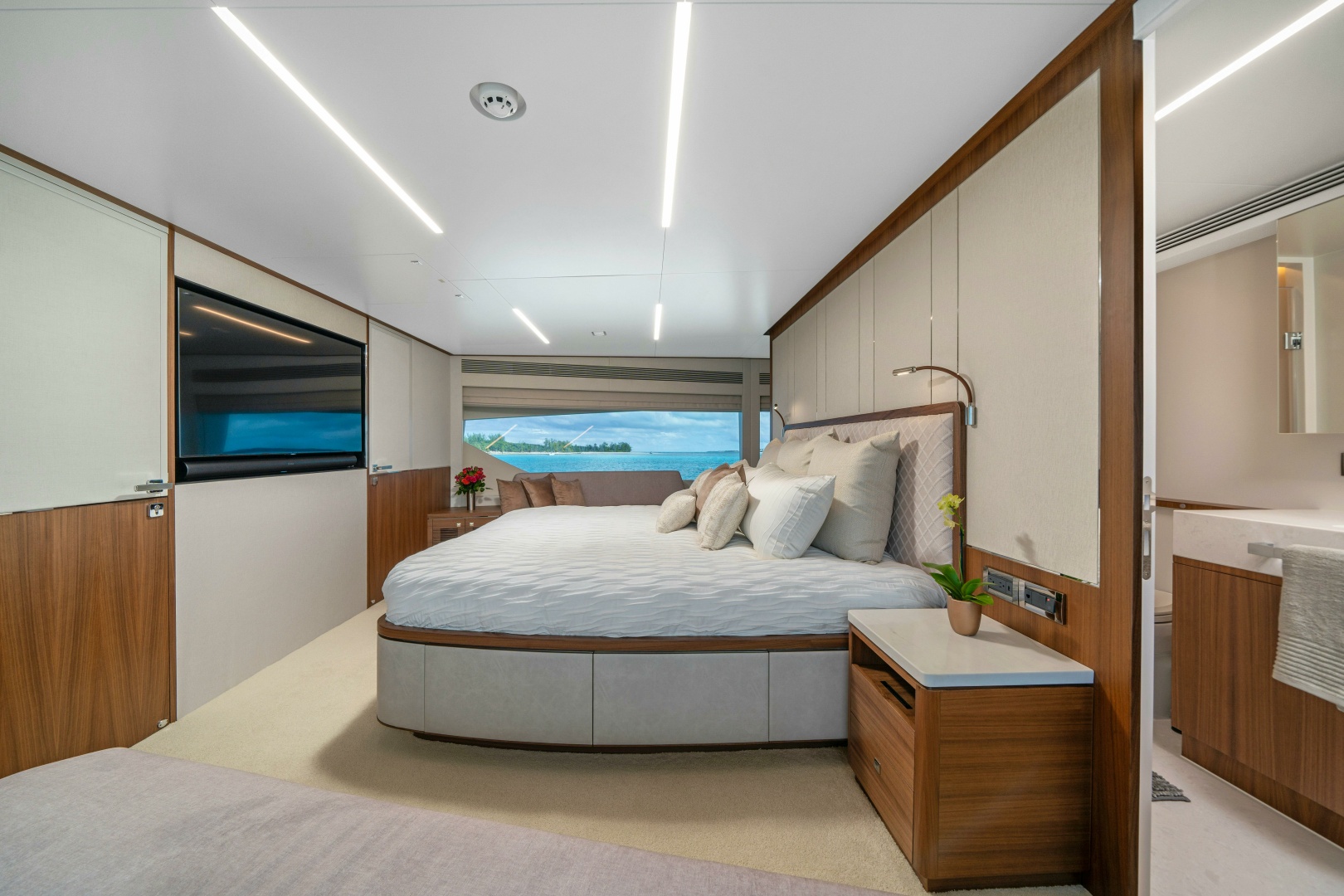

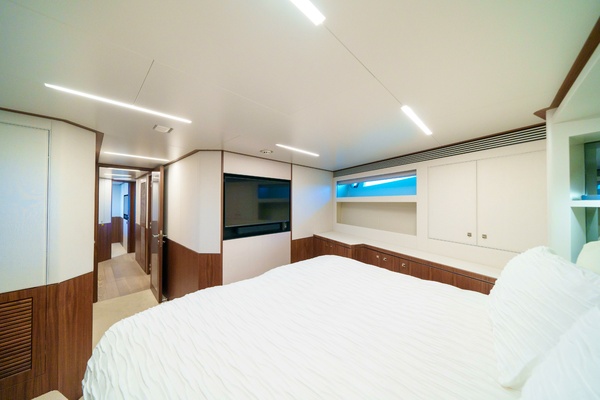

On-Deck Master Stateroom
A true standout feature of the FD90:

• Full-beam owner’s suite on the main deck
• Panoramic windows to each side
• King bed
• Couches, both port and starboard side
• Walk-in wardrobe

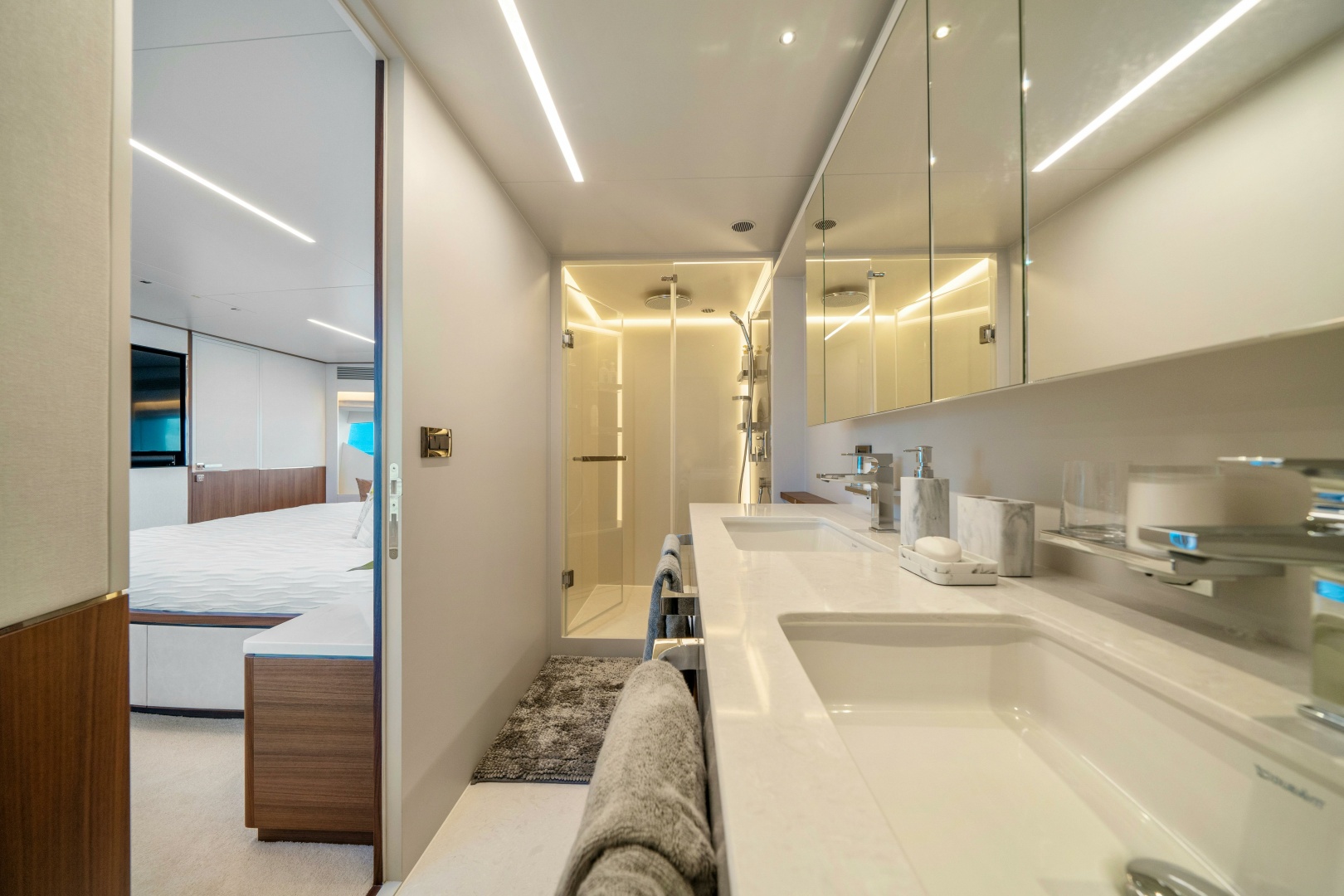

• Beautifully appointed en-suite with double sinks and large shower

This arrangement elevates the FD90 into superyacht territory.
LOWER DECK

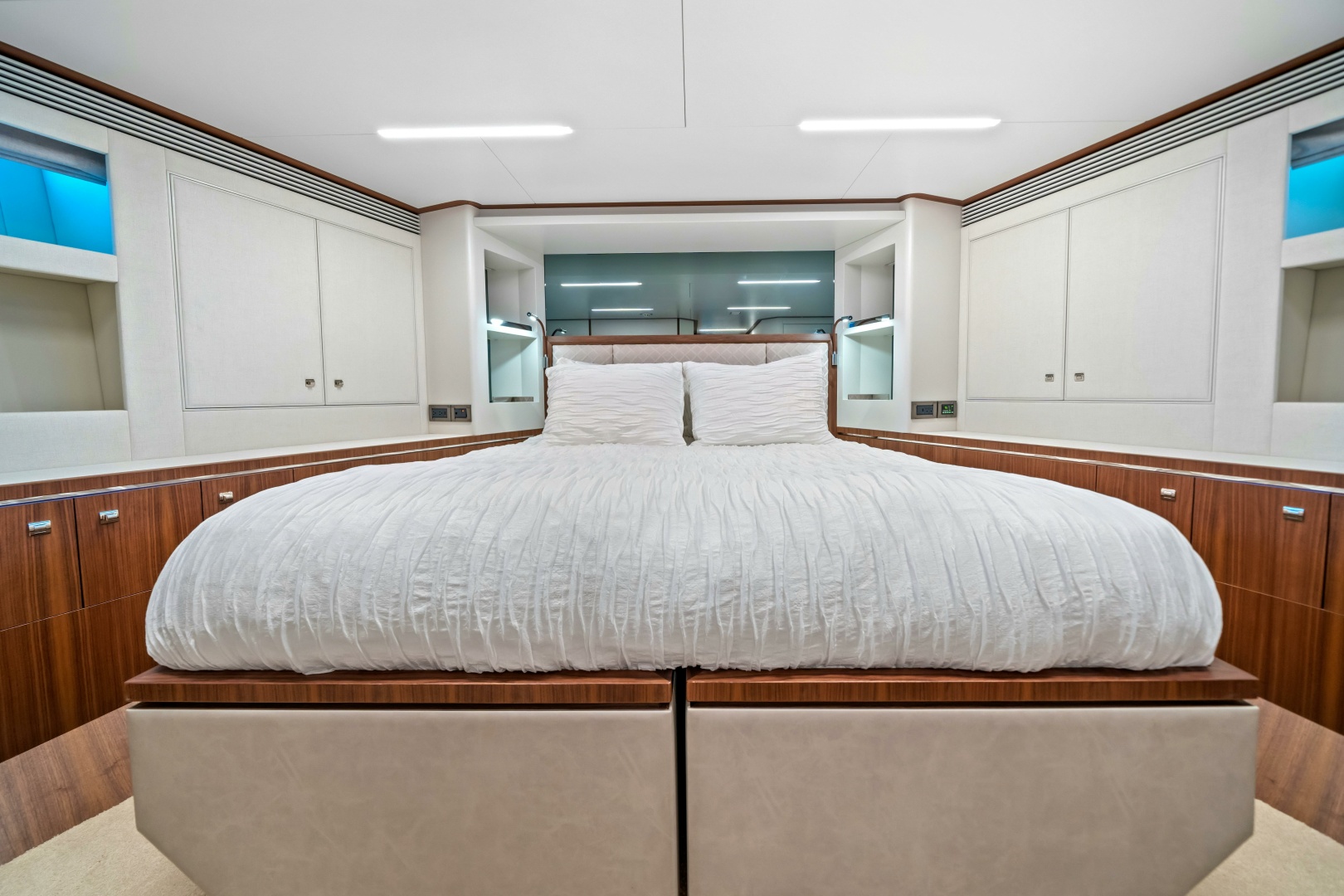

VIP Stateroom (Forward)

• Exceptional volume
• Convertible twins to king bad
• Walk-in closet
• En-suite bathroom with both a shower and a tub, unusually luxurious for this size yacht

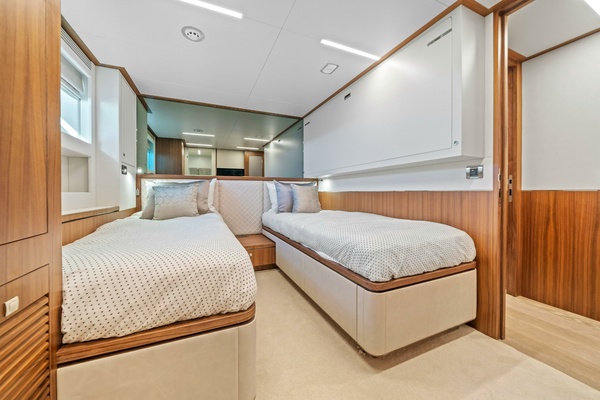

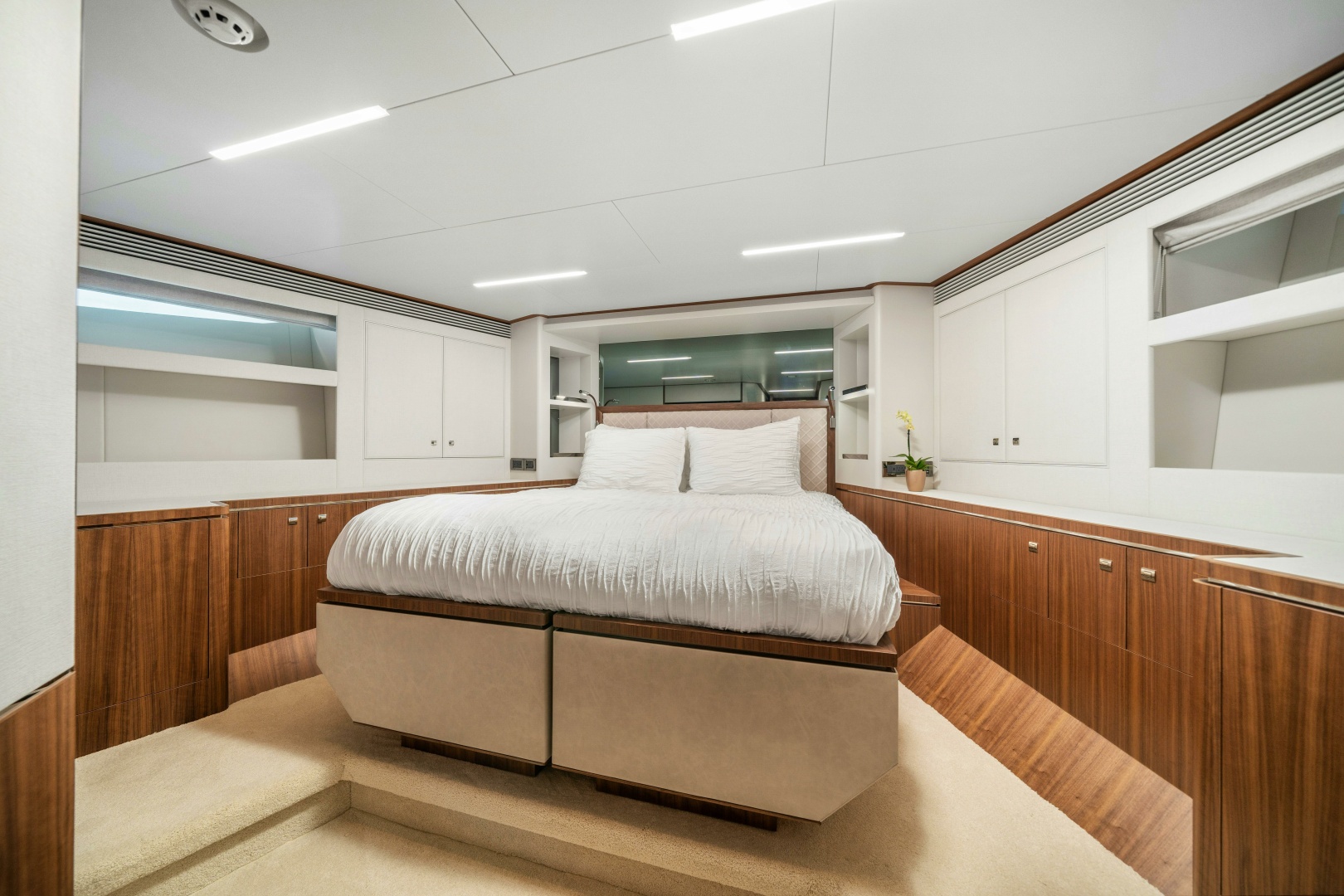

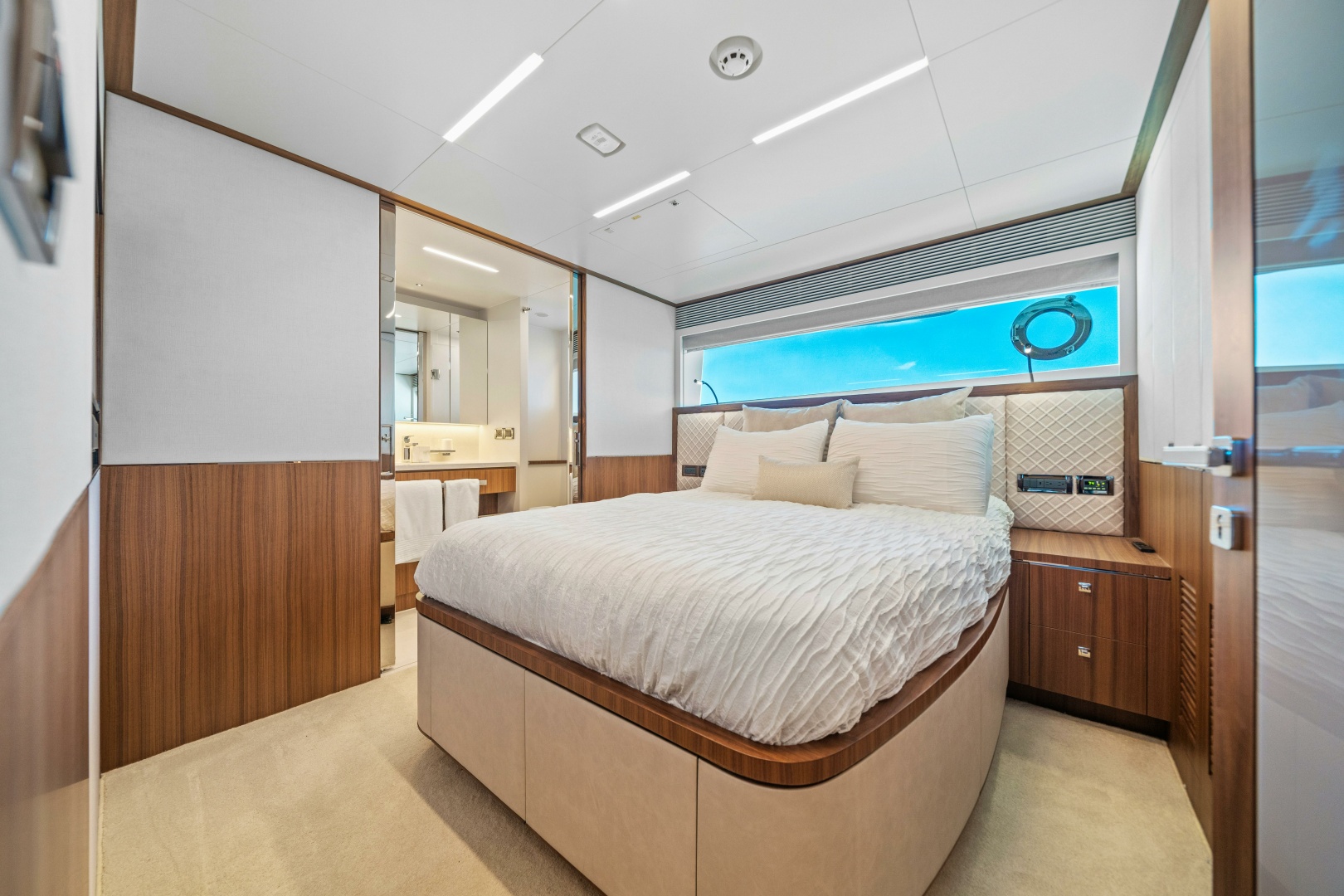

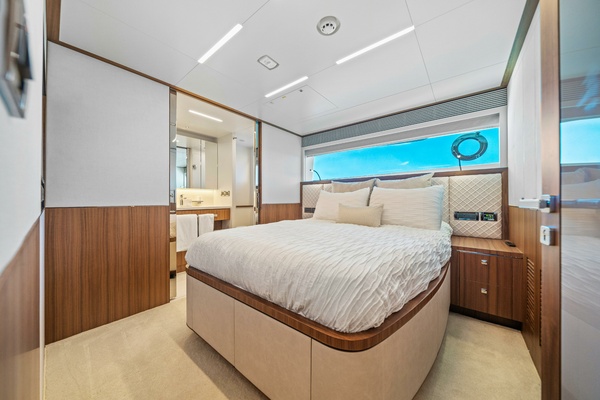

Guest Cabins
Three well-proportioned guest staterooms

• 2x Aft queen cabins
• 1x Convertible twins to queen cabin
• Each with private en-suite bathrooms

The lower deck is bright, quiet, and well-insulated thanks to Horizon’s engineering. Crew Quarters
Located aft and isolated for privacy:

• Accommodations for 3–4 crew
• Private stair access
• Direct access to engine room

SKYLOUNGE (ENCLOSED BRIDGE)

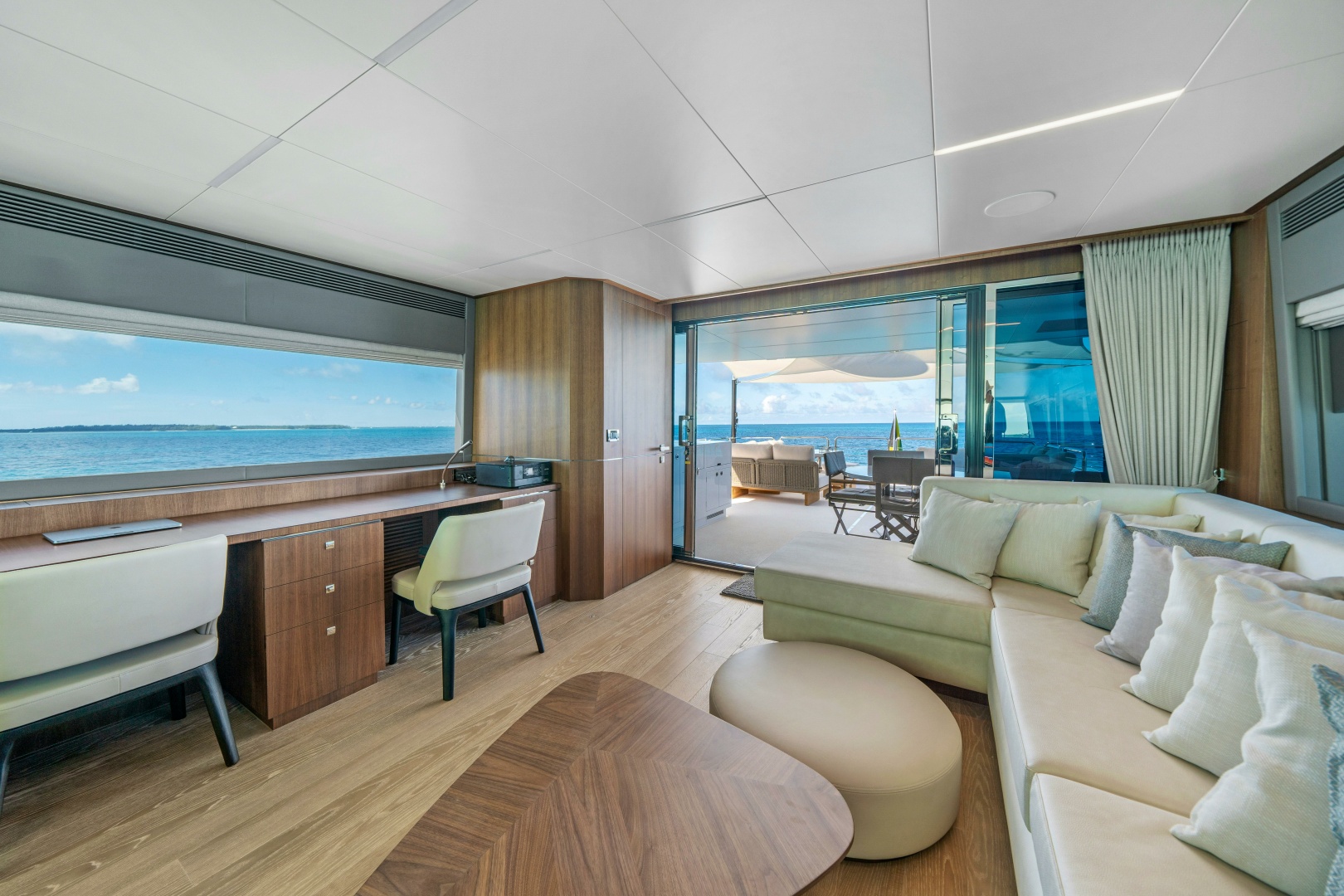

The enclosed skylounge creates a second indoor salon, featuring:

• Full helm with dual Stidd chairs
• Lounge with sofas, that folded out into a bed
• Starboard side, two beautiful desks
• Entertainment system
• Excellent visibility for all-weather cruising

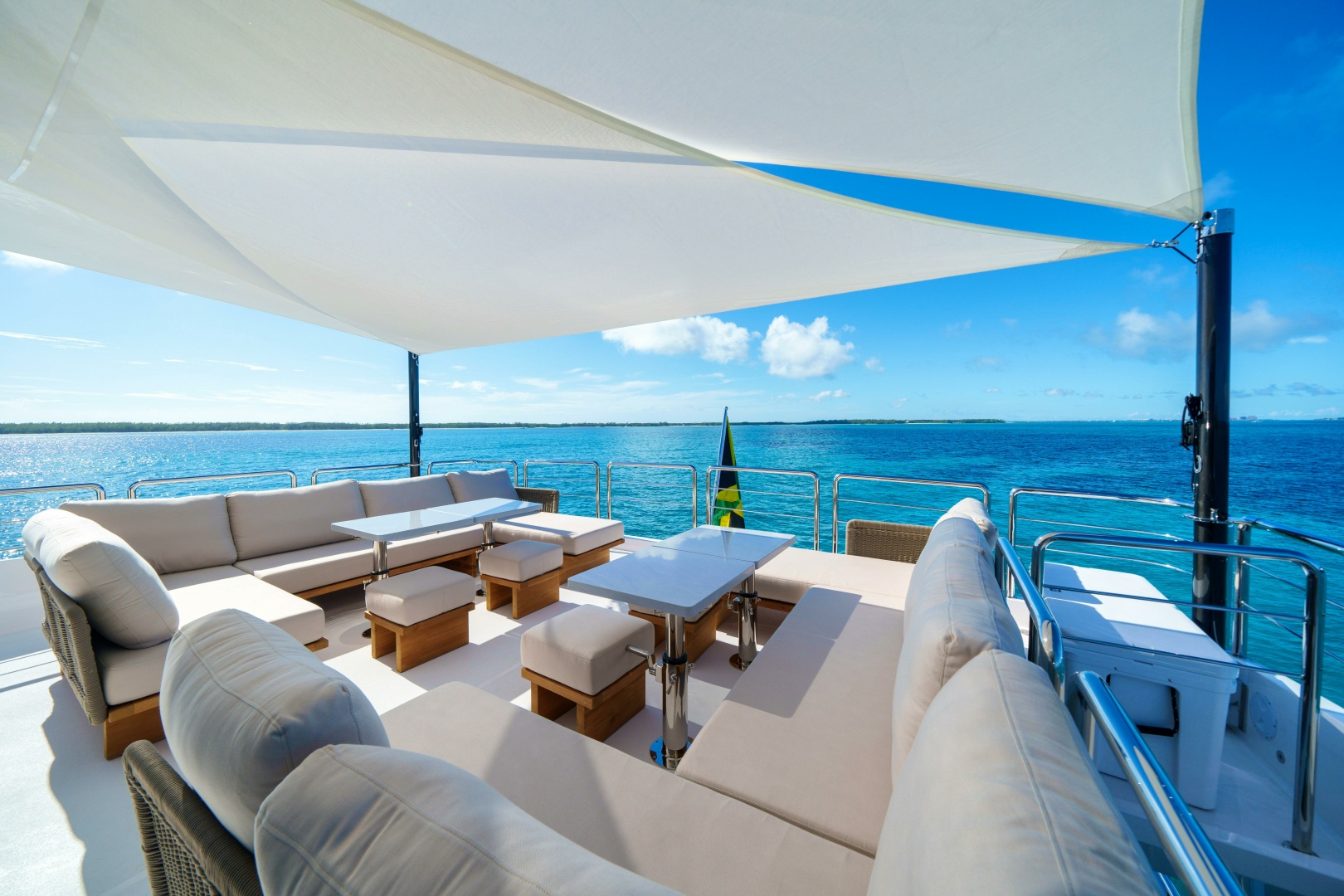

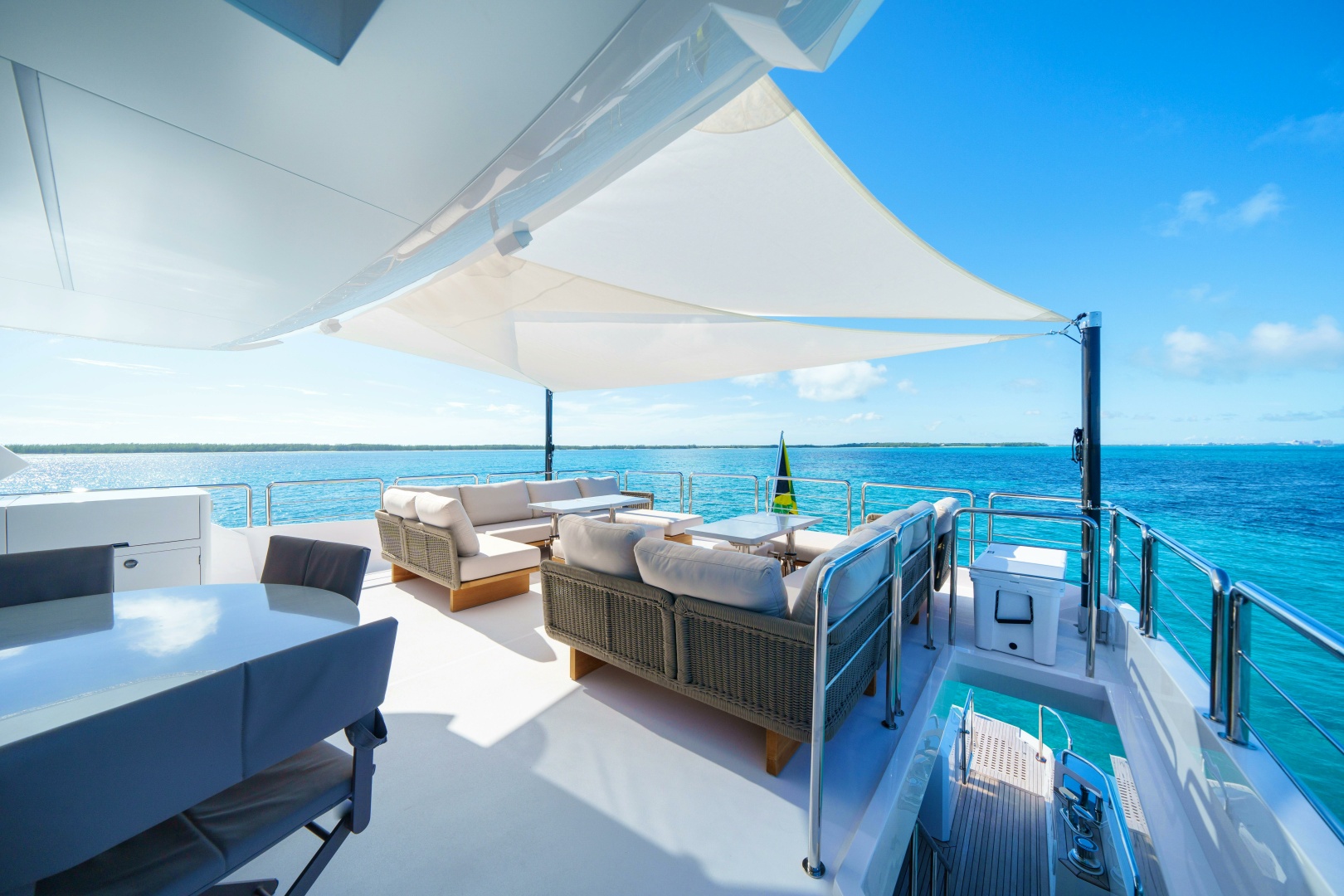

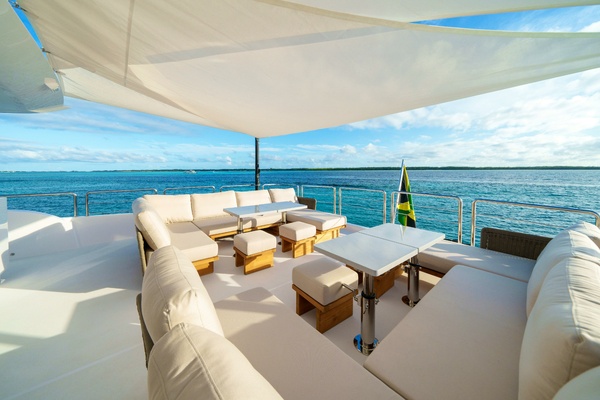

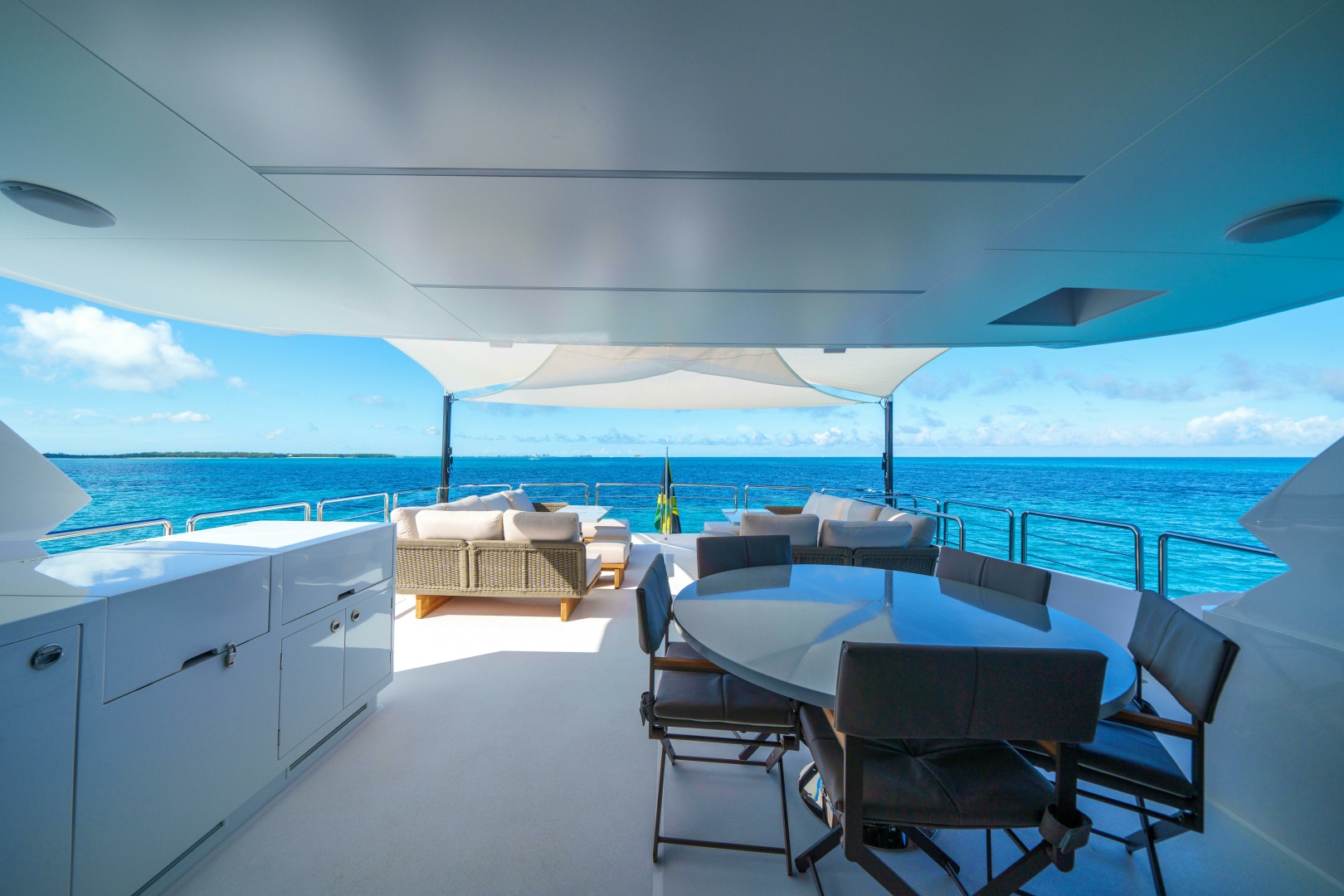

AFT BOAT DECK

• Exterior dining table
• Lounge area aft with high low tables
• Loose furniture aft, for clear deck layout, flexible use
• Sail shade with carbon fiber poles

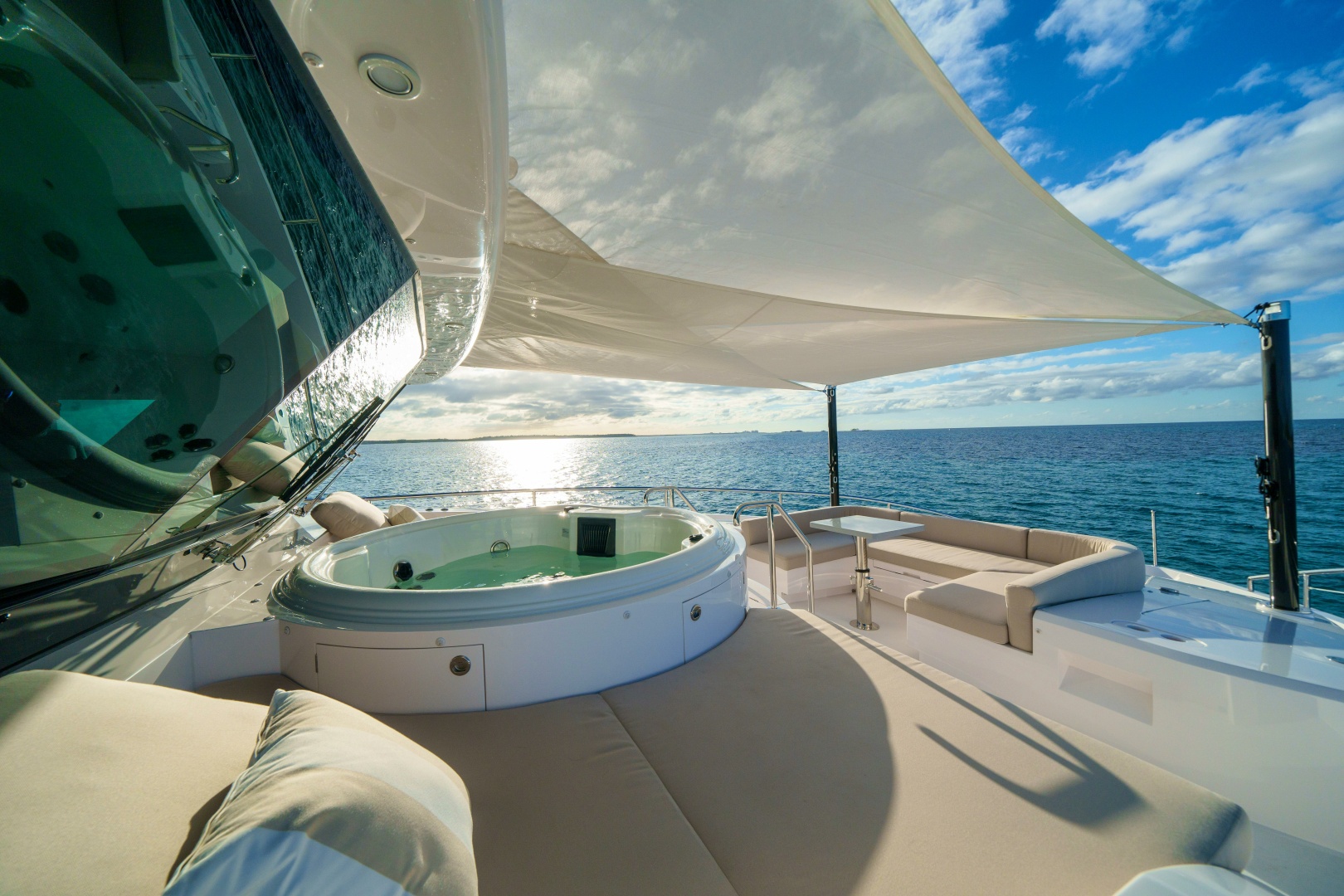

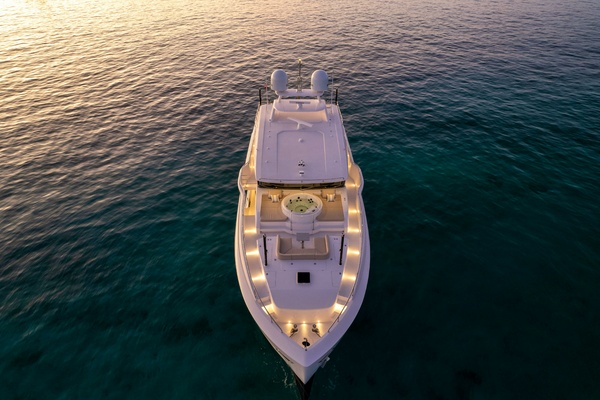

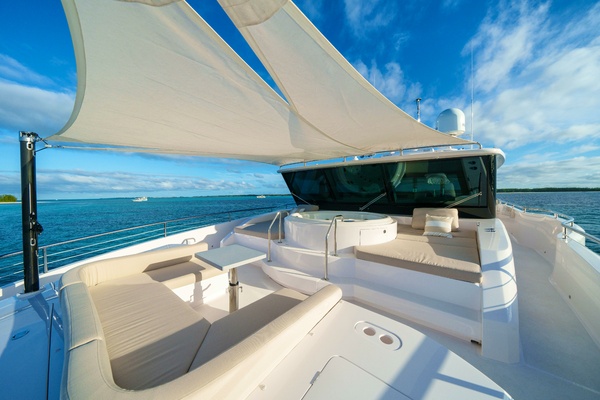

SUN DECK FORWARD

• Beautiful forward, looking views
• A large jacuzzi with sunpads
• Outdoor wet bar with refrigeration
• Dining or cocktail table high low
• Perfect for charter-style entertaining.

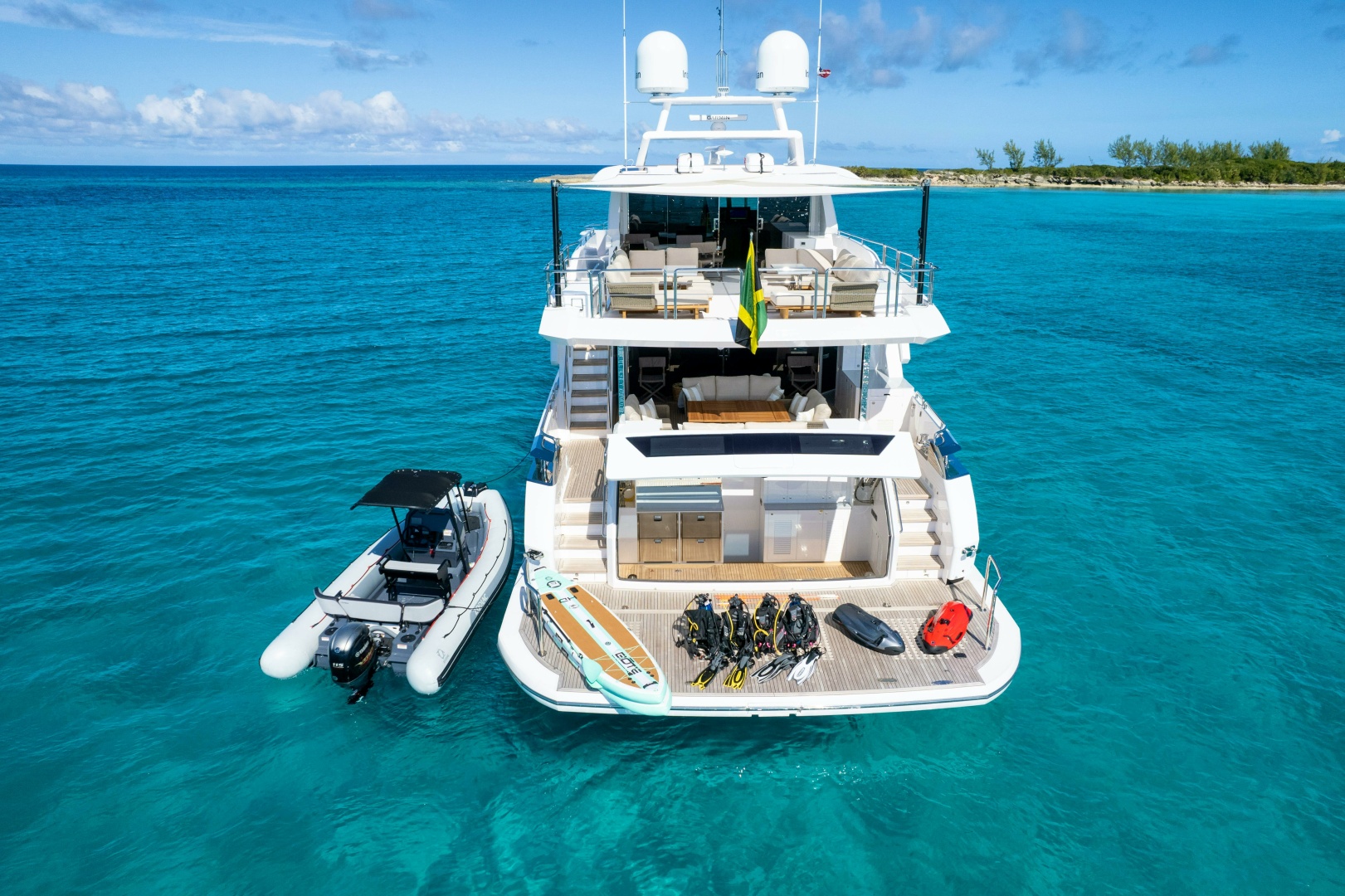

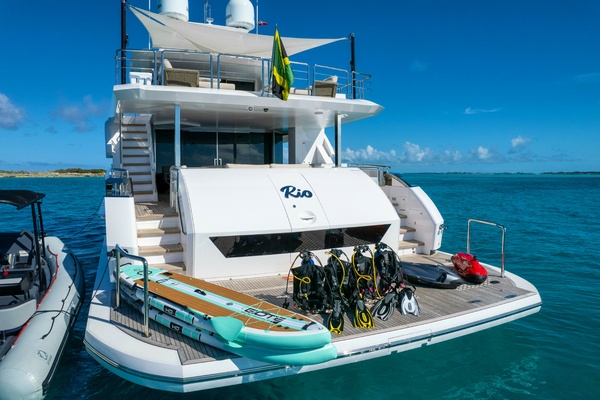

SWIM PLATFORM & TOYS
One of the FD90’s signature features:

• Hydraulic swim platform (tender launch + water access)
• Shower, storage, and toy access
• 2022 Zodiac OPEN 5.5 with T-top
• 2 x Seabobs
• 1 x Fliteboard
• 2 x Standup Paddle boards
• Snorkeling gear Scuba diving gear
• Dive compressor,
• Tiwal inflatable sailboat
• Assorted table games
• Volleyball set
• Towable Tube
• Fishing gear
• Beach set up

This area becomes a focal point for water activities at anchor.

WALKTHROUGH

The Horizon FD90 is one of the most spacious and innovative yachts in the 90-foot class, offering a true superyacht experience in a highly manageable size. With a 23’4” beam, a Fast Displacement Hull Form (FDHF), and Horizon’s signature High-Performance Piercing Bow (HPPB), she provides exceptional comfort, stability, and efficiency at every speed. Below is a complete deck-by-deck walkthrough of this remarkable yacht. MAIN DECK
Aft Deck
Guests are welcomed onto a wide, teak-finished aft deck featuring:

• A large 10-person dining table
• Wet bar / serving area
• Ample built-in seating
• Easy access to side decks and the beach club

The space flows seamlessly into the salon through oversized sliding glass doors. Salon
The salon takes full advantage of the FD90’s massive beam, offering:

• Floor-to-ceiling windows
• Opposing sofa arrangements with lounge seating
• A large pop-up TV
• Custom cabinetry and refined woodwork
• Bright, open volume comparable to yachts well over 100 feet

This is one of the most spacious salons in its class. Enclosed Galley (Unique to this FD90)
This vessel features the highly desirable enclosed galley configuration, offering:

• Complete privacy between guest areas and the working galley
• Professional-grade Miele/Sub-Zero appliances
• Side-door crew access for discreet service
• Full-height refrigeration and excellent storage

Compared to the open galley layout, this format reduces noise, enhances service flow, and gives the main deck a more formal, elegant feel. Formal Dining Area
Positioned forward of the salon with:

• Seating for eight
• Excellent natural light
• Easy service from the enclosed galley

On-Deck Master Stateroom
A true standout feature of the FD90:

• Full-beam owner’s suite on the main deck
• Panoramic windows to each side
• King bed
• Couches, both port and starboard side
• Walk-in wardrobe
• Beautifully appointed en-suite with double sinks and large shower

This arrangement elevates the FD90 into superyacht territory.
LOWER DECK
VIP Stateroom (Forward)

• Exceptional volume
• Convertible twins to king bad
• Walk-in closet
• En-suite bathroom with both a shower and a tub, unusually luxurious for this size yacht

Guest Cabins
Three well-proportioned guest staterooms

• 2x Aft queen cabins
• 1x Convertible twins to queen cabin
• Each with private en-suite bathrooms

The lower deck is bright, quiet, and well-insulated thanks to Horizon’s engineering. Crew Quarters
Located aft and isolated for privacy:

• Accommodations for 3–4 crew
• Private stair access
• Direct access to engine room

SKYLOUNGE (ENCLOSED BRIDGE)
The enclosed skylounge creates a second indoor salon, featuring:

• Full helm with dual Stidd chairs
• Lounge with sofas, that folded out into a bed
• Starboard side, two beautiful desks
• Entertainment system
• Excellent visibility for all-weather cruising

AFT BOAT DECK

• Exterior dining table
• Lounge area aft with high low tables
• Loose furniture aft, for clear deck layout, flexible use
• Sail shade with carbon fiber poles

SUN DECK FORWARD

• Beautiful forward, looking views
• A large jacuzzi with sunpads
• Outdoor wet bar with refrigeration
• Dining or cocktail table high low
• Perfect for charter-style entertaining.

SWIM PLATFORM & TOYS
One of the FD90’s signature features:

• Hydraulic swim platform (tender launch + water access)
• Shower, storage, and toy access
• 2022 Zodiac OPEN 5.5 with T-top
• 2 x Seabobs
• 1 x Fliteboard
• 2 x Standup Paddle boards
• Snorkeling gear Scuba diving gear
• Dive compressor,
• Tiwal inflatable sailboat
• Assorted table games
• Volleyball set
• Towable Tube
• Fishing gear
• Beach set up

This area becomes a focal point for water activities at anchor.

HULL & MAIN STRUCTURE

• ABS/DNV approved composite construction
• SCRIMP one‑piece hull
• High‑density foam coring
• Collision bulkhead
• Anti‑fouling
• PropSpeed,
• High Performance Piercing Bow (HPPB)
• Full structural bonding

HULL & MAIN STRUCTURE

• ABS/DNV approved composite construction
• SCRIMP one‑piece hull
• High‑density foam coring
• Collision bulkhead
• Anti‑fouling
• PropSpeed,
• High Performance Piercing Bow (HPPB)
• Full structural bonding

EXTERIOR DECK & EQUIPMENT

• Teak aft deck and swim platform
• 2x Hydraulic windlass
• 406.8 ft chains PORT and 196.8 ft chains STBD
• 2x 100kg S/S anchors
• Bulwark doors
• Washdowns
• Stainless Steel rails
• Tinted windows
• Hydraulic Hi/Lo swim platform

EXTERIOR DECK & EQUIPMENT

• Teak aft deck and swim platform
• 2x Hydraulic windlass
• 406.8 ft chains PORT and 196.8 ft chains STBD
• 2x 100kg S/S anchors
• Bulwark doors
• Washdowns
• Stainless Steel rails
• Tinted windows
• Hydraulic Hi/Lo swim platform

SKYLOUNGE & BOAT DECK

• Helm station
• L‑shaped seating with fold out bed
• Jacuzzi or loungers
• LED logo lighting
• Sunbrella exterior cushions

SKYLOUNGE & BOAT DECK

• Helm station
• L‑shaped seating with fold out bed
• Jacuzzi or loungers
• LED logo lighting
• Sunbrella exterior cushions

PILOTHOUSE & NAVIGATION

• Stidd pilot chairs
• Integrated helm panel
• Stainless Steel wiper
• Navigation lights
• Engine monitoring
• FLIR thermal vision camera
• Garmin full nav suite

PILOTHOUSE & NAVIGATION

• Stidd pilot chairs
• Integrated helm panel
• Stainless Steel wiper
• Navigation lights
• Engine monitoring
• FLIR thermal vision camera
• Garmin full nav suite

PROPULSION, STEERING & THRUSTERS

• 2x MTU 16 V10
• Two blade NiAlBronze props with two 3.5” aquamet 22HS stainless steel shaft
• The packing gland of the stuffing box for the propeller shaft is a non-drip type by Sea Torque
• Side‑Power bow thruster SH550
• Stern thruster SH420
• Side‑Power SPS93/VF1650 stabilizers with At‑Anchor function

PROPULSION, STEERING & THRUSTERS

• 2x MTU 16 V10
• Two blade NiAlBronze props with two 3.5” aquamet 22HS stainless steel shaft
• The packing gland of the stuffing box for the propeller shaft is a non-drip type by Sea Torque
• Side‑Power bow thruster SH550
• Stern thruster SH420
• Side‑Power SPS93/VF1650 stabilizers with At‑Anchor function

ENGINE ROOM

• Insulated engine room
• Delta‑T demisters
• LED lighting
• Ventilation blowers
• Flex‑mounted engines
• Workbench
• Alarm systems

ENGINE ROOM

• Insulated engine room
• Delta‑T demisters
• LED lighting
• Ventilation blowers
• Flex‑mounted engines
• Workbench
• Alarm systems

ELECTRICAL SYSTEM

• Color‑coded wiring
• AC/DC distribution
• OctoPlex control
• 8x underwater lights
• AGM battery banks
• 2X 100‑Amp shore power with ISO boost transformers

ELECTRICAL SYSTEM

• Color‑coded wiring
• AC/DC distribution
• OctoPlex control
• 8x underwater lights
• AGM battery banks
• 2X 100‑Amp shore power with ISO boost transformers

MECHANICAL SYSTEMS

• Dual Racor fuel filtration
• Reverso fuel polishing
• 900GPD
• 2X watermakers
• Headhunter/Tecma toilets
• chilled‑water A/C
• hot water recirculation

MECHANICAL SYSTEMS

• Dual Racor fuel filtration
• Reverso fuel polishing
• 900GPD
• 2X watermakers
• Headhunter/Tecma toilets
• chilled‑water A/C
• hot water recirculation

INTERIOR DESIGN & EQUIPMENT

• 4 ensuite staterooms + 2 crew cabins
• premium wood finishes
• LED lighting
• King‑bed master
• Stone countertops
• Day head
• Escape hatch
• USB chargers

INTERIOR DESIGN & EQUIPMENT

• 4 ensuite staterooms + 2 crew cabins
• premium wood finishes
• LED lighting
• King‑bed master
• Stone countertops
• Day head
• Escape hatch
• USB chargers

APPLIANCES

• Miele/Sub‑Zero refrigeration
• Induction cooktop
• Microwave/oven
• Wine cooler
• Stacked washer/dryers
• Ice makers
• Trash compactor

APPLIANCES

• Miele/Sub‑Zero refrigeration
• Induction cooktop
• Microwave/oven
• Wine cooler
• Stacked washer/dryers
• Ice makers
• Trash compactor

ENTERTAINMNET & COMMUNICATIONS

• 46” salon TV with Bose system
• 40” master TV
• 32” VIP TV
• 22” guest TV
• Fusion Marine audio zones
• 4G router

ENTERTAINMNET & COMMUNICATIONS

• 46” salon TV with Bose system
• 40” master TV
• 32” VIP TV
• 22” guest TV
• Fusion Marine audio zones
• 4G router

Listing MLS by Yachtr.com
