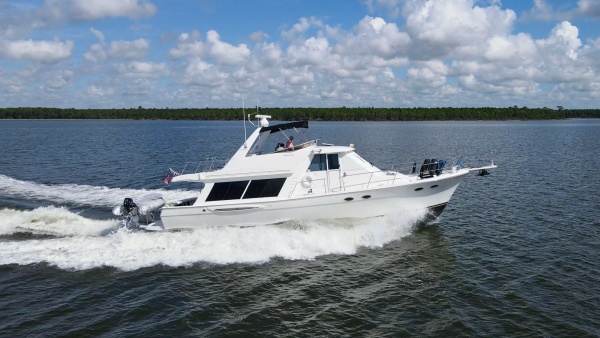

2007 Meridian 49' _{(14.94 m)} 490 SE Pilot House

VIP Aft Berth

·  Ground-fault-protected 110V outlet

·  Double berth with stowage under

·  Curtains

·  Drawers (2) under berth

·  Cedar-lined illuminated hanging locker

·  Nightstand

·  Overhead & reading lights

·  Shelf

Windshield and Canvas

·  Black bimini top

·  Bulkhead door cover

·  Pilothouse door covers

·  Tempered safety glass windshield

·  Windshield cover

Underwater Gear

·  Anti-fouling bottom paint

·  PSS dripless shaft seals by PYI

·  2.0" x 92" stainless steel propeller shafts

·  Bronze rudders & struts with rubber strut bearings

·  Bronze seacocks on all through-hull fittings

Components & Equipment

·  12V macerator

·  Raw water washdown (foredeck)

·  Rule bilge pumps – 1,000 GPH (5) and 210 GPH (1), manual & automatic

·  20-gal. water heater

·  Pressure-demand hot/cold water system

Electrical

·  12V horn

·  12V lighting fixtures

·  Onan 13kW diesel generator with 800 original hours (note replaced 2 years ago)

·  6V deep-cycle house batteries (2) and 105A engine start batteries (4)

·  ProMariner 50A battery charger/converter

·  Battery paralleling system

·  Battery switches (6)

·  CATV inlet

·  110V AC/12V DC distribution panel with magnetic circuit breakers, voltmeter, hour meters & ammeter

·  50A 125V/250 dockside inlet with 50' cords

·  Dual station spotlight

·  Electric heat (4 units, 110V)

·  12V navigation lights

·  Sacrificial anode with electrical bonding system

·  TV/telephone hook-up

Mechanical

·  High engine temperature/low oil pressure alarm

·  Forced-air ventilation blower

·  ETS electronic diesel engine controls

·  Internal sea strainers

·  Racor diesel fuel filters

·  Hynautic hydraulic steering

·  Bennett electric/hydraulic trim tabs

Hull and Deck

·  Bolt-on bow platform with anchor roller

·  Deck fittings – fuel fill (2), water fill (2), waste pump-out

·  Non-skid decks

·  Color-coded electrical system

·  Engine ventilation louvers

·  Rigid vinyl gunwale trim with stainless insert

·  Hand-laid fiberglass

·  Anchor line locker hatch with drain

·  Two Bomar translucent opening bow hatches with screens

·  Vinylester hull skin-coat

·  Marine core construction

·  Meets or exceeds applicable USCG safety standards

·  Mooring cleats (8)

·  NMMA-certified

·  Stainless opening portlights with screens

·  Welded stainless bow rails through-bolted to deck

·  Foredeck bench seat with removable cushions

·  Thermal & acoustical hull insulation

·  Bolt-on transom platform with retractable ladder & handrail

·  Expanded-back heavy-duty marine grade vinyls

·  Muir 12V reversing windlass

·  Opening side deck windows with screens

Cockpit

·  Fiberglass bulkhead with 3 fixed windows

·  Courtesy lights

·  Sliding locking cabin entry door

·  Three gas-assist hatches with bilge access

·  Hawse pipes (2)

·  Ladder to flybridge

·  Shore water connection

·  Molded steps to side decks

·  Port & starboard stowage lockers

·  Transom door

VIP Guest Head

·  Ground-fault-protected 110V outlet

·  Locking door with mirror

·  Molded reinforced fiberglass enclosed shower stall with glass enclosure

·  Exhaust fan

·  Medicine cabinet with mirrored door

·  Overhead lights

·  Stainless steel portlight

·  Stowage shelves

·  Towel bars

·  VacuFlush head system

·  Vanity cabinet with molded sink & stowage under

Notable Options and Electronics

• TENDER NOT INCLUDED
• Starboard engine repowered with new Cummins remanufactured QSB 5.9 380 HP long block (2025) – only 131 hours on new long block, total original engine hours are 2,000
• Cummins-certified warranty & follow-up service by Southeastern Marine (3/2026): rear main seal replaced, new Centa CF-R marine torsional coupling, aftercooler & intake manifold removed and cleaned, valve lash/overheads adjusted, new Walker AirSep twin-QSB air filter kit & CCV filter, sea-trialed and verified

Lower Helm

• (1) Garmin 7612xsv touchscreen MFD’s with GPS chartplotter, fish finder, and radar
• (1) GARMIN 7612’s touchscreen MFD’s with GPS chartplotter, fish finder, and radar
• GARMIN AIS send and receive
• GARMIN autopilot GCH 50 with standalone display
• Standard Horizon Explorer Marine VHF
• Standard Horizon Loud Hailer VLH-3,000
• Golight remote controlled spotlight / floodlight
• Vetus 24V bow thruster operated from both stations

Flybridge Helm

• (1) GARMIN 7212 touchscreen MFD with GPS chartplotter, fish finder, and radar
• (1) Garmin 545 MFD (this unit in not operable)
• Standard Horizon VHF
• Vetus 24V bow thruster operated from both stations
• Onan 13.5kW diesel generator with 800 original hours (note replaced 2 years ago)
• Three-zone Cruisair reverse-cycle A/C (2 x 16,000 BTU + 12,000 BTU)
• Battery Charger 60 AMP for engine and house batteries
• 50A/125-250V shore service one on Glenndenning Cable Master and one standard 50’ amp cord
• VacuFlush heads (2)
• Sea Water Pro 40 GPH watermaker
• Freedom tender lift
• Muir windlass w/ all-chain rode
• Fireboy fixed fire suppression
• 3 CO detectors
• Five automatic bilge pumps with high-water alarm
• Starlink Flat High-Performance internet antenna installed (12/2024)
• Both VHF external speakers replaced ICOM marine speakers
• Autopilot & GPS alarms installed (12/2024)
• Vetus bow thruster motor professionally rebuilt – rewound field coils & armature, new bearings, bench tested (11/2024); Two new Group 31 thruster batteries (1/2026)
• New ProMariner ProNautic 1240 three-bank 40-amp battery charger installed (4/2025) dedicated for bow thruster
• Full yard period at B&T Marine, Orange Beach (12/2025–1/2026): propellers removed, reconditioned & lapped; new rudder stuffing box packing/seals port & starboard; new cutlass bearings; bonding system renewed w/ new divers plate, bonding wire & stern zincs; turn-key bottom job upgraded to Biocop TF black anti-fouling; new port trim tab rams; all zincs replaced
• New 316SS hydraulic rams on Freedom tender lift – system bled and function tested (12/2025)
• New GeoShield Apex Ultra window film – Ultra 70 in pilothouse, Ultra 15 in salon; old failed film removed (2/2025)
• Complete exterior ceramic coating – 600-800 sanding, machine compound & polish of entire vessel, deep clean (Renew Marine Detail, 2/2026)

VIP Forward Head

·  Ground-fault-protected 110V outlet

·  Locking door

·  Molded reinforced fiberglass enclosed shower/tub stall with glass enclosure

·  Exhaust fan

·  Medicine cabinet with mirrored door

·  Overhead lights

·  Stowage shelves

·  Towel bars

·  VacuFlush head system

·  Vanity cabinet with molded sink & stowage under

VIP Forward Head

·  Ground-fault-protected 110V outlet

·  Locking door

·  Molded reinforced fiberglass enclosed shower/tub stall with glass enclosure

·  Exhaust fan

·  Medicine cabinet with mirrored door

·  Overhead lights

·  Stowage shelves

·  Towel bars

·  VacuFlush head system

·  Vanity cabinet with molded sink & stowage under

Master Forward Stateroom

·  110V outlets including two ground-fault-protected

·  Double berth with stowage under

·  Curtains

·  Locking cabin entry door

·  Drawers (6) under berth

·  Enclosed dressing area converting to berth with full-size hanging locker and 5 cedar-lined illuminated drawers plus double bunks with stowage under

·  Two cedar-lined illuminated hanging lockers with drawer and stowage below

·  Hatch access to line locker with mirror

·  Reading lights

·  Flat-screen TV

·  Hull-side shelves

·  Stowage cabinets

Companionway

·  Courtesy lights

·  Mechanical room access under stairs

·  Overhead lights

·  SPT Deep Freezer

Galley

• Ground-fault-protected 110V outlet
• Cabinet over refrigerator plus additional cabinet
• Drawers (6)
• Karadon custom solid-surface countertops (Kona)
• Microwave
• Norcold 7.0 cu. ft. 110V/12V refrigerator/freezer
• Overhead lights
• Stainless steel double sink with faucet
• Princess electric three-burner stove with oven
• Teak/holly flooring

Salon

• Ground-fault-protected 110V outlets
• Carpet (Irresistible Moments)
• (2) Chairs Port Side Salon
• High Low Cocktail table custom solid-surface
• Pacific Designer Package
• Engine room access
• Entertainment system with 24" flat screen TV & DVD player
• Ice maker
• Solid cherry interior wood with gloss finish
• L-lounge with Flexsteel Magic Bed
• Adjustable-height high gloss cherry table

Pilothouse

·  12V stereo with 2 speakers in pilothouse and 2 in salon

·  Chart locker with reading light

·  4.5" Rule flush-mount illuminated compass

·  Simulated wood dash panel

·  Port & starboard sliding locking doors to side decks

·  Dual station fuel tank senders

·  Electronic engine controls

·  Helm chair

·  Dual SmartCraft instrumentation

·  Jump seat with removable cushion & stowage under

·  L-lounge seat with removable cushions & stowage under

·  Pilothouse chart table

·  Stainless steel/wood grain steering wheel

·  Stowage cabinet above L-lounge

·  Fold-leaf removable table

·  Trim tab controls

FlyBridge

• Bench seat with removable cushions & stowage under
• Beverage holders
• 4.5" Rule flush-mount illuminated compass
• Courtesy lights
• Non-glare dash panel
• Door access to pilothouse
• Electronic engine controls
• Adjustable/swivel removable helm seat
• Dual SmartCraft instrumentation (tachometer, voltmeter, oil pressure, temperature)
• Radar arch with recessed lighting
• Welded stainless steel rails
• Stainless steel steering wheel
• Trim tab controls
• Venturi windscreen, aluminum frame
