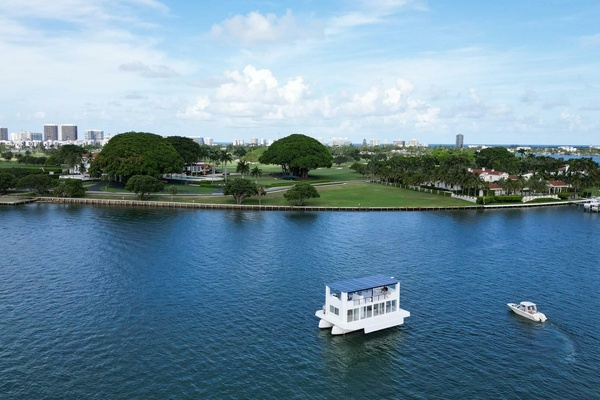

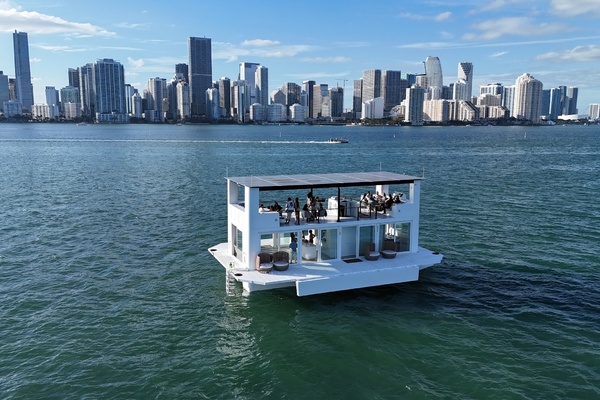

2025 Custom 50' _{(15.24 m)} 2025 Arkhaus Villa 50

Dimensions

Beam

• Decks Closed: 18'
• Decks Open: 35'
• Interior Length: 41'
• Interior Width: 16'

Power

• Battery: 75 kWh LiFePO4
• Recharge Time: 6 hours with solar

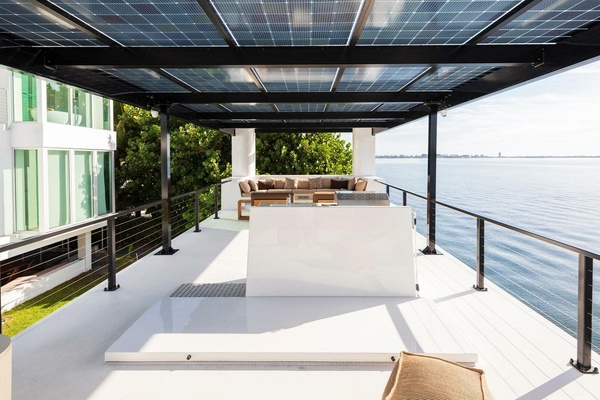

• Solar Canopy: 12 kW bifacial panels
• Inverter: 20 kW
• Backup: 15 kW diesel genset + shore power

Range

• Battery, 6 kts: 13 NM
• Battery, 4 kts: 32 NM
• Range Extender, 4 kts: 300 NM+

Navigation

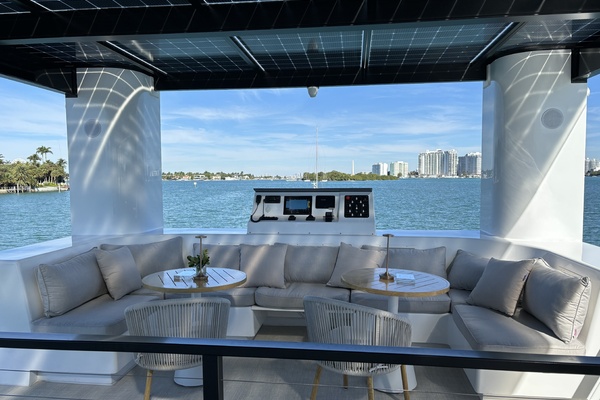

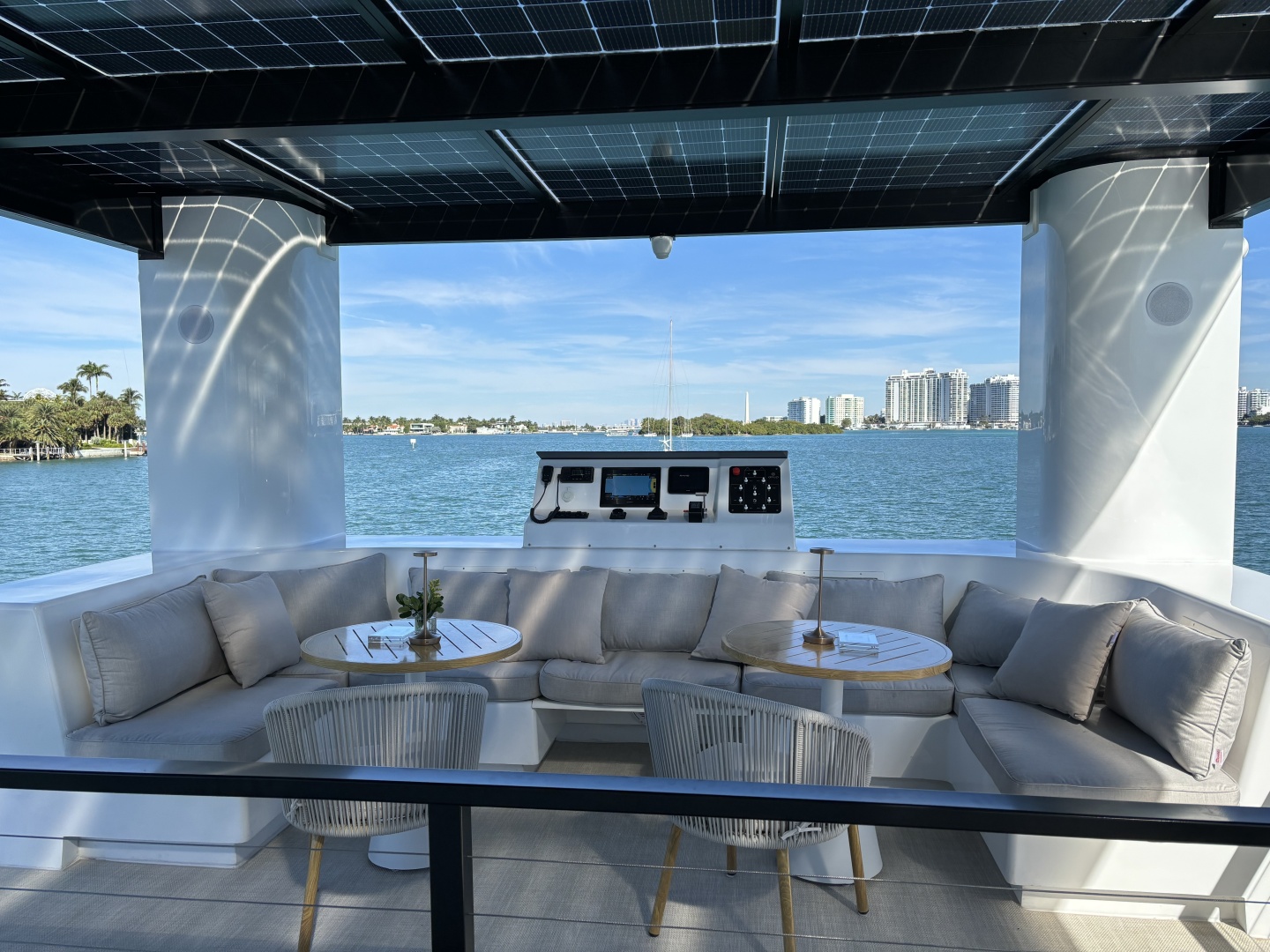

• Helm Station: Upper deck
• Anchoring: 4 spuds + backup traditional system
• Lighting: Navigation + anchor lights

Interiors + Rooftop

• Livable Space: 2,131 sq ft
• Interior: 661 sq ft
• Exterior: 661 sq ft
• Lateral Decks: 808 sq ft

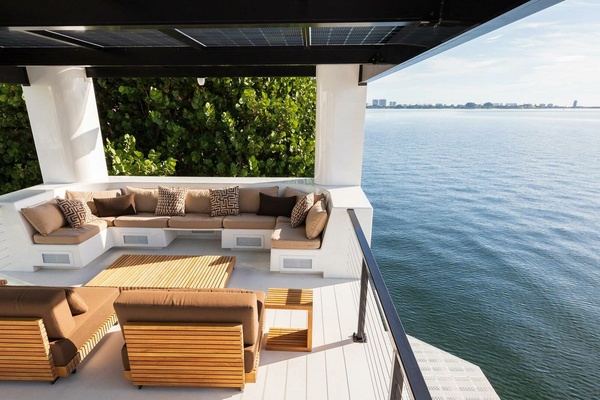

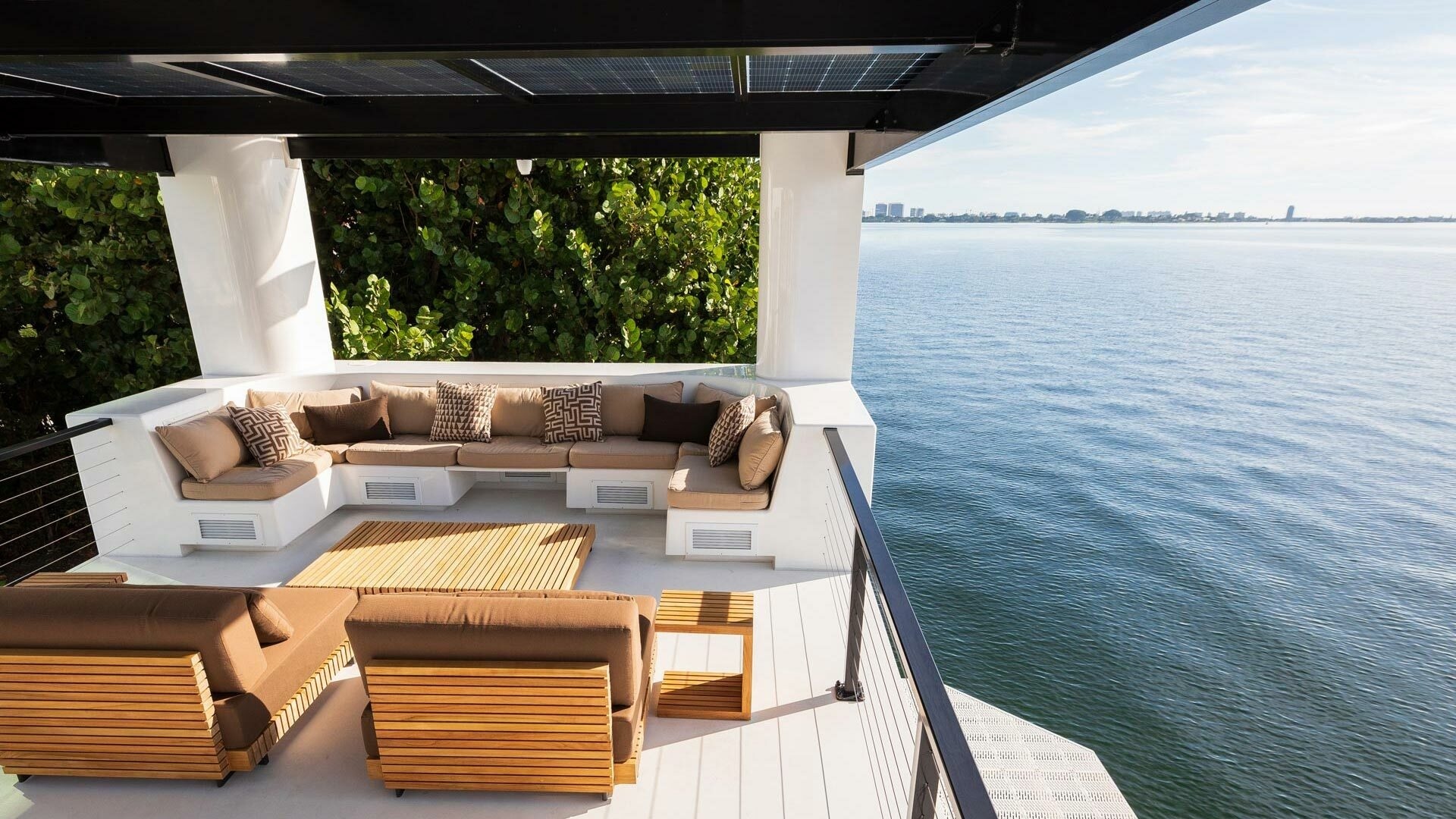

• Rooftop Terrace: two embedded seating areas

Propulsion

• Thruster: 50 kW inboard electric, 180 degree rotation
• Propeller: 23"
• Bow Thruster: 10 kW
• Max Speed: 6 knots
• Cruising Speed: 5 knots
• Solar Offset Speed (Full Sun): 4 knots

Hydraulic Systems

• Spud Length: 22'
• Anchoring Depth: 12' Max

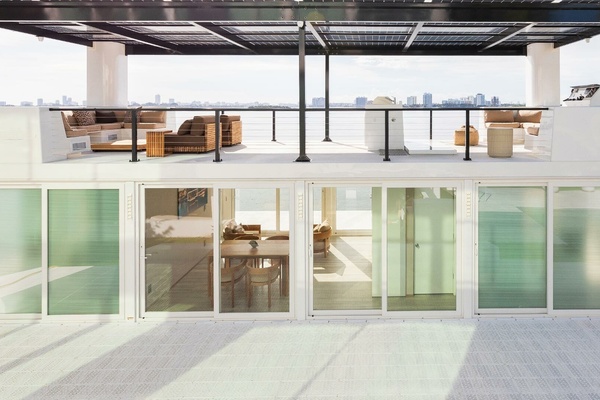

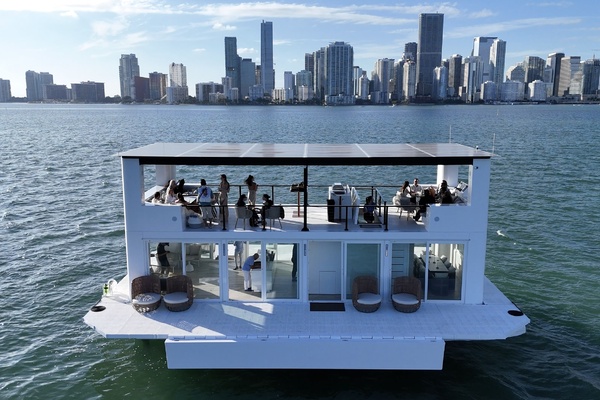

Folding Lateral Terraces

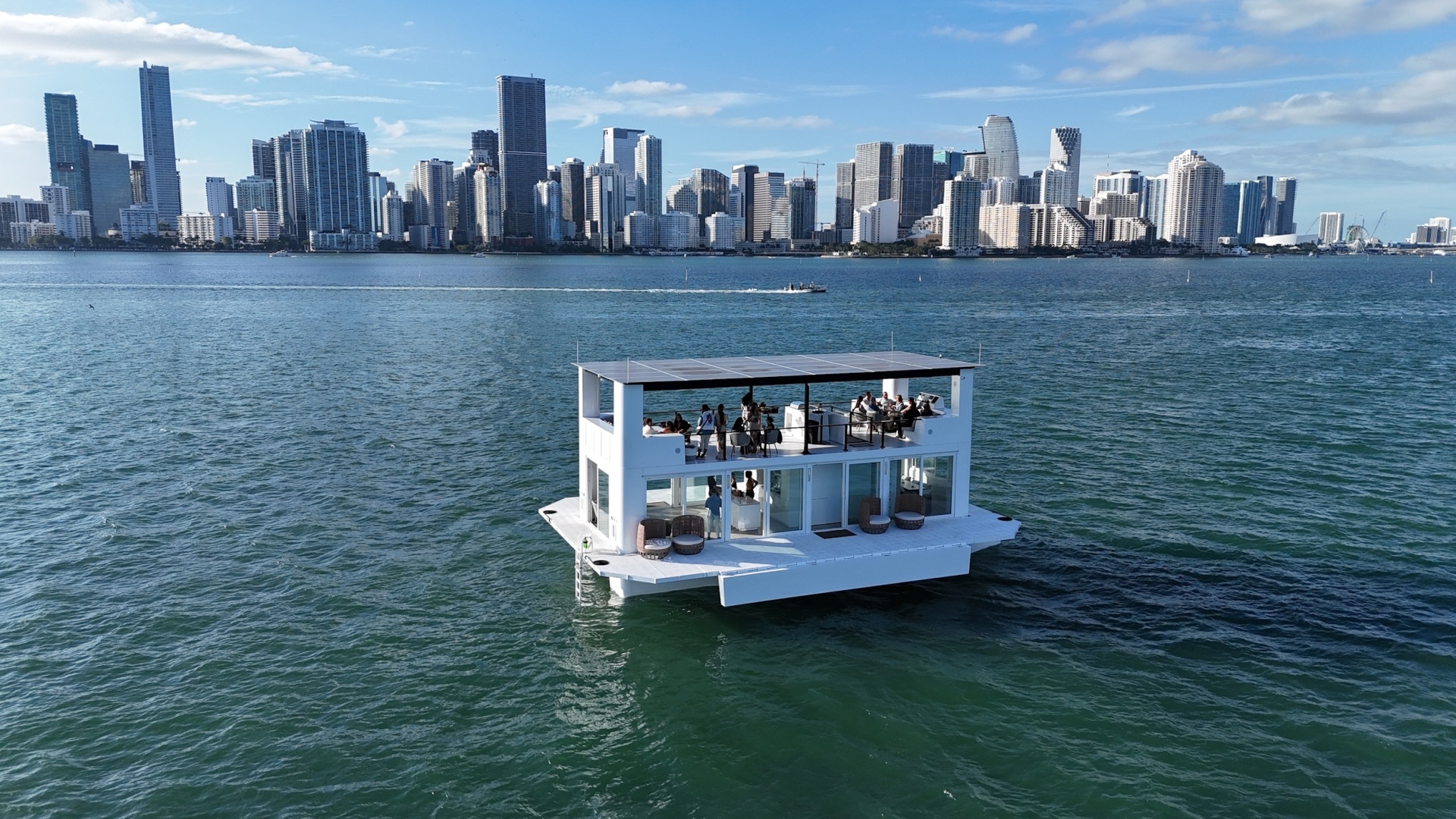

The Villa 50 extends its living footprint through hydraulically actuated lateral terraces — one on each side of the hull — that fold down from the vessel’s sides to create a wraparound outdoor deck at the lower level. When deployed, the terraces expand the vessel’s beam from 18 feet to 35 feet, adding approximately 650 square feet of perimeter terrace space to the 661 square feet of enclosed living space below.

When the vessel is underway or docking in a tight berth, the terraces fold upward and lock flush against the hull, returning the beam to 18 feet. The transition takes under two minutes and requires no tools. When moored, the terraces deploy to their full width and provide a continuous outdoor living surface connecting the bow deck, both sides, and the aft deck.

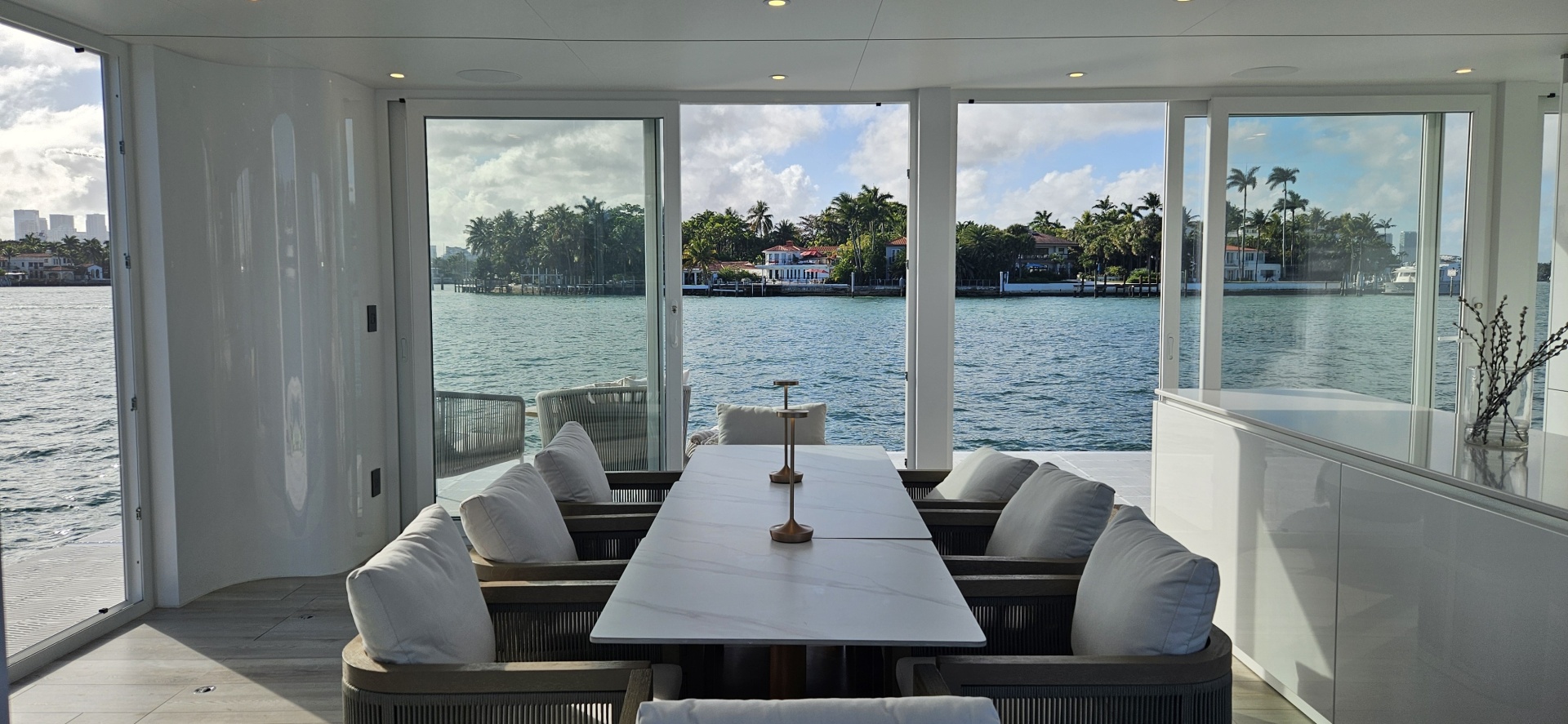

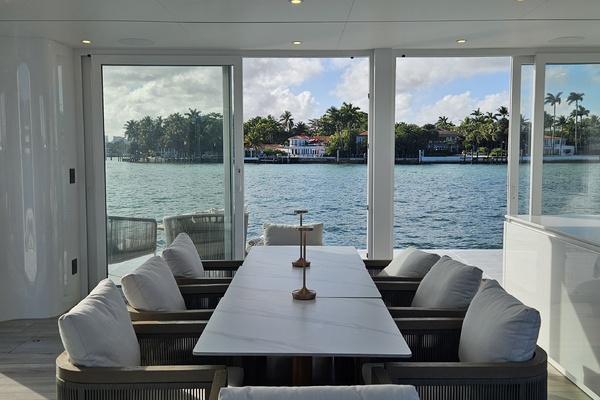

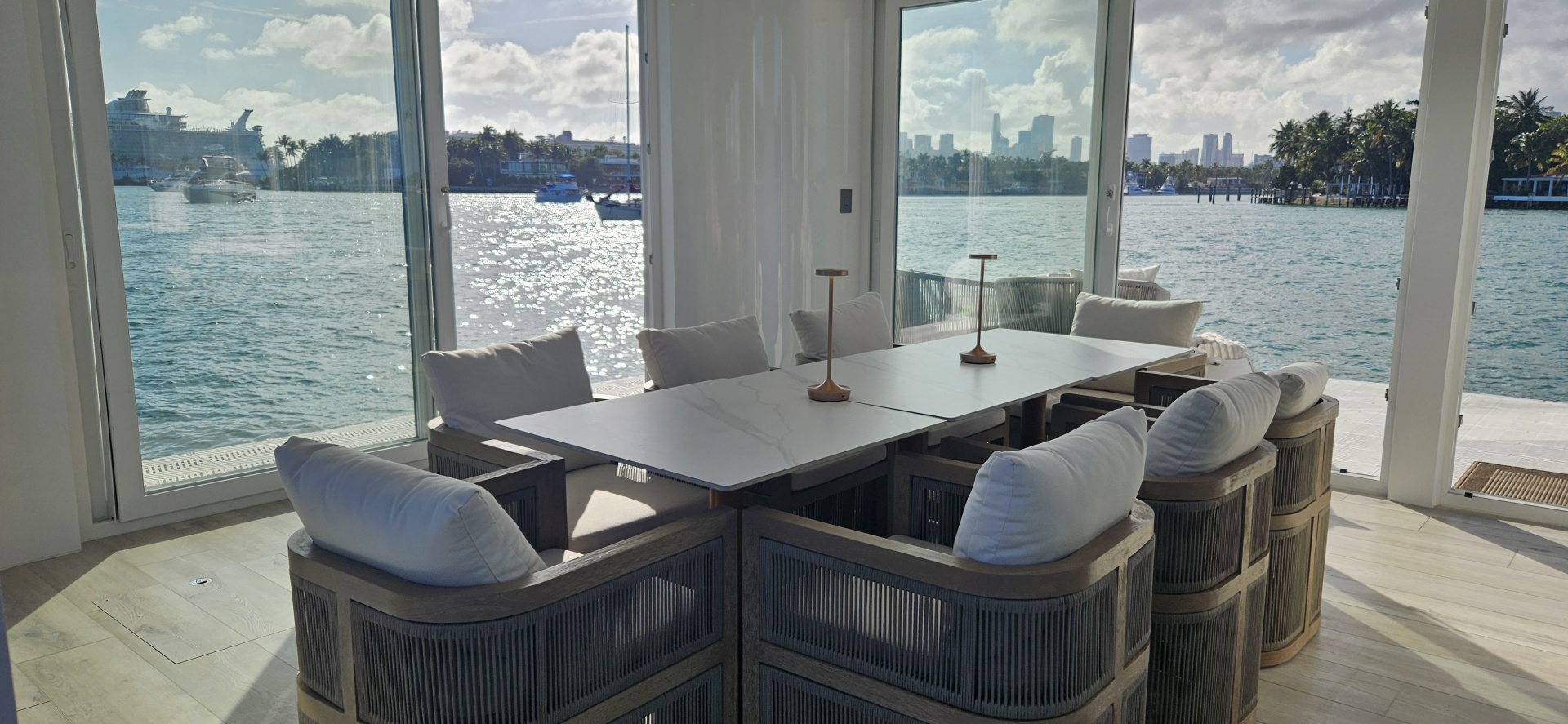

Interior

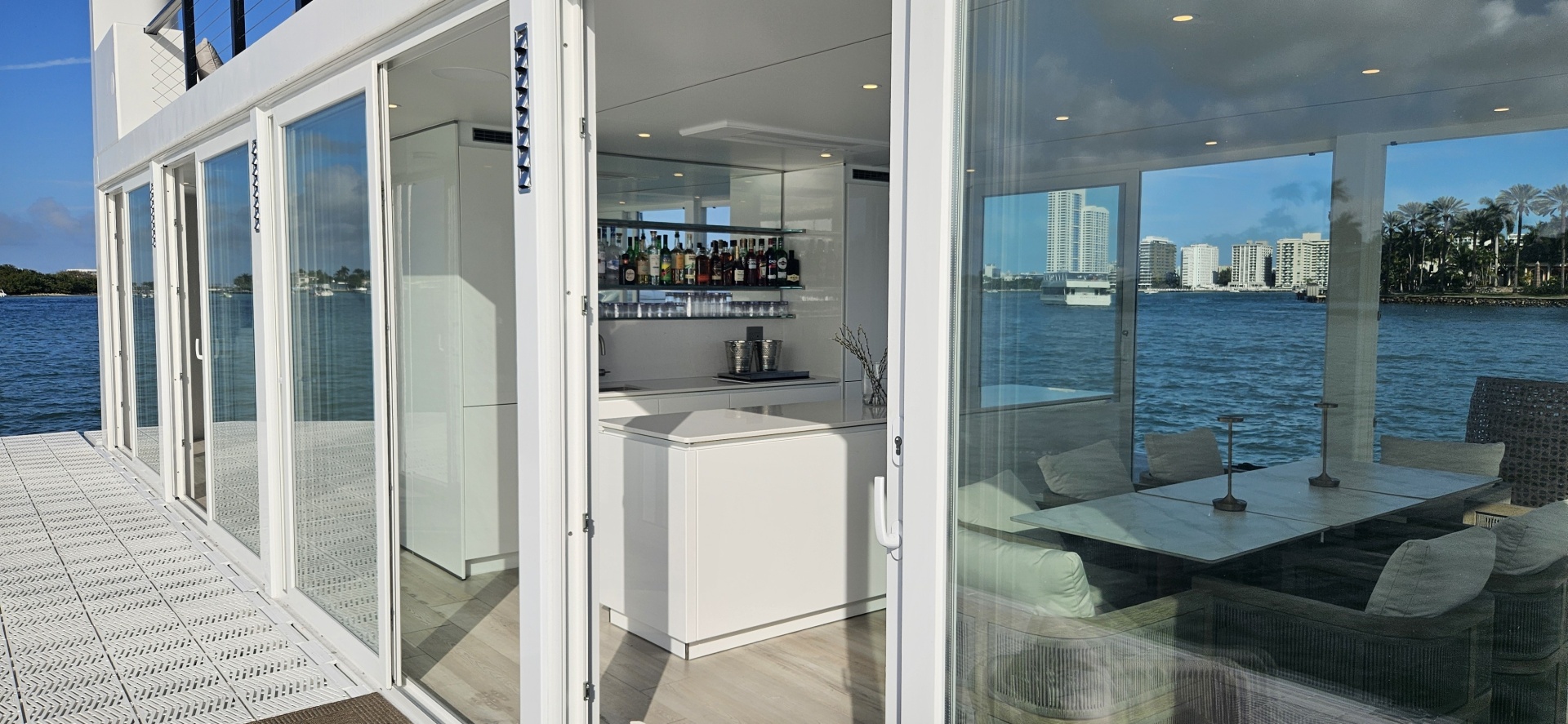

Open floor plan with front-facing bar, Häcker cabinetry, and an optional private dining room or bedroom. Two bathrooms, one convertible to a shower. 8-zone Sonos sound system throughout.

Kitchen

Massive kitchen island, double Miele refrigerator and freezer, induction stovetop, full-size oven, commercial dishwasher, and commercial ice maker.

Exterior

Open roof deck with embedded seating areas, full wraparound automated rolling shades for protection against rain and wind, Kenyon electric grill, ice maker, and sink. Hydraulic lateral decks.

Additional Information

Complete with safety equipment, lines, fenders, and everything else you need.
